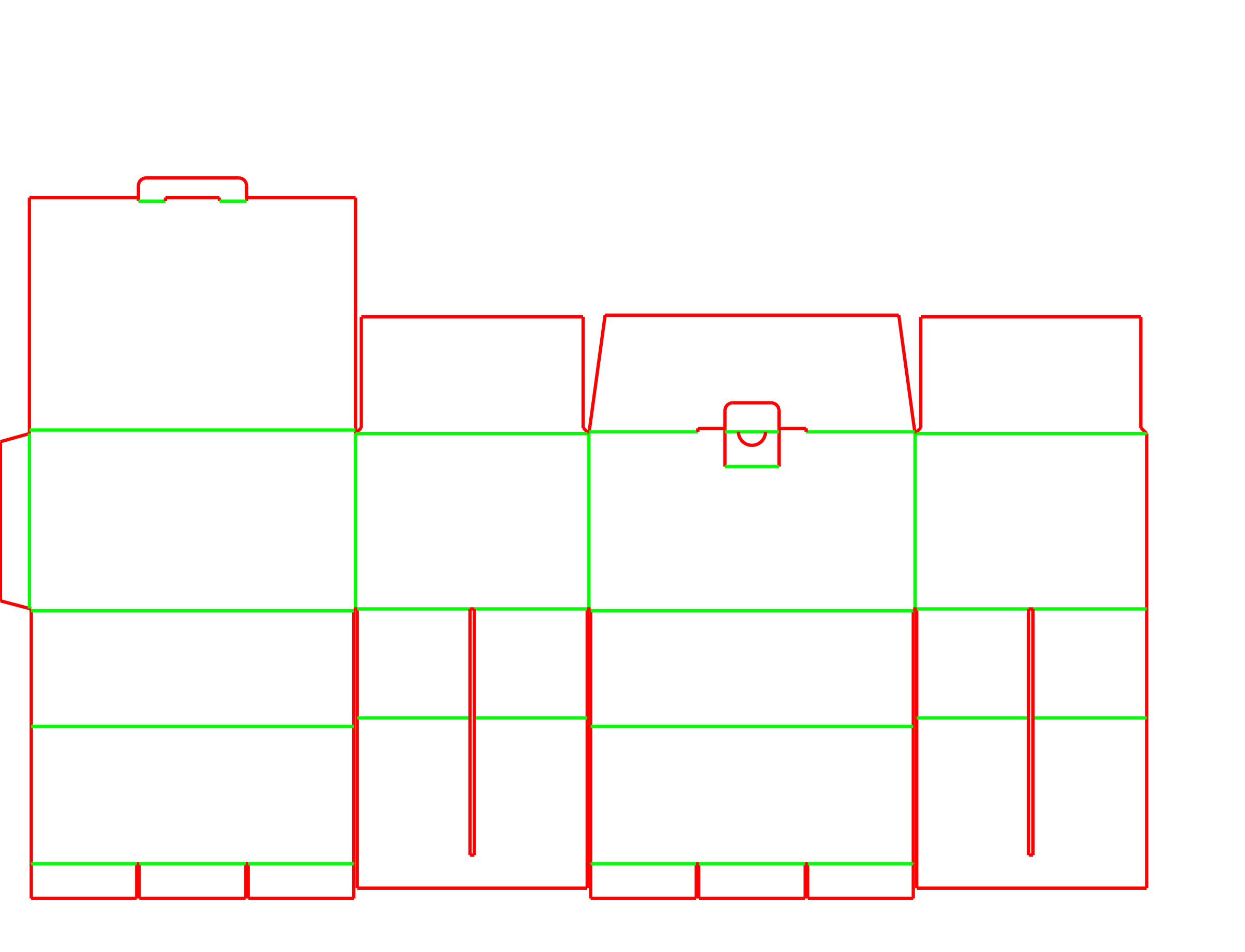

The EVC11302 is a one-piece corrugated box that folds to create its own internal 6-cell partition. Instead of ordering and managing a separate divider insert, the extended bottom flaps fold inward and upward, interlocking to separate fragile items like bottles, jars, or cosmetics.
This design simplifies inventory by keeping the outer box and the internal protection as a single unit. It features a tuck lid with a front edge lock for a clean closure, making it a practical choice for retail kitting and manual fulfillment lines.
The built-in grid prevents glass-to-glass contact, making this box a natural fit for candle sets, cosmetics, and specialty beverages. The dividers provide vertical crush resistance, adding strength to the overall package.
Single-SKU fulfillment programs
Managing separate boxes and partition inserts can complicate inventory and packing stations. This design keeps the entire package as one flat unit until the packer is ready to load the products.
Specialty beverage and sauce samplers
For multi-pack bottles, the 6-cell grid keeps heavy glass separated. The front edge lock provides a clean presentation when the customer opens the sampler.
Cosmetic and personal care sets
The individual cells hold jars and bottles upright, preventing them from shifting or tipping during transit and ensuring a neat unboxing experience.
Retail and E-commerce Contexts
E-commerce subscription boxes
The front edge lock provides a neat, secure closure that presents well upon opening. The internal grid keeps multiple items organized during transit, ensuring the presentation remains intact when the customer lifts the lid.
Retail shelf display and presentation
Because the dividers are formed from the bottom flaps, the top remains open and accessible once the lid is lifted. This allows retail staff to display the contents clearly without removing the items from their protective cells.
Dedicated manual packing stations
This box is often chosen for fulfillment centers where packers are trained to fold and load the one-piece design efficiently, as the bottom grid is formed by hand.
When to Consider Separate Inserts
Automated case erecting lines
Erecting the integrated bottom dividers involves interlocking the slots by hand. If your packing line uses automated equipment, a traditional box with a drop-in partition is often a faster, more predictable choice.
Heavy industrial components
The floor of this box is formed by the folded creases of the divider flaps. For very heavy items, a traditional glued-bottom box or a taped regular slotted carton provides a more rigid base against drop impacts.
Variable product counts
This specific template is designed for a fixed 6-cell grid. If your product counts change frequently, using a basic outer box with interchangeable drop-in inserts offers more flexibility.
Board, Assembly, and Closure Choices
Flute thickness and fold clearance
The complex folds required to form the bottom grid work well with thinner corrugated profiles, such as E-flute. Thicker boards like double-wall corrugated will bind and resist staying flat, making assembly difficult.
Bottom taping for parcel routes
While the top lid features a secure edge lock, the bottom floor relies on folded corrugated memory. If the box will ship through mixed courier networks with heavy contents, the bottom may need an outer tape seal to prevent the floor from unfolding under stress.
Print visibility on the internal dividers
The dividers are formed by folding the bottom flaps upward into the box. This means the inside liner of the corrugated board will be visible on the divider walls. If you need printed dividers, the inside of the corrugated sheet must be printed.
Material usage versus assembly time
Because the bottom flaps must be long enough to form both the floor and the vertical dividers, this box requires a larger flat corrugated blank than a regular carton. This trades higher material usage for the convenience of a one-piece design.
Modifying the Grid and Dimensions
Cell dimensions and overall box size
The overall length, width, and height can be adjusted to fit your specific products. The internal 2x3 grid scales proportionally with the outer dimensions, ensuring the cells remain evenly spaced.
Removing the front edge lock
If you prefer a simpler opening experience or plan to seal the box with a branded label, the front edge lock can be removed, leaving a friction-fit tuck lid.
Adjusting the internal divider height
The height of the internal partitions can be adjusted independently of the outer box height, as long as the bottom flaps have enough material to reach the desired height without interfering with the lid.
Packing details
Blank sprawl and material efficiency
The extended bottom flaps required to form the internal dividers increase the overall footprint of the flat corrugated blank. This can reduce the number of boxes that fit on a single sheet during production, which is a tradeoff for eliminating a separate partition insert.
Additional notes
Hand assembly and packing bench setup
Because the bottom grid involves manual interlocking, this box is often suited for dedicated packing benches rather than automated erecting lines.
A similar one-piece divider box, but with a basic tuck closure instead of the front edge lock.
FAQs
Does this box need special equipment to assemble?
It is delivered flat and typically assembled by hand. The packer pops the box open, pushes the bottom flaps inward to form the floor, and then folds them upward to interlock the divider grid.
Is this faster to pack than a box with a separate insert?
It depends on your packing station setup. It saves the time of retrieving and unfolding a separate insert, but interlocking the bottom slots takes a few seconds of manual alignment.
Can the number of internal cells be changed?
This specific template is designed for a 6-cell (2x3) grid. Changing the number of cells means a different layout and slot configuration.
Will the inside of the dividers be printed?
The dividers are formed by folding the bottom flaps upward into the box. This means the inside liner of the corrugated board will be visible on the divider walls. If you need printed dividers, the inside of the corrugated sheet must be printed.
Should the lid be taped for shipping?
The front edge lock provides a secure mechanical closure that resists accidental opening. However, for parcel shipping, an outer tamper-evident seal or tape is often added depending on the product weight and route.
What corrugated flutes fit this design?
Thinner profiles like E-flute or B-flute are often a better fit. The bottom flaps must fold 90 degrees twice in a tight space, and thicker boards will create too much tension for the grid to sit flat.
Can the dividers be made shorter than the full box height?
Yes, the height of the internal partitions can be adjusted. Shorter dividers use less corrugated board and can make it easier to grasp the top of the products.
How does the front edge lock work?
The lid has a small tuck tongue that snaps into a receiver hole on the front panel. This creates a mechanical hold that keeps the lid closed without relying solely on friction.
A practical one-piece solution for keeping fragile items separated and secure.
