EVC11921

Corrugated Snap-Lock Box with Hook-Lock Top

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Tape-free hook-lock top closure
Manual 1-2-3 snap-lock base
Delivered flat for hand assembly at the packing station

About this product

This corrugated box combines a 1-2-3 snap-lock base with a specialized hook-lock top, creating a clean, tape-free closure. The top outer flaps feature extended tabs that lock directly into cutouts on the inner dust flaps, securing the package for retail or presentation.

Because both the top and bottom closures rely on manual folding and insertion, this design trades automated packing speed for a premium unboxing experience. It is a strong fit for kitting, subscription boxes, and retail environments where appearance matters more than high-speed fulfillment.

Common uses

Retail kits
Subscription boxes
Inner master-pack cartons

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these boxes be packed?

What type of items are going inside?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail presentation and kitting

Retail kits and subscription boxes

The mechanical hook-lock top provides a deliberate, tape-free opening experience for the consumer. It keeps the exterior panels clean for branding and graphics.

Lightweight inner shippers

When used inside a larger master carton, the snap-lock base and hook top keep individual product sets securely separated without the need for individual taping.

Short-run promotional kitting

For limited-edition releases or influencer kits, the manual assembly is offset by the premium, interlocking presentation that avoids adhesive residue.

Shelf-ready retail packaging

The flat base provides stability on retail shelves, while the hook-lock top can be opened and reclosed by store staff if products need to be inspected or adjusted.

Fulfillment centers and hand-packing operations

Hand-packing operations

This box relies entirely on operator dexterity. The packer must fold the bottom flaps to engage the snap lock, load the product, and carefully align the top tabs into the dust-flap holes.

Brand-focused unboxing

For brands prioritizing the customer's first impression, the hook lock offers a unique presentation style that avoids the torn edges and residue associated with packing tape.

Third-party fulfillment (3PL) programs

If using an external fulfillment partner, the manual folding steps for both the top and bottom must be factored into the per-unit packing time and labor agreements.

When to consider glued bases or taped closures

High-volume repeat packing

If packing speed is the primary goal, a pre-glued crash-lock base opens automatically, saving labor time compared to folding a 1-2-3 snap-lock base.

Rough parcel transit

While the hook locks hold the top closed, heavy drops or crushing weight in a courier network can cause the mechanical locks to open. Parcel shipments often require an outer seal or a different box style.

Board thickness and closure clearance

Board profile and flute choice

Thinner profiles like E-flute or F-flute are usually preferred. Thicker boards like B-flute or double-wall make the hook tabs difficult to fold and insert without tearing the material.

Print surface and glue seam

The side seam can be glued on the inside or outside of the box. This placement should be decided based on where the primary graphics will be printed.

Packing labor and assembly time

Because both the top and bottom require manual folding, buyers should evaluate whether the tape-free presentation justifies the slower packing speed.

Outer shipping and route protection

If the package will ship individually through courier networks, an outer shipper or a clear wafer seal may be necessary to keep the mechanical locks secure during rough handling.

Adjusting the hook tabs and slots

Hook tab proportions

The length and width of the locking tabs, as well as the receiving holes, can be adjusted to match the chosen board thickness and ensure a secure fit.

Slot widths

Widening the slots between the flaps helps thicker corrugated board fold cleanly without binding at the corners.

Locking hole dimensions

The cutouts on the inner dust flaps can be sized up or down to change the friction fit of the hook tabs, balancing security with ease of opening.

Packing details

Prototyping the locking mechanism

Because the hook tabs rely on exact friction and clearance, a physical sample is highly recommended to verify that the top closes smoothly without tearing the inner flaps.

Additional notes

Testing the hook tab clearance

The exact size of the locking holes and tabs must be matched to the corrugated board thickness. A physical prototype helps confirm that the top can be closed by hand without forcing or tearing the board.

FAQs

How is the top closure secured?

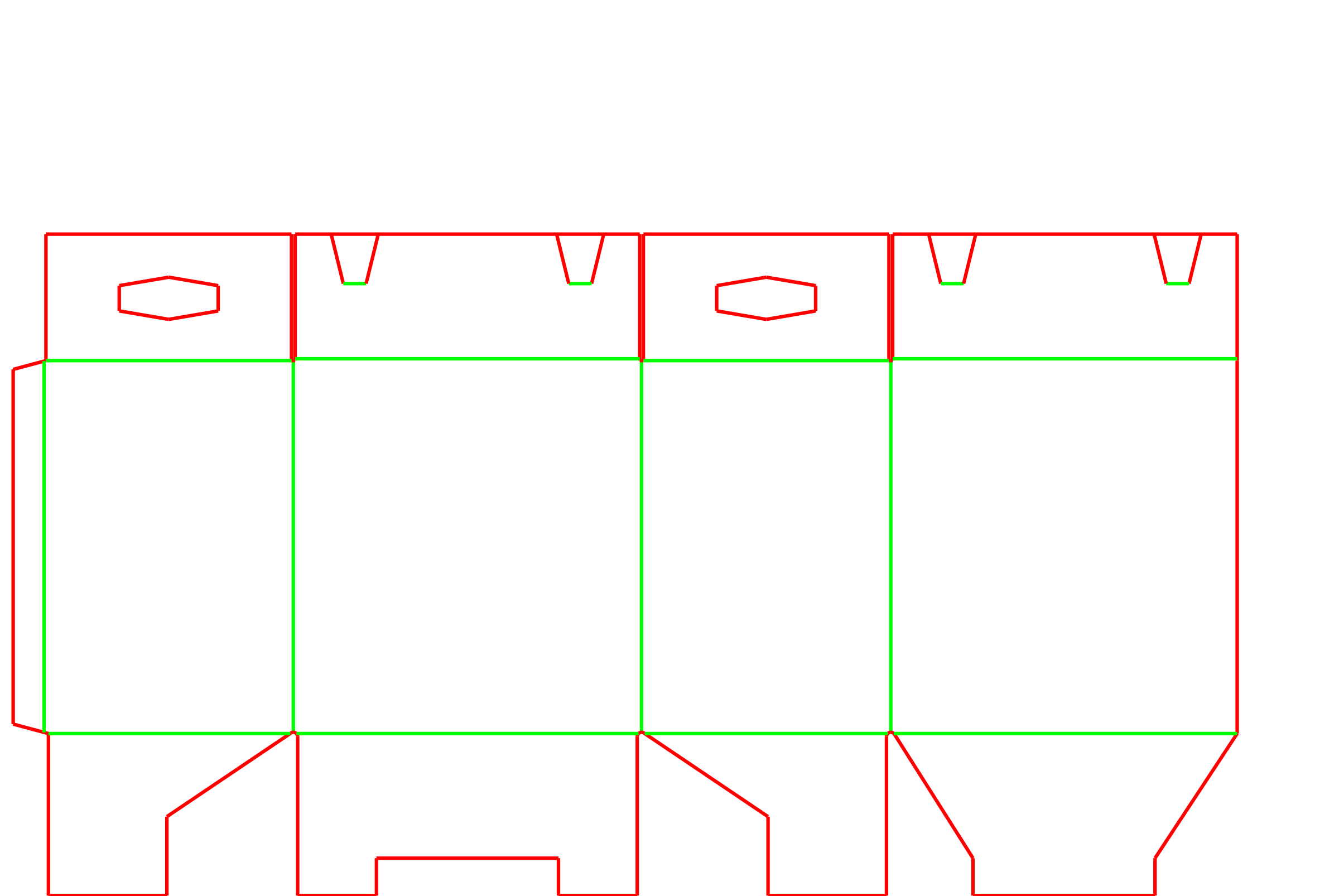

The two shorter inner flaps have rectangular cutouts. The two longer outer flaps have extended tabs that fold over and insert into those cutouts, locking the top closed without tape.

Is the snap-lock base faster to pack than a standard box?

It is faster than taping the bottom of a standard slotted box, but slower than a pre-glued crash-lock base. The operator must manually fold and interlock the bottom flaps before loading.

Can the top be opened and reclosed by the consumer?

Yes. The hook tabs can be carefully pulled out of the dust-flap holes and reinserted, making it useful for kits or storage boxes that are accessed multiple times.

Can this box be shipped through parcel networks without tape?

It depends on the product weight and handling. While the hook locks hold the top closed, rough courier handling or heavy drops can cause the mechanical locks or the snap base to open. Parcel shipments often require an outer seal or a different box style.

What corrugated board works best for the hook locks?

Thinner profiles like E-flute or F-flute are usually preferred. They provide enough stiffness for the box while allowing the hook tabs to fold cleanly and insert into the cutouts without tearing the material.

Does the hook-lock design require shaped cutting?

Yes. The intricate tabs and cutouts require flatbed die-cutting rather than simple straight cuts, which is standard for presentation-style corrugated boxes.

Can internal dividers be added to this box?

Yes. The flat base floor created by the snap-lock bottom provides a stable surface for corrugated partitions or custom inserts to separate multiple items.

Should we request a physical sample before ordering?

Yes. Because the hook tabs rely on exact friction and clearance with the corrugated board, a physical prototype helps confirm that the top closes smoothly without tearing the inner flaps.
