EVC41005

Stackable Corrugated Produce Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Interlocking corner tabs prevent lateral shifting on pallets
Double-wall ends and bench ledge support vertical loads
Base ventilation holes support airflow and drainage

About this product

This open-top corrugated tray handles demanding agricultural and bulk retail supply chains. It features double-wall ends, a reinforced top ledge, and raised corner tabs that interlock to stabilize tall pallet stacks.

Delivered flat for manual assembly, the tray uses a roll-end mechanical lock that secures into the base without tape or glue. Built-in ventilation holes and hand cutouts make it a practical choice for field-to-shelf produce and heavy retail displays.

Common uses

Field-to-shelf produce transport
Heavy bulk retail displays
Ventilated agricultural supply chains
Industrial parts staging

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Internal length

Internal width

Internal depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

About how much weight will each tray hold?

Will the trays be used in cold storage or damp environments?

Do you need printing on the outside walls or top ledge?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Field-to-Shelf Produce and Bulk Retail Display

Agricultural and produce transport

The open top, ventilated base, and interlocking corners make this tray a standard choice for moving produce from the field to the retail floor. The double-wall ends support the weight of stacked goods, while the base holes allow for airflow and moisture management.

Heavy bulk retail display

Because the tray arrives ready for the shelf, it works well for bulk items that need to be displayed immediately. The clean front and side panels offer uninterrupted space for branding, and the open top provides full product visibility.

Bakery and heavy pantry goods

For dense baked goods or packaged pantry items, the reinforced bench ledge helps distribute weight evenly across the pallet. The open top allows store staff to quickly assess inventory levels.

Industrial parts staging

Beyond food, the tray's double-wall ends and stackable tabs help organize heavy, non-fragile industrial components. The hand holes make it easier for warehouse staff to move loaded trays between workstations.

Agricultural Supply Chains and Palletized Transport

Palletized LTL and full truckload

The raised corner tabs are designed specifically for pallet stability. When stacked, the tabs of the lower tray nest into the base of the tray above, resisting the shear forces and lateral shifting that occur during transit.

Field packing and farm-level assembly

Because the tray locks together mechanically without tape or glue, it can be assembled directly in the field or at temporary packing stations. The flat delivery format keeps inbound freight efficient.

Retail-ready shelf programs

Store floors benefit from packaging that does not require unpacking. The tray moves directly from the pallet to the display aisle, reducing labor for retail staff while keeping the product contained.

When a Standard Tray or Outer Shipper Makes More Sense

Parcel and courier networks

This is an open-top tray designed for palletized transport. If the product will be shipped individually through a mixed-carrier or parcel network, it generally needs a fully enclosed outer shipper to protect the goods from inversion and rough handling.

High-speed automated packing

The complex roll-end folding sequence is optimized for manual assembly at a packing station. If your operation relies on high-speed, automated tray formers, a simpler machine-erected tray may be a more reliable choice.

Board Caliper, Flute Profile, and Packing Labor

Board caliper and folding tolerances

The roll-over bench and locking tabs rely on precise material thickness to fold and lock correctly. Changing from an E-flute to a thicker C-flute means adjusting the double-score widths in the template to prevent the board from cracking or the locks from binding.

Manual assembly labor

The tray is delivered flat and relies on a specific folding sequence: erecting the side walls, folding the corner flaps inward, and rolling the short ends over to lock into the base. Packers will need brief training to assemble the tray efficiently without tearing the locking tongues.

Stacking height and board grade

The intended pallet height dictates the necessary board strength. While the double-wall ends provide structure, the flute profile and paper weight should be matched to the total vertical load the bottom tray will bear.

Print surface and branding

The long side walls and the flat top bench offer visible surfaces for branding. Decide whether simple one-color flexographic printing is enough for warehouse identification, or if retail display warrants higher-quality graphics.

Modifying Ventilation, Hand Holes, and Stacking Tabs

Ventilation and drainage patterns

The size, shape, and spacing of the base holes can be adjusted to match the airflow or drainage requirements of specific produce, provided the changes do not weaken the central locking slots.

Hand hole placement

The lifting cutouts on the long walls can be resized or repositioned to accommodate different handling equipment or manual lifting preferences.

Corner tab height and locking slot width

The stacking tabs can be modified for different pallet interlocking needs. However, any change to the tab height or width means the corresponding base slots must also be updated to maintain a secure fit.

Packing details

Flatbed cutting expectations

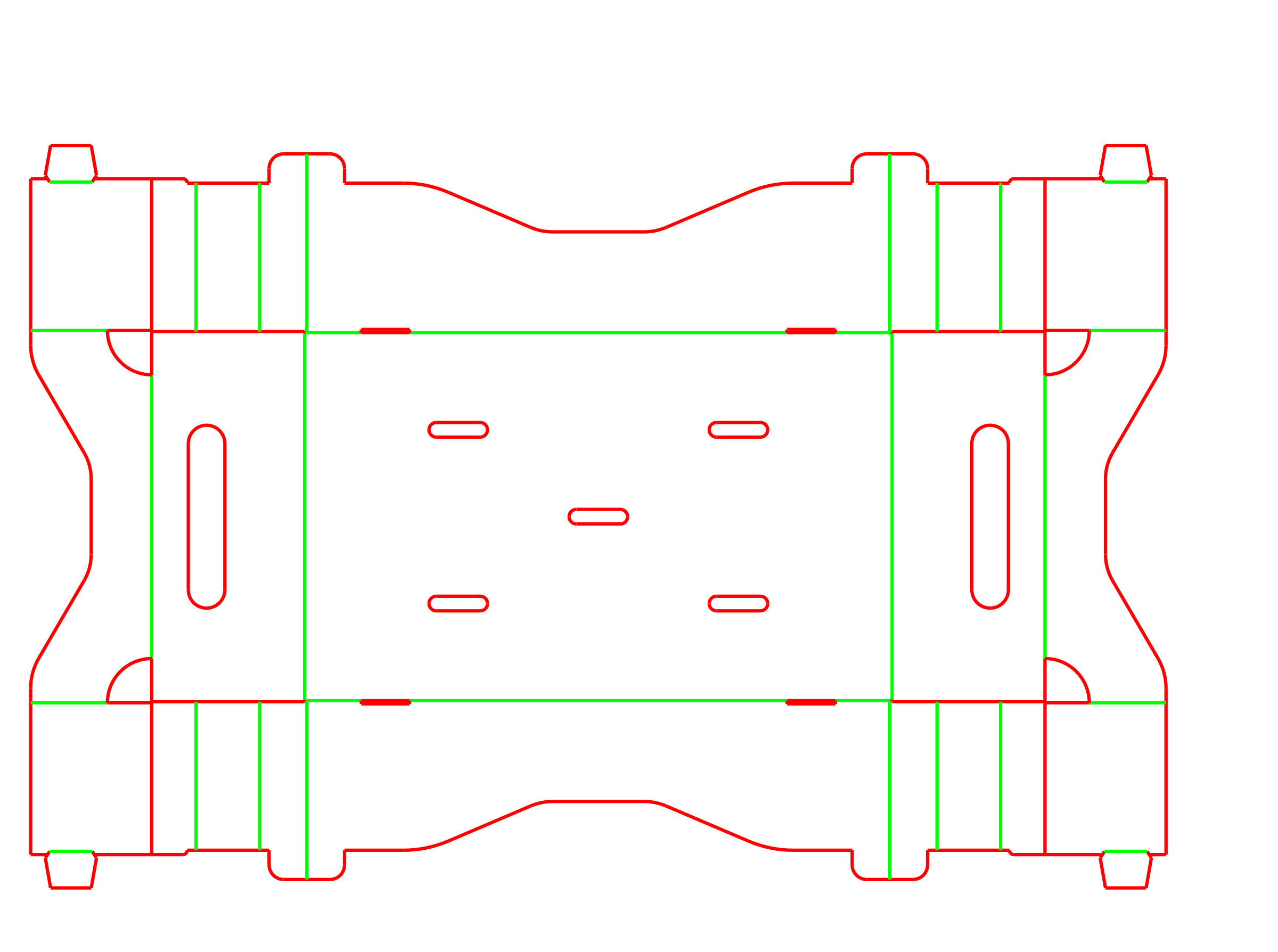

The sprawling blank, internal ventilation holes, and complex corner tabs usually mean flatbed cutting equipment. This tooling path is standard for agricultural trays but should be factored into prototype and production planning.

Additional notes

Flute profile and locking performance

The mechanical locks depend on the exact thickness of the corrugated board. If the flute profile changes, the template's folding clearances must be updated so the locking tongues and base slots still align.

FAQs

Does this tray require glue or tape to assemble?

No. The tray uses a native mechanical lock. The short ends roll over the side flaps and secure into the base panel using tuck tongues, holding the structure together without adhesives.

How does the tray stay stable on a pallet?

The folding sequence creates raised tabs at the four corners. These tabs nest into the bottom corners of the tray stacked directly above it, interlocking the column and preventing the trays from sliding sideways during transport.

Can I use a heavy double-wall board for this tray?

While possible, heavy double-wall board makes the roll-over bench difficult to fold cleanly without cracking. If extreme stiffness is required, the folding clearances and score lines should be carefully validated with a physical sample.

Can the height of the corner tabs be changed?

Yes, the stacking tabs can be adjusted, but their dimensions are tightly coupled to the locking slots and the overall bench geometry. Any changes should be tested to ensure they still interlock correctly with the base of the tray above.

Is this tray suitable for ecommerce shipping?

Not on its own. Because it has an open top, it provides no protection against inversion or individual handling in a parcel network. It usually needs an outer carton for ecommerce fulfillment.

How is this tray manufactured?

The complex perimeter, internal ventilation holes, and hand cutouts usually mean flatbed cutting. The trays are then shipped flat to the packing facility to maximize inbound freight efficiency.

Can we print on the inside of the tray?

Yes, the inside can be printed, but keep in mind that the roll-over bench means the outer face of the short ends actually folds inward from the main blank. Discussing the artwork layout early helps ensure the graphics land on the correct visible surfaces.

How do the corner tabs affect pallet wrapping?

The tabs sit flush with the outer perimeter of the tray, so they do not interfere with standard stretch wrapping. The wrap simply secures the outer walls while the tabs prevent internal shifting.
