EVC41020

Corrugated Display Tray with Stacking Ledges

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Reinforced perimeter ledges for secure stacking
Manual tab-and-slot assembly without tape or glue
Open-top design for retail display and ventilation

About this product

This open-top corrugated tray features a reinforced perimeter ledge that frames the product and provides a stable surface for stacking. Designed for retail-ready packaging, produce, and bakery displays, it delivers a clean, premium presentation on the shelf.

The tray assembles entirely by hand using a precise tab-and-slot locking system, eliminating the need for tape or glue. Because of the complex folding sequence, it is best suited for packing operations that rely on manual assembly rather than automated folder-gluer lines.

Common uses

Retail-ready packaging (RRP)
Produce and bakery transport
Internal parts kitting
Club store displays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How high will the full trays be stacked?

Where do you need printing or branding?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Display and Open-Top Transport

Retail-Ready Packaging (RRP)

The wide horizontal ledges on the short ends create a clean, structural frame around the product. This makes the tray an excellent choice for shelf-ready displays where presentation matters and multiple trays need to be stacked securely without crushing the contents.

Produce and Bakery Transport

The open top allows for ventilation and immediate product visibility, while the double-walled short ends provide the rigidity needed to carry delicate goods. The ledges help distribute weight when trays are stacked on pallets or delivery carts.

Internal Parts Kitting

For manufacturing or assembly environments, the open top provides quick access to components. The rigid perimeter ledges make the tray easy to carry between workstations, and the tape-free assembly allows teams to build trays on demand.

Club Store and Bulk Retail Displays

In environments where products are sold directly from the pallet, the reinforced ledges provide the necessary stacking strength. The wide top surfaces also offer additional space for pricing or promotional branding visible from above.

Retail, Produce, and Kitting Environments

Manual Packing and Fulfillment Centers

This tray relies on a specific multi-step folding sequence where side tabs lock into slots on the long ledges. It is designed for fulfillment centers and pack benches equipped for hand assembly, as the intricate locking mechanism is not a fit for automated erecting equipment.

Retail Merchandising and Shelf Restocking

Store employees can quickly lift and stack these trays without unpacking individual items. The structural ledges keep the stacked trays stable, reducing the risk of product damage during restocking.

Agricultural and Bakery Distribution

Growers and bakers use this style to move goods from the facility to the retail floor in the same package. The open design prevents moisture buildup, while the sturdy corners handle the physical demands of distribution.

When to Consider a Simpler Tray

High-Speed Automated Packing

If your packing line relies on automated folder-gluers or case erectors, the complex tab-and-slot system of this tray will cause bottlenecks. A machine-erected tray or a glued four-corner tray is a better choice for automated volume.

Direct Parcel Shipping

Because the top is completely open, this tray cannot be shipped through courier networks on its own. If the product needs to ship directly to a consumer, compare this to a roll-end tuck-top mailer, or plan to place this tray inside a master shipping carton.

Board, Print, and Assembly Choices

Flute Profile and Locking Clearance

E-flute is the recommended starting point because it allows the locking tabs to insert smoothly into the ledge slots. Thicker boards like B-flute can increase stacking strength but require careful CAD adjustments to ensure the tabs still fit without crushing the corrugated material during hand assembly.

Print Surface Placement

The interior base and the top horizontal ledges are highly visible to the consumer. When planning artwork, consider whether a two-sided print is necessary to brand both the outside walls and the inner display surfaces.

Stacking Weight and Board Grade

The weight of the products and the planned stacking height dictate the required board strength. Discuss the pallet configuration with your manufacturer to ensure the double-walled ends and ledges can support the load without buckling.

Tooling and Flatbed Die-Cutting

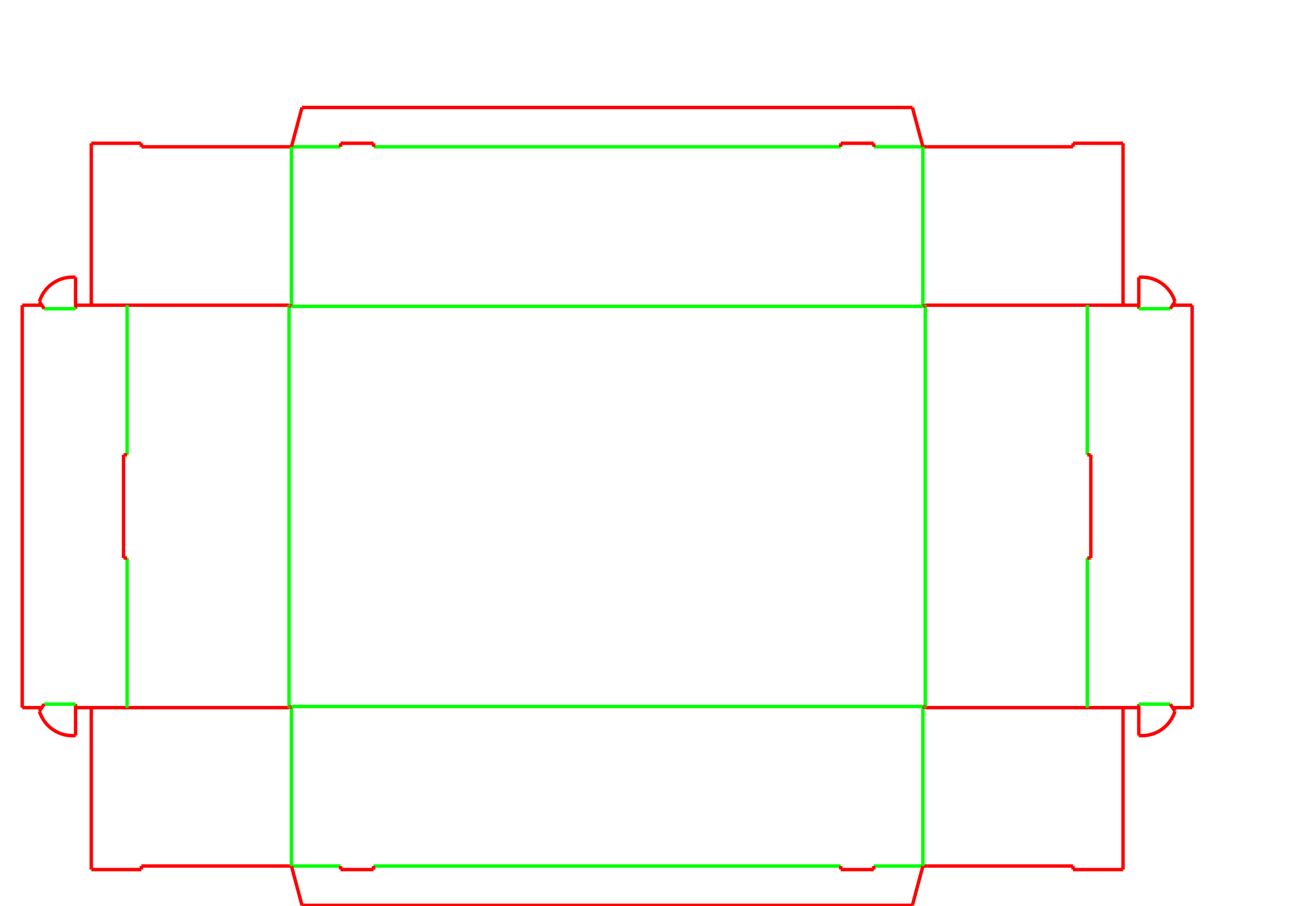

The intricate slots and tabs rely on precise flatbed die-cutting. The flat blank has a relatively large footprint due to the extended wall panels, which is a factor when planning material yield and production routing.

Modifying the Ledges and Dimensions

Adjusting the Bench Width

The width of the short-end ledges can be modified to create a wider frame or to accommodate different stacking requirements. Changing this width requires verifying that the locking tabs still align correctly with the side slots.

Modifying the Narrow Side Ledges

The long-side ledges can also be widened to provide more top coverage or a larger branding surface. This adjustment changes the overall display opening and must be balanced against product visibility.

Adjusting the Locking Tab Clearances

If a thicker board grade is selected for heavier payloads, the slots and tabs must be resized. A physical prototype is necessary to confirm that the packers can still assemble the tray without excessive force.

Packing details

Prototyping the Friction Fit

Because the tray relies entirely on mechanical locks, a physical sample is critical. The prototype verifies that the tabs insert smoothly without tearing the board and that the assembled tray holds its shape during handling.

Additional notes

Manual assembly time for the tab-and-slot locks

Because the ledges and tabs must be folded and locked by hand, this tray requires more assembly time than a standard glued carton. Fulfillment centers should account for this manual labor when planning large retail rollouts.

FAQs

Does this tray require tape or glue to stay assembled?

No. The tray uses a mechanical locking system where tabs on the short ends insert into slots on the long ledges, holding the structure together securely without adhesives.

Can this tray be erected on automated packaging machinery?

This design is intended for manual assembly at a packing bench. The multi-step folding sequence and tab insertions are generally too complex for standard automated folder-gluers.

Which board thicknesses work well for the locking tabs?

Thinner profiles like E-flute are recommended because they allow the tabs to fold and lock cleanly. If a thicker board is needed for heavier products, the slot dimensions must be adjusted and tested with a physical sample to ensure the packers can still assemble it easily.

Can I ship this tray directly through a parcel courier?

No. The open-top design means contents will spill during courier transit. For parcel delivery, this tray must be packed inside a closed outer shipping box.

Which panels are most visible for retail branding?

In addition to the outer walls, the top horizontal ledges and the interior floor are highly visible when the tray is displayed on a shelf. These areas are prime locations for branding or product information.

Why is a physical sample important for this tray?

A prototype confirms that the locking tabs fit into the slots with the correct amount of friction. It also allows your packing team to test the manual folding sequence and estimate assembly time before committing to a full production run.

How does the tray support stacked weight?

The wide bench ledges and double-walled short ends transfer vertical weight down to the base, allowing multiple loaded trays to stack securely on a pallet or retail shelf.

Can the width of the stacking ledges be changed?

Yes. The wide short-end ledges and the narrow long-side ledges can be adjusted to frame your product differently, though the locking tabs must be recalculated to ensure a tight fit.
