Corrugated Display Tray with Bench Support

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Hollow bench supports create a structural display frame
Assembles by hand with snap-in base locks and no glue
Open-topped design relies on an outer shipper for transit

About this product

The EVC41024 is a single-piece corrugated tray featuring wide, hollow horizontal ledges, or benches, along two opposite sides. These benches create a premium framing effect for retail displays and provide a rigid structure to trap and hold custom inserts.

Delivered flat and assembled by hand without adhesive, the bench panels roll over the side dust flaps and lock into the base. Because the tray is open-topped, it relies on an outer carton or sleeve for shipping.

Common uses

Retail Shelf Displays
Framing Custom Inserts
Premium Product Kitting

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall length

Overall width

Overall height

Bench width

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Will this tray hold a custom insert or partition?

How will this tray be shipped?

How will these trays be packed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Presentation and Insert Framing

Retail Shelf Displays

The wide bench ledges elevate the presentation of the product, giving a standard corrugated tray the visual weight of a premium rigid box. It stacks well on shelves when properly sized to the product.

Framing Custom Inserts

The hollow benches are useful for trapping die-cut inserts or partitions. The insert can sit in the central base area, held in place by the overhanging ledges.

Component Organization

For heavy or loose parts, the rigid perimeter created by the rolled benches helps contain items while keeping them fully visible and accessible.

Open-Top Bin Displays

When used as a dump bin for smaller retail items, the thick bench walls provide a clean, finished edge that hides the raw corrugated flutes.

Merchandising and Kitting

Premium Product Kitting

For multi-item kits, the bench structure provides a finished edge that improves the unboxing experience when the tray is pulled from its master shipper.

Manual Fulfillment Operations

This tray is designed for hand-packing stations. The assembly involves rolling the bench panels over the dust flaps and seating four locking tabs simultaneously, which should be factored into fulfillment time.

Merchandising and Retail

Brands looking to upgrade from a basic folded tray can use the bench design to create a more substantial, framed look without moving to rigid board packaging.

When to Consider a Different Tray Style

High-Speed Automated Packing

If your packing line relies on automated folder-gluers or tray erectors, a standard glued-corner tray or machine-erected carton is often a better fit. This bench tray relies on manual folding and locking.

Direct Parcel Shipping

Because this tray has no native lid or seal, it is not designed to ship through courier networks on its own. If you need a standalone shipper, a roll-end tuck-top mailer is worth comparing.

Board Choice and Assembly Planning

Flute Profile and Board Grade

E-flute is usually a strong choice for this tray. It provides a crisp fold for the multi-creased bench and keeps the locking tabs precise. Heavier flutes like B or C can cause the roll-over folds to crack and make the tabs difficult to seat.

Print Routing and Artwork

Because the bench tops fold over from the outside of the blank, the inside of the flat sheet becomes the visible top surface of the bench. Artwork should be mapped carefully so branding appears on the correct faces.

Insert Design and Clearance

If adding a custom insert, the design should account for the corner locking posts. The insert needs to clear these posts while still sitting securely under the bench overhang.

Outer Shipper Selection

Since the tray is open, you will need to choose a master carton, mailer, or protective sleeve for transit. The outer box should fit snugly to prevent the tray from shifting and to protect the exposed products.

Adjusting the Bench and Flaps

Bench Width

The horizontal depth of the bench can be widened for a more dramatic frame or narrowed to maximize the central usable space. Very wide benches may need an insert to prevent the center span from sagging.

Dust Flap Height

The side dust flaps support the bench from underneath. Their height can be adjusted to keep the bench level and prevent the bench from sagging under top-down pressure.

Central Cutout Profile

The gap between the inner bench walls can be modified to accommodate specific insert shapes or larger products, as long as enough material remains for the corner locking tabs.

Packing details

Central Cutout and Base Locks

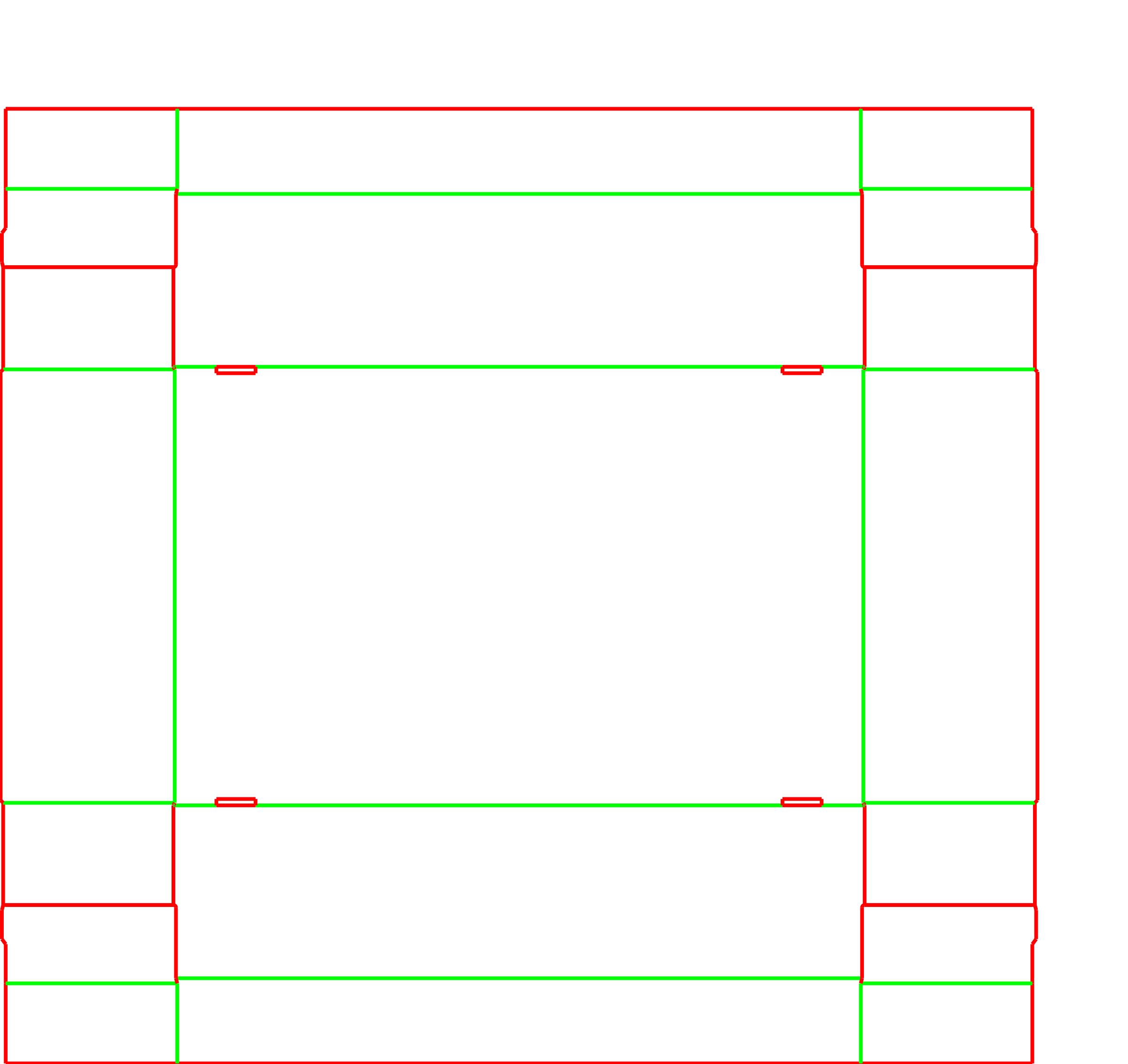

The inner vertical wall of the bench does not run the full length of the tray. It drops down to lock into the base only at the corners, leaving the center open. This bridge design relies on flatbed die-cutting and clean stripping during production.

Additional notes

Insert clearance and retention

The overhanging bench ledges naturally trap inserts or partitions, preventing them from shifting upward. When sizing an insert, ensure it clears the corner locking posts.

FAQs

Does this tray need glue or tape?

No. The tray is held together by four locking tabs that snap into pre-cut slots in the base panel. It is designed for manual, adhesive-free assembly.

Can this tray be erected by machine?

This specific bench structure is designed for manual assembly at a packing station. The complex roll-over fold and simultaneous tab locking are generally not suitable for standard automated tray erectors.

Can I ship this tray through the mail?

Not on its own. The tray is open-topped and relies on mechanical locks. It should be placed inside a master shipper, mailer box, or protective sleeve for parcel transit.

Will the bench support heavy items placed on top of it?

The bench is supported at the corners by the inner walls and along the edges by the dust flaps. However, the central span of the bench is hollow underneath. Heavy top-down pressure in the middle may cause it to sag unless a supporting insert is used.

Which board thicknesses work well for the bench fold?

Thinner boards, such as E-flute, are often a strong choice. They allow the multiple close creases of the bench to fold cleanly without cracking and help the small locking tabs fit precisely into the base slots.

Why is the inner wall of the bench cut away in the middle?

The discontinuous inner wall allows the tray to lock securely at the corners while leaving the central base area completely open. This makes it easier to load wide products or fit a single, large custom insert.

How does the bench stay in place?

The bench panels roll over the side dust flaps and feature small tabs at the ends. These tabs snap into slots in the base panel, locking the entire structure without adhesive.

Can I print on the top of the bench?

Yes, but because the bench folds over from the outside of the tray, the top surface of the bench is actually the inside of the flat corrugated sheet. Your artwork layout should account for this folding behavior.
