Corner Lock Corrugated Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Manual assembly with mechanical corner locks
Ships flat (KD) with zero gluing required
Open top for retail display, produce, or kitting

About this product

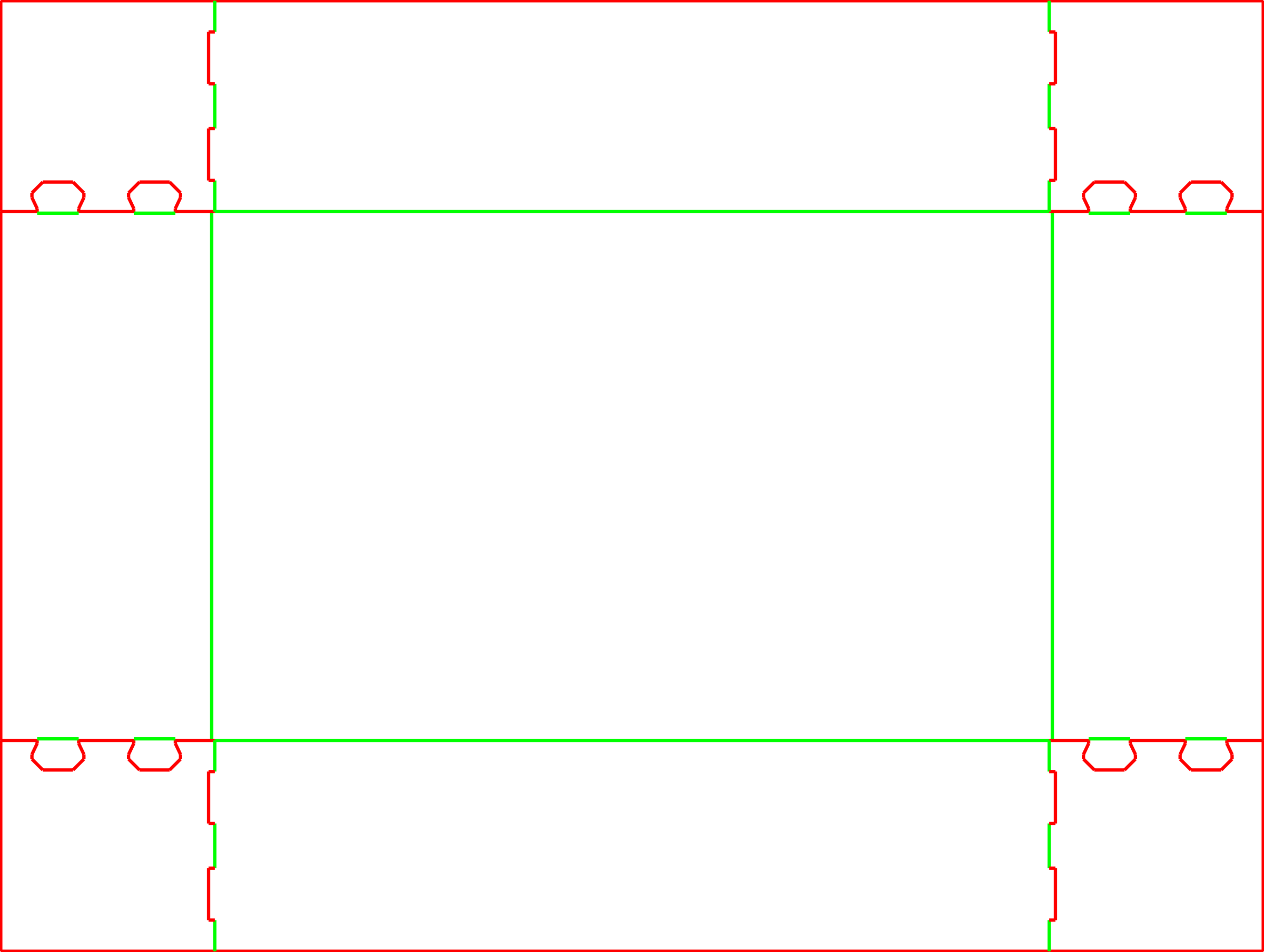

The EVC41041 is a one-piece, unglued corrugated tray that ships flat and locks together by hand. The long walls fold up to position corner flaps inside the tray, while the short walls fold up on the outside, inserting tuck tongues into pre-cut lock holes to secure the shape.

Because it assembles without glue or tape, this tray is useful for manual packing lines, retail shelf displays, and internal kitting. However, the four-corner manual assembly takes time, and the open top means it needs an outer shipper or wrap for parcel transit.

Common uses

Retail shelf display
Produce and bakery
Internal kitting and parts sorting
Master-packed secondary packaging

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these trays be shipped or transported?

Where will these trays be assembled and packed?

What type of items will go inside the tray?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail, Produce, and Kitting Applications

Retail shelf displays

The clean exterior walls and open top make this tray well-suited for displaying loose items or secondary packaging on retail shelves. The mechanical locks hold the tray square without visible adhesive seams.

Produce and bakery transport

The unglued, open-top layout allows for ventilation and easy access, making it a common choice for agricultural goods and baked items moving through controlled supply chains.

Internal kitting and parts sorting

For manufacturing or assembly environments, these trays can be erected on demand to organize components. The flat delivery minimizes storage space on the factory floor before use.

Master-packed secondary packaging

When smaller retail cartons need to be grouped for distribution, this tray acts as a stable base that can be loaded into a larger shipping box and easily removed at the destination.

Fulfillment and Store-Floor Setup

Manual packing operations

This tray is built for hand assembly. It eliminates the need for automated gluing equipment or taping stations, making it a practical choice for low-to-medium volume runs or decentralized packing stations.

Agricultural and field packing

Because the trays ship flat and assemble without machinery or power, they can be set up directly in the field or at temporary packing stations for immediate loading.

Retail-ready fulfillment

For supply chains where the package goes straight from the pallet to the store shelf, the open top and clean folded corners present the product without requiring store staff to cut open a sealed box.

When to Consider Glued or Covered Trays

High-speed automated packing

If your packing line relies on automated tray formers, a mechanical lock tray may slow down the process. Review a standard four-corner glued tray that can be erected quickly or formed by machine.

Parcel and courier shipping

Because this tray has an open top and relies on friction locks, it is not meant to travel alone through courier networks. If shipping directly to a consumer, consider a roll-end lock-front mailer or pair this tray with a fitted master shipper.

Board Thickness, Tooling, and Print Surfaces

Flute profile and lock stiffness

The tuck tongues and lock holes rely on the board's thickness to seat correctly. Thinner boards like E-flute or B-flute fold cleanly and lock securely. Thicker corrugated boards can make the corner folds too bulky for easy manual assembly and may cause the locking tabs to bind.

Die-cutting requirements

Because the tray features internal lock holes and shaped tuck tongues, it is produced using flatbed die-cutting. This provides precise, clean cuts for the locking mechanism but requires specific tooling.

Print panel orientation

The primary visible print surfaces are the outside faces of the long and short walls. The corner flaps fold to the inside of the tray, meaning any graphics printed on them will be visible on the interior.

Outer shipping requirements

Since the tray is open-topped, you must decide how it will be protected during transit. It typically requires a fitted master carton, a corrugated sleeve, or shrink wrap to keep products secure.

Lock Geometry and Flap Adjustments

Tuck tongue and lock hole clearance

The width and height of the tuck tongues can be adjusted to change how tightly the tray locks. The lock hole height automatically scales with the chosen board thickness to prevent the corrugated material from tearing during assembly.

Wall height adjustments

The depth of the tray can be modified to match the exact height of the product layers, ensuring items do not shift or spill over the edges during handling.

Crease offset for thicker boards

If a heavier board grade is required for stacking strength, the fold lines can be adjusted to accommodate the extra material, reducing the risk of corner cracking when the flaps are folded.

Packing details

Master carton sizing

If these trays will be stacked inside a larger shipping box, the outer dimensions should account for the folded corner flaps, which add a double layer of corrugated board to the short walls.

Additional notes

Manual folding sequence

Assembly requires folding the long walls up first, bending their attached corner flaps inward, and then wrapping the short walls up and over those flaps to engage the locks.

FAQs

Do packers need tape or glue to assemble this tray?

No. The short walls feature tuck tongues that insert into pre-cut holes on the corner flaps, creating a mechanical lock that holds the tray together without adhesive.

Can this tray be erected by automated machinery?

This specific corner-lock tray is intended for manual assembly. Standard automated equipment usually cannot process this unglued, interlocking style.

What board thickness is recommended for corner lock trays?

Thinner profiles like E-flute and B-flute are generally recommended. They allow the corner flaps to fold sharply and the tuck tongues to insert easily. Thicker boards can make the corners too bulky to lock by hand.

Can I ship this tray through a parcel network?

Not on its own. The open top and mechanical locks are designed for display, palletized transport, or internal handling. For parcel shipping, the tray should be placed inside an outer shipping box or sleeve.

Why does this tray need flatbed die-cutting?

The internal lock holes on the corner flaps and the shaped tuck tongues on the short walls cannot be cut by standard slotting equipment. Flatbed die-cutting is necessary to cleanly punch out these internal features.

Where are the primary print areas on this tray?

The outside faces of the four walls are the main exterior print surfaces. Because the corner flaps fold inward, any artwork on them will be visible on the inside corners of the assembled tray.

How are these trays delivered?

They are shipped completely flat. This maximizes pallet density and minimizes the storage space required in your facility before the trays are assembled.

What happens if I use a heavy double-wall board?

Using a thick double-wall board makes the corner folds very stiff. The manual locking tabs may crush or fail to seat properly, making assembly difficult and potentially weakening the lock.
