EVC41090

Tapered Corrugated Display Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Smooth interior floor hides all locking tabs
Double-wall sides reinforce integrated carrying handles
Flared presentation profile for retail and hampers

About this product

The EVC41090 is a heavy-duty, flared corrugated tray designed for premium retail displays, gift hampers, and high-end kitting. It features double-thick walls on all four sides and an integrated second bottom. This massive extension panel folds over the primary base to hide all locking tabs and create a completely smooth interior floor.

Because of its flared profile and open top, this tray excels at presenting products on a shelf or table. It requires manual assembly and usually needs a rigid outer shipper if the goods are entering a parcel or courier network.

Common uses

Premium gift hampers
Retail produce displays
Heavy parts kitting

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Base length

Base width

Tray depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Do you need the integrated carrying handles?

Do you need the premium smooth interior floor?

What will be packed inside this tray?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Presentation and Heavy Kitting

Premium Gift Hampers

The double-wall construction and reinforced hand holes provide the burst strength needed to carry heavy assortments of jars, bottles, or specialty foods. The smooth interior floor ensures the presentation remains clean, without raw corrugated edges or visible slots catching on the products.

Retail Produce and Product Displays

The flared, tapered walls angle outward, making it easier for customers to view and access the contents on a retail shelf or table display. The flat interior floor also makes wiping down or cleaning the tray simpler if used for packaged produce.

Heavy Parts Kitting

For industrial or automotive kitting, the double-thick walls resist bowing under heavy payloads. The hidden locking tabs prevent small components from slipping into floor crevices during transport between workstations.

Bakery and Confectionery Trays

The clean interior presentation works well for wrapped baked goods or confectionery assortments. The flared walls create a wider top opening, allowing for better visibility of the arranged items.

Merchandising and Hamper Assembly

Manual Packing Operations

This tray relies entirely on mechanical friction locks and a specific folding sequence. It is delivered flat and erected by hand at the packing bench. Operations should plan for the assembly time required to fold the double walls and seat the large second bottom panel.

High-End Merchandising

Brands looking to elevate their shelf presence often choose this tray because the rolled top edges and hidden floor tabs mimic the look of a premium rigid box, even though it is made from corrugated board.

Corporate Gifting Programs

For seasonal or corporate gifts, the tray provides a sturdy base that can be wrapped in cellophane or shrink film. The integrated handles make it easy for recipients to carry the final assembled gift.

When to Consider Straight-Wall or Lidded Alternatives

Vertical Stacking and Parcel Shipping

Because the walls are tapered and the top is open, this tray offers limited vertical crush protection. If the primary goal is stacking pallets of filled trays without an outer master carton, a straight-walled stacking tray or a tray with corner posts is a safer choice. For direct-to-consumer shipping, this tray usually needs to be placed inside a fitted outer box.

High-Volume Automated Packing

The complex folding sequence, which includes double walls and a large floor panel, is designed for manual assembly. If your packing line relies on automated tray erectors, a standard four-corner glued tray or a simpler roll-end design is worth comparing.

Material, Print, and Floor Options

Evaluating the Second Bottom

The smooth interior floor is created by a large panel that doubles the thickness of the base. While this provides a premium look and extra rigidity, it increases the size of the flat corrugated blank. Buyers should decide if the clean presentation justifies the higher material footprint.

Board and Flute Selection

An E-flute or B-flute board is usually the best fit. The material needs to be thin enough to handle the 180-degree folds required for the double walls, but strong enough to support the payload. Thicker C-flute boards can cause the locking tabs to bind or the walls to crack during assembly.

Handle Cutout Requirements

The integrated hand holes add carrying convenience but expose the corrugated fluting on the cut edges. Decide if handles are necessary for your end user or if solid walls are better for your specific display.

Print Surface Strategy

Because the inner walls roll over from the outside and the second bottom covers the floor, the exterior liner of the corrugated board covers almost the entire visible interior. This often allows for high-impact interior branding without the expense of double-sided printing.

Adjusting the Taper and Handles

Taper Angle and Base Footprint

The degree of flare can be adjusted by changing the ratio between the top rim dimensions and the base footprint. Extreme taper angles should be tested with a physical sample to ensure the corner flaps still fold and lock correctly without colliding.

Handle Modifications

The integrated hand holes can be resized, reshaped, or removed entirely if the tray will only be used for stationary shelf display rather than carrying.

Wall Height Adjustments

The depth of the tray can be increased or decreased to match the product payload, though taller walls will further increase the size of the flat corrugated blank.

Packing details

Blank Sprawl and Material Usage

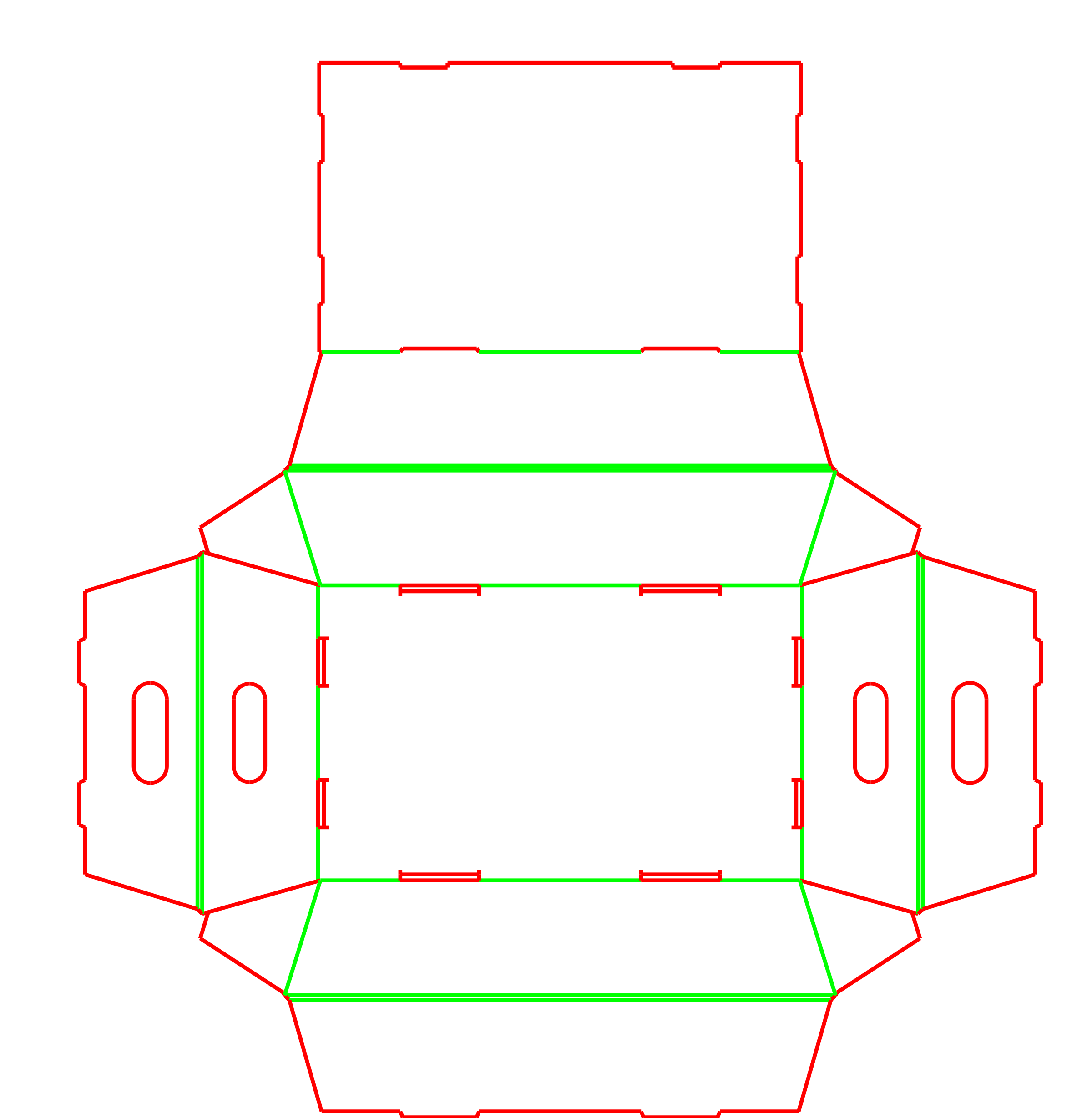

The combination of flared double walls on all four sides and the full-coverage second bottom means the flat blank is more than twice the length and width of the assembled tray. This irregular cross shape nests poorly on standard sheet sizes, which can increase material waste.

Structural Options

Standard versus Single-Floor Base

The template can be configured to remove the full-coverage second bottom. This exposes the locking tabs on the floor but drastically reduces the amount of corrugated board required per tray.

Additional notes

Flatbed die-cutting requirements

Due to the angled creases, handle cutouts, and complex locking tabs, this tray is produced using flatbed die-cutting equipment.

FAQs

Can this tray be shipped through parcel networks?

Not on its own. The open top and tapered walls mean it offers limited vertical crush protection. It usually needs to be packed inside a fitted outer shipping box for courier delivery.

Does this tray require glue or tape to assemble?

No. The tray is designed to lock together using mechanical tabs and friction. The front and side walls lock into the base, and the large second bottom panel folds over to secure the entire structure.

Can this tray be erected by automated machinery?

This is a manual-assembly design. The complex folding sequence, including the double walls and the large floor panel, requires hand assembly at the packing station.

Do I need double-sided printing to have graphics on the inside?

Usually not. The design rolls the exterior walls inward, and the second bottom covers the floor. This means the outside print surface is visible across almost the entire interior of the assembled tray.

What corrugated flutes work best for this design?

Finer flutes like E-flute or B-flute are generally preferred. The board must fold over itself multiple times to create the double walls, and thicker boards can crack or fail to lock properly.

Can the smooth floor panel be removed to save cost?

Yes. The second bottom can be removed from the design. This exposes the locking tabs on the floor but reduces the size of the flat corrugated blank, lowering material usage.

How much weight can the handles support?

The handles are reinforced by the double-wall construction of the side panels, making them quite strong. However, the exact weight capacity depends on the chosen board grade and flute profile.

How is this tray delivered?

Like most corrugated packaging, these trays are delivered flat to save space. They are then erected by hand as needed during the packing process.
