EVC41301

Corrugated Carry-Out Box with Handle

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Flat-loading base for delicate or arranged products
Integrated top carrying handle with tab-and-slot lock
Manual wrap-around assembly with no gluing required

About this product

This one-piece corrugated carrier is designed for retail carry-out, catering, and promotional kitting. It features a completely flat base, allowing delicate items like bakery trays or arranged kits to be placed directly on the floor of the box before the walls are folded up and locked around them.

The package requires no glue or tape. Instead, the short walls and dust flaps are trapped in place by the long walls, and the entire box is secured by a mechanical tab-and-slot interlock at the top carrying handle.

Common uses

Bakery and pastry trays
Catering platters
Promotional kits
Retail food service

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Base length

Base width

Interior height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What is the estimated weight of the items going inside?

How will these boxes be packed?

Are you considering printing on the inside of the box?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Event Carry-Out

Flat-loading presentation and carry-out

Because the blank lays completely flat before assembly, this box accommodates products that cannot be dropped into a standard top-loading carton. The product is placed in the center, and the box is built around it. This makes it a natural fit for decorated cakes, catering platters, and carefully arranged promotional kits that need to stay upright and pristine during transit.

Catering platters and arranged food trays

Food service operations use this wrap-around style to pack wide, shallow trays without tilting them. The flat base allows the tray to sit level while the walls are folded up, reducing the risk of spills or shifted arrangements.

Promotional kitting and event distribution

For corporate events or marketing kits, the integrated handle provides a ready-to-carry presentation. The unboxing experience is clean, as unlocking the handle allows the side walls to fall away, immediately displaying the arranged contents.

Fragile retail goods requiring upright transport

Retailers selling delicate items like potted plants or glass arrangements benefit from the flat-loading floor. The product does not need to be lowered into a deep cavity, minimizing handling risk during packing.

Bakery, Catering, and Promotional Kitting

Retail food service and bakeries

This carrier is built for hand-to-hand distribution. The integrated handle and flat roof provide a clean presentation for retail customers. Because it relies entirely on the handle lock to maintain its shape, it is intended for direct hand-carrying or local vehicle delivery.

Corporate events and promotional marketing

Event organizers use this style to distribute welcome kits or gift packages. The self-locking handle eliminates the need for tape or stickers, keeping the exterior branding uninterrupted and making the package easy for attendees to carry.

Local delivery and direct hand-carrying

The package is designed for controlled handling. It performs well when handed directly to a consumer or placed in a delivery vehicle, but it is not intended for the rough handling of mixed-carrier parcel networks.

When to Consider a Different Carrier

Heavy payloads and parcel shipping

If the product is exceptionally heavy, the flat base may bow, as the floor relies on the tension of the side walls and handle to support the weight. For heavy industrial parts or beverages, a crash-lock base carrier is often a safer choice. If the package must be shipped through a courier network, the protruding handle can snag on sorting equipment, and the lack of a sealed closure makes it vulnerable. In those cases, compare this to a standard mailer or plan to place this carrier inside a master shipping box.

High-volume automated packing

Because the product is placed on a flat blank and the walls are folded up manually, this style requires dedicated packing labor. If your operation relies on high-speed automated carton erectors, a pre-glued auto-bottom or standard top-loading carton will be a better fit.

Board Thickness, Print, and Packing Choices

Flute profile and handle locking

The handle secures the entire box by threading a shaped tab through a straight slot. This mechanism is generally reliable with thinner corrugated profiles, such as E-flute, which fold cleanly and lock securely. If a thicker board like B-flute is required for heavier items, the handle slot dimensions must be adjusted to accommodate the extra caliper, otherwise the lock may tear during assembly.

Inside print visibility

Because the top cover panels fold inward to form the roof, the inside surface of the corrugated board becomes visible to the user as they unlock the handle and open the box. If presentation is a priority, consider whether inside printing or a double-sided coated board is worth the investment.

Product weight distribution

The base strength depends on the board grade and the product's footprint. Because there are no bottom glue seams or interlocking base flaps, the floor relies on the tension of the side walls pulling up toward the handle. It is suited for light to medium-weight items that distribute their weight evenly across the floor.

Packing labor and assembly time

This is a wrap-around design that requires manual assembly at the packing station. The product is placed on the flat blank, and the operator folds the walls up and locks the handle by hand. Buyers should account for this manual packing time when planning large fulfillment runs.

Handle Shape and Roof Proportions

Roof width and interior clearance

The flat roof panels can be adjusted to change the interior clearance above the product. This allows the package to accommodate taller items without changing the overall footprint of the base.

Handle cutout size and ergonomics

The handle cutout size can be modified for different hand clearances. While the basic tab-and-slot locking mechanism should remain intact to ensure the box stays closed, the overall height of the handle can be tailored to the specific product being carried.

Handle lock tab adjustments for board thickness

When moving from a thin E-flute to a thicker board, the handle slot and locking tab must be widened. This ensures the tab can thread through the slot without crushing the board or tearing the handle.

Packing details

Flat delivery and storage

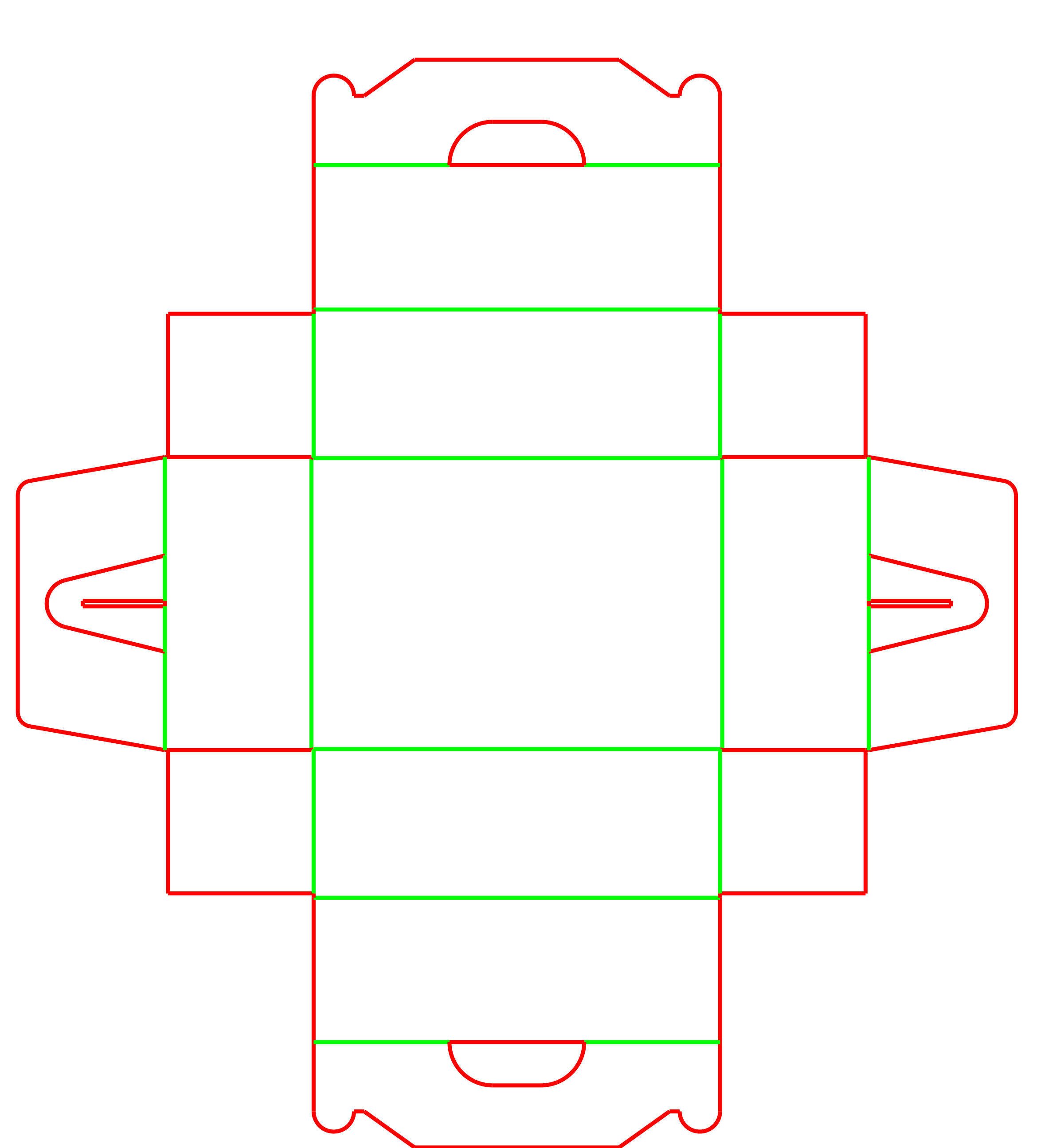

Because this package requires no gluing, it is delivered as a completely flat, cross-shaped blank. This makes it highly efficient for transport and storage, though the unglued blanks may take up a larger footprint on the pallet compared to folded-and-glued cartons.

Additional notes

Manual wrap-around assembly

Because the product is placed on the flat blank before the walls are folded up, this box requires dedicated manual packing labor. It cannot be pre-assembled and loaded from the top like a standard carton.

FAQs

Does this box require glue or tape to stay closed?

No. The box is entirely self-locking. The side walls wrap around the product, and the top handle panels interlock using a tab and slot. This single connection point holds the entire structure together.

Can I ship this box through the mail or a courier service?

Not on its own. The protruding handle can catch on automated sorting belts, and the unsealed edges do not provide tamper evidence or protection against rough handling. It should be placed inside a standard shipping box if it needs to travel through a parcel network.

How much weight can the flat base support?

What corrugated flute is generally used for this handle design?

E-flute is often chosen because it provides enough rigidity for carrying while allowing the handle tab to thread easily through the slot. Thicker flutes can make the folding process stiff and may require the handle slot to be widened to prevent tearing.

Is this box suitable for automated packing lines?

No. This is a wrap-around design that requires manual assembly at the packing station. The product is placed on the flat blank, and the operator folds the walls up and locks the handle by hand.

Where can graphics be printed on this box?

The entire outside of the box is available for printing, including the flat roof panels and the handle. Keep in mind that the inside of the roof panels will be seen when the customer opens the box, which may influence your print strategy.

How is the box delivered to the packing facility?

It is delivered as a completely flat, unglued blank. This makes it efficient to ship and store, though the cross-shaped blanks require adequate flat storage space before assembly.

Can the handle size be adjusted for different hand clearances?

Yes. The handle cutout and overall handle height can be modified to provide more finger clearance, as long as the central tab-and-slot locking mechanism remains proportional to keep the box securely closed.
