EVC61060

4-Step Corrugated Counter Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Four-tier presentation for small, lightweight retail items
Two-piece construction with a glue-free, tab-and-slot assembly
Requires a separate master carton for transit to stores

About this product

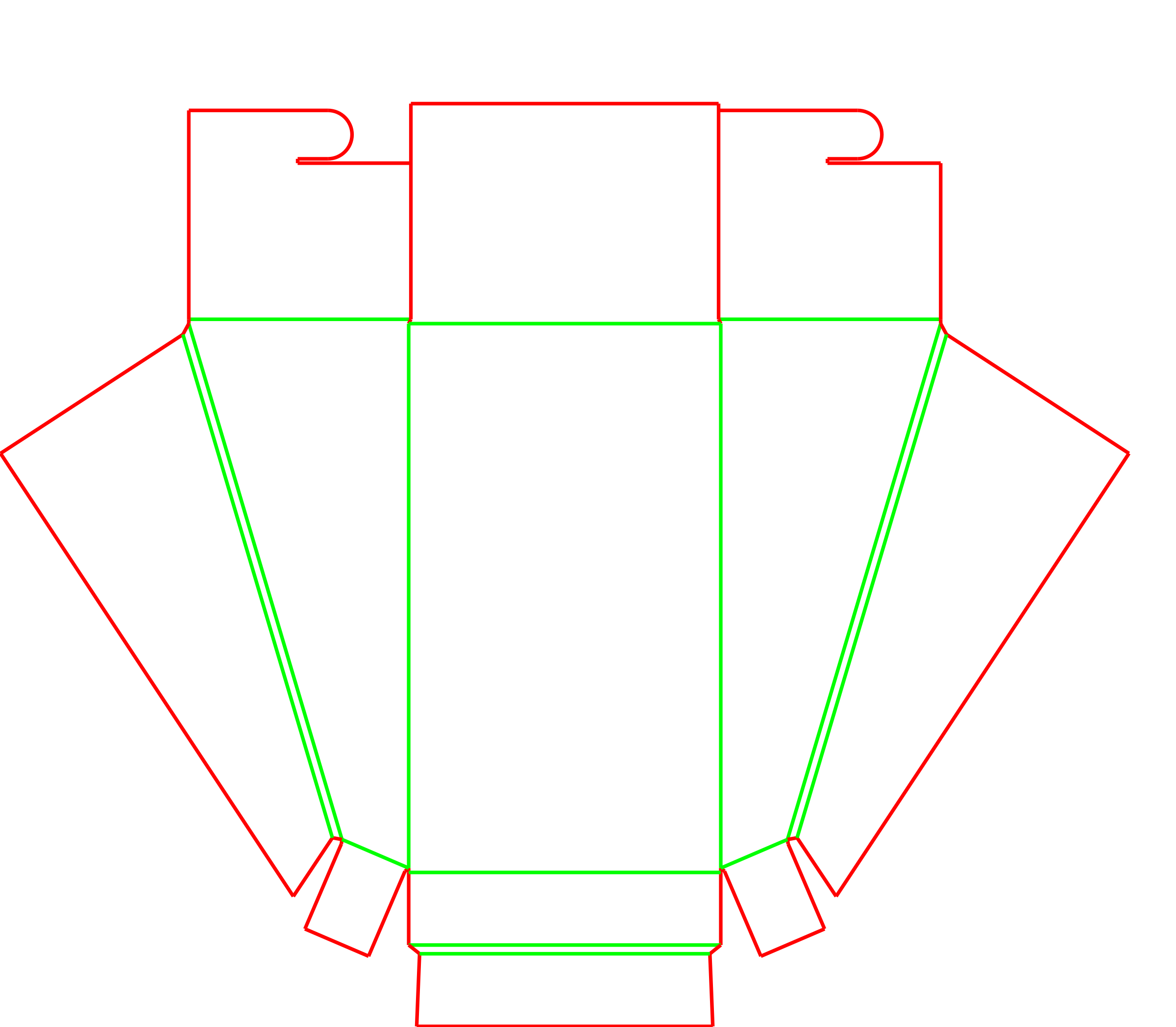

The EVC61060 is a two-piece corrugated point-of-purchase display that uses a four-tier step insert to elevate and organize small products. Designed for retail counters, it ensures items placed in the back remain just as visible as those in the front, while a tall back header provides dedicated space for brand messaging.

Because it relies on a mechanical tab-and-slot system rather than adhesive, the display ships completely flat. Store staff or fulfillment teams manually erect the outer body, accordion-fold the step insert, and lock the two pieces together.

Common uses

Cosmetics and skincare
Small boxed electronics or accessories
Impulse buys at checkout
Vape or CBD products

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall depth

Overall height

Step depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of items will sit on the display?

Which parts of the display need printing?

How will the displays be sent to retail stores?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Environments and Product Fits

Cosmetics and Skincare Jars

The shallow steps are well-suited for organizing small bottles, tubes, or jars that would otherwise get lost in a bulk bin. The tiered layout keeps every facing visible.

Small Boxed Electronics

This layout works well for lightweight boxed goods like tech accessories, impulse toys, or hardware parts. The front lip retains the bottom row, while the back header draws attention at the checkout counter.

Vape and CBD Products

Small, uniform bottles and cartons fit neatly on the narrow treads, allowing brands to present a full flavor or product line in a compact footprint.

Confectionery and Checkout Items

For impulse buys near the register, the tiered structure presents multiple product options clearly without taking up excessive counter depth.

Who Uses Tiered Counter Displays

Retail Brand Merchandisers

Brands competing for counter space use the tall back header and the rolled front lip as primary billboards. The two-piece design allows the outer shell to carry high-impact graphics while the internal steps can remain a simpler, unprinted board if desired.

Fulfillment and Kitting Centers

Because the display requires manual folding and alignment of the locking tabs, fulfillment centers often pre-assemble and load the display, then ship it to the retailer inside a protective master carton.

Independent Boutiques and Pharmacies

Store owners appreciate the compact footprint and clear product organization. The glue-free assembly means the display can be broken down and recycled easily after the promotion ends.

When to Consider a Different Display Style

Heavy or Dense Retail Items

Corrugated steps that span a wide distance can sag under heavy point loads like beverages or metal hardware. If packing heavy items, consider a reinforced tray, a narrower display footprint, or a different material.

High-Speed Automated Packing Lines

This is a manual-assembly display. If your packing line relies on automated folder-gluers or case erectors, a simpler pop-up tray or a standard shipper-display with tear-away panels is a better fit.

Board, Print, and Packing Decisions

Board Thickness and Step Span

E-flute offers an excellent surface for high-end retail graphics, but it is thinner. If the display is wide or the products are moderately heavy, B-flute provides better rigidity to keep the step treads from bowing.

Print Coverage Across Two Pieces

Decide whether the entire display needs printing. The back header, angled side walls, and front lip are highly visible. The step treads are often covered by the product, meaning the insert might not require the same premium print finish as the outer body.

Outer Transit Packaging

This display is open at the top and front. It cannot be shipped through parcel or freight networks on its own. You will need to specify an outer shipping box, either for the flat blanks or for the fully loaded, pre-assembled display.

Step Depth and Product Footprint

The depth of each step must be matched to the product base. If the tread is too shallow, products may tip forward; if too deep, the overall display length increases and takes up more counter space.

Adjusting the Step Profile

Tread Depth and Riser Height

The depth of the treads and the height of the risers can be adjusted to match your specific product footprint. Changing these dimensions automatically recalculates the overall length of the display body.

Back Billboard Proportions

The back billboard can be extended for more branding space, though extremely tall headers may require a heavier board to prevent them from folding backward.

Side Wall Profile

The angle of the side walls can be modified to reveal more of the product from a side view, or kept higher to provide more lateral support and branding area.

Packing details

Assembly Friction and Locking Slots

The step insert features side flaps that fold down and seat into rectangular slots on the body's angled side walls. The width of these slots must be precisely matched to the chosen board thickness so the tabs lock securely without tearing the corrugated material.

Additional notes

Retail Store Assembly Burden

If shipping the display flat to retail locations, keep in mind that store staff will need to fold the accordion steps and align the locking tabs. Providing clear visual instructions can prevent the slots from being torn during setup.

FAQs

Does this display require glue or tape to assemble?

No. The outer body folds and tucks into itself, and the step insert locks into the body using a mechanical tab-and-slot system. It is designed for manual assembly without adhesive.

Will the corrugated steps support heavy items?

It depends on the board grade and the overall width of the display. Because the corrugated steps span the width of the base, heavy items can cause the treads to sag. It is generally suited for lightweight cosmetics, small boxes, or impulse items.

How is this display shipped to retail locations?

It requires a separate, custom-sized master carton. The display itself is open and provides no transit protection for the products.

Can I change the number of steps?

This specific template is engineered for four steps. If you need three or five tiers, a different structural template from the same family is usually selected to ensure the locking geometry remains stable.

Do both pieces need to be printed?

Not necessarily. The outer body (header, sides, and front lip) is the primary branding surface. The step insert can be printed to match, or left plain if the products will completely cover the treads and risers.

Should I request a physical sample?

Yes. A physical prototype is highly recommended to verify that your products fit the step depth, that the board grade prevents sagging, and that the locking tabs fit snugly into the side wall slots.

Can the step depth be adjusted for larger boxes?

Yes, the tread depth and riser height can be modified to fit your product. Keep in mind that increasing the step depth will increase the overall length of the display, requiring more counter space.

Does the display ship flat or pre-assembled?

The corrugated blanks are delivered flat. They can either be shipped flat to the retailer for in-store setup, or pre-assembled and loaded with product by a fulfillment center before shipping in a master carton.
