EVC61099

Corrugated 3D Turtle Pencil Holder

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Glue-free, interlocking slit-lock assembly
Ships flat as a pop-out sheet or loose kit
Grid structure creates functional pencil cells

About this product

The EVC61099 is a multi-piece, interlocking corrugated display that assembles into a freestanding turtle-shaped pencil holder. Designed as a novelty desk accessory or promotional item, it uses a grid of intersecting planes to create open vertical cells for pens and pencils.

Because it relies entirely on a glue-free friction fit, the structure ships completely flat and is manually assembled by the end user. It is an engaging, interactive piece that stands out from traditional folded cartons.

Common uses

Promotional desk giveaways
Retail craft kits for kids
Point-of-purchase novelty displays
Trade show interactive handouts

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Assembled length

Assembled height

Pencil cell opening

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How should the pieces be supplied?

What will the cells hold?

How should the display be printed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Promotional and Retail Applications

Promotional Desk Accessories

The turtle shape and functional pencil grid make this an excellent corporate giveaway or event promotional item. It ships flat in a standard envelope or mailer, keeping distribution costs low while providing an interactive experience for the recipient.

Retail Craft Kits

Supplied as a flat, unprinted or custom-printed board, this structure fits well as a build-it-yourself puzzle for children's retail or educational markets.

Trade Show Giveaways

Because the pieces can be supplied as a single flat sheet, this display is easy to stack and distribute at events, offering a memorable takeaway that attendees assemble later.

Educational Classroom Projects

The glue-free, interlocking design provides a safe and engaging assembly activity for educational settings, doubling as a functional desk organizer once built.

Who Uses 3D Interlocking Displays

Marketing and Event Teams

Teams looking for memorable, interactive direct-mail pieces often use interlocking 3D structures because they combine high visual impact with highly efficient flat shipping.

Educational Toy Brands

Brands developing craft kits or puzzles appreciate the glue-free assembly and the ability to print engaging graphics across the intersecting planes.

Corporate Gifting Programs

Programs seeking unique, low-cost desk items use this structure to deliver a functional organizer that stands out from standard branded merchandise.

When to Consider Standard Displays

Standard Point-of-Purchase Displays

If the goal is to hold and display heavy retail products rather than single pens or pencils, a traditional folded counter display or tray will offer better load-bearing stability than a friction-fit puzzle.

Enclosed Folding Cartons

If the primary goal is to enclose and protect a product during transit, a standard folding carton or mailer is a better choice than an open, decorative 3D grid.

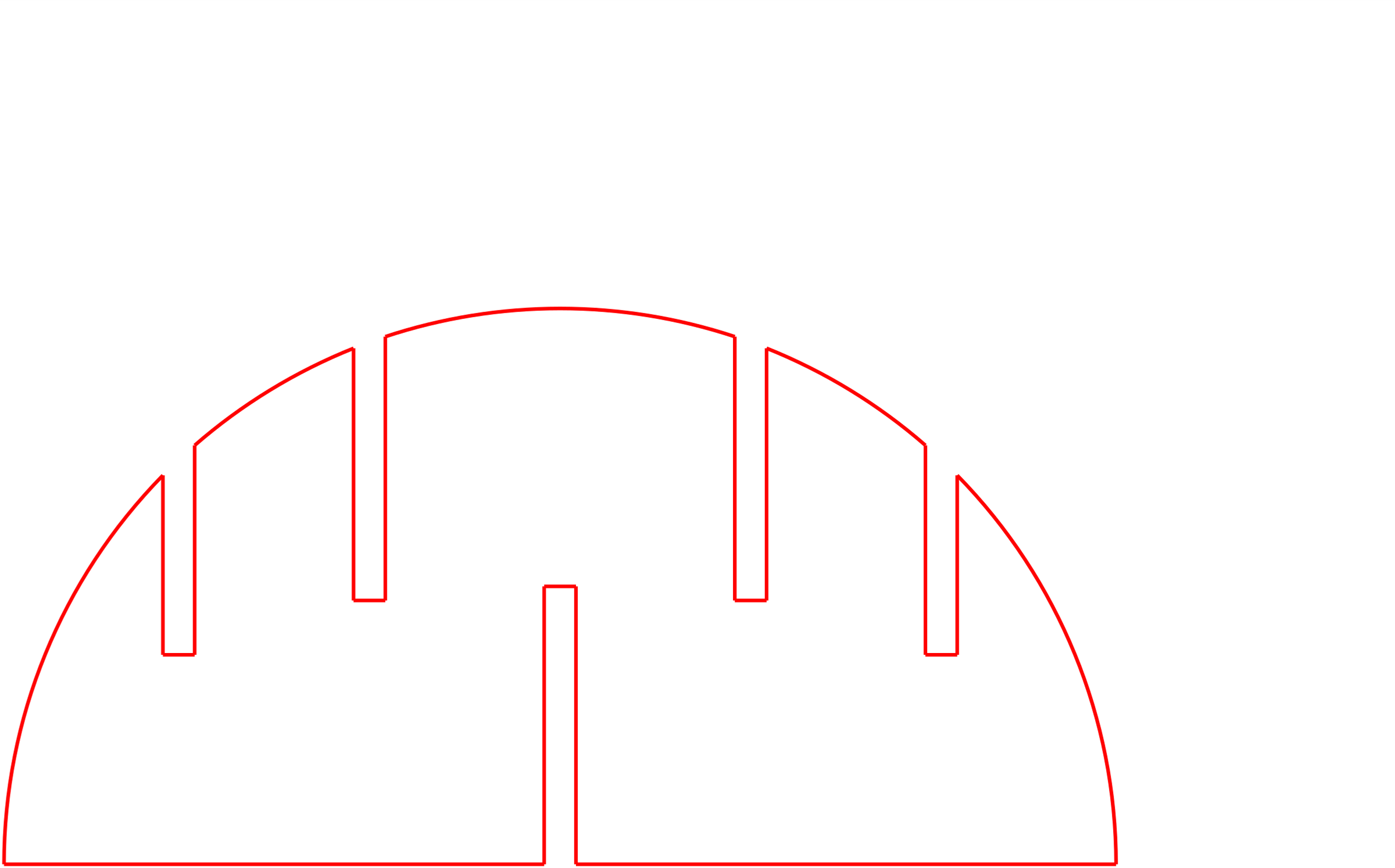

Supply Presentation and Board Tolerances

Pop-Out Sheet vs. Loose Kit

This structure can be manufactured as a single master sheet with micro-nicks, allowing the user to pop out the pieces themselves. Alternatively, it can be die-cut and supplied as a collated kit of loose pieces in a bag.

Board Caliper and Slot Width

The entire assembly relies on a friction fit. The width of the interlocking slots must be perfectly calibrated to the exact thickness of the chosen board, including any applied print or lamination, to ensure the turtle stays together without crushing the edges.

Double-Sided Printing

Because the transverse ribs and longitudinal spines intersect at 90 degrees, both sides of the corrugated board will be visible on the finished desk accessory. Double-sided printing is usually recommended for a premium appearance.

Material Choice and Finish

Selecting between a thicker B-flute for a chunky, rigid feel or a thinner E-flute for finer graphics will change the overall aesthetic and require corresponding adjustments to the slot widths.

Adjusting the Grid and Profile

Grid Spacing and Cell Size

The distance between the intersecting slots can be adjusted to create larger or smaller cells, depending on whether the display needs to hold standard pencils, thick markers, or other small items.

Outer Animal Profile

While the internal interlocking grid remains consistent, the outer curves of the central spine and legs can be modified to create different animal shapes or custom silhouettes.

Slot Width Calibration

The template allows for precise adjustment of the slot width parameter to match the exact caliper of the printed board, ensuring a secure friction fit.

Packing details

Digital Cutting for Short Runs

Because the friction fit requires precise tolerances, short runs or prototypes are often produced on digital CAD tables. This allows for testing the slot width against the actual printed board before committing to volume flatbed die-cutting.

Additional notes

Slot tolerance testing

Always request a physical prototype using the final printed and laminated board. Even a fraction of a millimeter difference in caliper can change a secure friction fit into a loose assembly.

FAQs

Does this pencil holder require glue or tape?

No. The structure uses a slit-lock mechanism where the pieces slide together at 90-degree angles. The friction between the slots holds the entire display together.

Can the assembled turtle be shipped in a parcel?

The assembled 3D structure is not suited for unboxed parcel transit. It should be shipped flat to the end user for manual assembly.

Should I print on both sides of the board?

Yes, double-sided printing is highly recommended. Once assembled, the intersecting planes mean that both the front and back of the original flat board are visible from different angles.

Can I use any thickness of corrugated board?

You can use different boards, such as B-flute or E-flute, but the template's slot widths must be precisely adjusted to match the new board's exact thickness. If the slots are too wide, the display will fall apart; if too narrow, the board will crush during assembly.

How are the pieces delivered?

They are typically delivered flat. You can choose to have them supplied as a single nicked sheet where the user pops out the parts, or as a bagged kit of loose pieces.

Can the size of the pencil holes be changed?

Yes. The spacing of the grid can be adjusted to accommodate thicker markers or specific promotional items, which will scale the overall length and width of the display.

How many pens or pencils does the grid hold?

The exact capacity depends on the chosen grid spacing and overall scale. The template can be adjusted to create more or fewer cells based on the promotional goal.

Should I request a physical sample before a full run?

Yes. Because the entire assembly relies on a precise friction fit, testing a physical prototype with the final printed and laminated board ensures the slots are calibrated correctly.
