Retail Merchandising and Promotional Rollouts
Lightweight to Medium-Weight Consumer Goods
This display is well-suited for merchandising snacks, cosmetics, small electronics, and packaged apparel. The integrated shelves provide clear visibility and easy access from the front and sides. Because the shelves are tethered to the front wall, the design naturally creates a retaining lip that keeps items from sliding forward.
Fast-Turn Promotional Campaigns
For seasonal rollouts or temporary endcaps, the one-piece design simplifies logistics. There are no complex instructions or separate parts to track. The display arrives flat, pops open into a rectangular tower, and the shelves fold into place, minimizing the time retail staff spend on setup.
Endcap Merchandising
The tall, narrow footprint fits well at the end of retail aisles. The angled header and open side windows draw consumer attention from multiple directions, making it a strong choice for high-traffic store locations.
Point-of-Purchase Impulse Buys
Placed near checkout counters or high-visibility zones, the accessible shelves encourage impulse purchases. The integrated front lips ensure that small, loose items remain secure even in busy retail environments.
Fulfillment and Store-Floor Assembly
Retail Store Staff
Store employees often struggle with complex, multi-part corrugated displays. This one-piece structure reduces assembly to a few intuitive steps: squaring the tube, pushing the shelves inward, and engaging the locking tabs. This lowers the risk of incorrect assembly or damaged displays on the store floor.
Co-Packing and Fulfillment Centers
While this display is typically assembled at retail, co-packers can pre-load it if a separate corrugated outer shipper is used. The flat-packed delivery from the converter takes up minimal warehouse space before the campaign begins.
Brand Marketers
The large, continuous side panels and customizable header provide ample space for branding. Marketers can use these surfaces to communicate campaign messaging clearly without the visual interruption of separate shelf trays.
When to Consider Multi-Piece Displays
Heavy Products and Beverages
Because the shelves are cut from the front panel, the remaining vertical strips at the front corners carry the top load. If you are merchandising heavy liquids, canned goods, or dense hardware, a multi-piece display with separate, reinforced shelf trays and thicker load-bearing walls will provide better vertical compression strength.
Pre-Filled Parcel Shipping
This structure is open at the front and sides to maximize product visibility. It cannot be used as a standalone shipping container. If the display must travel through a courier network pre-filled with product, it requires a strong outer master carton.
Board Grade, Print Routing, and Blank Size
Board Grade and Weight Capacity
The choice of corrugated flute directly determines how much weight the shelves can hold before sagging and whether the side locking tabs will shear. A standard B-flute works for light snacks, but heavier items often require C-flute or a double-wall board. Physical load testing is advised before a full production run.
Print Surfaces and Litho-Lamination
This design offers high visibility on the outside front, sides, and header. However, the inside of the back wall and the top surfaces of the shelves are also visible to the consumer. Discuss two-sided printing or specific litho-lamination routing with your converter to ensure all visible surfaces carry the intended branding.
Flatbed Die-Cutting Limits
Because the entire tall display is cut from a single blank, the unfolded layout is exceptionally large. Verify that your converter's flatbed die-cutting equipment can accommodate the full dimensions of the flat blank.
Shelf Spacing and Product Height
The vertical distance between shelves must be planned around the tallest product being merchandised. Adjusting this spacing also changes the amount of material available for the front retaining lip, requiring a careful balance between product clearance and secure retention.
Header Profiles and Shelf Clearances
Shelf Spacing and Retaining Lips
The vertical distance between shelves can be adjusted to fit specific product heights. Modifying this spacing also changes the height of the front retaining lip left behind when the shelf folds inward. Ensure the lip is tall enough to secure the product but low enough to allow easy removal.
Header and Side Wall Profiles
The top of the display can be customized with an angled profile or an extended back wall to serve as a prominent branding header. These adjustments change the overall blank size but do not alter the core pop-up mechanism.
Side Support Tabs
For added shelf stability, U-shaped tabs can be cut into the side walls. These tabs fold inward to create horizontal ledges that support the edges of the shelves, transferring product weight to the side columns and reducing the risk of shelf sag.
Packing details
Side U-Tab Locking Mechanism
On variants with side U-tabs, these small flaps fold inward from the side walls to provide horizontal ledges for the shelves. This transfers the product weight to the side walls and prevents the shelves from sagging. The clearance of these tabs must be precisely matched to the chosen board thickness.
Available Package Variants
EVC62029
The base model features shelves that fold backward and lock directly into slots on the back wall, with top and bottom flaps closing the ends of the tube.

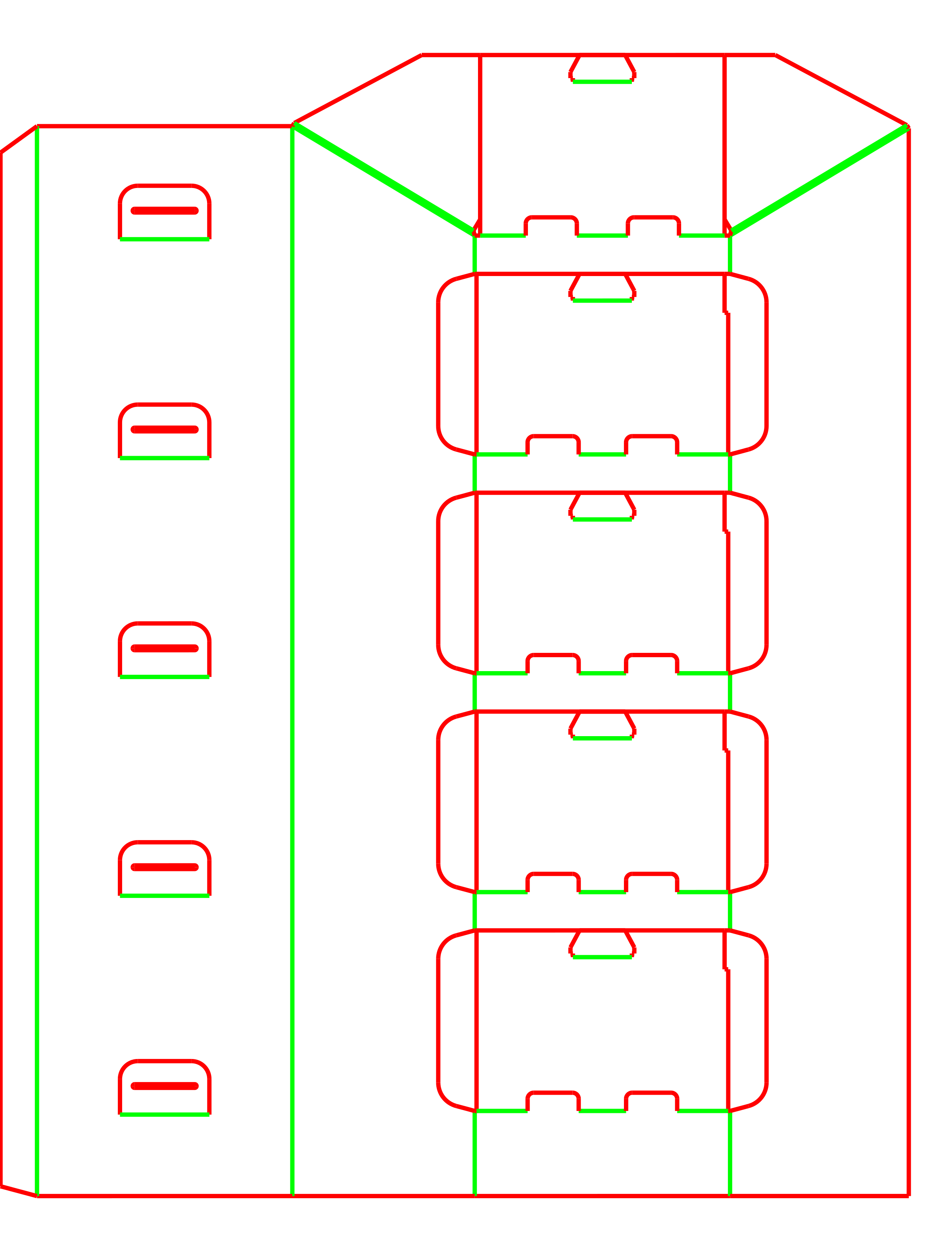

EVC62029_1 & EVC62029_2
These variants introduce U-shaped tabs on the side walls that fold inward to support the shelves, increasing load capacity. They also feature angled header profiles for enhanced branding space.
Additional notes
Stripping Waste Considerations
The large cutouts required to form the shelves and side access windows generate a high volume of corrugated offcuts. Clean stripping during the die-cutting process is essential so that retail staff do not have to punch out waste material during assembly.
FAQs
Does this display require glue or tape for assembly?
The converter glues the single side seam during manufacturing, delivering a flat tube. Retail staff simply pop the tube open and fold the shelves into place without needing any tape, glue, or tools.
How much weight can the fold-in shelves hold?
Weight capacity depends entirely on the selected corrugated board grade and the width of the display. Because the shelves are tethered to the front panel, they are best suited for lightweight to medium-weight goods. Always request a physical prototype to test with your actual products.
Why does this display require a large-format die-cutter?
The entire structure, including the back, sides, front, and all shelves, is cut from a single continuous piece of corrugated board. For a tall floor display, this results in a very large flat blank that exceeds the size limits of smaller die-cutting machines.
Can this display be shipped pre-loaded with products?
Yes, but not on its own. Because the front and sides have large open access windows, a pre-loaded display must be packed inside a separate, sturdy corrugated outer shipper to protect the goods during transit.
Which surfaces of the display are visible to the consumer?
The outside front, sides, and header are fully visible. Additionally, because the shelves fold inward, the inside of the back wall and the top surfaces of the shelves are also exposed. This often requires two-sided printing to ensure consistent branding.
Can the height of the front retaining lip be changed?
Yes. The height of the front lip is determined by the vertical spacing between the shelves. Adjusting the shelf spacing allows you to create a taller lip for taller products or a shorter lip for easier access.
What corrugated board grade is recommended for this display?
A standard B-flute is often used for lightweight snacks and cosmetics. If the display needs to hold heavier items or requires stronger vertical columns, a thicker C-flute or double-wall board should be evaluated.
Should we request a physical prototype before production?
Yes. A physical sample allows you to verify that the shelves will not sag under your specific product weight and that the side locking tabs engage correctly with the chosen board thickness.
