EVC62053

360-Degree Five-Shelf Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Seven-piece tool-free assembly
360-degree shoppable circular shelves
Ships flat for easy retail distribution

About this product

This freestanding corrugated display creates a tiered, 360-degree presentation for open retail aisles. Built from two interlocking base panels and five circular shelves, it allows shoppers to approach and select products from any direction.

The entire structure ships flat as a seven-piece kit and assembles on the store floor without tools or adhesive. Because the shelves rely on a central cross-pillar for support, the choice of board grade and physical load testing are critical steps before a full retail rollout.

Common uses

Open-aisle promotions
Lightweight to medium retail goods
Cosmetic or seasonal displays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall display height

Bottom shelf diameter

Distance between shelves

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will sit on the shelves?

How should the display be printed?

Where will this display be placed in the store?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Floor and Aisle Merchandising

Freestanding aisle promotions

The circular, tiered design is built for open floor spaces where foot traffic flows around the entire unit. It handles seasonal items, cosmetics, or packaged snacks that benefit from multi-sided visibility.

Lightweight to medium retail goods

Because the circular shelves are supported entirely by the central cross-pillar, the outer edges have no vertical bracing. This setup handles evenly distributed, moderate weights well, but dense items like beverages should be physically tested to check for shelf sag.

Seasonal and temporary merchandising

The tool-free assembly and flat-shipping profile make this unit practical for short-term holiday or promotional rollouts where store staff need to set up the display quickly.

Multi-sided product access

Placing this display in center-store intersections allows multiple shoppers to browse simultaneously without crowding a single facing.

Open-Floor Retail Environments

Store-level assembly

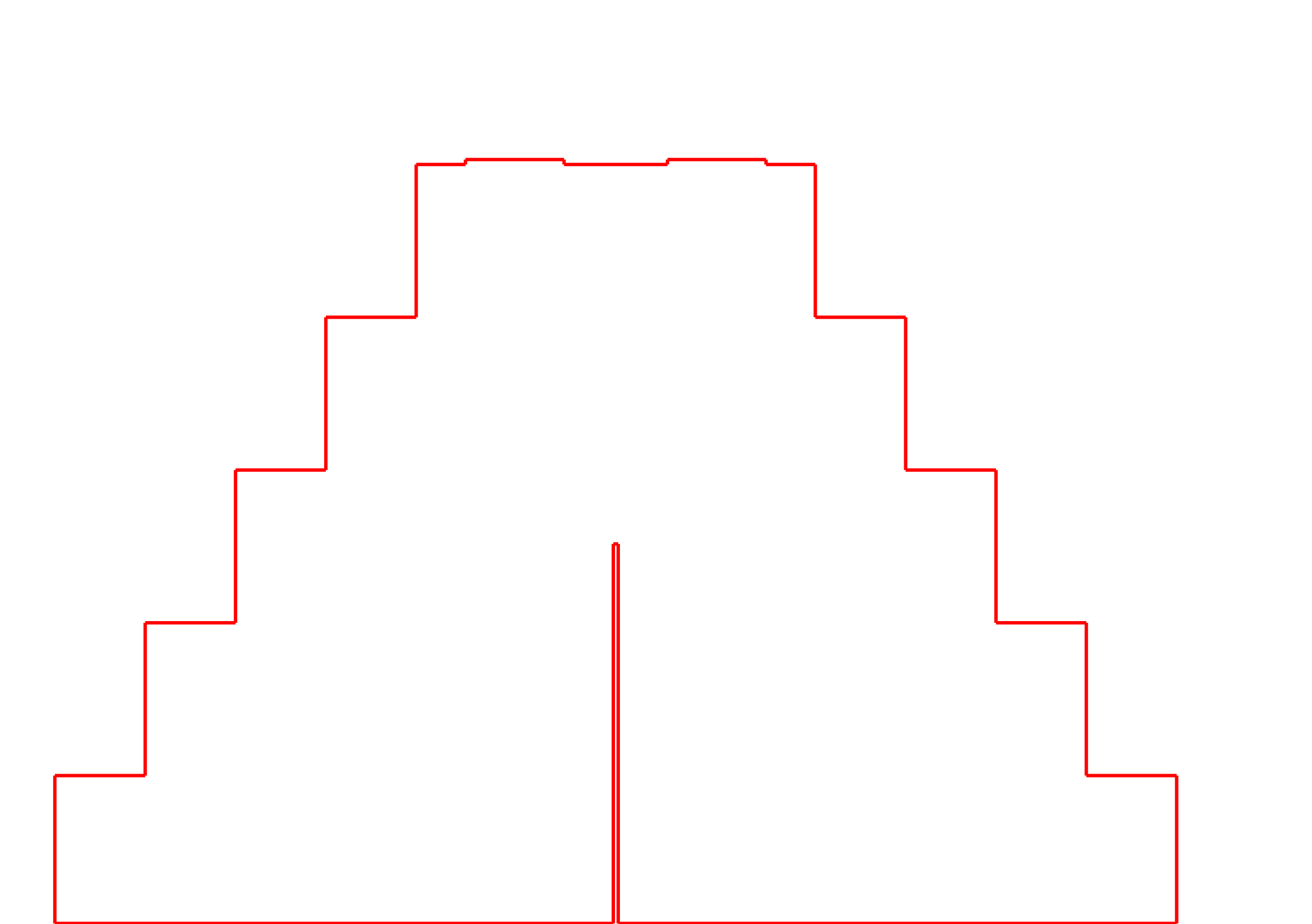

Retail staff can build the display quickly. The two base panels slide together to form a rigid cross, and the five shelves drop down onto their respective stepped supports. No clips, fasteners, or glue are required.

High-traffic retail aisles

The circular footprint eliminates sharp corners, making it easier for shopping carts and foot traffic to navigate around the display in busy store environments.

Short-term promotional rollouts

Because the entire seven-piece kit packs flat into a single master shipper, it simplifies distribution to individual retail locations for synchronized campaign launches.

Adjusting Shelf Count and Shape

Wall-adjacent placement

If the display will sit flat against a wall or end-cap, a circular 360-degree design wastes floor space and hides the back half of the product. A traditional flat-backed shelving unit is a better fit for perimeter placement.

Heavy beverage or canned goods

Products with high density can cause the unsupported outer edges of the circular shelves to bend. A display with corner posts or reinforced shelf trays may be necessary for heavy loads.

Board Thickness and Print Surfaces

Board grade and slot tolerances

Upgrading from a standard flute to a heavier double-wall board increases shelf stiffness and pillar crush resistance. However, the interlocking slots in the base and shelves must be widened in the template to match the new board thickness, or the pieces will bind during assembly.

Two-sided printing needs

Shoppers can see both sides of the vertical base panels and the top surfaces of all five shelves. Depending on the brand presentation, the base panels may require two-sided printing or litho-laminating to ensure no raw corrugated board is visible.

Master shipper sizing

The display is delivered as a knocked-down kit. The largest shelf dictates the minimum footprint of the outer shipping carton, which must be planned alongside the display itself to ensure safe transit to the store.

Shelf spacing and product height

The vertical clearance between each tier must be verified against the tallest product being merchandised to ensure shoppers can easily reach in and remove items.

Shelf Spacing and Overhang

Modifying shelf clearance

The vertical distance between the stepped supports can be adjusted to accommodate taller products. Changing this clearance will increase the overall height of the central pillar.

Shelf diameter and overhang

The width of the circular shelves can be extended further past the base supports. While this creates more merchandising space, excessive overhang increases the risk of the shelf bending under product weight.

Base pillar height

The overall height of the central cross-pillar can be extended to raise the top shelf closer to eye level, depending on the intended retail environment.

Packing details

Flatbed cutting and sheet layout

The large circular shelves are cut from rectangular corrugated sheets. Because circles leave open space between them on the sheet, this shape uses more total board area than a comparable square-shelf display.

Additional notes

Prototype testing for shelf deflection

A short digital trial is highly recommended to verify that the chosen board grade keeps the circular shelves flat under the intended product weight.

FAQs

Do store employees need tools to build this display?

No. The two base panels slit-lock together to form a standing cross, and the five shelves slide down the center pillar until they rest on their designated steps.

Can this display hold heavy items like canned goods?

It depends on the board grade and shelf overhang. Because the outer edges of the circular shelves are unsupported, heavy perimeter loads can cause sagging. A physical prototype should be load-tested with the actual product before a full production run.

Where can graphics be printed on this structure?

Graphics can be applied to the top surfaces of the shelves and all faces of the vertical base panels. If a premium look is required from all angles, two-sided printing on the base panels is often used.

How does the display ship to retail locations?

The seven corrugated pieces pack completely flat. They are typically kitted together inside a separate corrugated master shipper for distribution to individual stores.

Is this display suitable for short promotional runs?

Short promotional runs are often cut digitally, while larger rollouts use flatbed equipment. A digital sample is a practical way to test the fit and load capacity before committing to a larger run.

What happens if we change the corrugated board thickness?

The template must be updated. The width of the interlocking slots is exactly matched to the board thickness. If thicker board is used without adjusting the template, the pieces will not slide together.

Can the number of shelves be changed?

Yes. The central cross-pillar can be adjusted to hold fewer or more shelves, though this changes the overall height and stability of the unit.

Do the shelves require separate support clips?

No. The shelves rest directly on the stepped edges of the central cross-pillar, relying on gravity and the interlocking slots to stay in place.
