EVC62059

360-Degree Multi-Shelf Floor Display

This freestanding retail display uses an interlocking central spine to support multiple open shelves, allowing shoppers to approach and select products from any direction. It replaces continuous outer walls with hourglass-shaped vertical dividers, creating an unobstructed presentation for open floor plans and club store aisles.

Because it relies entirely on a friction-fit internal grid, this display requires precise board-thickness matching and dedicated assembly time. It is delivered as a flat, multi-part kit, making it a strong candidate for co-packer fulfillment before moving to the retail floor.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • 360-degree product access with no perimeter walls
  • Interlocking central spine supports multiple tray tiers
  • Delivered flat as an 8-part kit for manual assembly

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Environments and Display Roles

Open-aisle retail promotions

The lack of outer walls makes this display clearly visible from all angles. It fits well in wide aisles, endcap transitions, or open promotional areas where foot traffic flows around the entire unit.

Club store pallet presentations

When scaled appropriately, the interlocking grid can support the footprint of a standard pallet. The open corners allow bulk shoppers to access goods without reaching over high retaining walls.

Multi-sided product launches

For new beverage or snack lines, presenting the product from every angle encourages impulse selection. The open trays allow multiple shoppers to interact with the display at once.

Island displays in wide retail footprints

Hardware stores, garden centers, and large grocery stores often use island displays. The central spine provides vertical height without blocking sightlines across the store.

Fulfillment and Assembly Contexts

Co-packer and fulfillment operations

This display arrives as a flat kit containing a base wrap, internal supports, trays, dividers, and headers. Because it requires folding, slotting, and stacking multiple tiers, it is usually assembled and loaded by a dedicated co-packer rather than retail store staff.

Mixed-material display programs

The structure allows different board grades to be used for different components. The internal load-bearing grid can be cut from heavy double-wall corrugated for strength, while the visible trays and headers use a lighter, smoother board for high-quality print.

High-traffic promotional campaigns

In environments where shoppers approach from multiple directions, a traditional one-sided display loses effectiveness. This layout ensures branding and product are visible regardless of the approach path.

When to Consider Perimeter-Supported Displays

Heavy point loads or industrial goods

Because the trays are supported only by the central spine, heavy items placed near the outer edges can cause the corrugated board to sag. If the product is exceptionally heavy, a display with rigid perimeter walls or corner posts may be a safer choice.

Rapid store-level setup

If retail staff must build the display in minutes, an eight-part interlocking kit is likely too complex. Pop-up displays or pre-glued auto-bottom bins are better suited for fast, untrained assembly.

Board, Print, and Kitting Decisions

Board thickness and slot friction

Every slot in the vertical dividers and trays is cut to match a specific board thickness. If the material changes, even from one supplier's C-flute to another's, the slots must be recalculated. Loose slots cause the display to lean, while tight slots make assembly impossible.

Print allocation across the kit

Not all eight parts require the same print treatment. The base wrap, trays, and top headers act as the primary billboards. The internal cross-grid is largely hidden by the product, offering a chance to reduce print costs on those specific components.

Base wrap gluing versus flat delivery

The base bin requires a glued side seam. Buyers must decide whether the manufacturer glues this seam before delivery or if the co-packer handles the gluing during final assembly.

Kitting and collation strategy

With eight distinct components, the parts must be collated into a master shipper. Planning how these parts are bundled helps streamline the final assembly process at the fulfillment center.

Adjusting Tiers, Columns, and Clearances

Tier and column counts

The template can be adjusted to add more vertical tiers or widen the display with additional columns. Adding columns increases the number of vertical dividers required, which changes the overall part count and kitting complexity.

Shelf spacing and clearance

The distance between trays can be modified to accommodate taller products. Increasing the height between shelves requires taller vertical dividers, which may shift the center of gravity and require a wider base for stability.

Header card shaping

The top intersecting header cards can be die-cut into custom profiles. This allows the display to feature brand logos or campaign-specific shapes, as long as the central interlocking slots remain intact.

Packing details

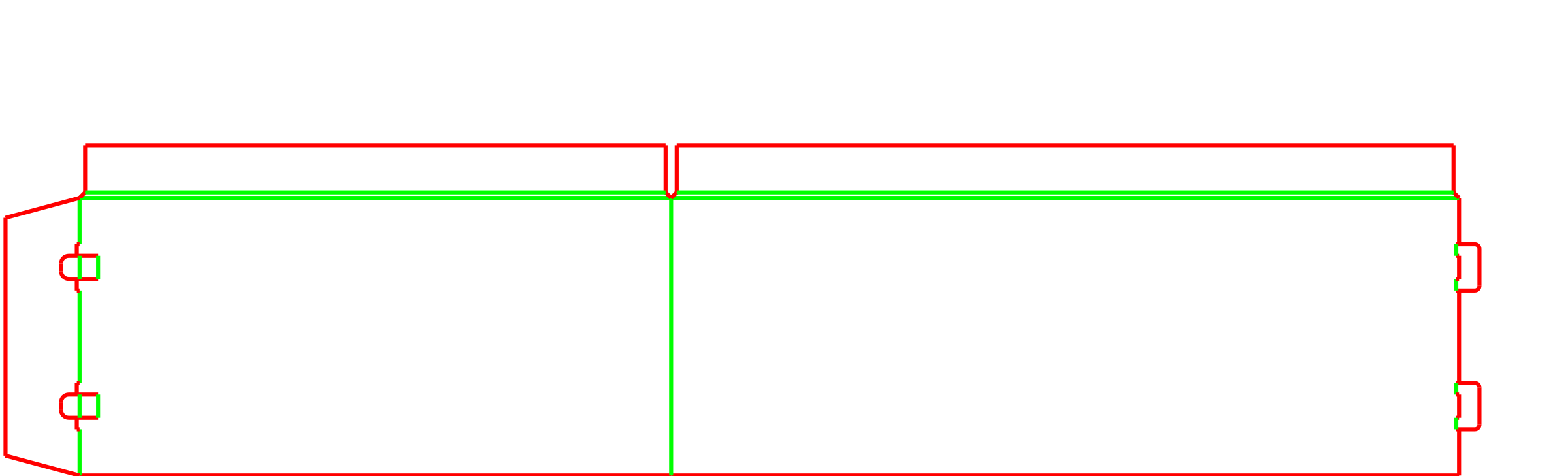

Base wrap and internal grid

The visible base of the display is a glued outer wrap that conceals a heavy-duty internal cross-grid. This hidden grid bears the vertical weight of the entire display, transferring the load from the central spine directly to the floor.

Additional notes

Tray sag and edge loading

Without outer walls, the perimeter of each tray is unsupported. Products should be distributed evenly, keeping the heaviest items closer to the central spine to prevent the corrugated board from bowing over time.

Slot tolerance and leaning

The stability of the entire tower relies on the friction between the slotted dividers. If the board crushes during printing or die-cutting, the slots may become too loose, causing the display to lean or twist on the retail floor.

Related Retail Displays

FAQs

Does this display require glue or tape to assemble?

The base wrap typically requires a glued side seam, which is often done before delivery. The rest of the display, including the internal grid, trays, dividers, and headers, assembles entirely through mechanical tab-and-slot friction fits.

How is the display delivered?

It is delivered flat as a multi-part kit. A single display includes the base wrap, internal supports, multiple trays, vertical dividers, and header cards, all of which must be collated and packed into a master shipper.

How much weight can the shelves hold?

Weight capacity depends entirely on the chosen board grade and the distribution of the product. Because the trays are supported from the center, heavy items placed on the outer edges can cause sagging. Physical load testing with the actual product is strongly recommended.

Can I use different board grades for different parts of the display?

Yes. It is common to use a heavy, rigid board for the internal load-bearing grid and a lighter, smoother board for the printed trays and headers. The cutting dies must be adjusted so the interlocking slots match the exact thickness of each board type.

Can this display be shipped fully loaded?

Shipping a fully assembled and loaded corrugated display requires careful palletization, stretch wrapping, and often additional transit shrouds. The friction-fit spine is designed for static retail environments, so rough transit while loaded should be tested thoroughly.

Can the shape of the top header be changed?

Yes. The intersecting header cards can be die-cut into custom profiles to match brand logos or campaign graphics, provided the central interlocking slots remain intact.

How are the components packed for delivery?

The eight distinct parts are typically collated and packed flat into a single master shipper. This keeps the entire kit together for the co-packer or retail team.

What products fit best on open trays?

Stable, stackable items that do not roll easily are good candidates. Because the trays lack outer retaining walls, products must sit flat and remain balanced around the central spine.

Reviewing your product weight, retail footprint, and assembly plan helps determine the right board combination for a stable, 360-degree presentation.
