EVC62069

360-Degree Multi-Shelf Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

360-degree access for open retail aisles
Modular slide-down octagonal shelves
Ships flat as a multi-piece interlocking kit

About this product

The EVC62069 is a freestanding corrugated retail tower designed for open floor spaces, allowing shoppers to approach and browse from any angle. It uses a central support column, an interlocking cross-base, and slide-down octagonal shelves to create a highly visible, multi-tiered presentation.

Because it relies on a central pillar rather than a solid back wall, this display is well-suited for lightweight to medium-weight goods like cosmetics, snacks, or seasonal items. The modular design ships flat and is assembled in-store without tools, though the multi-piece kit requires planned assembly time.

Common uses

Cosmetics and beauty product launches
Snack and confectionery aisle features
Lightweight seasonal merchandise

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall display height

Shelf width or diameter

Distance between shelves

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will be placed on the shelves?

How many shelves do you need on the display?

How should the display parts be shipped?

Which parts of the display will be printed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Environments for 360-Degree Displays

Open-Aisle Merchandising

Designed to stand independently in wide aisles or store entrances, this tower allows multiple shoppers to browse simultaneously from all sides. It is not intended to sit flush against a wall or gondola.

High-Visibility Product Launches

The top header wrap provides a prominent branding surface visible across the store, making it a strong fit for new product introductions or seasonal promotions.

Seasonal and Temporary Promotions

Because it ships flat and requires no permanent fixtures, this tower is useful for short-term holiday campaigns or limited-run merchandise.

Multi-Sided Retail Browsing

The octagonal shelves allow shoppers to approach the display from any direction, making it effective for wide walkways and store entrances.

Campaigns and Product Types

Cosmetics and Personal Care

The multi-tiered octagonal shelves are well-suited for organizing small, lightweight items like cosmetics, allowing for clear segmentation by product type or shade.

Snacks and Confectionery

For impulse buys, the 360-degree access maximizes the number of touchpoints in high-traffic areas, while the central column keeps the footprint relatively compact.

Toys and Novelty Items

Small, lightweight packaged toys and impulse novelties fit well on the tiered shelves, keeping the presentation organized while maximizing floor space.

When to Consider a Different Display Style

Heavy or Bulky Products

Because the shelves are supported entirely by friction-fit cross-pieces on a central corrugated column, heavy items like beverages or hardware may cause sagging or buckling. A reinforced endcap or pallet display is often a safer choice for high-weight payloads.

Wall-Facing Placements

If the display will be pushed against a wall or shelving unit, a standard flat-backed floor display uses space more efficiently and requires fewer interlocking parts.

Key Decisions for Production and Kitting

Board Caliper and Slot Fit

This display relies entirely on interlocking slots to hold the base, shelf supports, and header together. The board thickness must be finalized early, as the cutting template must be precisely matched to the material to prevent the display from leaning or tearing during assembly.

Kitting and Fulfillment Strategy

With over a dozen individual corrugated components, the display must be collated and packed into a master shipper. Buyers should decide whether the converter will manage this kitting process or if parts will be shipped in bulk for third-party fulfillment.

Print Surfaces and Registration

Graphics can be applied to the top header, the shelf edges, the top surfaces of the shelves, and the central column. The column requires four-sided printing, and shelves may need two-sided printing if the undersides are visible to shoppers.

Testing Shelf Load Capacity

Because the shelves are supported by a central column rather than side walls, physical load testing with the actual product is necessary to ensure the board grade prevents sagging.

Configuring the Tower and Shelves

Shelf Count and Spacing

The number of shelves and the vertical distance between them can be adjusted to accommodate different product heights. Adding shelves increases the overall height of the central column and the total piece count.

Header Dimensions

The top branding wrap can be scaled taller or wider to increase visibility, provided the internal support frame is adjusted to match.

Base Leg Height

The interlocking cross-base can be adjusted in height to raise the bottom shelf further off the floor, protecting products from foot traffic and cleaning equipment.

Packing details

In-Store Assembly Labor

While the display requires no tools or glue for final setup, the high piece count means retail staff will need time to interlock the base, slide down the supports and shelves, and attach the header. Clear visual instructions should be included in the master shipper.

Pre-Glued Central Column

The main vertical pillar requires a glued side seam. This is typically glued and folded flat by the manufacturer before shipping, allowing store staff to simply pop it open into a square tube.

Additional notes

Flatbed die-cutting requirements

The large footprint of the central column and the complex interlocking cuts of the shelves typically require flatbed die-cutting or digital CNC routing, rather than high-speed rotary equipment.

FAQs

How is the display assembled in the store?

The display arrives flat. Store staff interlock the cross-base, pop open the pre-glued central column, slide down the cross-supports, and drop the octagonal shelves into place. Finally, the top header frame is assembled and wrapped with the branded panel.

How much weight can the shelves hold?

Weight capacity depends entirely on the chosen board grade and the exact dimensions of the shelves. Because the shelves are supported by a central column rather than side walls, physical load testing with your actual product is necessary before production.

Can the central column be printed?

Yes, the central column can be printed on all four sides. Keep in mind that portions of the column will be obscured by the shelves and the products placed on them.

Can we change the shape of the shelves?

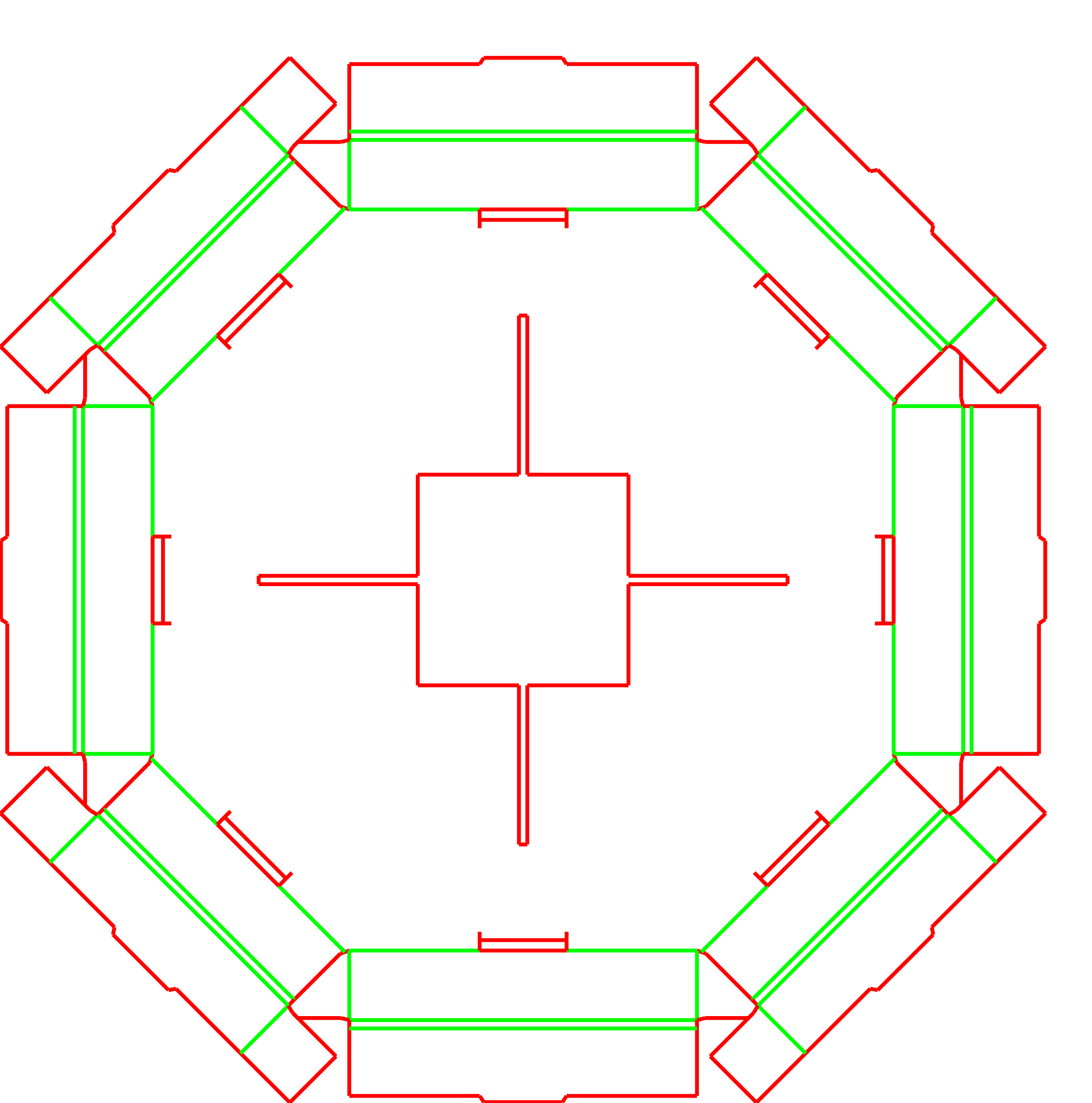

The standard template uses octagonal shelves with fold-down edges for rigidity. Changing the perimeter shape is possible but requires custom structural design to keep the new shape balanced and stable on the central supports.

Does this display ship with products already loaded?

No. Due to its interlocking slide-down construction, this display is designed to ship flat in a master carton and be loaded with product after it is assembled at the retail location.

Why is board thickness so critical for this design?

The stability of the entire tower relies on friction-fit slots in the base, column, and shelf supports. If the board is thicker or thinner than the slots were drawn for, the pieces will either tear during assembly or fit too loosely, causing the display to lean.

Can we order a prototype before full production?

Yes. Because the interlocking slots are highly sensitive to board thickness, a physical prototype is an important step to verify stability, assembly time, and shelf fit.

How are the shelves secured to the central column?

The shelves slide down the column and rest on interlocking cross-supports. These supports lock directly into vertical slots cut into the central pillar.
