Retail and Promotional Display Applications
Single-Item Promotional Bins
The single deep tray is well-suited for bulkier lightweight items, seasonal promotions, or clearance merchandise where a single accessible bin is more effective than multiple shallow shelves.
End-Cap and Aisle Merchandising
The A-frame profile provides a stable footprint that resists tipping, making it a practical choice for high-traffic retail aisles or end-cap placements.
Lightweight Bulk Goods
The deep tray format works well for loose, lightweight items that do not require neat stacking, allowing shoppers to easily reach in and grab products.
Temporary Retail Promotions
Because the display ships flat and sets up quickly without tools, it is a practical choice for short-term campaigns where store staff need to deploy the unit fast.
Merchandising and Distribution Contexts
Retail Store Assembly

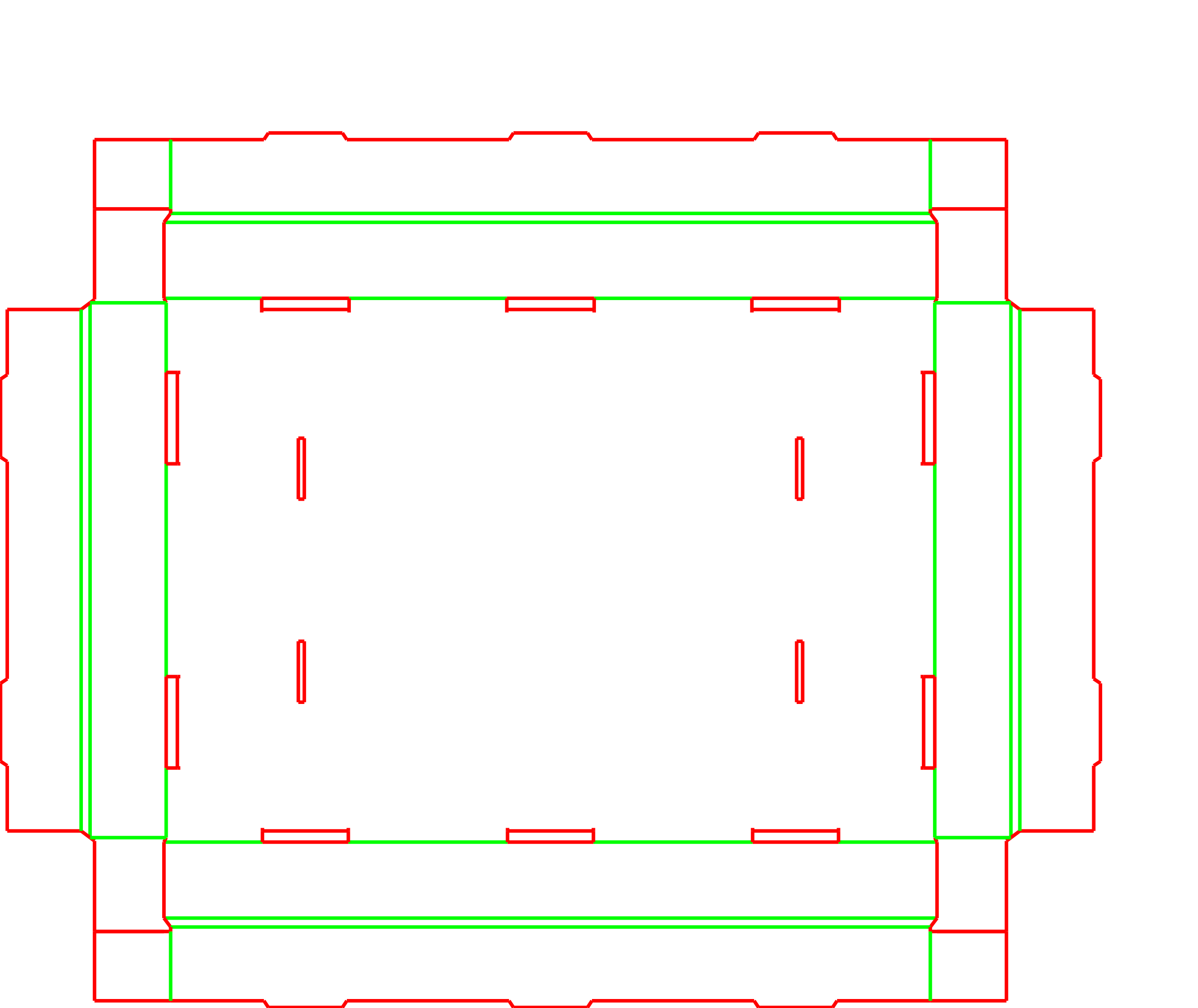

The display is designed for manual setup by store staff. The main body arrives as a flat, pre-glued tube that opens into the A-frame shape. The tray is folded separately and pushed into the front window, where mechanical tabs lock it into place without the need for tape or glue.
Fulfillment and Kitting
Because it is a display unit rather than a shipper, the three flat components must be packed into a master outer carton for distribution to stores or fulfillment centers.
Graphic and Branding Focus
The tall, uninterrupted front and back panels of the A-frame offer ample space for promotional artwork, drawing attention from a distance before the shopper reaches the tray.
When to Consider Alternative Display Styles
Multi-Tier Product Assortments
If you are merchandising several different products or require vertical separation, look at a multi-shelf floor display. The single tray limits the display to one main product grouping.
Heavy or Dense Merchandise
Because the tray relies on the lower edge of the window cutout and mechanical locks for support, very heavy items may cause sagging. For dense goods, a display with a reinforced base or a fully supported dump bin is often a safer choice.
Key Decisions for Specification and Production
Board Strength and Flute Profile
The weight of your product dictates the necessary board strength. While standard flutes work for light promotions, heavier items often require thicker or double-wall board to prevent the tray from sagging or the window corners from tearing.
Print Coverage and Side Seams
The tall A-frame provides a large canvas for branding. When planning artwork, consider how graphics will align across the side seams where the front and back panels are glued together.
Master Carton Packing
Determine how many flat displays will be packed into each master carton for distribution. This decision affects your overall logistics footprint and fulfillment process.
Tray Depth and Protrusion
The depth of the tray determines how far it extends from the main body. A deeper tray holds more volume but requires careful balance to ensure the display remains stable on the floor.
Structural Adjustments and Fit
Tray Dimensions and Protrusion
The width, depth, and height of the tray can be adjusted to fit your specific product volume. Changing the tray depth affects how far it extends from the A-frame body.
Display Height and Taper
The overall height of the tower can be modified. Adjusting the height naturally changes the taper angle of the A-frame, which impacts the footprint and visual proportions.
Tray Placement Height
The vertical position of the tray window can be raised or lowered to improve product accessibility and shopper ergonomics on the retail floor.
Packing details
Locking Tab Clearances and Board Thickness
The tray secures to the body using mechanical tongues that fit into corresponding slots. If the board thickness is changed during specification, these clearances must be recalculated to ensure the tray locks tightly without binding or tearing.
Additional notes
Moisture Risk at Floor Level
The base of the A-frame sits directly on the retail floor. If the store environment involves frequent mopping, a moisture-resistant coating on the bottom edges can help prevent the board from wicking water and weakening.
FAQs
How is the display assembled at the store?
The main A-frame body arrives flat and opens into a triangular tower. The separate tray is folded into shape and pushed horizontally into the front window. Tabs on the tray lock into slots on the body to secure it in place.
How much weight can the tray hold?
The weight capacity depends entirely on the chosen board grade and the physical dimensions of the tray. Because the tray is supported by the window ledge and locking tabs, physical load testing with your actual product is a necessary step before full production.
Is this display suitable for parcel shipping?
This display is designed as a retail display rather than a transit shipper. The flat components (front body, back body, and tray) are typically packed inside a corrugated master carton for safe distribution to stores.
Where can graphics be printed on this display?
The tall front and back panels of the A-frame offer extensive space for high-impact graphics. The tray itself can also be printed. Keep in mind that the front and back panels are glued at the sides, which may affect continuous wrap-around artwork.
Can we add a second tray to this design?
Adding a second tray requires major structural changes to the A-frame body and new window cutouts. If you need multiple tiers, it is usually better to start with a dedicated multi-shelf display template.
What happens if we change the board thickness?
Changing the board thickness requires adjusting the CAD file, specifically the slots and locking tabs where the tray meets the body. If these are not updated, the tray may be too loose or impossible to insert.
How is the tray secured to the main body?
The tray features mechanical tabs that slide into corresponding slots on the A-frame body. This locks the tray in place without requiring extra adhesive or tape.
Can the display be shipped with products already in the tray?
This display is designed to ship flat and be assembled at the retail location. Shipping it fully assembled and loaded is not advised due to the risk of damage during transit.
