Retail Placements for Two-Sided Displays
Center-Aisle Merchandising
Without a back panel blocking the view, this display works well for wide aisles where foot traffic approaches from multiple directions. It allows dual-facing product presentation in a single footprint.
Light to Medium-Weight Boxed Goods
The flat shelves are well-suited for stacked boxes, packaged apparel, or lightweight consumer goods. Heavy items like beverages require careful review of the shelf span to manage the risk of the board sagging.
Short-Term Retail Campaigns
Because it ships flat and assembles without hardware, this format is useful for seasonal promotions or temporary product launches that require quick store-level setup.
Dual-Branded Promotions
The open-access design and two-sided header allow different brands, product lines, or seasonal messages to be displayed on opposite faces of the same unit.
Merchandising and Store Operations
Store-Level Assembly
The display ships flat as a set of die-cut or routed boards. Store associates assemble it by folding the base plinth and sliding the shelf tabs into the side wall slots. No tape, glue, or hardware is needed, but aligning multiple shelves into the second side wall does require care.
Pallet and Freight Logistics
Because the display is entirely multi-piece, the flat components nest efficiently for transit. This knocked-down format keeps shipping space low, though the components must be packed in a protective outer carton to reduce corner damage before they reach the store.
Open-Plan Retail Environments
In boutiques, pop-up shops, or large grocery aisles, a two-sided unit maximizes floor space by allowing shoppers to browse from either side without needing to walk around a solid back panel.
When to Consider a One-Sided Display
Wall or Endcap Placements
If the display will be pushed against a wall or the back of an endcap, a standard one-sided floor display is a better choice. One-sided displays use a solid back panel, which increases lateral stability and provides a large, uninterrupted rear branding surface.
Heavy Product Loads
For dense, heavy products, a display with a reinforced back panel, center support struts, or a different load-bearing design may be necessary to reduce the risk of shelves bowing over time.
Shelf Span, Material, and Print Planning
Material Thickness and Slot Fit
The stability of this display depends entirely on friction. The height of the tabs must exactly match the thickness of the chosen rigid board (often 10mm or 16mm). If the material changes, the cutting file must be updated so the joints remain tight.
Two-Sided Print Requirements
Because shoppers see the display from both sides, the header, the shelves, and both faces of the side walls are visible. Artwork should be planned for two-sided printing to make the most of the available branding space.
Base Construction and Cutting Method

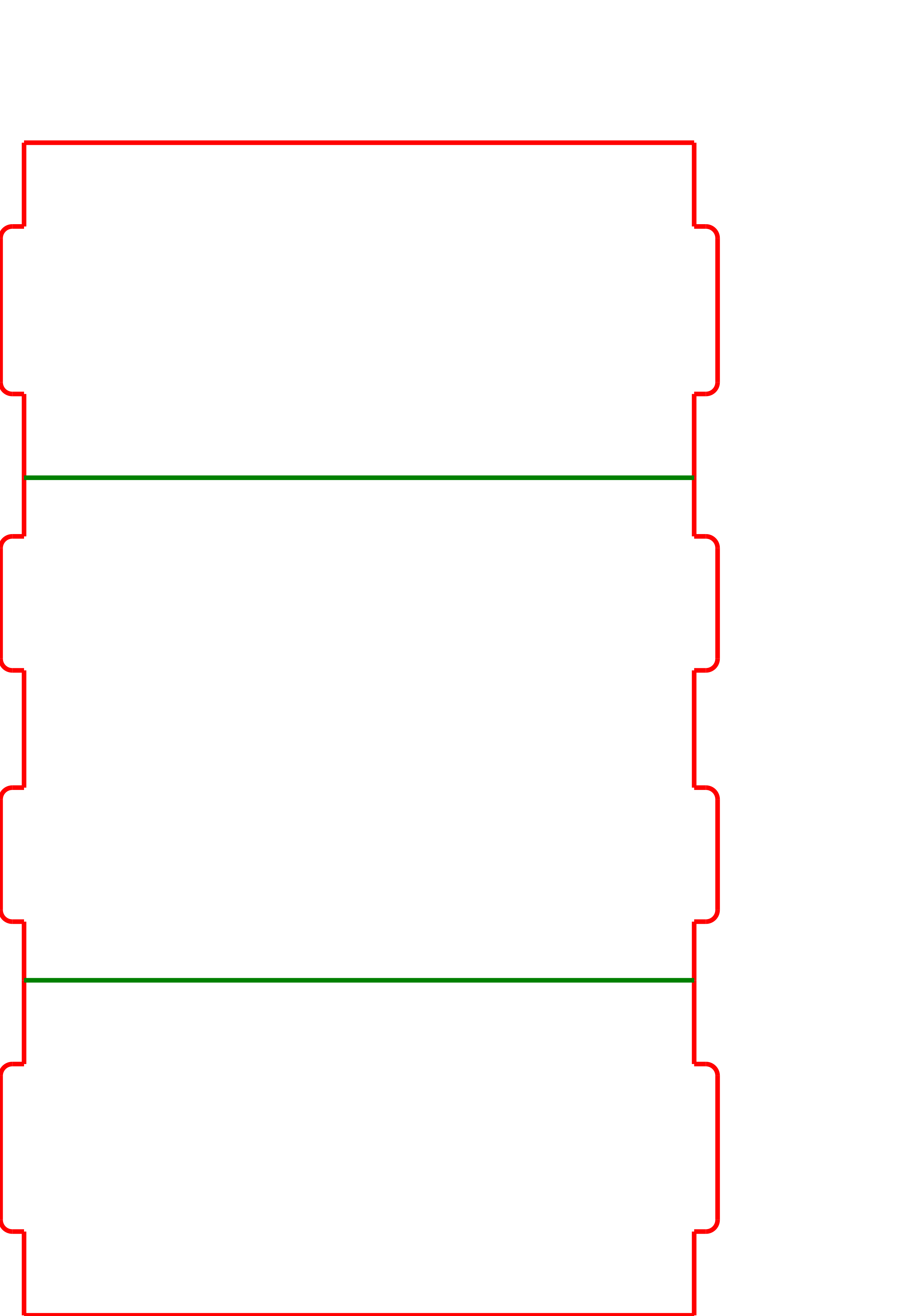

The standard base uses V-cuts to fold a thick rigid board into a supportive plinth. This requires digital flatbed routing. If high-volume traditional die-cutting is preferred, the base may need to be redesigned with standard slots or scores.
Shelf Span and Weight Limits
The width between the side walls must be balanced against the weight of the products. Wider spans accommodate more items but increase the risk of center sag, especially with lighter board grades.
Adjusting Shelves and Dimensions
Shelf Count and Spacing
The number of shelves and the vertical clearance between them can be adjusted to fit the product height. Adding shelves increases the overall height and changes the center of gravity, which should be checked for tipping risk.
Shelf Span and Depth
The width between the side walls can be modified. The side walls naturally extend past the shelves, creating a recessed area that helps keep products in place.
Header Profile and Branding Area
The top header can be adjusted in height or contour-cut to match specific brand logos or promotional shapes, provided the interlocking slots at the bottom remain intact.
Packing details
Lateral Stability and Racking
Because there is no back panel, the display resists leaning through the tight fit of the shelf tabs and the interlocking top header. Ensuring the header is properly seated is critical for helping maintain side wall alignment.
Additional notes
Material thickness and slot tolerances
If you change the board grade or thickness, the CAD file's slot dimensions must be updated. If the slots are too wide, the display will wobble; if they are too narrow, it cannot be assembled.
FAQs
How does the display stay stable without a back panel?
The display relies on the interlocking top header, the folded base plinth, and the tight friction fit of the shelf tabs inserted into the side walls. When properly assembled with the correct material thickness, these connection points help the unit resist leaning.
Does this display require tools or glue to set up?
The entire unit uses a tab-and-slot design, meaning store associates build it by folding the base and sliding the components together without hardware or adhesive. Aligning multiple shelves into the final side wall does require some patience.
Can I change the number of shelves?
The template can be adjusted for more or fewer shelves, and the vertical clearance between them can be changed to match your product. Keep in mind that taller displays with heavy items on top should be checked for tipping.
Will the shelves sag under heavy products?
Shelf sag depends on the product weight, the width of the display span, and the rigidity of the board. For heavy items, you may need a thicker board, a narrower span, or a different display style with center supports.
How is this display shipped to stores?
It ships knocked down as a set of flat boards. This is highly efficient for freight, but the flat components must be packed inside a sturdy outer corrugated box to protect the edges and corners during transit.
What materials are typically used for this display?
It is usually cut from thick rigid paperboard, such as 10mm or 16mm honeycomb or inverted corrugated board. The standard base design uses V-cuts, which are typically produced on digital flatbed CNC routers rather than traditional die-cutters.
Can the header be printed on both sides?
Yes. Because this is a two-sided display intended for open floor placement, both faces of the header are visible to shoppers and can be fully printed with branding or promotional artwork.
Do I need a separate shipping box for this display?
Yes. The display components ship flat and do not form their own shipping container. You will need a separate corrugated outer carton to protect the rigid board edges during courier or freight transit.
