ICB11002

Rigid Board Hooked Display Stand

The ICB11002 is a rigid board display standee intended to present hanging merchandise on retail counters or store floors. Cut from thick materials like honeycomb or inverted corrugated board, it uses a forward-folding base plinth and a separate locking panel to create a stable, freestanding presentation without using glue or tape.

Unlike standard easel-backed signs, this display relies on precise V-cut hinges that allow thick boards to fold cleanly at 90-degree angles. The vertical main wall features a customizable grid of cutouts to accept standard retail peg hooks, making it useful for blister-packed goods, accessories, and lightweight hanging products.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Intended for thick rigid boards like 10mm to 16mm honeycomb
  • Forward-folding base with a separate T-panel lock
  • Customizable grid for third-party peg hooks

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for display board preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail merchandising roles for the rigid board hooked stand

Countertop Blister Pack Displays

When scaled for counter use, the forward-folding base provides a stable footprint for lightweight hanging items like cosmetics, tech accessories, or small hardware. The rigid board presents a clean, premium edge compared to standard corrugated displays.

Floor-Standing Accessory Racks

For larger floor placements, the thick board and internal locking panel help the stand remain upright in high-traffic aisles. The hook grid can be expanded to hold multiple rows of product, provided the base depth is scaled to help prevent forward tipping.

Endcap Hanging Merchandise

Placed at the end of retail aisles, this standee can highlight promotional or seasonal hanging goods. The flat back allows it to sit flush against existing store fixtures while the forward base provides independent stability.

Trade Show Product Presentations

Because the display packs flat and sets up without tools, it is useful for temporary event spaces. Exhibitors can hang sample products on the peg hooks and use the large header area for brand messaging.

Store placement and retail rollout contexts

Retail Rollouts and Kitting

Because the display ships flat in two pieces, it can be distributed efficiently to individual stores. However, retail teams should source and kit the physical peg hooks alongside the flat boards, and staff will insert the hooks during the final floor setup.

Pop-Up Shops and Temporary Retail

Temporary retail locations often lack permanent shelving or slatwall fixtures. A freestanding rigid board standee provides an immediate way to merchandise hanging products without modifying the venue.

Boutique and Specialty Stores

In environments where standard wire racks might feel too industrial, a printed rigid board display offers a warmer, more customized presentation. The exposed edges of honeycomb or inverted corrugated board can also complement natural or minimalist store aesthetics.

When to compare shelved or metal displays

Heavy or Bulky Products

If the hanging items are heavy, the downward force can tear the board at the hook cutouts or cause the tall back wall to bow. For heavy goods, a shelved display or a metal fixture is often a better fit.

Products That Sit Flat

This standee is built entirely around a peg-hook grid. If the merchandise sits in trays, boxes, or loose assortments, a rigid board shelved display provides the necessary horizontal support.

Hardware, board thickness, and shipping decisions

Hook Hardware Compatibility

The size, shape, and spacing of the cutouts should match the specific peg hooks being used. Testing the physical hardware against the board thickness is a helpful step before finalizing the cutting template.

Board Thickness and V-Cut Machining

The template relies on V-cut hinges to fold thick materials like 16mm honeycomb board. The exact board caliper dictates the depth of the cuts and the width of the locking slots, meaning the material should be chosen early in the process.

Outer Shipping Protection

While the display packs flat, the large main wall and premium printed surface often need a protective outer carton for transit. It is not intended to ship through parcel networks without a dedicated master shipper.

Base Plinth Depth and Stability

The forward projection of the base can be extended to improve anti-tip stability. This is especially important if the display will hold multiple rows of products that shift the center of gravity forward.

Adjusting the hook grid, header, and base

Grid Spacing and Product Clearance

The horizontal and vertical distance between hook holes can be adjusted. This spacing should account for the physical width and length of the product packaging so items do not overlap or crowd each other on the display.

Header Shape

The top edge of the main wall features a curved profile that can be modified to match brand guidelines, accommodate specific logos, or cut straight across for a simpler rectangular look.

Hook Cutout Dimensions

The exact width and height of the receiver holes can be adjusted to match the specific peg hooks being used, ensuring a tight fit that prevents the hardware from sagging under load.

Packing details

Assembly and Locking Mechanism

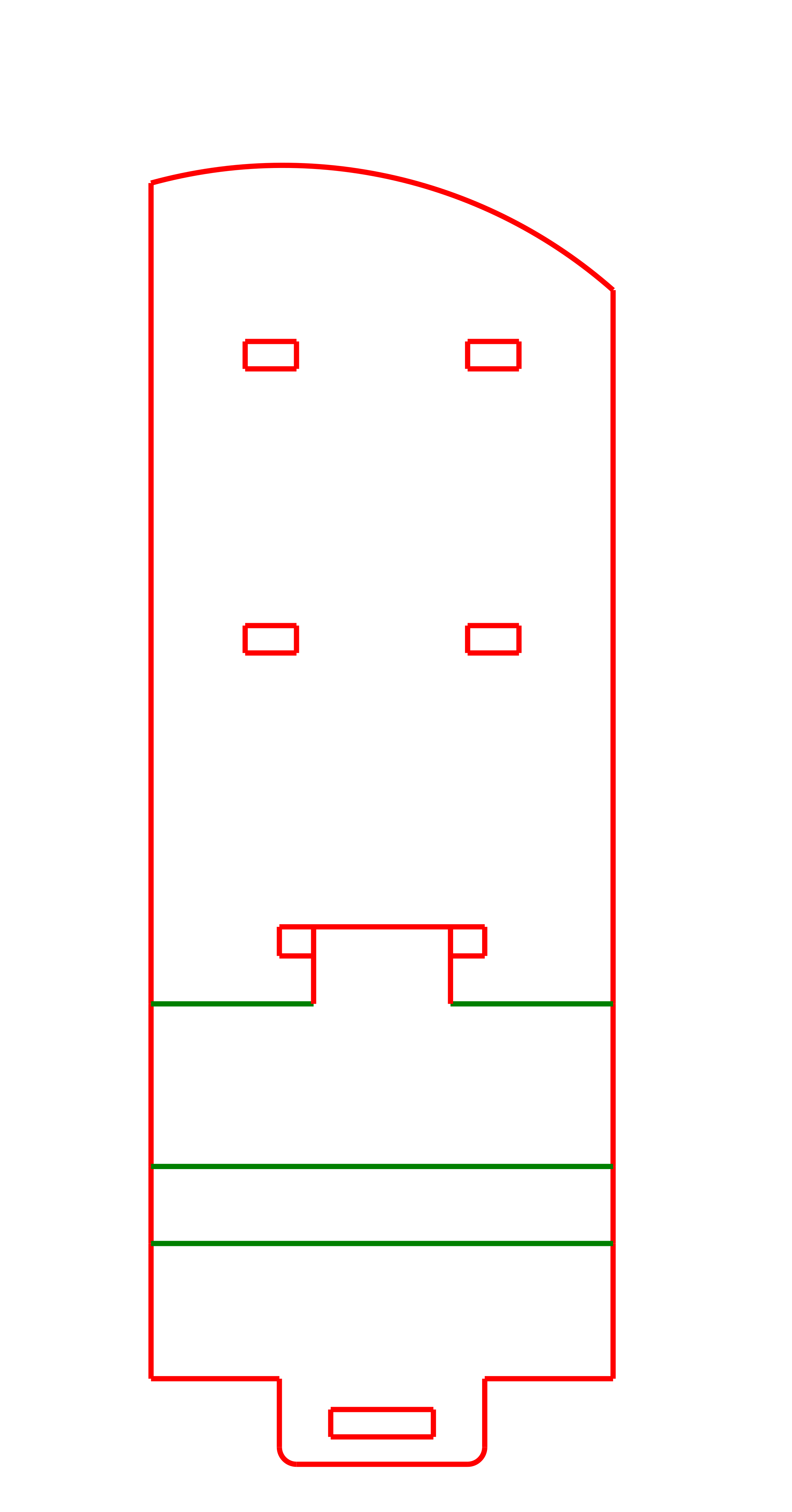

Store staff fold the base forward, down, and back, slotting the bottom tab into the main wall. The separate T-shaped locking panel is then pushed into the rear of the base cavity. This internal brace helps the base hold its 90-degree angles, keeping the structure stable under load.

Additional notes

Print surface and exposed edges on rigid boards

Rigid boards offer an excellent flat surface for direct digital printing. Keep in mind that the cut edges of honeycomb or ICB will expose the internal core structure, which is a normal visual characteristic of this material.

Related retail displays to compare

FAQs

Does the display come with the hanging hooks?

The board is cut with a grid of receiver holes, but the physical peg hooks are sourced separately. The cutout dimensions should be adjusted to match the exact hardware you plan to use.

How much weight can the hook cutouts support?

Load capacity depends entirely on the board material, the hook design, and the product weight. Heavy items can crush the bottom edge of the cutouts or cause the display to tip forward. Physical testing with fully loaded hooks is strongly suggested.

How does the base stay together without tape?

The base folds into a rectangular plinth and tabs into the main wall. A separate T-shaped locking panel slides into the back of this plinth, bracing the internal walls and locking the folds at strict 90-degree angles.

Can this be made from standard corrugated board?

This specific design is built for thick rigid boards, such as 10mm to 16mm honeycomb or inverted corrugated board, using V-cut hinges. Standard corrugated board folds differently and usually uses a different easel-backed template.

How is the display shipped to stores?

The main wall and the locking panel are delivered flat. Because rigid board is thick, a pallet will hold fewer units than a stack of standard corrugated displays. An outer shipping carton is often needed to protect the printed faces during transit.

Can the number of hooks be changed?

The grid layout can be expanded or reduced. When adding more hooks, the overall width and height of the main wall should increase to maintain proper clearance between the hanging products.

Can the display be printed on both sides?

The main wall can be printed on both the front and back. This is useful if the standee is placed in the center of a floor or counter where shoppers can see it from multiple angles.

How do I know if my product is too heavy for the board?

Physical testing is the best approach. Heavy items can pull down on the cutouts, so checking a loaded prototype helps confirm if the chosen board thickness and hook style will hold up over time.

Review your product weight, hook hardware, and retail footprint to ensure this rigid board standee is the right fit for your merchandising plan.
