Retail Merchandising And Display Roles
Countertop Retail Racks
Depending on the overall height and footprint specified, this design serves well as a countertop presenter. The two shelves provide clear product visibility, while the solid side walls offer vertical support and additional branding space.
Freestanding Floor Displays
When scaled up, the structure functions as a freestanding floor rack. The base footprint must be deep enough to prevent forward tipping when the shelves are fully loaded.
Flat-Pack Distribution Programs

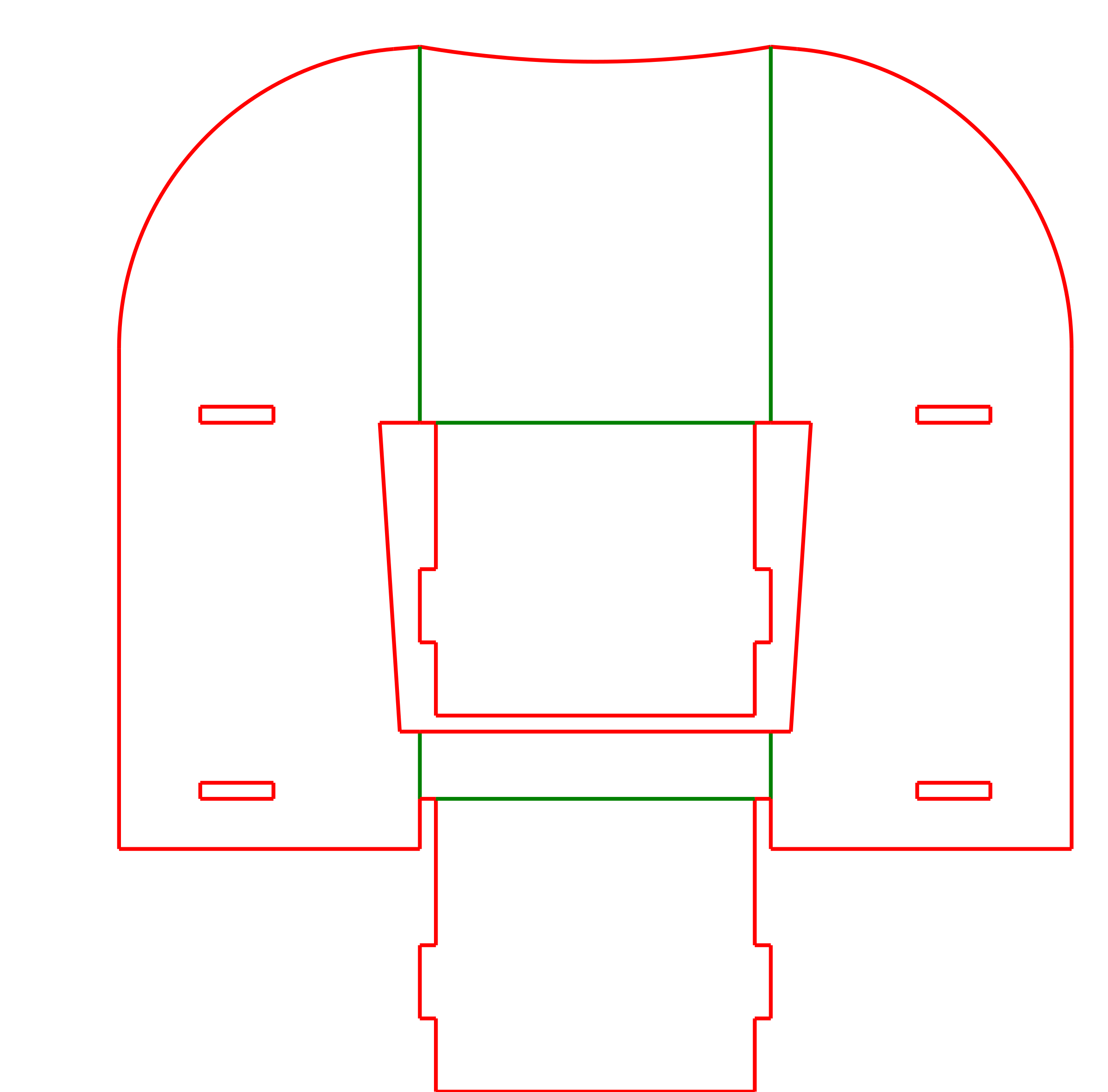

Because the entire display is a single board that ships completely flat, it reduces pallet space for distribution to individual retail locations. Store associates simply fold the panels forward and lock the tabs into place.
Endcap Merchandising
The flat back panel allows the display to sit flush against retail endcaps or walls. The open cutouts left by the folded shelves can be incorporated into the overall visual presentation.
Store Environments And Distribution Channels
Short-To-Medium Run Retail Campaigns
The reliance on CNC flatbed routing rather than traditional steel-rule die-cutting makes this display a strong choice for short to medium production runs. It pairs well with direct-to-board digital printing for seasonal or localized promotions.
Pop-Up Shops And Events
The tool-free, single-piece assembly is a strong fit for temporary retail environments where quick setup and teardown are required without relying on specialized labor or hardware.
Direct-To-Store Fulfillment
Shipping as a single flat board reduces freight volume and simplifies the receiving process for store staff, as there are no loose shelf components to misplace before assembly.
When To Evaluate Multi-Piece Or Corrugated Displays
Heavy Product Loads
While rigid board is strong, the shelves in this one-piece design rely on the shear strength of the side tabs and the V-cut hinges. For exceptionally heavy items like beverages or large hardware, a multi-piece display with dedicated, reinforced shelf supports may be a safer choice.
Standard Corrugated Requirements
This design requires thick, rigid board to accommodate the V-cuts necessary for crisp 90-degree folds. If your supply chain requires standard thin corrugated board, a traditional die-cut display style should be evaluated instead.
Board Thickness, Print, And Routing Choices
Rigid Board Selection
The display is engineered for rigid materials such as inverted corrugated board or honeycomb board. The chosen thickness directly affects the display's rigidity and the depth of the locking slots.
Print And Branding Surfaces
The back panel, side walls, and the top surfaces of the shelves are all cut from the same side of the board. Consider how direct-to-board printing will map across these surfaces, keeping in mind that the negative space behind the shelves will be visible once they are folded forward.
Shelf Load Capacity
Weight capacity depends entirely on the chosen board material, its thickness, and the overall dimensions of the display. Physical load testing with your actual product is required to confirm shelf strength and overall display stability.
Base Footprint And Stability
When sizing the display for floor use, ensure the base footprint is deep enough relative to the overall height to prevent forward tipping when the shelves are fully loaded.
Adjusting Dimensions And Shelf Spacing
Shelf Spacing And Clearance
The distance between the two shelves is driven by the overall height and the bottom leg height. These dimensions can be adjusted to ensure adequate vertical clearance for your specific product.
Top Profile Curvature
The curved profile along the top of the back panel and side walls can be modified. The depth of this curve can be adjusted for aesthetic reasons or flattened entirely to suit different brand guidelines.
Bottom Leg Height
The height of the bottom cutout lifts the first shelf off the floor. This dimension can be increased to raise the product presentation or decreased to maximize vertical shelf space.
Packing details
Prototyping And Load Testing
Because shelf stability depends on the interaction between the specific board material, the V-cut hinges, and the locking tabs, a physical prototype should always be loaded with actual product to verify anti-tip stability and check for shelf sag before full production.
Additional notes
Center of Gravity and Tipping
When sizing the display for floor use, ensure the base footprint is deep enough relative to the overall height to prevent forward tipping when the shelves are fully loaded.
Related Display Structures
FAQs
Does this display require glue or clips to assemble?
No. The display uses a friction-fit tab-and-slot mechanism. The tongues on the sides of the shelves lock securely into corresponding holes in the side walls as they are folded into place.
Can this be made from standard corrugated cardboard?
Generally, no. The design relies on V-cut hinges, which are routed into thick, rigid materials like inverted corrugated board or honeycomb board. Standard corrugated board would crush under this routing process.
How is the display shipped to stores?
The entire display is a single flat board before assembly. It ships flat, which minimizes freight volume. It must be packed in a separate outer shipping carton for parcel or courier transit.
How much weight can the shelves hold?
Weight capacity depends entirely on the chosen board material, its thickness, and the overall dimensions of the display. Physical load testing with your actual product is required to confirm shelf strength and overall display stability.
What happens to the back panel when the shelves are folded down?
Because the shelves are cut directly from the central back panel, folding them forward leaves open cutouts in the back wall. This should be considered when planning artwork and placement against retail walls.
Is this display die-cut?
No. Because of the thick rigid board and the need for precise V-cuts to allow 90-degree folding, this display is manufactured using a CNC flatbed router rather than a traditional steel-rule die.
Are the shelves separate pieces?
No. The shelves remain attached to the back panel via V-cut hinges. This one-piece design ensures no parts are lost during distribution or store setup.
Can the top curve be removed?
Yes. The curved profile along the top of the back panel and side walls can be flattened entirely to suit different brand guidelines or product heights.
