Retail Display for Tapered Cylinders
Multi-Packs for Dairy and Snack Tubs
Useful for grouping two or more tapered containers into a single retail unit. The open side panels allow consumers to see the primary product branding, while the top panel provides a continuous billboard for multi-pack marketing.
High-Visibility Cosmetic Jars
Used for premium jars where the primary container's shape and material are key selling points. The sleeve frames the product while keeping it securely locked via the top and bottom contoured edges.
Single-Row Beverage Cups
Fits tapered beverage cups that need to be sold as a set. The inward-angled walls hug the cups, preventing them from shifting during retail handling.
Grouped Retail Samplers
Provides a structured way to present a row of sample-sized cylindrical products. The large windows ensure the individual labels remain visible on the shelf.
Fulfillment and Packing Contexts
Automated Wrap-Around Lines
This template fits well with automated cartoning equipment. The flat blanks are fed into the machine, folded around the product row, and sealed at the base in a continuous motion.
Manual or Assisted Packing
For lower volumes, the sleeve can be manually wrapped and sealed. This typically requires holding the carton tightly against the product's taper while the bottom seal sets.
Retail Shelf Presentation
The angled profile and open windows are designed specifically for the store shelf. The package relies on the primary containers for its shape, making it a display piece rather than a standalone transit box.
When to Consider Closed Panels or Self-Locking Sleeves
Products Needing Full Enclosure
If the primary containers require protection from dust, light, or scuffing during retail handling, a closed-panel wrap-around carton provides a solid wall instead of open display windows.
Manual Packing Without Adhesive
If your fulfillment team needs to assemble the sleeves by hand without adhesive systems, a self-locking wrap-around template uses mechanical tabs and slots to secure the base.
Key Fit and Production Decisions
Matching the Product Taper
The inward angle of the side walls should closely match the draft angle of your specific cup or tub. If the angles do not align, the sleeve may tear at the corners or hold the product too loosely.
Master Shipper Requirements
Because the side walls are angled and feature large cutouts, this sleeve offers minimal vertical compression strength. It is usually paired with a well-fitted corrugated master shipper to protect the products during transit and warehouse stacking.
Inside Print Considerations
The large display windows make the interior of the back and side panels highly visible. Consider whether inside printing is needed to maintain a premium appearance.
Board Flexibility and Grain Direction
The board must be flexible enough to handle the tight wrap-around folds without cracking, yet strong enough to retain the product. Grain direction is planned to support these folds.
Adjusting Windows and Retention Features
Window Sizing and Placement

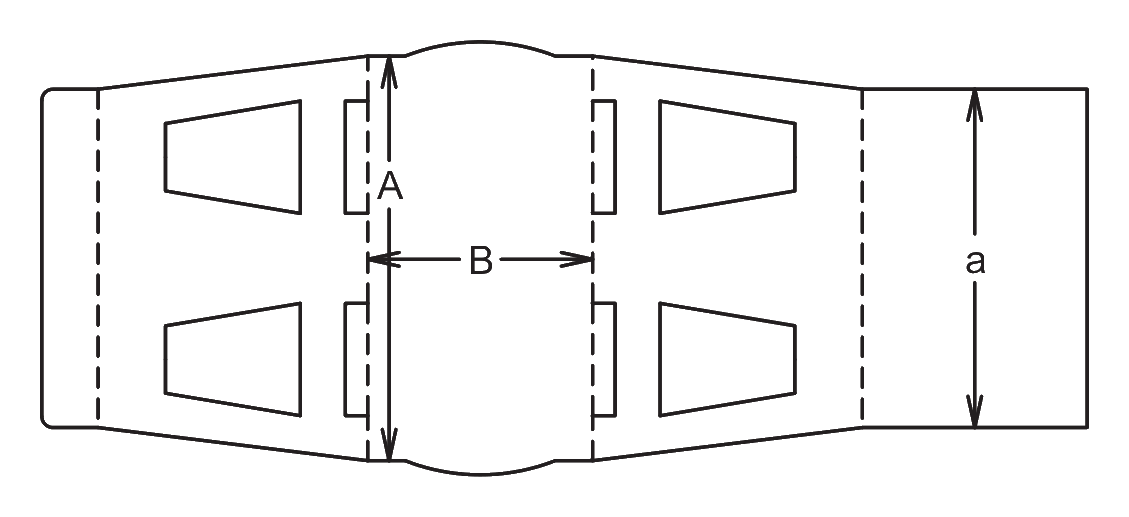

The trapezoidal display windows can be enlarged for more visibility or reduced to increase the strength of the side walls. Sufficient board must remain near the fold lines to prevent tearing during the wrap-around process.
Top Crease Locking Slots
Small rectangular slots along the top folds can be adjusted to precisely capture the rim or shoulder of your container, preventing the product from sliding out the open ends.
Base Flap Overlap
The width of the bottom glue flap can be adjusted based on the sealing method used during fulfillment, ensuring a secure bond beneath the product.
Board and packing details
Prototype testing for tapered containers
Because the retention relies entirely on friction and exact geometry, testing physical prototypes with your actual product is a practical step before full production.
