EVF12069

Octagonal Retail Box with Handle

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Integrated carrying handle secured by a wrap-around lock
Octagonal front and back panels for distinctive retail branding
Manual snap-lock bottom assembly

About this product

This distinctive folding carton combines a large octagonal display face with an integrated carrying handle, making it a strong choice for retail grab-and-go items, bakery goods, and premium gifts.

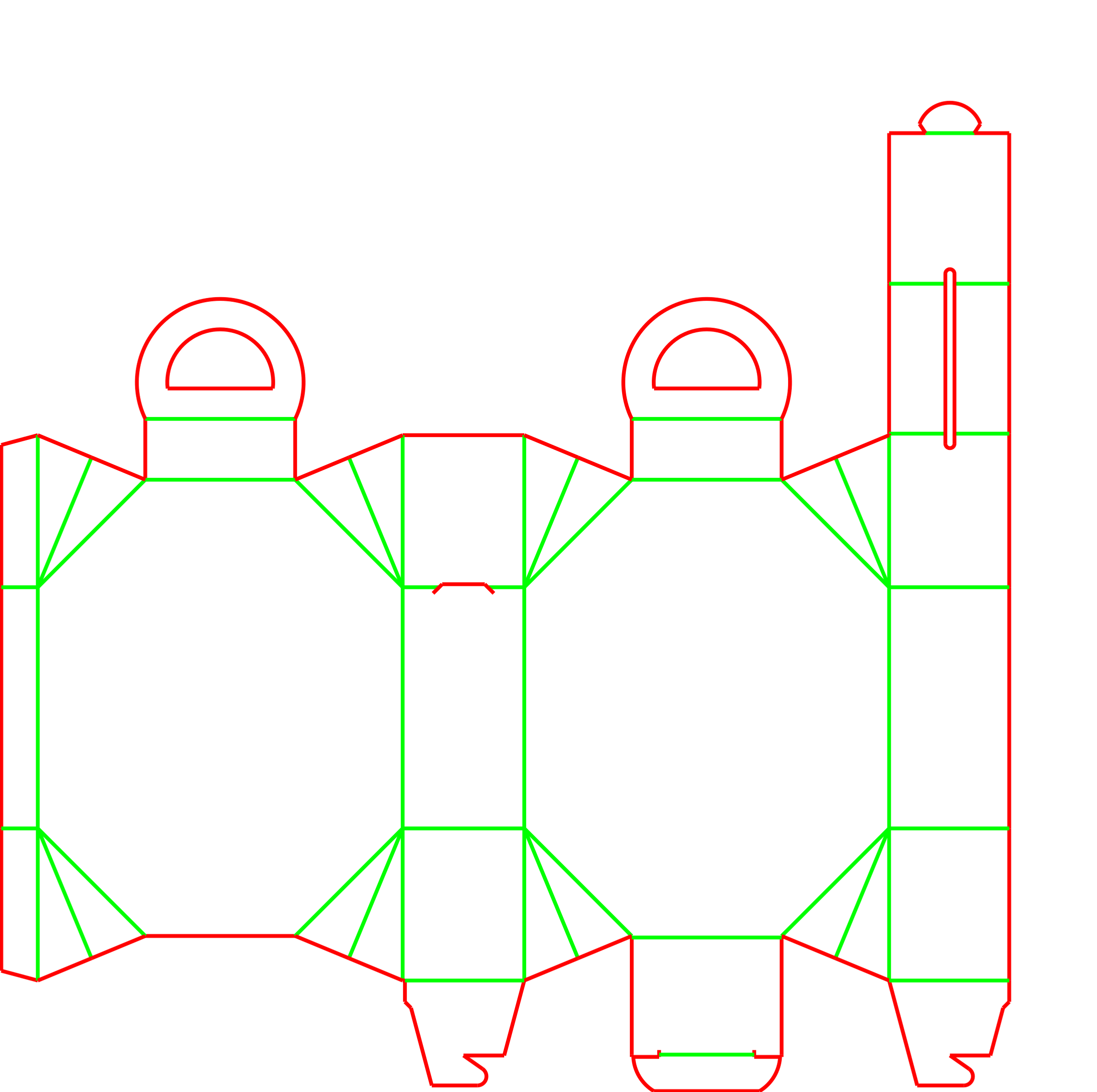

Delivered flat with a pre-glued side seam, it opens into a rectangular tube with chamfered corners. The bottom secures with a manual snap-lock, while a wrap-around tongue strap threads through the handle halves to lock the top closed.

Common uses

Bakery and confectionery
Premium gifts
Retail kits
Specialty beverages

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the item going inside?

How will these boxes be packed?

How will the final package be handed off?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Grab-and-Go Applications

Bakery and Confectionery

The distinctive shape and built-in handle make this carton a natural fit for premium baked goods, chocolates, or specialty treats that customers carry directly from the store.

Gift and Retail Kits

The large, flat octagonal faces provide an excellent billboard for graphics, while the handle eliminates the need for a separate shopping bag.

Specialty Beverages and Jars

For small jars of preserves, honey, or specialty drinks, the octagonal profile offers a unique presentation that stands out from standard rectangular cartons.

Cosmetics and Personal Care Sets

Bath bombs, lotions, and curated beauty sets benefit from the gift-ready appearance and the convenience of the integrated handle.

Product Fit and Presentation

Hand Packing and Store-Floor Setup

This carton is erected and loaded entirely by hand. The packer engages the snap-lock bottom, folds the top chamfers, brings the handle halves together, and threads the locking strap. It fits well in low-to-medium volume packing or in-store assembly environments.

Single-Layer Retail Display

Because the handle extends from the top, this box cannot be stacked vertically on retail shelves. It is designed for single-layer display, hanging, or direct handoff to the customer.

Gift-Ready Presentation

The unique geometry and built-in handle create an immediate gift-like appearance, often reducing the need for secondary wrapping paper or branded shopping bags.

When to Consider Alternative Handle Boxes

High-Speed Packing Lines

If the packing line relies on automated case erectors or folder-gluers for top and bottom closures, a standard reverse-tuck or auto-bottom carton without an integrated handle will be much faster to process.

Heavy Industrial Goods

The entire weight of the product is borne by the snap-lock bottom and the top handle strap. For heavy items, a crash-lock base or a corrugated carrier may provide better security.

Direct-to-Consumer Mailing

The protruding handle and non-stackable top make this carton difficult to ship through parcel networks on its own. If the primary goal is e-commerce shipping, a standard mailer box is often a safer choice.

Board Strength and Material Yield

Board Choice for Handle Strength

The carrying handle and the wrap-around locking strap support the full weight of the package. Selecting a board grade with high tensile strength helps prevent the strap from tearing during transit.

Blank Sprawl and Material Yield

The long tongue strap extends outward from the top of one side panel. This irregular blank shape can reduce nesting efficiency on the raw material sheet, which affects overall material usage compared to a simpler rectangular carton.

Snap-Lock Base Limits

While the snap-lock bottom is convenient for hand assembly, its weight capacity depends on the board stiffness and product distribution. Testing with the actual product helps confirm if the base will hold securely without additional tape.

Octagonal Panel Graphics

The front and back octagonal panels offer a unique, uninterrupted surface for branding. The angled chamfer panels can be used for secondary graphics, ingredients, or product information.

Modifying the Octagonal Profile

Chamfer Angle and Profile

The size of the angled corners can be adjusted to make the octagon more or less pronounced. The chamfer size must remain proportional to the overall width and height to maintain the structural geometry.

Handle Grip Sizing

The width of the handle opening and the locking strap can be modified to suit different hand sizes or board thicknesses, provided the strap still fits smoothly through the handle cutouts.

Bottom Closure Alternatives

If the manual snap-lock bottom is too slow for the packing team, the base can sometimes be adapted to a crash-lock style, though this requires a different structural template and gluing process.

Packing details

Parcel Shipping Requirements

This carton is designed for retail handoff. If the product will be shipped through a courier or postal network, the carton should be placed inside a protective corrugated outer shipper.

Additional notes

Octagonal Print Panels

The front and back octagonal panels offer a unique, uninterrupted surface for branding, while the angled chamfer panels can be used for secondary graphics or product information.

FAQs

How much weight can the handle support?

The weight capacity depends entirely on the selected board grade and the tear strength of the locking strap. Physical testing with the actual product is recommended to ensure the handle and the snap-lock bottom will hold securely.

Does this box require tape or glue to assemble?

The carton is delivered with a pre-glued side seam. The packer manually engages the snap-lock bottom and the top handle lock without needing tape, though heavy items may benefit from bottom taping.

Why might this box have lower material efficiency than a standard rectangular carton?

The long locking strap creates an irregular flat shape that takes up more space on the raw material sheet. This reduces how many boxes can be nested and cut from a single sheet.

Can this box be stacked on retail shelves?

Because the handle extends from the top, this box cannot be stacked vertically. It is designed for single-layer display, hanging, or direct handoff.

Is this box suitable for shipping through the mail?

It is not designed for direct parcel shipping. The handle and chamfered corners can catch in transit. It should be placed inside a corrugated outer shipper if mailed.

How is the box delivered to our packing facility?

The boxes are delivered flat (knocked down) with the side seam already glued. They are popped open and assembled by hand during the packing process.

Can the size of the angled corners be changed?

Yes, the chamfer dimensions can be adjusted to change the octagonal profile, as long as the proportions align with the overall width and height of the box.

What board materials work well for this style?

Folding boxboard (FBB) or solid bleached sulfate (SBS) are common choices for retail graphics. The key requirement is good tensile strength to prevent the handle strap from tearing.
