Retail and Presentation Uses
Cosmetics and Fragrances
The 5-sided shape naturally complements cylindrical bottles or tall jars, providing a premium unboxing experience with a unique shelf presence.
Specialty Gifting and Confectionery
Offers a distinctive alternative to standard rectangular boxes for lightweight, high-value items that benefit from a geometric presentation.
Boutique Candles and Diffusers
Tall, cylindrical items fit well within the pentagonal footprint, allowing the carton to hug the product while presenting a faceted exterior.
Premium Spirits and Glassware
Provides a geometric presentation for bottles, offering multiple panels for branding and a memorable opening experience.
Product Fit and Packing Context
Hand Assembly for Retail
Because of the dual tuck flaps and the pentagonal shape, this carton is erected and loaded by hand. Standard automated cartoning equipment typically handles rectangular profiles, making this shape a better fit for manual packing lines.
Flat Delivery and Storage
Despite the 5-sided shape, the carton is glued on a straight-line folder-gluer and delivered flat. The packer simply squeezes the edges to snap the split wall straight and form the pentagon.
Short-Run and Promotional Campaigns
The distinctive shape stands out for limited editions or promotional releases where the visual impact justifies the manual assembly time.
When to Consider a Different Shape
Heavy or Dense Products
The friction-fit bottom and the split back wall are designed for lightweight retail items. If the product is heavy, a crash-lock bottom or a standard rectangular carton will provide better base support.
High-Speed Automated Loading
If your packing line relies on automated erecting and filling equipment, a standard rectangular reverse-tuck or straight-tuck carton is generally a more practical choice.
Board and Assembly Decisions
Board Stiffness and the Split Wall
The split wall needs to remain rigid once the box is popped open. Selecting a high-quality folding carton board helps ensure the wall does not bow outward while still allowing the dual tuck flaps to fold cleanly.
Tuck Flap Clearance and Friction
The top and bottom lids rely entirely on the friction of the dual tuck flaps against the front corners. The depth and angle of these flaps can be adjusted based on the board thickness to ensure a secure hold without tearing.
Print Layout and Facing Angles
A 5-sided box offers multiple facing angles on a retail shelf. Deciding which panel serves as the primary display face helps guide the graphic layout and orientation.
Base Support and Product Weight
Because the bottom relies on a friction tuck lock, the weight of the product should be evaluated to confirm whether the base will hold securely during handling.
Template Adjustments
Tuck Flap Depth
The insertion depth of the dual tuck flaps can be extended for a tighter grip or shortened for easier opening, depending on the product and board choice.
Thumb Cut Sizing
The thumb cuts on the top front edges assist with opening the lid. Their width and depth can be adjusted to match the overall scale of the carton.
Split Wall Crease Calibration
The central crease on the back wall can be adjusted so that it folds flat for shipping but still pops open into a rigid panel during assembly.
Packing details
Split Wall and Flat Folding

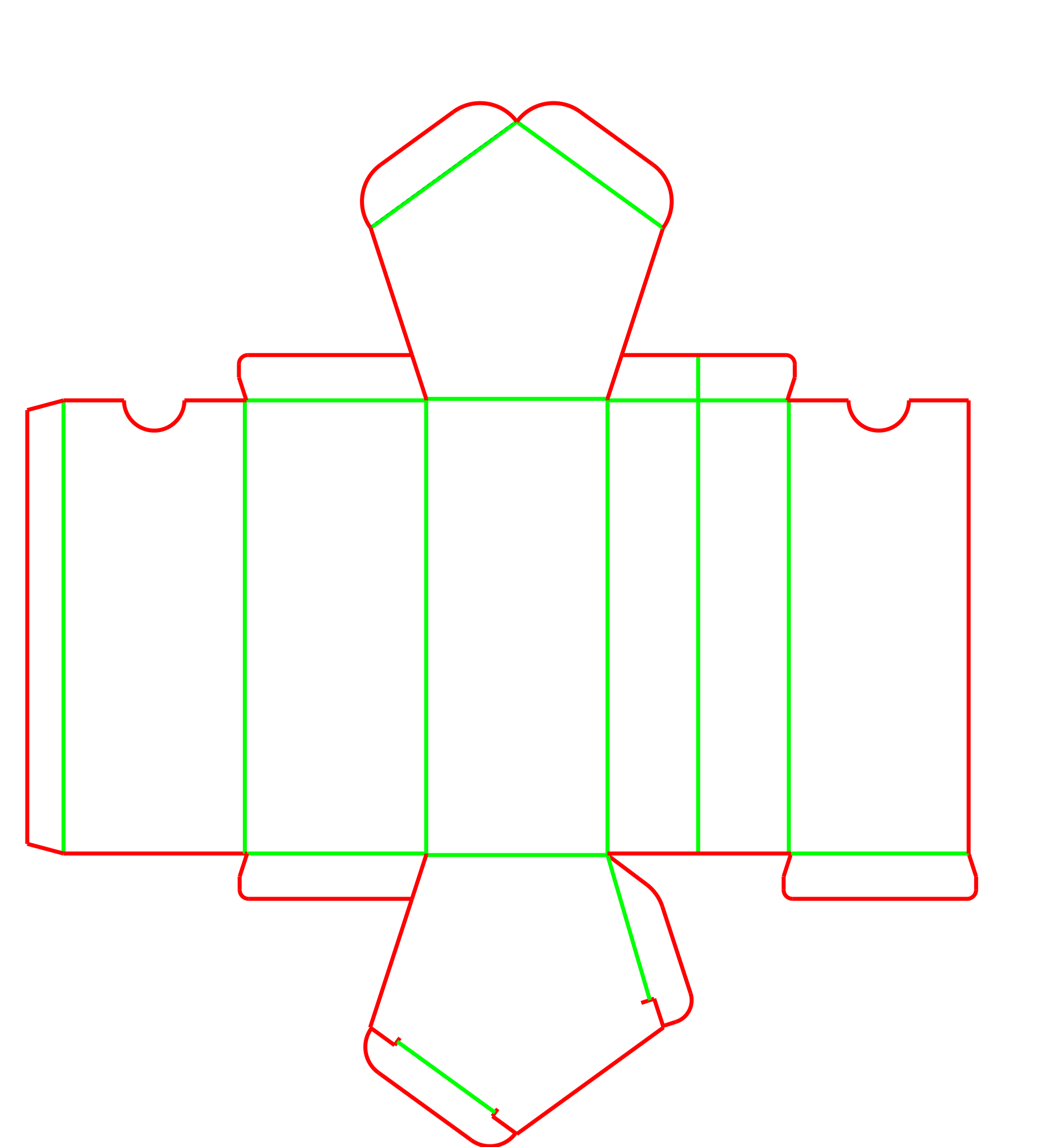

Odd-sided polygons usually need a modification to fold flat. This template bisects one of the side walls with a central crease, allowing the carton to collapse into a flat sleeve for efficient shipping and storage.
Additional notes
Thumb cuts and reopening
The front walls feature small thumb cuts that align with the dual tuck flaps, making it easier for consumers to open the carton without tearing the board.
Related Geometric Cartons
FAQs
How does a 5-sided box ship flat?
One of the side walls has a vertical crease down the middle. This allows the manufacturer to glue the side seam and fold the carton completely flat. When you squeeze the edges, that split wall snaps straight to form the pentagon.
Is this carton suitable for automated packing lines?
The pentagonal shape and dual tuck flaps are designed for hand assembly and manual loading. Standard automated cartoning equipment typically handles rectangular profiles.
Does the bottom need tape or glue?
The template uses a friction-fit tuck lock for both the top and bottom. For lightweight retail items, this is usually sufficient. If you are packing heavier items, the bottom may require a clear wafer seal or a different base design.
Is corrugated board an option for this shape?
Folding carton board is usually preferred. Corrugated fluting can make the split wall difficult to pop open cleanly and may cause the angled tuck flaps to bind during insertion.
What keeps the lid closed?
The pentagonal lid has two angled tuck flaps that slide into the front corners of the carton. The friction between these flaps and the front walls holds the lid securely in place.
Is this suitable for e-commerce shipping?
This is a primary retail package. The friction locks and geometric shape usually require an outer shipping box for parcel delivery.
How does the 5-sided shape affect print design?
The pentagonal footprint offers multiple facing angles on a retail shelf. Designers often choose one primary display panel and use the adjacent angled panels for supporting graphics or product information.
What board thickness makes sense for this shape?
A medium-weight folding carton board is often a good starting point. It needs to be stiff enough to keep the split wall rigid, but flexible enough to allow the dual tuck flaps to fold cleanly.
