Premium Retail and Presentation Contexts
High-End Cosmetics and Gift Sets
The thick walls create a framed presentation that elevates the perceived value of the contents. The hollow buffer space also provides a physical standoff, protecting delicate edges from side impacts.
Electronics and Device Packaging
When paired with a custom insert, the rigid walls offer excellent structural support and a clean unboxing experience similar to premium consumer electronics packaging.
Confectionery and Specialty Foods
The framed aesthetic works well for premium chocolates, macarons, or artisanal goods, adding visual weight to the presentation without using rigid greyboard.
Jewelry and Small Accessories
The double-wall construction provides a substantial feel for watches, leather goods, or jewelry, especially when the tray is fitted with a custom foam or paperboard insert.
Who Uses Buffer Wall Trays
Retail Display and Shelf Presentation
The flat base and crisp, double-folded edges stack well on retail shelves. The unglued construction relies entirely on the board's memory and the tongue locks, so it performs well in controlled retail environments rather than rough transit.
Manual Kitting Operations
Fulfillment teams should plan for the time needed to fold the side walls, roll the inner walls over, and seat the tongue tabs into the base. This tray is suited for lower-volume, high-margin kitting rather than high-speed automated lines.
Premium E-Commerce Unboxing
While it cannot ship on its own, this tray is often used as the primary product presentation inside a corrugated mailer, delivering a high-end unboxing experience when the customer opens the outer shipper.
When to Consider Simpler Trays
High-Speed Packing Lines
If your operation relies on automated folder-gluers or case erectors, this manual-fold tray will slow down the line. Standard four-corner glued trays are worth comparing for faster setup.
Direct Parcel Shipping
The tongue locks can disengage under rough handling, and the lid variant does not lock securely on its own. For e-commerce transit, this tray should be placed inside a dedicated outer mailer.
Board, Print, and Assembly Choices
Board Caliper and Lock Security
The tongue tabs rely on friction to stay seated in the base slots. If the board is too stiff, the inner walls may try to unfold and pop the locks. The exact board grade should be tested for lock retention.
Two-Sided Print Efficiency
Because the inner walls fold over from the outer extremities of the flat blank, the interior of the buffer walls shares the same print surface as the exterior. This allows for a cohesive look on the walls without needing two-sided printing.
Blank Sprawl and Material Cost

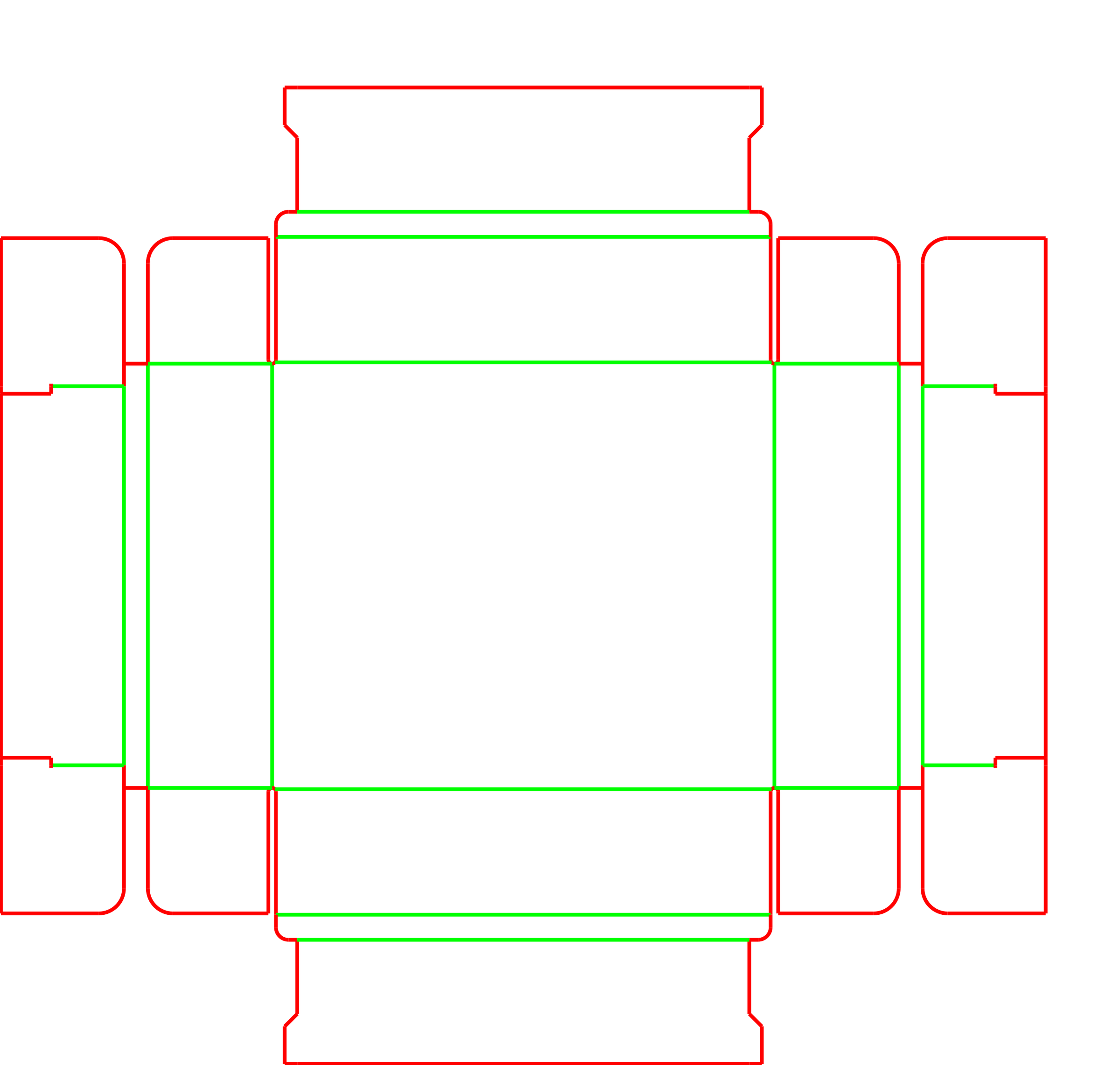

Forming four hollow walls involves a large, cross-shaped flat blank. This high material footprint means the tray uses more board than a standard carton of the same internal volume.
Insert Compatibility
The hollow walls consume internal space. The internal cavity dimensions should be calculated carefully to ensure custom inserts fit snugly against the inner buffer walls without bowing them.
Adjusting the Buffer Width and Locks
Buffer Wall Thickness
The width of the hollow space can be adjusted to create a thicker or thinner frame around the product. Wider buffers increase the overall footprint and material usage.
Lid Friction Fit
For the two-piece variant, the clearance between the lid and the base determines the unboxing feel. This friction fit should be carefully calibrated based on the final board thickness and any surface coatings.
Tongue Lock Depth
The length of the locking tabs and the depth of the receiving slots in the base can be modified. This helps tune the lock security depending on the thickness and memory of the chosen paperboard.
Packing details
Scoring for Double Folds
The inner walls roll 180 degrees over the corner dust flaps. Proper scoring profiles help prevent the board from cracking along these double folds, especially on heavier materials.
Tray and Lid Configurations
EVF41251 Base Tray
A single open tray with buffer walls on all four sides, locking into the base panel.
EVF41251a Body and Lid
A two-piece configuration featuring the base tray and a matching full telescope lid, both utilizing the buffer wall construction.
Additional notes
Manual folding sequence
Fulfillment teams should be trained on the specific folding sequence: side walls first, rolling the inner walls to trap the corner flaps, followed by the end walls and final tongue locks.
Board memory and lock retention
Stiff boards have a strong memory and will try to unfold. The tongue tabs and base slots should be precisely cut to ensure the friction locks hold the walls securely in place.
Related Premium and Standard Trays
FAQs
Can this tray be set up on automated machinery?
This tray is designed for hand-packing operations. The process of rolling the inner walls and seating the tongue locks into the base slots is a manual task, making it unsuitable for automated folder-gluers.
Is this tray suitable for e-commerce shipping?
It works well as an inner product box. The unglued locks and telescope lid are not designed for direct parcel transit on their own. It usually needs a sturdy outer shipping box or mailer.
Do I need to print on both sides of the board to have graphics inside the tray?
Not necessarily. The inner buffer walls fold over from the outside of the blank, meaning they share the same printed side as the exterior walls. The central floor panel, however, will show the unprinted side unless two-sided printing is used.
How does the buffer wall affect internal dimensions?
The hollow walls consume space. When sizing the tray, you should account for the buffer width on all four sides to ensure your product or custom insert fits correctly within the central cavity.
Can I use heavy corrugated board for this design?
This specific template is optimized for folding carton board. Heavy corrugated flutes may crush on the top edges or cause the intricate tongue locks to fail. If corrugated is needed, a different template designed for fluted material should be evaluated.
How does the lid stay on the two-piece variant?
The full telescope lid relies entirely on friction against the outer walls of the base tray. The exact fit depends heavily on the board thickness and should be tested with a physical sample.
Does this tray need glue for assembly?
No. The tray uses a series of tongue tabs that lock into slots on the base panel, holding the double walls together without adhesive.
Can I use this tray without a lid?
Yes. The base template (EVF41251) is a single open tray, often used inside sleeves or as a presentation base. The lid variant (EVF41251a) is optional.
