EVF48010

Octagonal Presentation Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Distinctive 8-sided footprint for premium display
Delivered flat and assembled manually without glue
Double-wall straight edges provide a clean, finished look

About this product

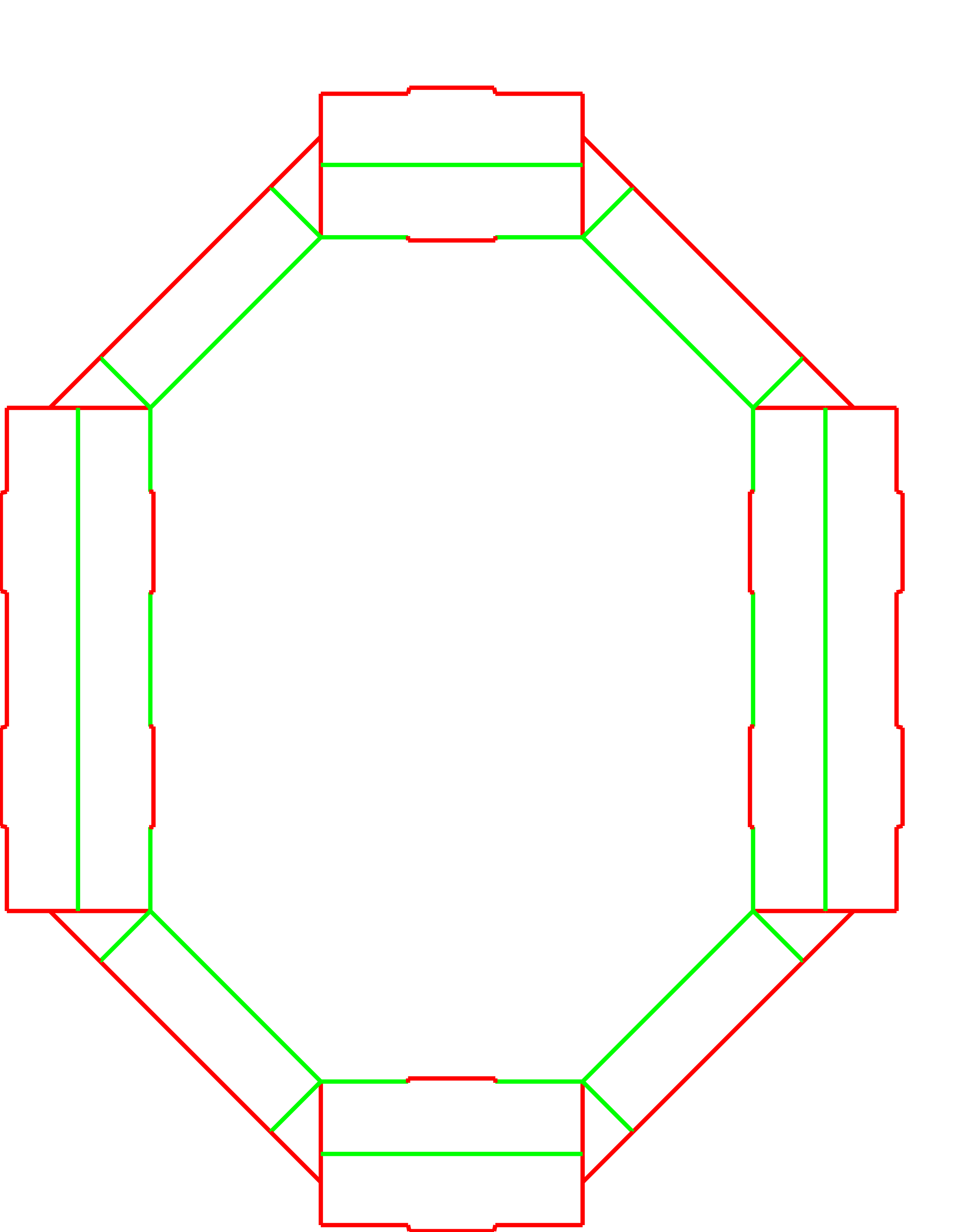

This eight-sided folding tray provides a distinctive footprint for premium retail presentation, gift assortments, and confectionery. Delivered flat, it uses a fold sequence where the four main walls roll inward to trap the corner flaps, locking the entire structure into the base without adhesive.

Because the straight walls feature a double-thick rolled edge, the tray maintains a clean, finished appearance on the shelf. This design relies on manual assembly, making it a practical choice for fulfillment operations that can balance hand-packing time against the premium presentation.

Common uses

Gift baskets
Confectionery
Bakery
Premium retail display
Cosmetics and skincare sets

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Depth

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of items will this tray hold?

How will the loaded tray be protected for shipping or retail?

How would you like the tray printed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Presentation and Display Roles

Gift and Assortment Baskets

The octagonal shape naturally centers products and fits well inside shrink wrap or larger presentation outers, making it a strong base for curated assortments.

Bakery and Confectionery

Provides a high-end, open-top display for premium treats, keeping them visible while defining the shelf space with clean, double-thick edges.

Cosmetics and Skincare Sets

Frames premium bottles and jars in a distinctive shape, often paired with custom inserts to hold the items securely within the eight-sided boundary.

Open-Top Retail Display

Suits lightweight retail goods that need to be accessible to shoppers while maintaining a structured, branded boundary on the shelf.

Retail and Gifting Contexts

Fulfillment and Kitting

Teams should account for the manual assembly time. The tray ships flat to save inbound freight, but each unit is folded and locked by hand before loading.

Premium Retail Brands

Brands looking to break away from conventional rectangular packaging often use the octagonal shape to signal higher value and stand out on crowded shelves.

Corporate Gifting Programs

Provides a memorable unboxing experience for high-end corporate gifts, especially when the tray is pulled from a fitted outer sleeve or mailer.

When to Consider a Different Tray Style

High-Speed Packing Lines

If your operation relies on automated tray erectors, this manual-fold design will slow down the line. A conventional machine-erected tray is usually a better fit.

Heavy or Industrial Goods

This is a presentation tray made from cartonboard. For heavy components, a corrugated tray with reinforced corners provides more rigidity.

Standalone Parcel Shipping

This open-top tray is not designed to ship through courier networks on its own. It needs a fitted outer shipping box or mailer for transit.

Board, Print, and Assembly Choices

Board Folding Endurance

The four straight walls roll a full 180 degrees inward. The board needs excellent folding endurance, such as FBB or SBB, to prevent the creases from cracking.

Interior Print Strategy

Because the straight walls roll over but the angled corners do not, the inside of the tray shows a mix of the board's front and back surfaces. Two-sided printing ensures a uniform interior color.

Assembly Labor

The tray locks securely using friction and base slots, eliminating glue costs, but the multi-step folding process requires dedicated hand-assembly time.

Outer Shipping Strategy

Since the tray has an open top, buyers should plan for how the loaded tray will be protected during transit, whether through a master carton, a custom mailer, or shrink wrap.

Adjusting the Octagonal Footprint

Corner Angle Proportions

The length of the straight edges can be adjusted relative to the overall length and width, changing how steep or shallow the angled corners appear.

Locking Tongue Count

For very long trays, the number of locking tabs on the main walls can be increased to ensure the rolled edge stays securely anchored to the base.

Wall Height Adjustments

The depth of the tray can be modified to expose more of the product for display or to provide deeper containment for taller items.

Packing details

Base Slot Clearance

The slots in the base panel are sized to match the board thickness. Changing board caliper requires adjusting these slots so the tongues snap in without tearing.

Additional notes

Board Caliper and Crease Cracking

The clean look of the double walls depends on the board folding cleanly without cracking. We suggest high-quality virgin board grades and proper score profiles to handle the 180-degree bends.

FAQs

Does this tray require glue or tape?

No. The four main walls roll over the corner flaps and lock into pre-cut slots in the base panel, holding the tray together mechanically.

Can this tray be erected by automated machinery?

This specific octagonal design and fold sequence is intended for manual assembly. It is generally not a fit for conventional automated tray formers.

How are the corners held together?

The four angled corner walls fold up first, and their side flaps fold inward. The four main straight walls then roll 180 degrees over those flaps, trapping them inside the double-wall cavity.

Why is two-sided printing often used for this tray?

The straight walls roll 180 degrees inward, showing the printed front of the board on the inside. The angled corner walls only fold 90 degrees, showing the unprinted back. Printing both sides keeps the interior looking uniform.

What board types are suited for this fold?

Because the main walls roll a full 180 degrees, the tray relies on board with excellent folding endurance, such as Solid Bleached Board (SBB) or Folding Boxboard (FBB), to prevent the creases from cracking.

Can this be made from corrugated board?

Generally no. The tight 180-degree roll-over folds and small locking tabs are designed for folding cartonboard. Corrugated board often crushes or bulges in this sequence, which can prevent the locks from seating properly.

Can I ship this tray directly in the mail?

No. It is an open-top presentation tray. For parcel transit, it needs to be placed inside a fitted outer shipping box or mailer.

Can these trays be stacked on a retail shelf?

Because it has an open top, it is not designed to bear vertical weight on its own. Stacking requires a separate lid or an outer master carton.
