EVC11101P

Auto-Bottom Box with Friction Tuck Top

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Pre-glued crash-lock bottom pops open for fast manual packing
Friction tuck top provides a clean presentation for retail or kitting

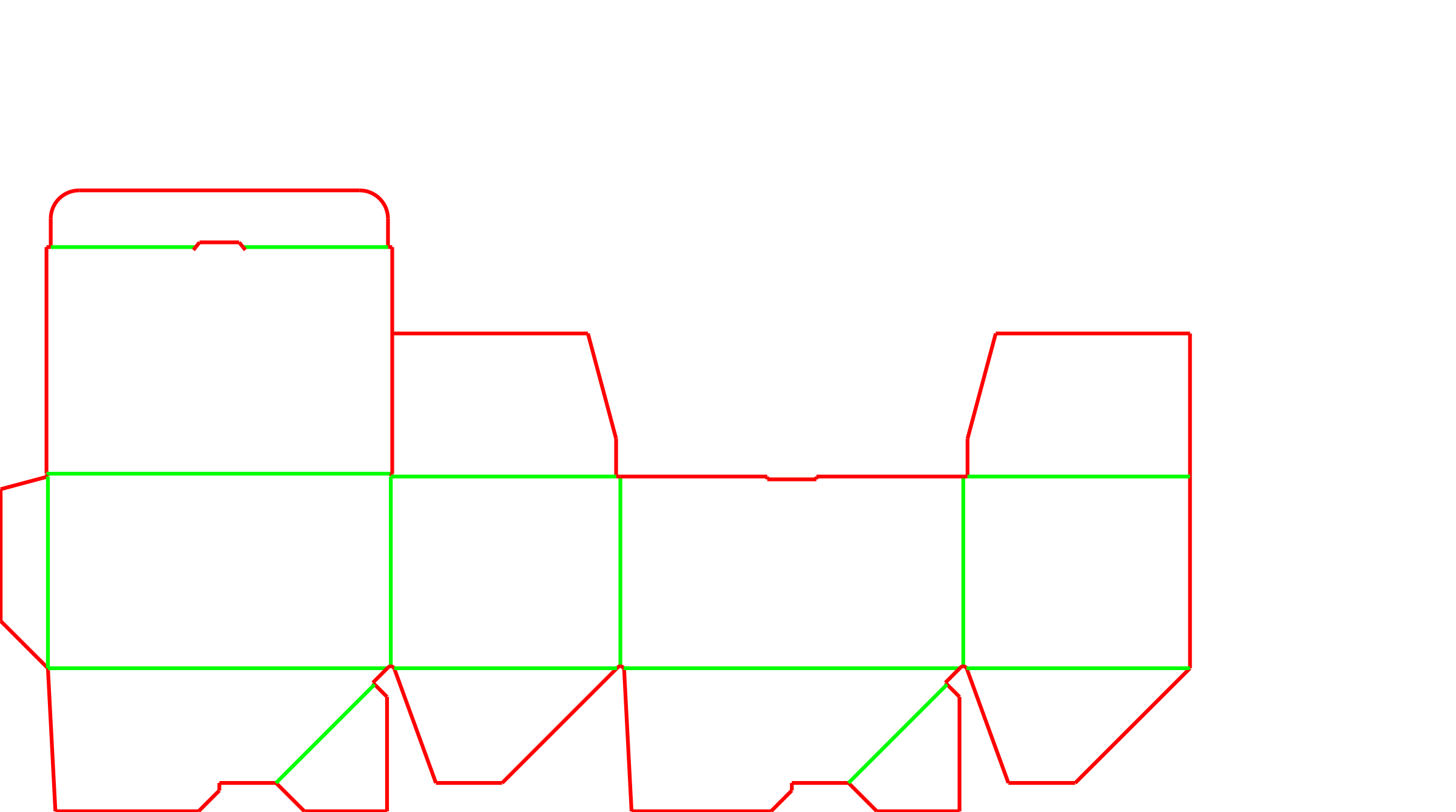

Paired die-cut layout nests two blanks together during production

About this product

This corrugated box combines a pre-glued crash-lock base with a clean friction tuck top, designed to reduce manual packing time. Delivered flat, the bottom automatically snaps into a rigid floor when the opposite corners are pushed together.

Because the base gluing is handled before delivery, the packing bench typically avoids bottom taping. The simple friction tuck lid provides a clean presentation for retail shelves, kitting, and lightweight fulfillment, though it may benefit from a clear seal for rough parcel transit.

Common uses

Retail kitting
Lightweight fulfillment
Shelf-ready products
Subscription boxes

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Interior length

Interior width

Interior depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the product going inside?

What type of product is going inside?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

High-Volume Packing and Retail Kitting

High-Speed Manual Fulfillment

The auto-bottom design eliminates the need to fold and tape bottom flaps, making it very effective for packing lines where labor time is the primary bottleneck.

Retail and Shelf-Ready Packaging

The friction tuck top leaves a clean, uninterrupted front panel, perfect for products that will be displayed on shelves or opened by the consumer without tearing tape.

Lightweight Component Kitting

For multi-part kits, the instant-open base allows operators to focus entirely on loading and arranging the product rather than building the carton.

Subscription Box Inner Cartons

When used inside a master shipper, the friction tuck provides a clean unboxing experience without the need for external seals on the inner carton.

Fulfillment Centers and Retail Brands

Kitting and Assembly Operations

Operations assembling multi-part kits often choose this box because the instant-open base lets packers focus on arranging components instead of folding bottom flaps.

Subscription and E-commerce

While the friction tuck top is clean, brands shipping directly via courier networks typically add a branded wafer seal or label to ensure the lid stays closed during rough transit.

Retail Display Programs

Brands placing products directly on store shelves benefit from the tape-free exterior, which keeps branding and graphics clear of visual interruptions.

When to Consider Slit Locks or Snap Bottoms

Need for a more secure top closure

If the box will be overfilled or shipped without an outer seal, it is worth comparing a version featuring slit locks on the top tuck flap to prevent accidental opening.

Lower volume or simpler factory setup

If the order program does not fit a pre-glued production route, a snap-lock bottom offers a tape-free base that is manually folded by the packer.

Board Thickness and Closure Choices

Board Grade and Flute Profile

This mechanism typically performs better with thinner profiles like E-flute or B-flute. Heavy double-wall boards can cause the diagonal crash-lock creases to bind or tear during the auto-erect motion.

Top Sealing Strategy

Decide whether the friction tuck will be secured with a label, a clear wafer seal, or shipped inside a master carton. The tuck relies on friction against the front wall and dust flaps, which can yield under upward pressure.

Product Weight and Base Support

While the crash-lock base is strong, extremely heavy products may still stress the pre-glued joints. Testing the exact product weight with the chosen board grade helps confirm the fit.

Delivery and Storage Space

These boxes are delivered knocked down and flat. Because the base is pre-glued, they may stack slightly differently than standard unglued flat boxes, which can affect pallet density.

Adjusting Proportions and Dust Flaps

Tuck Flap Depth

The length of the top tuck flap can be extended for a tighter friction fit, depending on the product clearance needs and the board thickness.

Dust Flap Clearances

The side dust flaps can be chamfered or adjusted to ensure they do not interfere with the product or the main lid during closure, especially when nesting the paired layout.

Glue Flap Width

The side glue flap width can be adjusted based on the board thickness to ensure a strong side seam without interfering with the internal pack space.

Packing details

Production Efficiency of the Paired Layout

The P in this template code indicates a paired layout. Two box blanks are nested together on the corrugated sheet during die-cutting. This interlocking pattern changes how the material is used during production.

Single vs. Paired Layouts

Single Blank (EVC11101)

The standard single-up version of the box, used when sheet dimensions or die-cutting equipment do not support the paired layout.

Additional notes

Pre-glued delivery requirements

Because the crash-lock base involves precise diagonal folding and adhesive application before delivery, it is processed on specialized folding and gluing equipment. This makes the box very efficient for the packer, but it changes the production route compared to a standard unglued box.

FAQs

What is the difference between a crash-lock and a snap-lock bottom?

A crash-lock bottom is pre-glued before delivery and pops open when pushed. A snap-lock bottom consists of four unglued flaps that the packer manually folds and interlocks.

Does this box need tape to stay closed?

The bottom is pre-glued and typically avoids tape. The top is a friction tuck; it stays closed for retail display or palletized transport, but usually benefits from a clear seal or label for individual courier shipping.

Can I use thick double-wall corrugated for this box?

It is generally not advised. Thick boards can cause the complex diagonal folds of the crash-lock base to bind, preventing the box from snapping open smoothly.

What does the Paired layout mean for my order?

It means the cutting die is designed to cut two interlocking boxes at once. This changes how the corrugated board is used during the cutting process.

Is this box suitable for automated packing lines?

While the base erects quickly, it involves a manual pop-open motion. It is very efficient for manual packing benches but is not typically used on fully automated loading lines without specialized erecting equipment.

Will the friction tuck top hold heavy items securely?

The friction tuck relies on pressure against the front wall. If heavy items shift upward during transit, the lid may open. A clear seal or outer shipper is often used for heavier goods.

Why does this box arrive pre-glued?

The crash-lock base relies on precise diagonal folding and adhesive application before delivery. This shifts the assembly work from the packing floor to the production facility.

Do the internal dust flaps interfere with loading?

The dust flaps fold inward before the main lid closes. If the product fills the box entirely to the top edge, the dust flaps may need clearance adjustments to fold flat.
