EVC11102

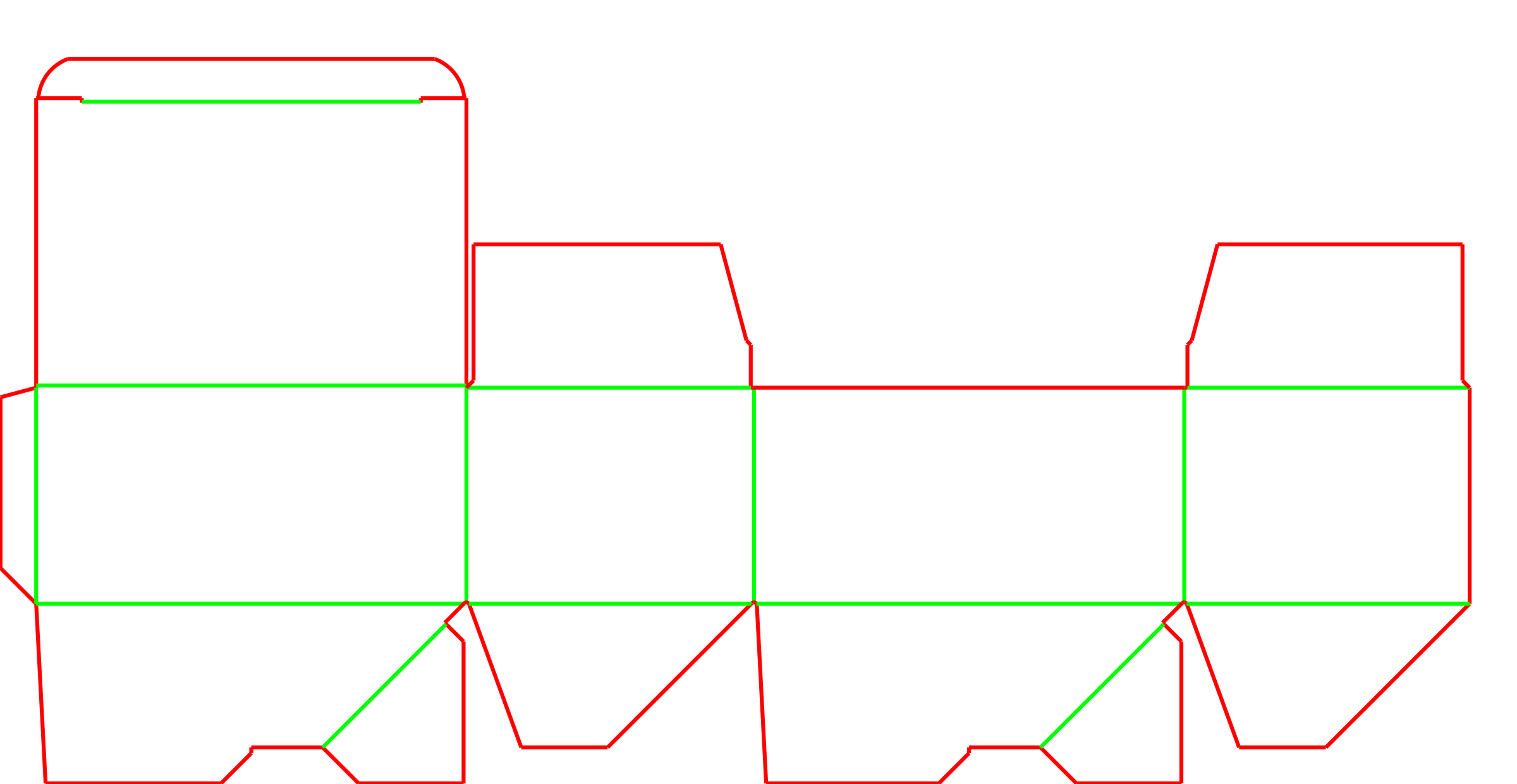

Corrugated Auto-Bottom Box with Tuck Top

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Pre-glued crash-lock base opens instantly for rapid manual packing.
Regular tuck top with slit locks provides a clean, tape-free retail face.
Best suited for E-flute or micro-flutes; thick board can cause the base to bind.

About this product

The EVC11102 is a corrugated folding carton designed to drastically reduce manual packing time. It features a pre-glued crash-lock base that ships flat but opens instantly into a rigid, locked floor when the edges are pushed, eliminating the need to manually fold or tape the bottom.

Paired with a regular tuck top that provides a clean front presentation, this box is a strong fit for retail packaging and fast-paced fulfillment lines where labor savings outweigh the initial production steps.

Common uses

High-volume e-commerce fulfillment (with top seal)
Retail shelf packaging
Light to medium-weight consumer goods
Kitting and multi-component assembly

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will the filled boxes be shipped?

What is the approximate weight of the packed items?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

High-Volume Fulfillment and Retail Presentation

Fast-Paced Manual Fulfillment

Because the base is pre-glued during production, packers do not need to fold flaps or apply bottom tape. The box squares up and locks in one motion, making it very efficient for operations where packing speed is the primary bottleneck.

Retail Shelf Packaging

The regular tuck top folds from the rear and tucks into the front, keeping the primary display face clean and free of raw corrugated edges. The tape-free bottom further improves the presentation on retail shelves.

Kitting and Multi-Component Assembly

For multi-item kits, the crash-lock base provides a secure, flat floor instantly. Packers can load items quickly into an open, stable container without worrying about the bottom shifting during assembly.

Lightweight E-Commerce Shipping

When paired with a secure top seal, this box handles lightweight e-commerce orders efficiently. The fast assembly speeds up the pack bench, while the corrugated walls provide baseline transit protection.

Consumer Goods and Kitting Operations

Consumer Goods and Cosmetics

Brands selling lightweight consumer products benefit from the clean exterior and tape-free base. The regular tuck top ensures the front branding remains uninterrupted by raw board edges.

Subscription Boxes and Kitting

Subscription services often face tight fulfillment windows. The instant-open base allows packing teams to assemble hundreds of boxes per hour without the fatigue of manually folding bottoms.

High-Volume Promotional Rollouts

For large-scale promotional campaigns, the labor savings of an auto-bottom box often outweigh the added production steps, ensuring the rollout hits distribution deadlines.

When to Consider Snap-Locks or Mailers

Heavy-Duty Loads or Trial Programs

If the order maturity does not support the multi-point gluing route, a manual 1-2-3 snap-lock bottom is a practical alternative. For very heavy industrial goods, a standard slotted container with a taped bottom offers higher drop-out resistance.

Tape-Free Parcel Shipping

The tuck top relies on friction and slit locks, which can dislodge during rough transit. If the goal is to ship without external tape or labels, a roll-end lock-front mailer with dust flaps is worth comparing.

Board Thickness, Top Sealing, and Production Route

Board Caliper and Flute Choice

This structure is sensitive to material thickness. E-flute or micro-flutes are strong choices because they fold cleanly. Thicker materials like C-flute or double-wall board can cause the complex crash-lock folds to bind, preventing the box from opening smoothly.

Parcel Shipping and Top Sealing

While the bottom is securely glued, the tuck top relies on friction. If this box will be shipped through mixed-carrier parcel networks, the top closure often needs a security label, wafer seal, or tape to prevent it from opening during handling.

Production Route and Order Maturity

The crash-lock base involves multi-point gluing during production. This shifts the assembly labor from the pack bench to the factory, which makes the most sense for mature, repeat programs rather than short-run trials.

Print Surface and Finish

The regular tuck top folds from the back to the front, meaning the raw corrugated edge is hidden at the rear of the box. This provides a clean, uninterrupted front panel for primary branding or labeling.

Dust Flap and Slit Lock Adjustments

Slit Lock Depth and Angle

The small notches on the tuck flap catch on the side dust flaps to resist accidental opening. The depth and angle of these locks can be adjusted based on the board thickness to ensure a secure hold without tearing the material.

Dust Flap Chamfering

The edges of the internal dust flaps can be chamfered or angled. This adjustment helps prevent the tuck flap from catching or binding when the lid is closed rapidly on the pack bench.

Paired Layout Nesting

For large production runs, the template can be configured as a paired layout, nesting two slightly different blanks together on the corrugated sheet to improve material yield.

Packing details

Knocked-Down (KD) Delivery Profile

These boxes are delivered flat. Because the bottom flaps are folded and glued over themselves, the KD stack will have localized thickness at the base. This slightly reduces the number of blanks that fit on a pallet compared to unglued styles.

Paired Layouts and Dust Flap Variants

EVC11102#2 (Dust Flap Options)

A variant that allows for chamfered or extended dust flap edges, which can help prevent the tuck flap from binding during closure.

EVC11102#2P (Paired Layout)

A production-optimized layout that nests two slightly different blanks together on the die-cutting board, improving corrugated yield for large runs.

Additional notes

Prototyping crash-lock bases

When testing digital samples, the base should be hand-glued to simulate the pop-open action. Un-glued prototypes will not accurately demonstrate the final packing speed or board binding risks.

FAQs

What is the difference between a crash-lock and a snap-lock bottom?

A crash-lock (or auto-bottom) is pre-glued during production and opens instantly when the edges are pushed. A snap-lock (or 1-2-3 bottom) is unglued and involves the packer manually folding and interlocking four bottom flaps. Crash-locks are much faster to pack but involve a more complex production route.

Can this box be made in heavy double-wall corrugated?

Thick double-wall board has strong memory and can cause the base to bind, crack, or fail to open smoothly. E-flute or B-flute are much safer choices for this mechanism.

Is this box safe for direct parcel shipping?

The pre-glued bottom is secure, but the tuck top can dislodge during courier transit. If shipping directly in the mail, applying tape or a strong security seal over the top closure is usually necessary.

Why does this style often align with mature, repeat orders?

The complex base involves multi-point gluing equipment. The setup time for this machinery makes short-run trials less practical, whereas large, repeat programs easily absorb the production steps through labor savings on the pack bench.

What are slit locks and how do they work?

Slit locks are small cuts on the crease of the top tuck flap. When the flap is inserted, these cuts catch on the edges of the internal dust flaps, creating friction that helps keep the lid securely closed.

How is the box delivered?

The box is delivered knocked down (KD) and flat. The side seam and bottom flaps are already glued, so the packer only needs to push the opposite corners to square the box and lock the base.

Can the dust flaps be modified if they catch on the lid?

Yes, the internal dust flaps can be chamfered or angled. This creates a smoother entry path for the tuck flap, reducing the chance of binding during fast-paced manual packing.

What product weight is appropriate for a crash-lock base?

Crash-lock bases are secure for light to medium-weight consumer goods. However, for very heavy industrial items with concentrated point loads, a fully taped standard slotted container (RSC) may offer better drop-out resistance.
