EVC11232

Corrugated Carry Box with Snap-Lock Bottom

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Integrated double-thick carrying handle for retail transport
  • Manual snap-lock bottom requires no tape for standard retail weights
  • Delivered flat and popped open at the packing station

About this product

This corrugated carry box combines a prominent, double-thick top handle with a manual 1-2-3 snap-lock bottom. Delivered flat and assembled by hand, it is designed for retail environments where customers need a reliable way to transport multi-packs, beverage kits, or promotional assortments.

Because the handle protrudes from the top and the bottom relies on interlocking flaps, this box is strictly for retail carry-out or palletized distribution. It requires an outer master carton for single-parcel shipping.

Common uses

  • Retail beverage multi-packs.
  • Promotional kitting and assortments.
  • Heavy retail items requiring a reinforced grip.
  • Grab-and-go food service or gift boxes.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail and Carry-Out Applications

Retail Multi-Packs

Well-suited for grouping beverages, jars, or heavy retail items. The double-thick handle panels distribute lifting stress, while the flat side panels offer uninterrupted space for branding.

Promotional Kits

A strong fit for in-plant or store-level kitting where manual assembly is manageable. The tool-free snap-lock bottom allows staff to build and load the boxes on demand.

Heavy Retail Items

Useful for hardware, small appliances, or bulk goods that require a reinforced grip for the consumer to carry out of the store.

Grab-and-Go Assortments

Fits food service or gift box applications where the presentation matters and the handle encourages immediate consumer pickup.

Product Types and Packing Environments

Store-Floor Assembly

The 1-2-3 bottom requires a packer to fold and interlock four flaps by hand. This is straightforward for low-to-medium volume kitting but becomes a bottleneck on high-speed packing lines.

Palletized Retail Distribution

The protruding handle means these boxes cannot be stacked directly on top of one another without crushing the top. They are typically shipped to stores in master cartons or layered with protective slip sheets on a pallet.

Point-of-Purchase Display

The large, flat front and back panels provide excellent billboard space for retail branding, making the box act as its own display before the customer picks it up.

When to Consider Auto-Bottoms or Shippers

High-Volume Packing Lines

If packing speed is the primary concern, an auto-bottom (crash-lock) carry box is much faster to erect than a manual snap-lock, though it requires different factory gluing capabilities.

Parcel and Courier Shipping

If the box will be shipped directly to a consumer via a courier network, the protruding handle will be crushed. A standard RSC or a die-cut mailer is a safer choice for mixed-carrier transit.

Board, Flute, and Packing Route Choices

Flute Profile and Lock Clearance

E-flute is a common starting point for crisp retail graphics and easy folding. Moving to a thicker B-flute increases handle tear resistance for heavier items but requires adjusting the top tongue-lock clearances so the closure does not bind.

Bottom Reinforcement

While the snap-lock bottom holds standard retail weights securely, exceptionally heavy items may cause the interlocking flaps to bow. Testing a physical sample determines if a single strip of tape is needed for extra security.

Handle Ergonomics

The hand hole dimensions should be checked against the target consumer demographic and the product weight to ensure comfortable carrying without tearing the board.

Print Surface and Finish

Because the boxes are handled directly by consumers, high-friction areas around the handle and base may benefit from a protective varnish to prevent scuffing.

Handle and Lock Adjustments

Hand Hole Dimensions

The length and width of the die-cut hand holes can be adjusted to accommodate different hand sizes or to leave more board for tear resistance.

Tongue Lock Depth

The top closure relies on a tuck tongue inserting into a slotted flap. The depth and width of this tongue can be modified to balance secure retention against ease of opening.

Handle Panel Height

The height of the handle panels can be extended to provide more clearance for taller products or to change the visual profile of the box.

Packing details

Handle Tear-Out Testing

Because the handle bears the full weight of the product, always test a physical prototype with the actual payload to ensure the chosen board grade resists tearing at the hand holes.

Related Carry Boxes and Shippers

FAQs

Can this box be shipped through the mail?

No. The protruding handle is easily crushed by courier sorting equipment, and the snap-lock bottom is not designed for the drop impacts of parcel networks. It requires an outer master carton for shipping.

Does the bottom need to be taped?

For most retail applications, the interlocking 1-2-3 bottom is secure without tape. However, if you are packing dense, heavy items like large beverage bottles, a physical test will confirm if tape is needed to prevent the bottom from bowing.

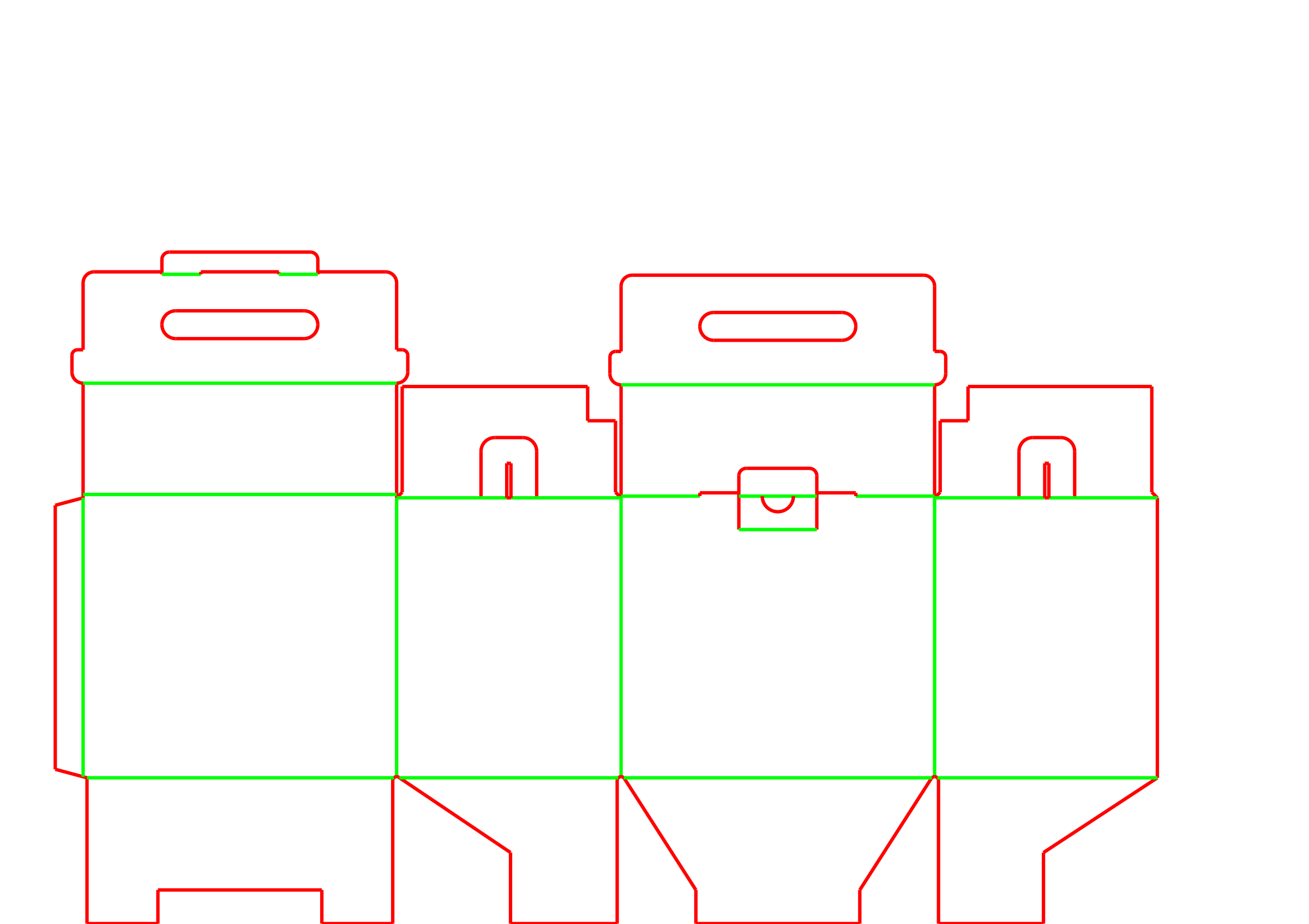

How is the top handle secured?

The handle is formed by two panels that meet in the center. Two top closure flaps then fold over the base of the handle and lock together using a tuck tongue and slot, keeping the handle panels tightly bound.

Can this be erected on automated machinery?

This style is designed for manual assembly. The interlocking bottom flaps and the complex top handle closure resist standard automated case erectors.

What board thickness makes sense?

E-flute is the standard choice, offering a good balance of print quality and easy manual folding. Thicker flutes like B-flute can be used for heavier items, but the top lock dimensions must be adjusted to accommodate the thicker board.

How are these delivered?

The manufacturer glues the side seam and delivers the boxes knocked-down flat. The packer pops the tube open and folds the top and bottom closures by hand.

Can the handle size be changed?

Yes. The die-cut hand holes can be lengthened or widened to improve ergonomics, provided enough board remains to support the product weight without tearing.

How does the snap-lock bottom compare to an auto-bottom?

A snap-lock bottom requires the packer to fold four flaps by hand, which takes more time. An auto-bottom is pre-glued and pops into place instantly, making it faster for high-volume packing lines, though it requires different factory gluing capabilities.
