Retail and Kitting Applications
Retail grab-and-go packaging
The integrated handle and clean top closure make this a practical choice for retail shelves where customers need to pick up and carry the product directly.
Promotional kitting and multi-packs
Useful for grouping several items into a single hand-carried unit. The tape-free closure provides a better unboxing experience than a standard taped box.
Beverage and jar multipacks
The reinforced double-wall sides and snap-lock base can support moderate-weight glass or liquid containers, provided the board grade is matched to the payload.
Sample kits and event distribution
A self-contained presentation package that allows attendees to easily carry product samples or literature away from a trade show booth.
Merchandising and Fulfillment Contexts
Beverage and specialty food
Supports moderate-weight items like bottles or jars, provided the board grade and snap-lock base are tested for the specific payload.
In-store assembly
Retail staff can fold the snap-lock base and load the box without needing tape dispensers or specialized packing equipment.
Trade show and event distribution
Provides a clean, professional appearance that attendees can easily carry, eliminating the need for separate shopping bags.
When to Consider Alternative Carriers
High-speed packing lines
If packing speed is the primary concern, an auto-bottom carrier may be a better choice. The snap-lock base requires manual folding, which adds time to each unit.
Courier and parcel shipping
Exposed handles and slotted tops can catch on sorting belts. If the primary route is through a parcel network, consider a standard shipping box or plan to use an outer master carton.
Board, Fit, and Assembly Choices
Board thickness and slot clearance
The slots on the top flaps must be sized to accommodate the exact thickness of the folded handle. Changing from E-flute to a thicker B-flute requires adjusting these slots to prevent binding.
Packing labor versus packing speed
The manual snap-lock base is practical for hand-packing operations and trial runs, while an auto-bottom design may be more efficient for high-speed fulfillment.
Handle reinforcement and weight limits
The double-wall overlap sequence reinforces the handle area, but the overall carrying capacity still depends on the chosen board grade and the product's weight distribution.
Outer shipping protection
Because the handle protrudes and the top is slotted, this carrier cannot be stacked flat or shipped raw through courier networks without an outer master carton.
Handle and Base Modifications
Handle slot width
The slots can be widened or narrowed to match the chosen corrugated board, ensuring the top flaps lock securely without tearing.
Snap-lock tongue sizing
The interlocking base features can be adjusted to provide a tighter fit for heavier products.
Handle hole dimensions
The grip opening can be resized to accommodate different hand clearances or to leave more board material for heavier payloads.
Packing details
Double-wall overlap reinforcement

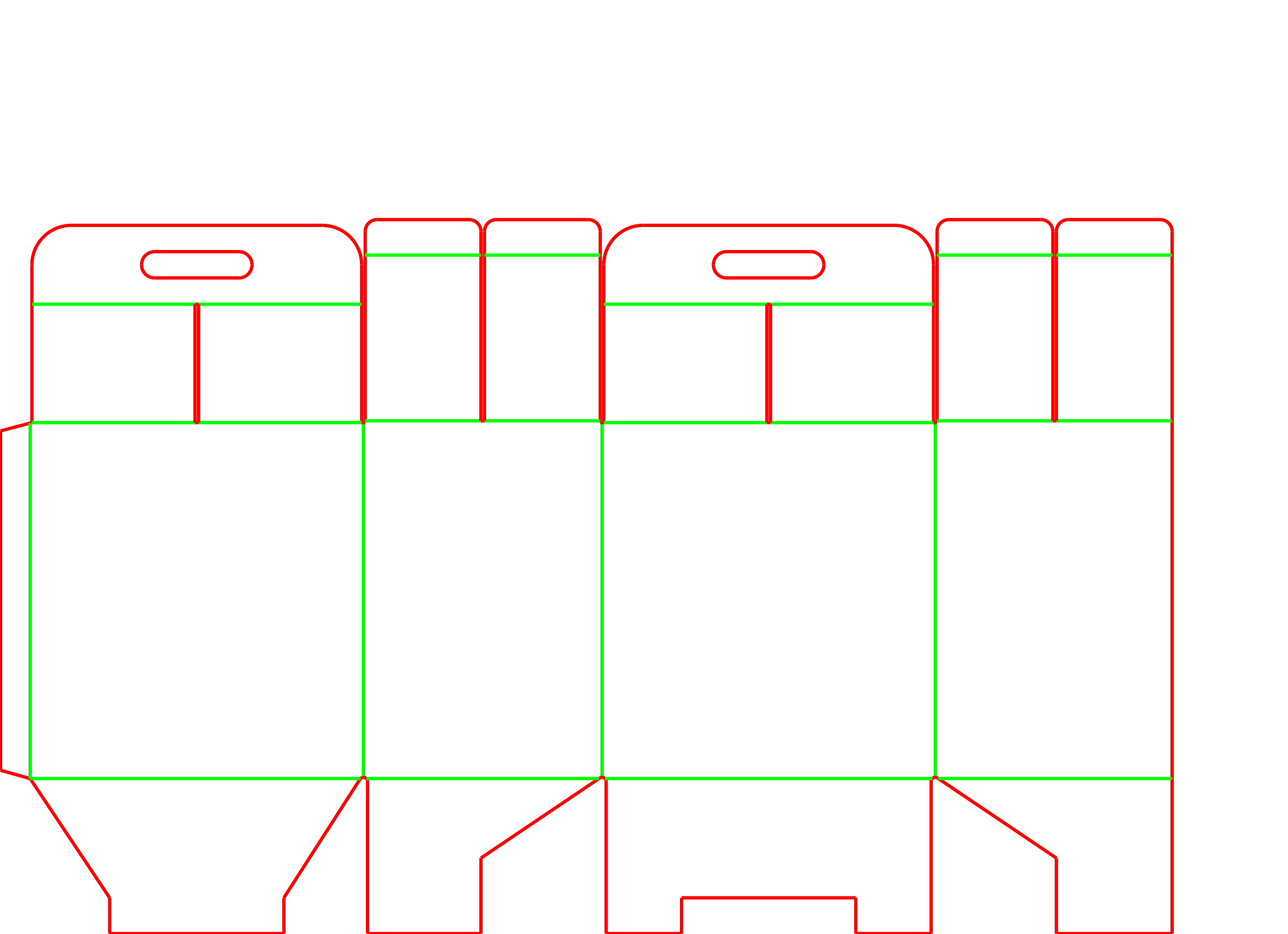

The template includes panels that fold flat against the interior walls before the box is fully erected. This adds stiffness to the body and reinforces the handle area.
Top closure tension
The slotted top flaps must pass cleanly over the handle halves. Overfilling the box can pull these slots out of alignment, preventing the top from closing properly.
Additional notes
Handle slot clearance
The width of the top slots must be carefully matched to the board thickness. If the board is changed during a project, the slot dimensions must be updated so the top flaps can still pass over the handle.
FAQs
How does the snap-lock bottom compare to an auto-bottom?
A snap-lock (or 1-2-3) bottom requires the packer to fold and interlock the base flaps by hand. An auto-bottom is pre-glued by the converter and simply pushes open. The snap-lock is practical for manual packing, while the auto-bottom saves time on high-speed packing lines.
Can this box be shipped through parcel networks?
Carriers with exposed handles and slotted tops are generally not suited for raw parcel shipping, as the handle can catch on sorting belts. For courier delivery, this box should be packed inside a standard outer shipper.
What board grades work well for this carrier?
E-flute and B-flute are common choices, offering a good balance of print surface and handle strength. Thicker double-wall boards can make the handle slots bind and complicate the snap-lock folding.
Does the top closure require tape?
No. The top closes by folding two slotted flaps over the upright handle halves. The slots capture the handle, keeping the top secured under normal carrying tension.
How much weight can the snap-lock base hold?
The capacity depends entirely on the chosen board grade and the exact dimensions of the interlocking tongues. Heavy payloads should always be tested with a physical sample to ensure the base does not unlock during transit.
How is this box delivered?
It is delivered flat. The converter die-cuts the shape and glues the side seam, leaving the top and bottom open for the packing team to assemble.
Can the handle panels be printed?
Yes, the handle panels are visible to the consumer and can be printed. However, the design must account for the handle cutouts and the slotted top flaps that fold over the base of the handle.
Can this carrier hold custom inserts?
Yes, corrugated or paperboard inserts can be added to separate bottles, jars, or kit components. The internal dimensions must be sized to accommodate both the product and the insert material.
