EVC11271

Corrugated Crash-Lock Handle Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Instant-erecting crash-lock bottom saves manual packing labor
Integrated interlocking handle for retail carry-out
Requires a master shipper for parcel networks or pallet stacking

About this product

The EVC11271 is a corrugated retail and carry-out box designed for fast pack-bench assembly. It features a pre-glued auto-erecting bottom that snaps into place the moment the box is opened, and an integrated top handle that locks securely for consumer transport.

Because the handle protrudes from the top, this box is built for retail shelves, direct hand-offs, and promotional kits rather than dense pallet stacking or direct parcel shipping.

Common uses

Beverage carriers
Heavy retail goods
Promotional kits
Grab-and-go hardware

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Usable height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these boxes be distributed?

How many boxes will your team pack per day?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Promotional Packing Jobs

Retail Carry-Out

A strong fit for heavy or bulky retail items where the consumer needs a reliable handle to carry the product out of the store.

Promotional Kits and Kitting

Excellent for event handouts or sample kits where fast, tape-free assembly keeps fulfillment lines moving quickly.

Beverage and Multi-Packs

The glued crash-lock base provides a secure floor for heavier items like bottles or jars, provided the board grade matches the payload.

Heavy Hardware and Tools

A secure glued base and integrated handle make this a practical choice for heavy retail hardware, provided the board grade matches the payload.

Where the Crash-Lock Bottom Makes Sense

High-Volume Manual Packing

The primary reason to choose a crash-lock bottom over a standard manual fold is labor. If your team is erecting hundreds of boxes a day by hand, the instant-snap base reduces assembly time.

Retail Display

The flat main panels offer excellent billboard space for high-quality graphics, while the gabled handle adds a premium, gift-like presentation.

Event and Trade Show Handouts

For event teams assembling kits on-site, the instant-snap base eliminates the need for tape dispensers and speeds up preparation.

When to Consider a Different Box Style

Direct Parcel Shipping

The protruding handle can catch on courier sorting belts, and the mechanical top lock may open during transit. If shipping direct-to-consumer, evaluate standard mailers or use an outer master carton.

Dense Palletization

Because the handle prevents flat stacking, palletizing these boxes requires either a top-layer-only approach or specialized master shippers. If dense stacking is critical, a standard regular slotted carton or roll-end tuck-top may be a safer choice.

Board, Flute, and Handle Clearances

Board Thickness and Flute

E-flute is a common choice. If you require thicker B-flute or C-flute for heavier items, the handle's locking tongue and slot must be carefully adjusted so they do not bind or tear during closure.

Production Route and Volume

The crash-lock bottom requires specialized multi-point folder-gluer equipment at the factory. This setup usually requires higher repeat volumes to justify the production route compared to unglued boxes.

Print Surface and Coating

The large flat panels offer excellent space for branding. However, if the box will be carried for long periods, consider coatings that prevent ink from rubbing off on the consumer's hands.

Handle Ergonomics

The clearance between the handle cutout and the top of the box must accommodate the user's hand comfortably, especially for heavier payloads.

Handle Height and Lock Adjustments

Handle Height

The height of the handle above the box can be extended for better ergonomics or reduced to save material, depending on the clearance needed for the user's hand.

Locking Tab Tolerances

The tongue-and-slot mechanism at the top can be widened or narrowed based on the exact caliper of the chosen corrugated board.

Base Overlap Adjustments

The interlocking flaps of the crash-lock bottom can be extended to provide a more rigid floor for particularly heavy or concentrated loads.

Packing details

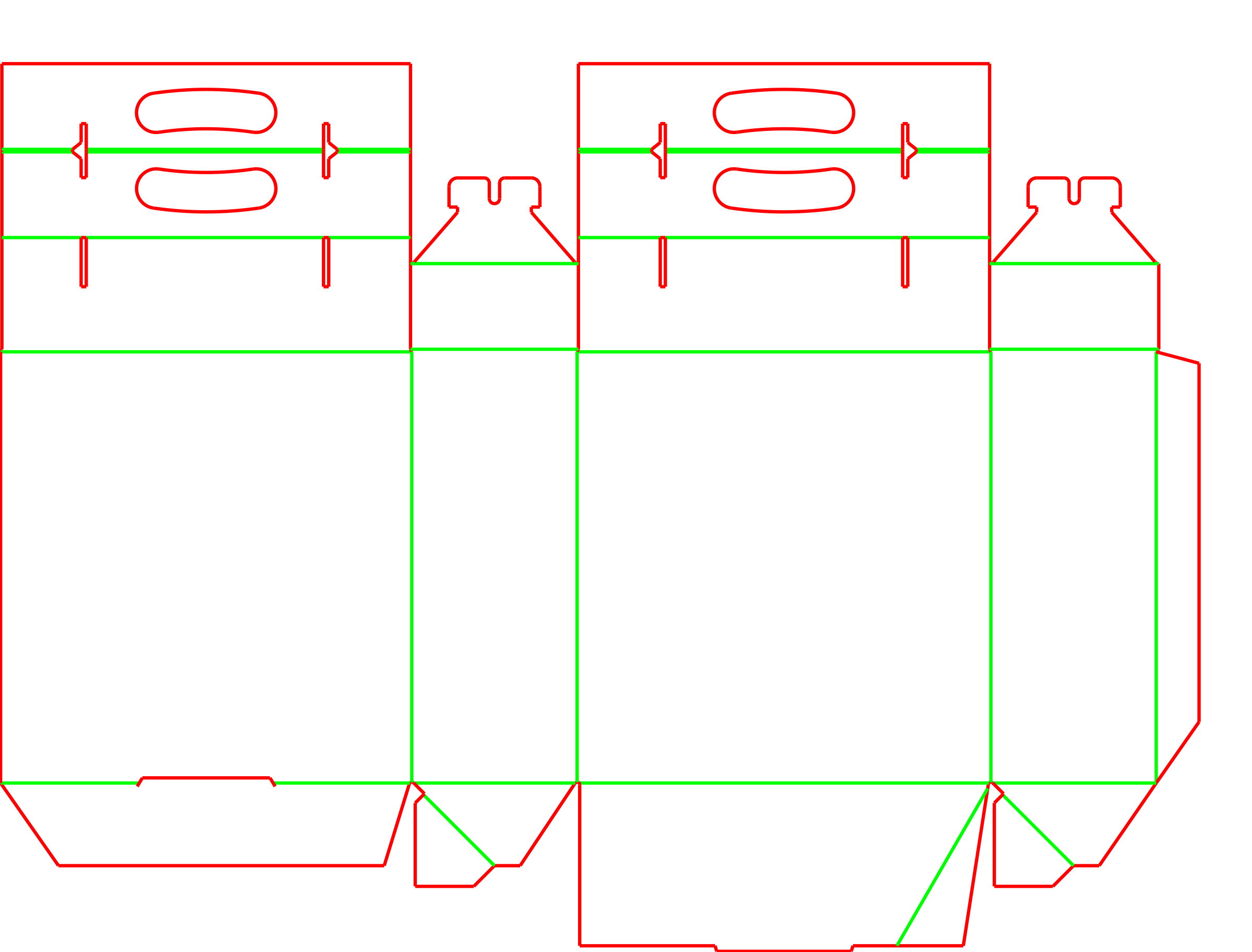

Die-Cutting and Blank Sprawl

The tall handle panels and complex bottom flaps create a sprawling flat blank. This can lead to higher material usage and scrap rates compared to a simple rectangular box of the same volume.

Additional notes

Handle tear resistance

The lifting load is concentrated entirely on the die-cut handle holes and the top locking tab. If your product is dense, the board grade must be specified to prevent tearing at these stress points.

FAQs

Can I ship this box through a parcel courier?

It is vulnerable in parcel networks. The protruding handle can catch on automated sorting belts, and the top lock is not designed for direct parcel delivery without tape. For parcel delivery, this box should be packed inside a standard outer shipper.

Does this box require tape or glue to assemble?

No tape or glue is needed at the packing bench. The factory pre-glues the side seam and the crash-lock bottom. You simply push the edges to snap the base open, load the product, and interlock the top handle.

Can these boxes be stacked on a pallet?

Stacking is difficult because the gabled handle prevents a flat top surface. They are typically shipped flat to you, assembled and loaded, and then either placed in master cartons or used as the top layer on a mixed pallet.

How much weight can the handle and bottom support?

The weight capacity depends entirely on the chosen board grade and flute. The crash-lock base is strong, but the handle cutouts are the most likely failure point for very heavy items. We recommend physical drop and carry testing for your specific payload.

What is the tradeoff between a crash-lock and a manual snap-lock bottom?

A crash-lock base is pre-glued at the factory, allowing your team to snap it open instantly. A manual snap-lock requires the packer to fold four bottom flaps together. The crash-lock saves packing labor but requires a more complex factory production route.

Can we use a very thick corrugated board for extra protection?

Thicker flutes like C-flute or double-wall can make the top handle very difficult to lock. The small locking tabs may crush or fail to engage. E-flute or B-flute are generally the most reliable choices for this handle style.

How are these boxes delivered to our facility?

They are delivered knocked down flat. The side seam and bottom flaps are already glued by the manufacturer, so they take up minimal storage space before assembly.

Can we print on the handle panels?

Yes, the handle panels can be printed. However, if the box is heavy and will be carried for a long time, it is worth discussing a protective coating to prevent ink from rubbing off onto hands.
