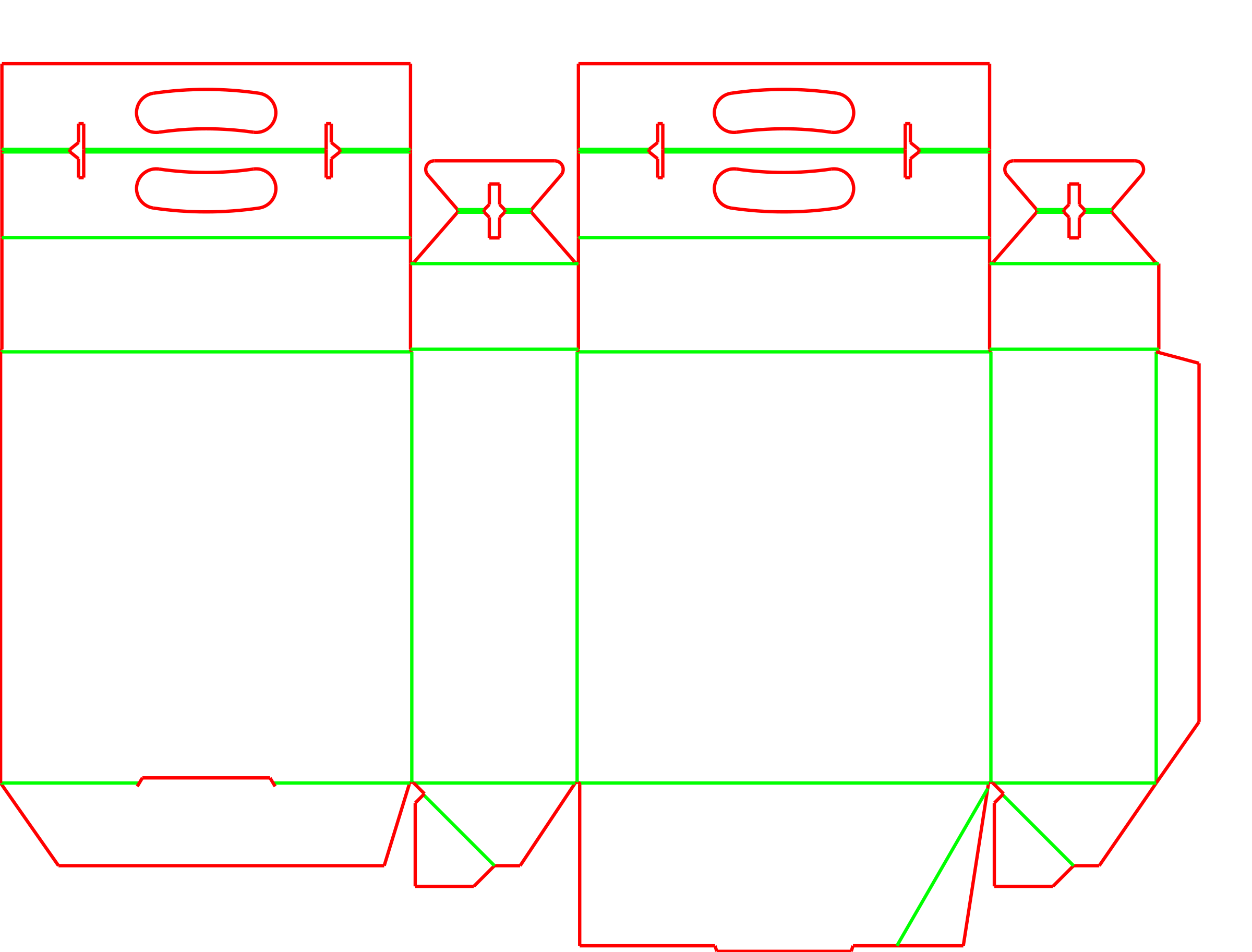

Corrugated Carrier with Auto-Bottom

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Pre-glued auto-bottom for instant squaring and loading
Integrated double-thick handle with tape-free locking flaps
Suited for retail carry-out, not raw parcel shipping

About this product

The EVC11270 is a retail-ready corrugated carrier designed for fast assembly and secure consumer transport. Delivered flat with a pre-glued crash-lock base, the box squares up instantly on the packing bench, eliminating the need to manually fold bottom flaps.

The top closure features a double-thick carrying handle secured by interlocking side flaps. This creates a strong, tape-free presentation well-suited for beverage multi-packs, hardware kits, and promotional bundles.

Common uses

Beverage multi-packs
Hardware and tool kits
Promotional retail bundles
Heavy consumer goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Usable height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the packed box?

How will these be shipped to stores or customers?

What type of product is going inside?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Carry-Out Applications

Beverage and Promotional Multi-Packs

The integrated handle and clean, tape-free closure make this a strong choice for retail environments where consumers carry the product directly from the shelf. The flat bottom provides a stable base for bottles, cans, or jars.

Hardware and Heavy Retail Kits

When specified with the appropriate corrugated flute, the double-thick handle panels distribute lifting stress effectively. The mechanical top locks keep heavy contents secure without relying on adhesive seals.

Pet Supplies and Bulk Goods

For heavy bags of pet food or grooming kits, the auto-bottom floor supports the weight evenly. The handle allows customers to grab the product easily without needing an oversized shopping bag.

Consumer Electronics and Appliances

Small appliances or router kits benefit from the retail-ready presentation. The secure top locks keep the contents enclosed while providing a comfortable grip for the buyer.

Packing Line and Distribution Fit

High-Volume Manual Packing

The crash-lock base is the primary advantage for packing teams. Because the converter pre-glues the bottom, operators simply push the edges to square the box, deploying a rigid floor instantly. This saves time per unit compared to manually folding snap-lock bottoms.

Palletization and Retail Display

While the handle provides consumer convenience, it protrudes from the top profile. For efficient pallet stacking, the boxes are typically packed into master shippers, or the handle design must be evaluated for fold-down clearance.

Direct-to-Consumer Retail Environments

In physical stores, this carrier acts as its own shopping bag. The tape-free closure maintains a clean appearance, and the handle encourages immediate grab-and-go purchasing.

When to Consider Alternative Carriers

Raw Parcel and Courier Shipping

The exposed handle and mechanical top locks can catch on sorting equipment in mixed-carrier networks. If the primary route is direct-to-consumer ecommerce, a standard mailer or an outer shipping carton is usually a safer choice.

Lower Volume or Prototype Runs

Crash-lock bottoms require specific folder-gluer equipment. For short runs or early-stage testing where specialized gluing is not practical, a snap-lock carrier may be easier to source while providing a similar retail look.

Board, Flute, and Locking Clearances

Flute Selection and Lock Function

The side flaps use precision slits to engage the base of the handle. This mechanism is sensitive to board thickness. E-flute and B-flute generally perform well, while thicker C-flute or double-wall boards can cause the locks to bind or become too bulky to fold cleanly.

Handle Ergonomics and Tear Resistance

The comfort and strength of the hand hole depend on the board grade and flute direction. Heavy payloads should be physically tested to ensure the handle does not tear out under lifting stress.

Print Surface and Graphic Alignment

The diagonal creases on the crash-lock bottom and the folds around the handle will intersect printed artwork. It is usually best to keep critical text or logos away from these structural folds.

Outer Shipper Requirements for E-commerce

If these carriers will eventually be shipped via courier, they will need an outer master carton. The dimensions of the carrier, including the handle height, must be factored into the outer box sizing.

Handle and Profile Adjustments

Handle Height and Clearance

The height of the carrying handle can be adjusted to accommodate different hand sizes or to change the overall profile of the box. Extreme changes to the handle height may require recalculating the side locking flap geometry.

Window Additions

Display windows can be added to the main panels to showcase the product. These should be kept clear of the handle load path and the diagonal crash-lock creases to maintain the box's structural integrity.

Base Proportion Adjustments

The length and width of the base can be scaled to fit specific bottle or jar counts. The crash-lock geometry scales naturally, provided the aspect ratio remains within standard folder-gluer limits.

Packing details

Flat Delivery and Storage

These carriers are delivered knocked-down and flat. The pre-glued bottom and complex top profile mean they nest differently than standard slotted boxes, which can affect pallet density during inbound freight.

Additional notes

Board thickness and locking slits

The locking mechanism relies on precise clearances. Any change in board caliper requires the template's slot widths and layer step creases to be recalculated so the box closes smoothly.

FAQs

Does the bottom of this box require tape?

No. The crash-lock bottom is pre-glued during manufacturing. When the box is squared open on the packing line, the floor automatically deploys and locks into a rigid base.

How does the top handle stay closed?

The two main handle panels fold up to meet in the center. Then, the two side flaps fold inward, and their slotted tabs push down to lock into the base of the handle panels, securing the top without tape.

Can I use a thick double-wall board for heavy items?

Thick boards like double-wall or C-flute are often incompatible with the intricate locking slits on the top flaps. The board memory and thickness can prevent the locks from engaging properly. B-flute or strong E-flute are often better choices.

Is this box suitable for parcel shipping?

Generally, no. The exposed handle and mechanical locks are snag hazards on automated sorting conveyors. For parcel networks, this carrier should be placed inside a standard outer shipping box.

Why might a snap-lock bottom be recommended instead?

Crash-lock bottoms require a multi-point folder-gluer. If your production run is small or the required equipment is not available, a snap-lock bottom provides a similar retail appearance but is folded entirely by hand.

How are these boxes delivered?

They arrive flat and pre-glued. The packer simply pushes the edges together to square the box, which automatically deploys the bottom floor.

Is it possible to fold the handle flat for stacking?

The standard handle design stands upright. If you need to stack these on a pallet without an outer shipper, the handle profile may need to be modified or folded down carefully.

Can we print graphics across the bottom panels?

Yes, but the diagonal crash-lock creases will intersect the artwork. It is usually best to keep critical text away from the bottom folds.
