Retail Beverage and Kitting Applications
Craft beer and premium beverages
Holds glass bottles with a double-thick handle spine and a glued crash-lock floor that supports the downward weight.
Gourmet sauces and condiments
Keeps glass jars separated with integrated cross dividers, helping to reduce clashing during retail handling and consumer transport.
Retail promotional kits
Provides a ready-to-carry presentation for four-part product sets, using the angled side walls to frame the items for display.
Cold-brew and specialty coffee sets
Groups four ready-to-drink cans or bottles into a single retail unit, making it easier for consumers to purchase a complete tasting flight.
Packing Line and Distribution Fit
Manual packing stations
The knocked-down flat delivery and crash-lock base remove most setup labor before loading. Operators push the edges to square the carrier, drop in the product, and move to the next unit.
Retail display and carry-out
The open top and central handle encourage consumer grab-and-go behavior, while the corrugated construction provides more rigidity than paperboard alternatives.
Tasting rooms and local retail
Provides a convenient way for customers to mix and match four different beverages, with a sturdy handle for the trip home.
When to Consider a 6-Pack or Folding Carton
Need for six items
If the product needs a 3x2 grid, compare this to the EVC11283 6-pack carrier, which uses similar crash-lock mechanics for a larger footprint.
Lighter products or premium graphics
If corrugated strength is unnecessary, compare this to folding carton equivalents like the EVF11745, which offer a smoother print surface for lighter items.
E-commerce parcel shipping
This open-top carrier is designed for retail carry-out. For parcel delivery, it should be placed inside a dedicated outer shipping box.
Board, Moisture, and Master Shipper Planning
Moisture and refrigeration
Cold beverages generate condensation. If the carrier will be refrigerated, discuss board and adhesive choices that maintain strength in damp environments.
Master shipper sizing
Because the handle protrudes above the bottles, these carriers cannot be stacked directly on a pallet. They must be packed into master cartons or cross-stacked in protective trays for distribution.
Board thickness and flute
E-flute is often chosen for a clean fold and good print surface. Thicker flutes increase strength but may change how the carrier folds and glues during production.
Cell sizing and bottle fit
The individual compartments should be sized closely to the bottle or can diameter to help reduce rattling and label scuffing during transit.
Cell Sizing and Handle Clearances
Cell length and width
The internal grid can be adjusted to match specific bottle or jar dimensions.
Handle height
The central spine can be extended to provide comfortable finger clearance above taller bottles or jars.
Wall drop angle
The height where the side walls angle downward can be adjusted to reveal more or less of the product for retail display.
Packing details
Divider and handle integration

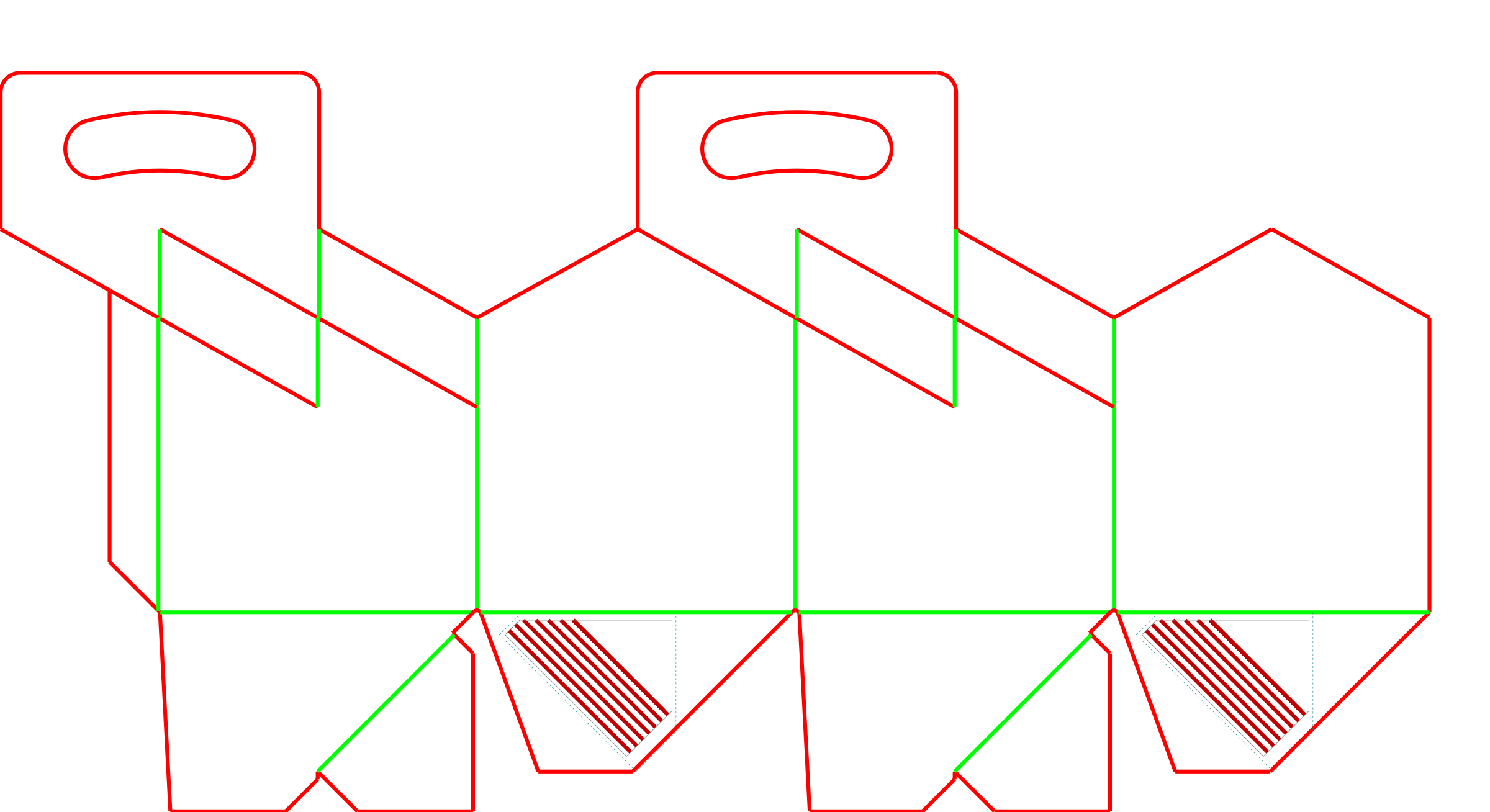

The cross dividers are cut directly from the central handle panels and glued to the outer walls during manufacturing. This means they deploy automatically without needing separate partition inserts.
Base Flap Orientation Variants
EVC11282
The standard crash-lock base flaps fold parallel to the width of the carrier.
EVC11282a
The crash-lock base flaps are rotated 90 degrees, folding parallel to the length. This changes the load-bearing geometry and folding setup.
Additional notes
Print surface and flute shadow
E-flute is typically used to provide a smooth surface for retail graphics while maintaining enough rigidity for the handle and base.
Automated loading limits
While erection is fast for hand packing, automated drop-packing lines may need specific fixtures to hold the carrier open during loading.
Related Carriers and Retail Packaging
FAQs
Does this carrier need tape or glue at the packing station?
It arrives pre-glued. Pushing the edges squares the walls, drops the base, and deploys the dividers without extra adhesive.
Can this carrier be used in refrigerators or coolers?
It can, provided the board and adhesives are specified to handle condensation without weakening the base.
Can I ship this directly through the mail?
The open top and exposed handle are designed for retail carry-out. Parcel shipping means loading the carrier into a master shipping box.
How are these stacked on a pallet?
Because the handle extends above the product, direct vertical stacking will crush the handle. They must be packed into master cartons or cross-stacked in protective trays.
Do I need to order separate dividers to keep glass bottles from breaking?
The transverse cross dividers are built into the one-piece blank and deploy automatically when the carrier is opened.
What keeps the bottom from falling out under heavy glass?
The crash-lock base flaps interlock and are glued during manufacturing, transferring the downward weight into the structural walls.
Can the handle height be adjusted for taller bottles?
The central handle spine can be extended to ensure consumers have enough finger clearance above tall closures.
Are prototypes available before a full production run?
A digital cutting table can produce unglued or hand-glued samples to verify bottle fit, handle clearance, and overall presentation before committing to a full run.
