EVC11283

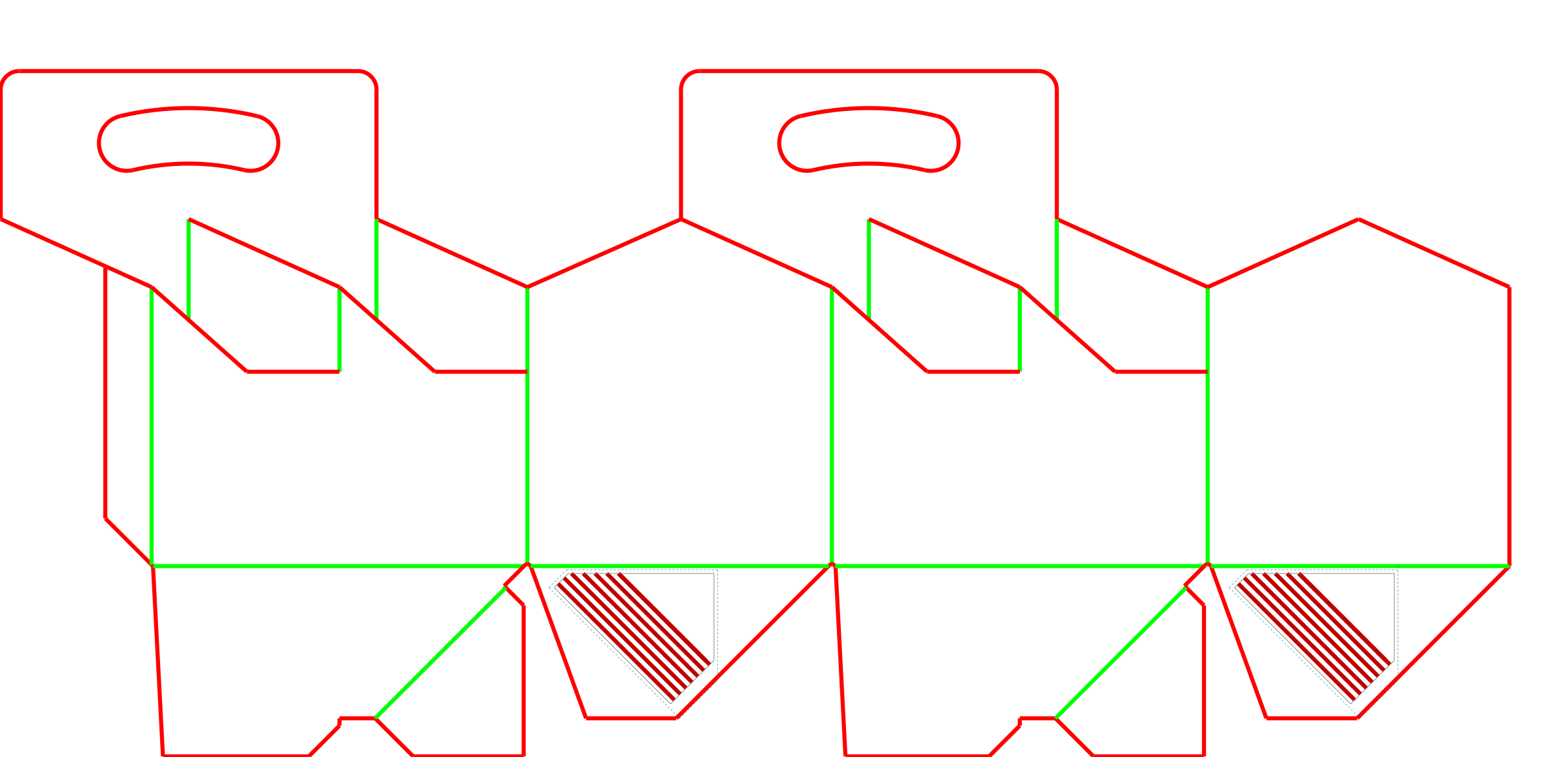

Corrugated 4-Pack Carrier with Auto-Bottom

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Pop-open crash-lock base eliminates manual folding
Double-thick glued central handle for carrying strength
Needs an outer master carton for parcel or pallet transit

About this product

This corrugated four-pack carrier is built for retail beverage sales and promotional kitting. It features a central carrying handle and a pre-glued crash-lock base that opens instantly, allowing packers to load bottles or jars without folding or taping.

Because the side seam, handle, and base are all glued before delivery, this style shifts the assembly effort away from the packing bench. It is a strong choice for high-volume manual fulfillment, though the pre-glued base and handle rely on specific production routing.

Common uses

Craft beer and cider
Specialty sauces and oils
Promotional beverage kits
Grab-and-go deli sales

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Bottle or jar diameter

Bottle or jar height

Handle space

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Will this carrier be stored in a refrigerator or cooler?

What is the estimated weight of a fully loaded carrier?

How much printing do you need on the carrier?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Promotional Beverage Packing

Craft beer and specialty beverages

The open-top design and V-shaped side cutouts keep product labels visible on the shelf, while the central handle encourages grab-and-go purchases.

Sauces, oils, and promotional kits

Useful for grouping heavy glass jars or bottles into a single retail unit. The corrugated board provides more rigidity than paperboard alternatives.

Retail kitting and gift sets

Groups related items for holiday or promotional sales, keeping them organized and easy to carry from the store.

Grab-and-go deli or cafe sales

Carries multiple jars, bottles, or cups securely, offering a sturdier alternative to paper bags for heavier items.

Fulfillment Speed and Retail Display

High-volume manual packing

The pre-glued crash-lock base drops into place as soon as the carrier is squared. This allows operators to load bottles immediately, reducing labor time compared to manual snap-lock bottoms.

Refrigerated retail environments

When packing cold beverages, corrugated board can weaken from condensation. Discussing moisture-resistant board or coatings helps maintain handle and base integrity.

Shelf-ready display

The carrier acts as both the transport method and the retail display. The cutouts on the long walls ensure that primary product branding remains visible to shoppers.

When to Consider Different Carriers

Direct-to-consumer parcel shipping

This carrier leaves the bottle tops exposed and is not designed for courier networks on its own. If shipping directly to consumers, compare fully enclosed mailers or plan to use a master shipping box.

Lower volume runs

The simultaneous gluing of the base and handle relies on specific production routing. For short runs or prototype testing, a manual snap-lock bottom carrier may be easier to source.

Board, Moisture, and Production Choices

Board grade and handle strength

Board grade affects tear strength, which helps prevent the handle from failing under the weight of four filled bottles. Flute choice also affects the crispness of the folds and the print surface.

Moisture resistance

If the carrier will hold cold beverages or sit in a refrigerated case, the board choice should account for moisture exposure to prevent the handle or base from weakening.

Print surface and finish

Because the handle panels fold inward and meet in the center, the inside of the corrugated board will be visible to the consumer. Discuss whether two-sided printing is needed for branding.

Master carton sizing

Because the central handle extends above the side walls, these carriers cannot be stacked directly on top of one another. Palletizing relies on a properly sized master tray or shipper.

Adjusting the Carrier Profile

Cell footprint

The length and width of the individual compartments can be adjusted to match the exact diameter of the bottles or jars, ensuring a secure fit without bowing the side walls.

Handle height and clearance

The distance between the bottle tops and the carrying grip can be extended to accommodate taller closures or provide more knuckle clearance.

Gable slope and display cutouts

The angle of the side walls can be adjusted to reveal more of the bottle label or to provide higher lateral support for taller products.

Packing details

Flat delivery and storage

These carriers ship flat. Because the handle panels are glued back-to-back, the flat blank has localized double thickness, which should be accounted for when planning pallet storage space.

Base Orientation Variants

EVC11283a

A structural variant that rotates the orientation of the crash-lock base flaps. This changes the folding dynamics for the manufacturer but functions identically for the packer.

Additional notes

Exact bottle dimensions

To ensure the bottles fit securely without bowing the side walls, the exact diameter and height of the product should be used to size the carrier's footprint.

FAQs

Does this carrier require tape or glue during packing?

No. The side seam, handle halves, and crash-lock base are all glued before delivery. The packer simply pushes the edges to square the carrier, and the base locks into place automatically.

Can I ship this carrier through a parcel network?

Not on its own. The open top and exposed bottles offer no protection against courier handling. It should be placed inside a master shipping box with appropriate void fill for parcel delivery.

Will the handle tear if the carrier gets wet?

Corrugated board can lose strength when exposed to condensation or refrigeration. If the carrier will hold cold beverages, it may need moisture-resistant board or coatings.

Does this carrier have individual dividers for each bottle?

The central handle acts as a divider down the middle, separating the front two bottles from the back two. However, there are no cross-dividers separating the bottles sitting side-by-side.

Why might a supplier suggest a different bottom style?

The crash-lock base and back-to-back handle rely on specific production routing. If a supplier's setup is better suited to simpler styles, they may suggest a manual snap-lock bottom, which is slower to pack but easier to manufacture.

How are these delivered?

They are delivered flat. Because the handle is pre-glued to be double-thick, the flat stacks will have a slight bulge on one side, which is normal for this style.

Can the inside of the handle be printed?

Yes, but it relies on two-sided printing. Because the handle panels fold inward, the unprinted inside of the corrugated board will be visible unless specified otherwise.

Should I test a prototype before ordering?

Yes. Testing a physical sample with your exact bottles helps verify that the handle can support the loaded weight and that the bottles fit securely without bowing the side walls.
