EVC11290

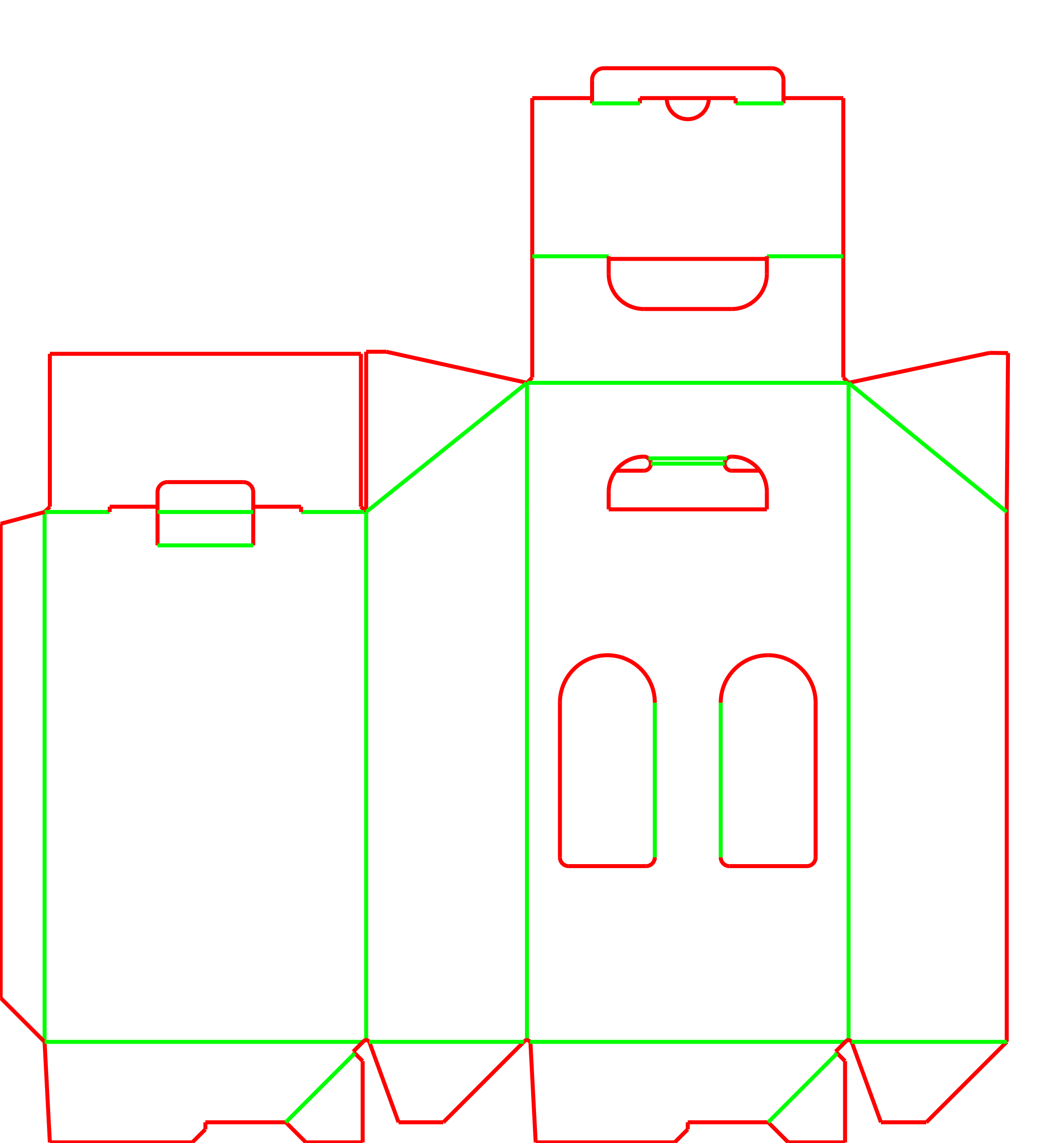

Corrugated Bottle Carrier with Handle and Display Windows

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Pre-glued crash-lock base opens quickly for fast loading
Integrated carrying handle secured by a tuck-tongue lock
Pitched top limits vertical stacking without an outer shipper

About this product

The EVC11290 is a retail-ready corrugated multi-pack designed for beverages, specialty oils, and sauces. Delivered flat, it features a pre-glued crash-lock base that opens for loading, allowing fulfillment teams to pack heavy bottles quickly without taping bottom flaps.

An integrated pitched handle and front display windows make it a natural fit for grab-and-go retail environments. Because the top is angled and features an exposed handle, this carrier is built for store shelves and consumer carry-out, and usually needs a separate master carton if shipped through parcel networks.

Common uses

Craft beer 2-packs
Wine duos
Specialty olive oils
Premium sauces and marinades

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Carrier length

Carrier width

Carrier height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of items will this carrier hold?

Do you want front display windows on the carrier?

How will the filled carriers be distributed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Multi-Packs and Grab-and-Go Displays

Retail Beverage Multi-Packs

The combination of a corrugated base and a comfortable handle makes this a strong fit for two-pack or three-pack wine, beer, or cider promotions. The front windows keep the brand labels visible on the shelf.

Specialty Oils and Sauces

For premium pantry items, the carrier acts as a gift-ready presentation. The crash-lock base can support the concentrated weight of glass bottles, while the handle encourages impulse purchases.

Promotional Kitting and Gift Sets

Beyond beverages, this carrier works well for bath products, candles, or gourmet samplers. The display windows frame the products, turning the packaging into a ready-to-sell gift set.

Tasting Room Carry-Out

Wineries and craft breweries use this style for direct consumer hand-offs. The fast-erecting base keeps the checkout line moving, and the handle provides immediate convenience for the buyer.

Beverage, Specialty Food, and Promotional Kitting

High-Volume Manual Fulfillment

When packing hundreds of promotional kits by hand, assembly time matters. The auto-bottom base removes the need to manually fold and interlock bottom flaps, speeding up the pack bench.

Retail Store Floors

The pitched top and handle clearly signal to consumers that the product is ready to carry. However, this same pitched roof means the carriers are difficult to stack directly on top of one another on a pallet without a master shipper.

Direct Consumer Hand-Offs

In environments where staff pack items at the point of sale, the flat-delivered blanks take up minimal space under the counter and open quickly when needed.

When to Consider a Different Carrier Style

Direct-to-Consumer E-commerce

If the primary goal is shipping individual multi-packs through a courier network, an exposed handle and open windows introduce too much risk. Compare this with a fully enclosed corrugated mailer, or plan to pack this carrier inside a standard rectangular box.

Automated Case Packing Lines

The top handle closure and tongue lock involve manual manipulation to secure. If your facility relies on fully automated top-loading and sealing equipment, a standard slotted carton or wrap-around blank is often a better fit.

Bottle Fit, Handle Strength, and Production Route

Board Grade and Tear Resistance

The entire weight of the bottles is transferred to the top handle cutouts during carry. The corrugated board should be specified with sufficient tear strength to help keep the handle from failing. Heavy glass bottles may call for a stronger flute profile than lighter plastic containers.

Production Route and Gluing

This design is typically produced on a folder-gluer equipped with a crash-lock section to pre-fold and glue the diagonal base flaps. It is also often run on flatbed die-cutting equipment to cleanly strip the waste from the arched display windows.

Handle Clearance and Ergonomics

The height of the pitched roof should clear the bottle necks while leaving enough room for a comfortable hand grip. This clearance should be checked against the exact bottle dimensions.

Window Sizing and Label Alignment

The arched cutouts are driven by the bottle diameter, but their height and placement should be reviewed to ensure they frame the primary product labels effectively without compromising the wall strength.

Adjusting Windows, Handles, and Bottle Count

Bottle Count and Diameter Fit

The template is driven by the specific product being packed. Adjusting the bottle diameter or changing the count automatically updates the overall length, the base proportions, and the number of display windows.

Window Removal

If maximum wall stiffness is needed, or if the product does not need retail visibility, the front windows can be removed entirely. This simplifies production and increases the overall rigidity of the carrier.

Handle Pitch Angle

The angle of the top roof panels can be adjusted to accommodate taller or shorter bottles, changing the overall profile of the carrier while maintaining the central handle lock.

Packing details

Handle Locking Mechanism

The two halves of the pitched roof meet in the center to form the handle. They are secured by a tuck tongue on one side that folds over and locks into a slot on the opposite side, helping keep the handle from splitting open under load.

Material Variants

Folding Carton Counterparts

For lighter items or premium cosmetic finishes, similar carriers can be cut from paperboard (folding carton) rather than corrugated board, though this reduces the weight capacity of the base and handle.

Additional notes

Handle Tear Strength

When packing heavy liquids, the board grade should be specified for tear resistance at the handle grip, not just vertical crush strength.

Manual Top Closure

While the base opens automatically, the top handle involves a packer folding the panels together and securing the tuck tongue by hand.

FAQs

Can I ship this carrier through the mail?

Not on its own. The open display windows, pitched top, and exposed handle make it unsuitable for raw parcel shipping. It should be placed inside an outer shipper for courier transport.

Does the base need tape to hold heavy bottles?

The crash-lock base is pre-glued during manufacturing. When the folded carton is opened, the floor drops into place and locks, creating a base that usually supports the product weight without tape.

Can the carrier be adjusted for different bottle sizes?

Yes. The width, length, and window cutouts are determined by the exact diameter and number of bottles you are packing.

Can these carriers be stacked on a retail display?

Because the top panels angle inward to form the handle, the carrier does not have a flat roof. They are difficult to stack vertically on top of one another and should be displayed side-by-side.

How does the handle design affect printing?

The pitched top panels offer additional billboard space for branding, but keep in mind that the handle cutouts and the interlocking tongue will interrupt graphics in the top center of the carrier.

Why does this cost more to manufacture than a standard box?

The arched windows typically involve flatbed die-cutting to remove the waste cleanly, and the base uses a folder-gluer to apply adhesive to the crash-lock flaps before delivery.

How are these carriers delivered to our facility?

They are delivered flat (knocked down) with the side seam and base already glued. This keeps pallet volumes dense while allowing for fast assembly on the packing line.

Can we pack square jars or non-round items in this carrier?

While the template is optimized for round bottle diameters, it can be adapted for square or rectangular items. The internal clearances and window shapes would need to be reviewed to ensure a secure fit.
