Corrugated Tube with Tapered Flaps

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Delivered flat with a pre-glued side seam
Tapered major flaps for smooth automated folding
Depends on tape, adhesive, or flap adjustment for full closure

About this product

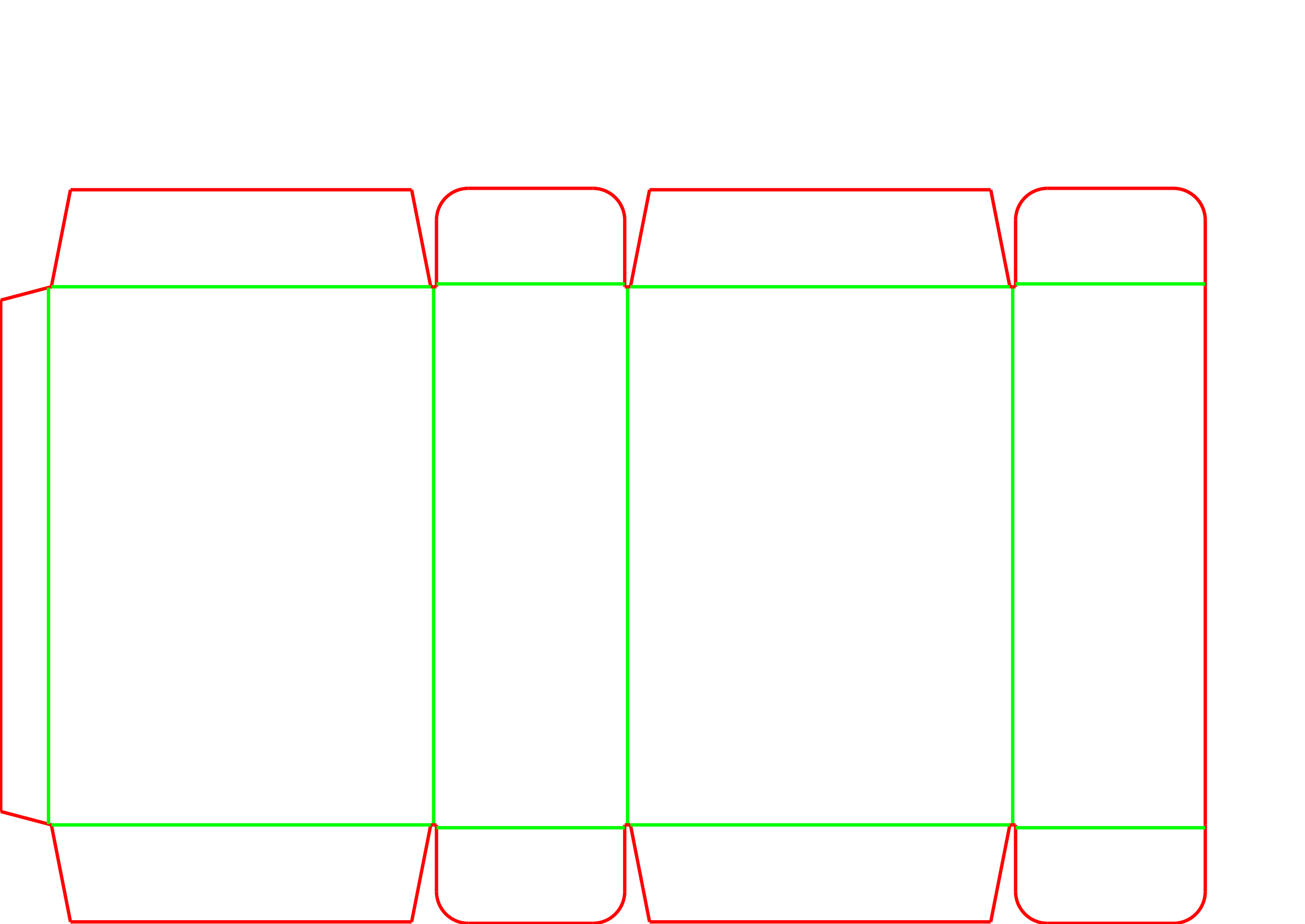

This corrugated tubular carton is delivered flat with a pre-glued side seam, ready to be opened for loading. Its defining feature is the trapezoidal taper on the major flaps, which provides clearance to prevent catching during automated cartoning.

While it resembles a common shipping box, the default flap proportions leave a central gap at the top and bottom. It becomes a fully enclosed shipper only when sealed with tape, adhesive, or when the flap dimensions are adjusted to meet in the center.

Common uses

Automated cartoning lines
Manual packing stations
Inner product sleeves requiring end closure

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Height (inside)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will you seal the ends of this box?

Does the box need to fully enclose the product?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Automated Cartoning and Manual Packing

Automated cartoning lines

The tapered corners on the major flaps are designed to clear machine guides during rapid folding. This reduces the risk of flap collisions compared to straight-cut flaps.

Manual packing stations

Because the side seam is pre-glued by the converter, packers simply open the flat tube, fold the bottom flaps, and seal the ends. The tapered flaps fold smoothly by hand without binding at the corners.

Inner product sleeves

When used as an internal protective layer, the tube can be slipped over a product and sealed at the ends, keeping the primary item secure before it goes into a master carton.

Mixed-product fulfillment

Operations running various product sizes through automated closers benefit from the predictable folding behavior of the tapered flaps, helping maintain steady throughput.

Fulfillment Centers and Contract Packagers

Contract packaging and fulfillment

Facilities handling diverse product runs appreciate the predictable machine clearance provided by the tapered flaps.

High-speed manufacturing

Environments where line jams cause downtime often prefer tapered flaps to ensure smooth automated closure.

E-commerce distribution

Operations prioritizing fast manual erection and taping over complex folding sequences can use the pre-glued side seam for quick assembly.

Straight-Flap Alternatives for Simpler Production

Straight-flap boxes for simpler production

If the package will be erected entirely by hand and machine clearance is not a concern, a standard Regular Slotted Container (FEFCO 0201) may be a practical choice. Straight flaps can often be produced without shaped die-cutting.

Full overlap tubes for heavy loads

If the major flaps need to completely overlap for extra strength or specific gluing requirements, the EVC11903 template is worth comparing.

Flap Overlap, Sealing Method, and Production Route

Flap meeting and central gap

By default, the major flaps on this template do not meet in the center, leaving a gap. If the package needs to be fully enclosed, the flap length must be adjusted to meet, or the gap must be bridged by wide tape or an inner liner.

Sealing method and flap length

The intended closure method changes the required flap dimensions. Adhesive sealing requires sufficient overlap or contact area, while a taped closure typically requires the flaps to meet in the center.

Production routing

While straight-flap boxes are often produced on straight-line slotting equipment, the angled cuts required for the tapered flaps often mean this package must be routed through a shaped die-cutting process before gluing.

Board thickness and slot width

If moving to a thicker corrugated flute, the slots separating the flaps must be widened to prevent the board from binding when folded.

Adjusting Tapers and Flap Clearances

Modifying the flap taper

The angle and depth of the chamfer on the major flaps can be adjusted to match the specific clearances required by your packing equipment.

Slot width for heavier board

The slots separating the flaps can be widened to accommodate thicker corrugated flutes, ensuring the flaps can still fold 90 degrees without binding.

Adjusting flap overlap

The flap height parameter can be changed to create a full meeting closure or an overlapping seal, depending on the chosen sealing method.

Packing details

Production routing and die-cutting

The requirement for tapered flaps usually shifts production from straight-line slotters to shaped die-cutting. This ensures the tapers are cut cleanly for reliable machine folding.

Additional notes

Shaped die-cutting versus straight-line slotting

The requirement for tapered flaps usually shifts production from straight-line slotters to shaped die-cutting. This ensures the tapers are cut cleanly for reliable machine folding.

FAQs

Does this box fully enclose the product?

In its default template state, the top and bottom flaps leave a central gap. To fully enclose the product, the flap dimensions must be adjusted so they meet in the middle, or the gap must be sealed with tape.

Can this be manufactured on straight-line slotting equipment?

Usually not. The angled tapers on the major flaps typically require a shaped die-cutting process, which provides precise flap clearances but differs from the simpler slotting used for basic straight-flap boxes.

Why are the major flaps tapered?

The trapezoidal shape prevents the corners of the flaps from catching on machine guides or each other when being folded rapidly on an automated cartoning line.

Can I use a heavy board grade for this tube?

Yes, but the slot widths between the flaps and the crease allowances must be carefully adjusted to accommodate the extra thickness, ensuring the flaps can still fold 90 degrees without binding.

How is this package delivered?

It is delivered flat, or knocked down, with the side seam already glued. The packer or machine simply pushes the opposite corners to open it into a rectangular tube.

What are the common ways to seal the ends?

The best method depends on your packing line. Automated lines typically use adhesive applied to the flaps, while manual stations often use tape. The flap dimensions should be tailored to your chosen method.

Can the flap gap be removed?

Yes. The flap height can be adjusted before production so that the major flaps meet exactly in the center, creating a fully closed surface for taping.

Is this suitable for parcel shipping?

It can be used for parcel shipping only if the flaps are adjusted to meet in the center or if the gap is fully sealed with appropriate packaging tape.
