EVC11903

End-Loading Corrugated Carton with Meeting Flaps

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Loads horizontally from either open end
Outer flaps align in the middle for taping or adhesive application

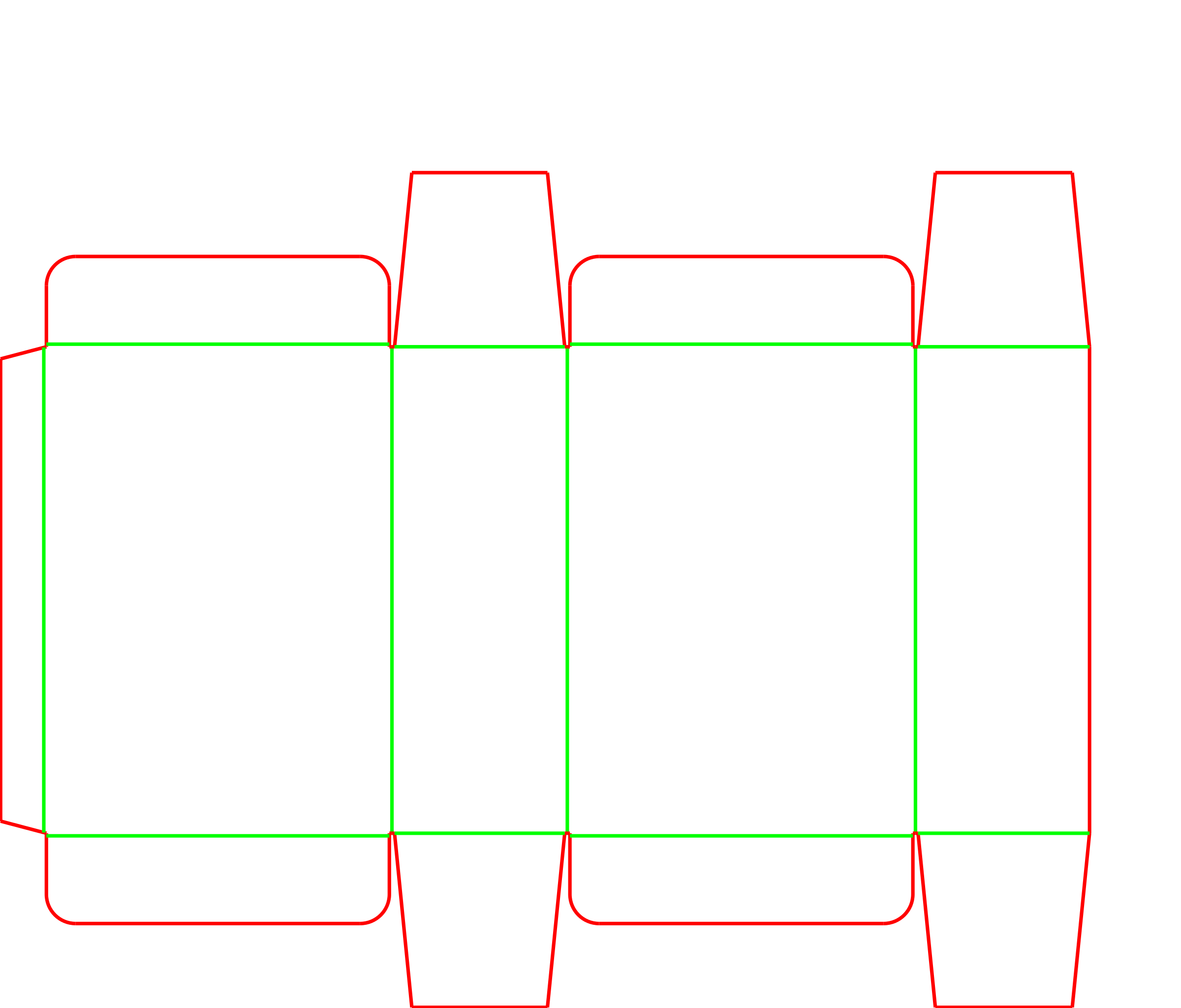

Angled inner flaps help prevent clashing during folding

About this product

This end-loading corrugated carton forms a rectangular tube, allowing products to be slid in horizontally rather than lowered from above. Both the inner dust flaps and the outer closure flaps are sized to meet in the middle of the opening, creating a double-layered end that provides a flat surface for sealing.

Delivered flat with a pre-glued side seam, this style is a frequent choice for automated end-load cartoning lines, though it can also be erected and taped by hand for long or flat items that are difficult to pack vertically.

Common uses

Automated cartoning of stacked items
Manual packing of long extrusions or flat products
Component and parts distribution

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of items are going inside?

How will the packed boxes be shipped?

Are you currently using an end-loading box for this product?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Horizontal loading and cartoning applications

Automated cartoning lines

The tube-style construction and meeting flaps are designed to run on equipment that opens the carton, pushes the product in horizontally, and applies adhesive to the ends.

Long or flat product packing

For items like extrusions, rolled materials, or stacked flat goods, sliding the product into an open end is often faster and more practical than lowering it into a deep top-loading box.

Stacked flat goods

Books, panels, and framed items can be pushed into the open tube as a single stack, keeping the stack aligned during the packing process.

High-volume repeat packing

The meeting outer flaps create a consistent, flat surface that speeds up the application of packing tape or adhesive seals across large order volumes.

Manufacturing and manual fulfillment

High-volume manufacturing

When paired with the right board grade and automated equipment, this carton supports rapid, repeatable packing. The trapezoidal cuts on the inner flaps help reduce the risk of binding as the machine folds them inward.

Manual fulfillment of awkward items

Even without automation, hand-packing long items is easier when the box lies flat on a table and the product is pushed through the end. The meeting outer flaps are easily secured with tape.

Component and parts distribution

Heavy or dense components that are difficult to lift and drop into a standard box can be slid horizontally into this carton, reducing handling strain.

Top-loading and wrap-around alternatives

Top-loading requirements

If the product is heavy, fragile, or needs to be lowered into protective inserts, a standard top-loading box is often a more practical choice than an end-loading tube.

Wrap-around packing

If the product is a tight cluster of rigid items that act as their own mandrel, a wrap-around blank may offer a tighter fit and use less board than a pre-glued tube.

Sealing methods, tooling, and board selection

Tape versus adhesive sealing

The outer flaps meet in the middle, providing a good surface for either a tape seal or adhesive. The choice depends on your packing line equipment and the security required for the shipping route.

Tooling and production route

Because the inner dust flaps have angled cuts to reduce the risk of clashing, this carton typically requires die-cutting tooling rather than standard slotting equipment.

Board grade and folding behavior

If using automated equipment, the corrugated board should be evaluated for stiffness to form reliably, while remaining thin enough to fold cleanly without jamming the cartoner.

Packing orientation

Evaluate whether the product is easier to slide in horizontally or drop in vertically. This decision dictates whether an end-loading tube or a top-loading box is the better starting point.

Flap clearances and meeting tolerances

Flap meeting adjustments

The template calculates flap lengths based on the board thickness to keep them aligned in the middle. If the board grade changes, these allowances should be recalculated to avoid flap gapping or overlapping.

Inner flap angles

The angle of the trapezoidal inner flaps can be adjusted to provide more or less clearance during folding, depending on the speed and mechanics of the packing line.

Side seam placement

The carton is delivered as a collapsed flat with the manufacturer's joint already glued. The position of this glue flap can be adjusted based on artwork requirements or machine feeding preferences.

Packing details

Tape surface and flap alignment

Because the outer flaps align in the middle, they provide a continuous, flat surface that is well-suited for a secure tape seal.

Additional notes

Flap alignment for sealing

The meeting outer flaps create a flush surface that helps tape adhere evenly across the center seam.

FAQs

Does this box require a cutting die?

Usually, yes. The angled cuts on the inner flaps mean die-cutting is typically needed, as standard slotting equipment does not produce this specific flap geometry.

Does this carton lock closed on its own?

No. The meeting flaps rely on external sealing, typically adhesive on automated lines or packing tape for manual assembly.

What happens if I change the corrugated flute?

Changing the board thickness affects how the flaps fold and meet. The template should be recalculated for the new flute to keep the outer flaps aligned in the middle without overlapping or leaving a gap.

Why are the inner flaps angled?

The trapezoidal shape helps keep the inner dust flaps from catching or clashing against each other when they are folded inward, which is especially important for smooth operation on automated cartoning machines.

How is this carton delivered?

It is delivered flat. The side seam is glued by the manufacturer, creating a collapsed tube that you open before loading the product.

Can this carton support vertical pallet weight?

Stacking strength depends entirely on the board grade and the orientation of the box on the pallet. If stacked on its largest face, the load transfers through the side walls, which should be specified to handle the weight.

Can I use protective inserts with this box?

Yes, but the inserts must be designed to slide into the open end along with the product. If the inserts require complex vertical placement, a top-loading box may be easier to pack.

Is this box suitable for manual packing?

Yes. While often used on automated lines, it is also practical for hand-packing long or awkward items that are easier to slide horizontally across a table than to lower into a deep box.
