EVC11919

Corrugated Gravity Dispenser Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Integrated bottom hopper for gravity-fed dispensing
Top-loading tuck closure for easy filling
Involves manual hopper assembly and an outer master shipper

About this product

The EVC11919 is a retail-ready corrugated dispenser designed for loose, individually wrapped items or small parts. It ships flat, loads from the top, and features an integrated bottom hopper that gravity-feeds product as customers take it from the shelf.

While the side seam is glued for flat delivery, the protruding hopper involves manual folding at the packing bench. This makes it a useful choice for high-visibility retail displays, provided the packing operation can accommodate the hand-assembly time.

Common uses

Individually wrapped candies
Small hardware parts
Sample packets
Retail counter displays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of items will this dispense?

How will these displays be shipped to stores?

Do you need printing on the inside of the hopper?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Displays and Loose Item Dispensing

Countertop and Shelf Merchandising

This structure is useful for presenting bulk items like wrapped candies, sample packets, or small hardware directly on the retail shelf. The integrated hopper catches falling product, keeping the display organized without a separate plastic or metal bin.

Top-Loaded Kitting

Because the top features a standard tuck closure, fulfillment teams can form the hopper, stand the box upright, and quickly drop loose items in from the top before closing the lid for distribution.

Point of Purchase Impulse Sales

Placing this dispenser near registers encourages last-minute purchases of small, low-cost items. The open hopper keeps the product visible and accessible to shoppers waiting in line.

High-Turnover Parts Storage

Beyond retail, this box organizes small parts on assembly benches or in stockrooms. The gravity feed ensures workers can grab components quickly without opening lids or digging through deep bins.

Merchandising and Fulfillment

Retail Rollouts

Brands launching new loose products often use this dispenser to secure shelf space. The large front and side panels offer continuous billboard space, while the hopper ensures the product remains accessible even as the box empties.

Contract Packaging and Fulfillment

Co-packers handling bulk goods appreciate the top-loading design. The flat-shipping tube format saves inbound freight space, and the top tuck flap allows fast gravity filling once the base is formed.

Pharmacy and Cosmetics Merchandising

For small packets, blister packs, or travel-sized bottles, this display keeps small items contained while presenting a clean, branded face to the pharmacy or cosmetic aisle.

When to Consider Standard Tuck Boxes or Cartons

Standard Retail Packaging

If the product does not need to be dispensed individually, a standard straight-tuck box is faster to assemble and nests more efficiently on a pallet.

Lighter Product Weights

For very lightweight items like tea bags or small cosmetics, a folding carton equivalent may offer a smoother print surface and sharper folds than corrugated board.

Board Selection and Packing Labor

Flute Profile and Foldability

The hopper relies on complex reverse folds and side gussets to hold its shape. Fine flutes, such as E-flute, fold cleanly. Heavier B-flute or C-flute boards will likely crack or resist the manual folds, causing the hopper to fail.

Manual Assembly Planning

While the main tube is machine-glued and delivered flat, the bottom floor and protruding hopper involve manual folding. Fulfillment teams should account for this manual labor when planning large retail rollouts.

Master Shipper Sizing

Because the hopper protrudes and the top uses a simple tuck closure, these displays usually ship to stores inside a fitted corrugated master carton. The master carton dimensions depend on how many dispensers ship together.

Print Surface and Interior Visibility

The inside floor of the hopper and the lower interior back wall become visible to consumers as the product empties. Two-sided printing may be worth discussing for premium retail presentations.

Modifying the Hopper and Opening

Dispenser Opening Height

The arched cut on the front wall determines how much product is exposed. This opening can be raised or lowered to match the size of the individual items being dispensed, ensuring they flow easily without spilling over the hopper lip.

Hopper Depth

The protrusion of the bottom tray can be adjusted. A deeper hopper holds more product at the ready, but takes up more depth on the retail shelf and changes the flat blank size.

Top Closure Style

The standard top is a straight tuck, but it can be modified to a reverse tuck or a seal-end closure depending on how the fulfillment center prefers to close the box after top-loading.

Packing details

Master Shipper Requirements

This dispenser is not designed for parcel or courier networks on its own. The open hopper and tuck top mean the loaded displays usually travel inside a fitted corrugated master carton for safe transit to the store.

Additional notes

Double-wall reinforcement

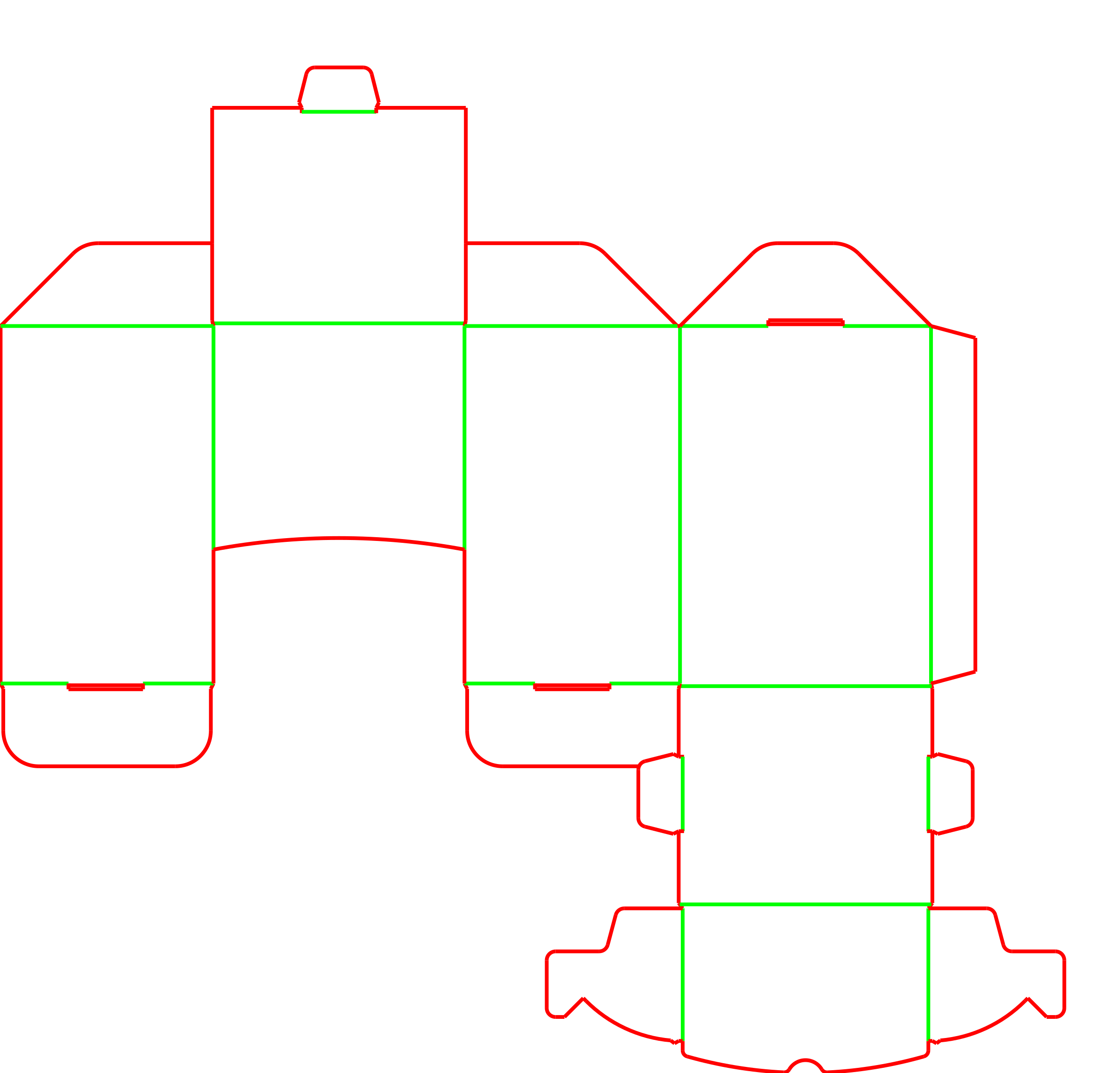

The template includes internal overlap panels that fold flat against the side walls during manufacturing. This adds vertical stiffness to the display without needing a heavier overall board grade.

FAQs

Can this dispenser be machine-erected?

While the side seam is glued on automated equipment so the box ships flat, the bottom floor and front hopper involve manual folding and locking at the packing bench.

Can I ship this directly to a customer?

The open front aperture and tuck closures are designed for retail display, not parcel transit. It usually travels inside a master shipping carton.

Why is E-flute common for this display?

The hopper uses side gussets that fold inward to lock the tray in place. Fine flutes like E-flute handle these tight reverse folds cleanly, whereas thicker boards often crack or spring back.

Does the inside of the box need to be printed?

It depends on your presentation needs. The inside floor of the hopper and the lower interior back wall will be visible to consumers as the product empties, so two-sided printing is often used for premium displays.

How do I know if my product will dispense correctly?

Gravity feeds depend heavily on the friction and shape of the individual items. We suggest prototyping the exact opening height and hopper depth to test the flow of your specific product before a full production run.

How is the box loaded?

Once the bottom hopper is formed, the box stands upright. Packers can drop loose items through the top opening before closing the top tuck flap.

Can I use heavy C-flute for this box?

Heavy flutes are generally avoided for this style. The thick board fights the complex manual folds of the hopper gussets, often leading to cracking or a hopper that refuses to stay locked.

Can the top closure be taped shut?

The top tuck flap can be secured with a clear wafer seal or tape if extra security is needed after the box is loaded from the top.
