Retail pegboard displays and manual packing lines
High-density pegboard displays
The sideways orientation allows more units to fit on a single retail hook compared to front-facing boxes. This helps brands maximize their allotted shelf space in crowded retail environments.
Heavy or dense retail items
The central placement of the hanger distributes weight evenly down the side walls. This makes the box more stable for dense parts than a simple back-wall tab, which can pull forward and tear under load.
Aisle-facing brand presentations
Because the box sits perpendicular to the pegboard, the largest lateral panel faces the consumer walking down the aisle. This provides a larger uninterrupted canvas for primary graphics than the narrow front panel.
Manual pack-bench kitting
The 1-2-3 snap bottom engages without tape or glue. This fits well for fulfillment centers assembling lightweight kits by hand, keeping the packing station clean and reducing consumable costs.
Hardware, electronics, and aftermarket parts
Hardware and tools
Screws, drill bits, and small tools benefit from the secure snap base and the strong central hanger. The sideways profile keeps heavy items close to the pegboard backer, reducing leverage on the hook.
Consumer electronics
Charging cables and tech accessories use the large lateral print panel for branding while keeping the physical footprint narrow on the display.
Bicycle and automotive aftermarket parts
Dense replacement components fit well in the secure interlocking floor, while the central hanger prevents the box from tilting forward under uneven weight distribution.
When to evaluate standard shelf cartons or back-wall hangers
Standard shelf presentation
If the product will sit on a shelf rather than hang, a standard snap-bottom carton removes the unnecessary hanger panel, simplifying the die-cut and reducing board waste.
Front-facing display needs
If the retail environment requires the absolute front of the box to face the aisle, a back-wall hanger style is a better fit, though it will consume more horizontal space on the pegboard.
Board thickness, hanger strength, and packing labor
Board grade and flute choice
Heavy double-wall board will bind the snap locks and tear the Euro hole. Solid folding board or fine E and F flutes provide the crisp folds and clean punch required for this design.
Manual packing labor
The 1-2-3 snap base is built for hand assembly. Packers must fold and push the final locking tab into place, which is slower than automated case erecting but eliminates the need for tape on the packing bench.
Master shipper planning
This box is built for retail display. It requires a master shipper or outer carton for parcel or freight transit, as the hanger panel can crush and the friction base can open under impact.
Print orientation
Because the box hangs sideways, the primary branding and product information should be oriented on the large lateral panels, not just the narrow front face.
Hanger placement, lid friction, and base lock tuning
Hanger hole offset
The exact placement and size of the Euro hole can be adjusted based on the product's center of gravity to ensure the box hangs perfectly straight.
Tuck lid clearance
The friction of the top closure can be tuned so the lid stays shut on the pegboard but remains easy for the consumer to open after purchase.
Base lock tuning
The depth and radius of the bottom hooks can be modified to match specific board thicknesses, preventing the paperboard from binding or tearing during assembly.
Board and packing details
Tooling requirements
This design requires a custom flatbed or rotary cutting die. The intricate base hooks and Euro hole cannot be produced on standard straight-knife slotting equipment.
Layout variants for factory production

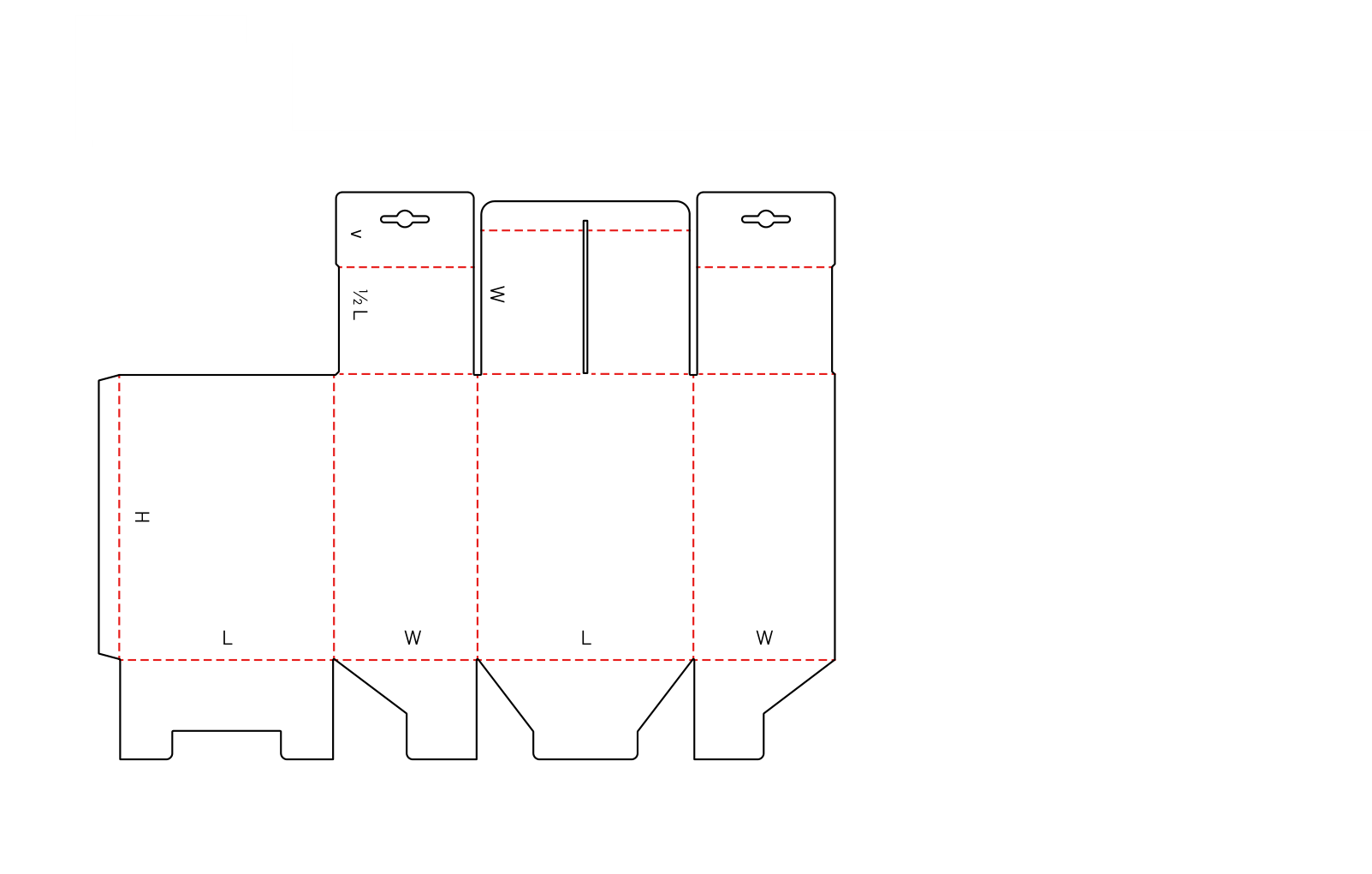

Width-panel layout (0241a)
A factory-level layout shift that moves the glue flap to accommodate specific folder-gluer equipment. The final assembled box looks and functions exactly the same for the buyer.
Additional notes
Lateral panel graphics
Because the box hangs sideways, the primary branding and product information should be oriented on the large lateral panels, not just the narrow front face.
Related retail and display packaging
FAQs
Route and shipping
Can this box be shipped directly in the mail?
No. The protruding hanger panel and friction-locked base are designed for retail display. It needs to be packed inside a master shipper for parcel or freight transit.
Closure and assembly
Does the snap bottom require tape?
The 1-2-3 base locks together through paperboard friction and geometry. It holds securely for retail use without tape, though heavy payloads should be physically tested to find the drop-out limit.
Product fit and display
Why does this box hang sideways?
The hanger panel extends from the side wall rather than the back. This allows retailers to fit more boxes on a single pegboard hook while presenting the larger side panel to the aisle for branding.
Board and finish
What board types work best for this style?
Solid folding carton board or fine micro-flutes. Thick corrugated board makes the intricate base hooks bind and leaves rough, unattractive edges around the Euro hole punch.
Closure and assembly
Can the top lid be sealed for tamper evidence?
The standard tuck lid relies on friction. If tamper evidence is required for retail, a clear wafer seal or custom locking tab modification should be discussed before production.
Quantity and production
How is this delivered to the packing facility?
The factory glues the side seam and delivers the boxes flat. Your packing team pops the tube open, folds the base flaps to lock the floor, loads the product, and tucks the top lid.
Tooling and production
Does this box require a custom cutting die?
Yes. The Euro hole hanger and the interlocking base hooks require specific die-cutting equipment. It cannot be manufactured on basic slotting machines.
Product fit and display
How much weight can the hanger support?
The weight limit depends entirely on the chosen board grade and the width of the paperboard bridge above the Euro hole. Heavy hardware items require physical tear-out testing before a full production run.
