Long-Span Packing Jobs
Long Industrial Parts and Extrusions
The unbroken tube walls provide strong end-to-end stacking strength for metal extrusions, plastic pipes, and long automotive parts. Separate end caps allow the tube to be manufactured to lengths that would exceed the limits of flatbed die-cutters if the flaps were attached.
Rolled Prints and Consumer Goods
Functions as a heavy-duty corrugated poster tube for large rolled prints, banners, or umbrellas. The central finger hole allows end-users to easily pull the cap out without damaging the product inside.
Heavy Blinds and Window Treatments
Window blinds and shades are often long and dense. The unbroken side panels of the sleeve resist bowing better than a series of shorter boxes taped together, while the end caps keep the heavy hardware contained.
Rolled Textiles and Carpets
Bulky rolled goods that are difficult to fold around can be slid directly into the open sleeve. The friction-fit caps close the ends without requiring the packer to wrestle with long, awkward flaps.
Fulfillment and Transit Contexts
Manual Fulfillment Operations

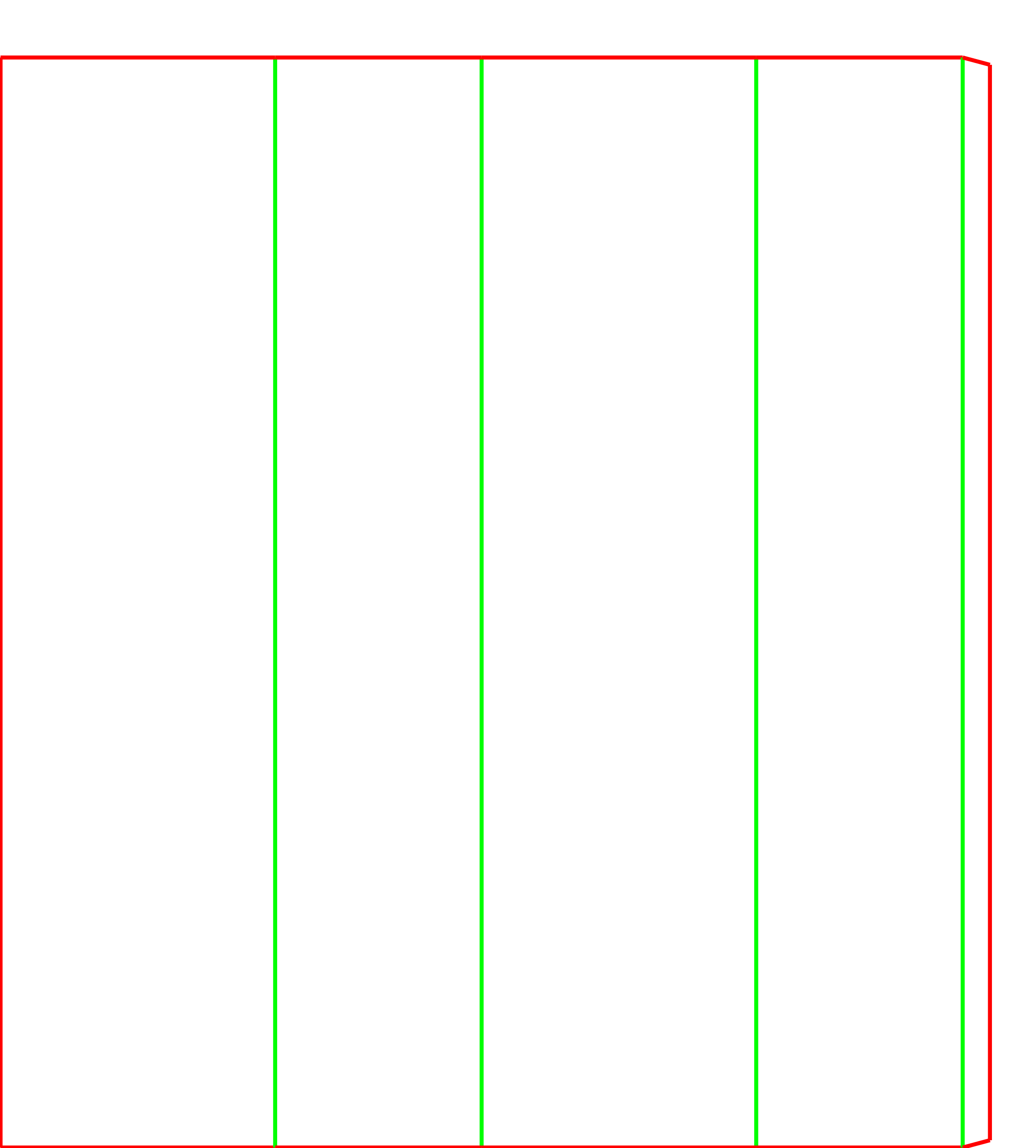

The sleeve is delivered flat and opened for loading, but the packer must manually fold the four flaps on each end cap and press them into the tube. It takes more time to assemble than a standard box but handles awkward, long items well.
Palletized Freight vs. Parcel Transit
When shipped on pallets, the friction fit is often sufficient to keep the caps in place. For mixed-carrier parcel networks, plan to secure the end caps with clear tape or strapping to prevent them from popping out during rough handling or drops.
Multi-Component Inventory Management
Because this is a three-piece kit, buyers must manage inventory for two distinct components: the glued sleeves and the flat end caps. Both components are delivered flat to maximize pallet density.
When to Compare Other Long Packaging
When the product is difficult to end-load
If the product is heavy or fragile and sliding it down a long tube is impractical, a wrap-around folder (like FEFCO 0409) allows the product to be placed on a flat sheet before the box is folded around it.
When assembly speed is the priority
If packing labor is a bottleneck, a Regular Slotted Container (FEFCO 0201) or a roll-end tuck tube eliminates the need to fold and insert separate end caps, provided the product length fits within manufacturing limits.
Board, Fit, and Sealing Decisions
Board Thickness and Friction Fit
The dimensions of the end caps are strictly calculated by deducting the exact thickness of the corrugated board. If you change the board grade after the initial design, the end caps must be resized, or they will either fall out or crush the sleeve during insertion.
Sealing Strategy for the End Caps
Decide how the caps will be secured based on the shipping route. While the trapezoidal flaps create a tight friction fit, parcel couriers often expect an external seal. Plan for tape, security labels, or strapping if the tube will travel individually.
Internal Clearance for Sliding
Remember that the product must slide down the entire length of the tube. Leave enough internal clearance so that rubberized or high-friction items do not bind against the corrugated walls during loading.
Print Surface vs. Board Strength
A thicker board like C-flute provides better side-impact resistance for long spans, but a thinner board like E-flute offers a smoother surface for high-quality printing. Choose based on whether transit protection or retail presentation is the higher priority.
Adjusting the End Caps and Sleeve
Finger Hole Sizing
The default central hole is sized for a standard finger pull. It can be enlarged if packers or end-users will be wearing heavy work gloves, or modified into a different extraction feature if dust protection is a higher priority.
Insertion Bevels
The flaps on the end caps feature angled corners. This bevel prevents the corners from catching on the inside of the sleeve during manual insertion, speeding up the packing process.
Friction Flap Depth
The depth of the four flaps on the end caps can be extended to increase the friction area against the sleeve walls, or shortened to make manual folding easier on thicker board grades.
Packing details
Multi-Piece Tooling and Supply
Because this is a three-piece kit, it requires two separate manufacturing setups: a straight-line folder-gluer run for the sleeve, and a flatbed die-cutting run for the end caps. Both components are delivered flat to maximize pallet density.
Additional notes
Clearance for sliding
Remember that the product must slide down the entire length of the tube. Leave enough internal clearance so that rubberized or high-friction items do not bind against the corrugated walls during loading.
Related Packaging Options
FAQs
How should the end caps be secured for parcel shipping?
While the end caps have a tight friction fit, the impacts and drops common in parcel networks can cause them to pop out. Plan to secure the caps with packing tape or strapping for individual courier transit.
Is this package dust-proof?
No. The central finger hole used to remove the end caps leaves a small opening. If your product needs complete dust protection, the hole design must be modified or the product should be bagged before loading.
Can I use a heavy double-wall board for this tube?
Double-wall board provides extreme rigidity for the sleeve, but it makes the small flaps on the end caps very difficult to fold by hand. The thick board can also make inserting the caps a struggle. B-flute or C-flute are usually better balances of strength and workability.
How is this package assembled?
The sleeve is delivered flat and opened into a rectangular tube. The packer then takes a flat end cap, folds its four edges up to form a shallow tray, and pushes it into the bottom of the tube. After loading the product, a second folded cap is pushed into the top.
Why use separate end caps instead of attached flaps?
For very long products, attached flaps make the flat cardboard blank too large for flatbed die-cutting machines. Separate end caps solve this manufacturing limit and also provide a stronger, unbroken vertical wall for stacking.
Can the friction fit be made tighter or looser?
Yes. The depth of the end cap flaps can be adjusted to increase or decrease the friction area. However, the fit is sensitive to the exact board thickness, so physical testing is necessary when making adjustments.
Can I use foam inserts inside this tube?
Yes, but any internal blocking must either be pushed all the way down the length of the tube or attached directly to the end caps before insertion.
Should I order a physical sample before a full run?
Yes. Because the end caps rely on a precise friction fit, it is important to test a physical sample with the exact board grade and your actual product to ensure the caps seat correctly and the product slides in without binding.
