EVC41002

Columned Display Tray with Bench Support

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Interlocking corner columns for high vertical stacking strength
Wide horizontal benches frame products for retail display
Delivered flat for manual pack-bench assembly

About this product

The EVC41002 is a corrugated display tray built for high stacking strength and retail presentation. It uses a four-sided roll-over design to create hollow, interlocking corner columns and wide horizontal benches that frame the product.

Because all four walls fold inward and lock into the base, the tray achieves double-wall thickness around its perimeter. This makes it highly rigid for heavy items or club-store environments, though it is assembled by hand and usually paired with an outer master carton for transit.

Common uses

Club store displays
Heavy jar or bottle containment
Premium electronics or cosmetics shelf presentation

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will this tray hold?

How will these trays be shipped to retail?

How will these trays be displayed in the store?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Display and Heavy-Product Packing

Club Store and Pallet Displays

The hollow corner columns provide vertical compression resistance, allowing identical trays to be stacked securely on retail pallets. The wide benches distribute weight evenly, making it a strong choice for dense or heavy items.

Premium Shelf-Ready Packaging

With rolled edges on all four sides, the tray presents a clean, finished appearance without exposed corrugated flutes. The central cutouts on the long sides keep the product visible while maintaining the strength of the corners.

Heavy Parts Containment

The double-wall perimeter and interlocking corners resist twisting and outward splay. This keeps dense industrial or hardware components contained without the walls bowing outward under pressure.

Multi-Tray Master Packs

Because the tray has a flat, stable top profile, multiple loaded trays can be stacked inside a single master shipping box. Retail staff can then remove and display the trays directly without unpacking individual units.

Product Types and Retail Channels

Beverage and Glass Jars

Products like glass jars or bottled beverages benefit from the double-wall perimeter. The rigid corners help prevent the tray from flexing when lifted, reducing the risk of bottles clinking or shifting.

Cosmetics and High-End Consumer Goods

The wide top benches act as a visual frame, elevating the perceived value of the items inside. The smooth interior and exterior surfaces provide excellent branding opportunities.

Hardware and Dense Retail Goods

Heavy metal parts or dense retail items often cause standard single-wall trays to bulge. The four-sided roll-over locks the walls securely into the base, keeping the footprint square on the shelf.

When to Compare Simpler Tray Styles

High-speed automated packing lines

This tray involves a complex four-sided manual fold sequence. If your fulfillment center relies on automated tray formers, a standard machine-erected tray or a simpler crash-lock base is a more practical choice.

Strict material budgets

Because all four walls roll over completely, this tray has a large flat footprint and uses more corrugated board than a standard tray. If presentation is less critical, compare it to a basic roll-end tray where only two sides fold over.

Single-item parcel shipping

As an open-top display tray, it does not enclose the product for courier delivery. If the item ships directly to a consumer, compare it to a fully enclosed mailer or shipping box.

Board, Print, and Packing Route Decisions

Board Thickness and Fold Clearance

This tray works well with thinner profiles like E-flute. Because the corners overlap to create multiple layers, thicker boards can create excessive bulk, making the tabs difficult to lock into the base.

Outer Transit Packaging

As an open-top display tray with mechanical locks, it relies on a master shipping carton, a secure shrink-wrap setup, or a palletized stretch-wrap system for distribution.

Print Panel Planning

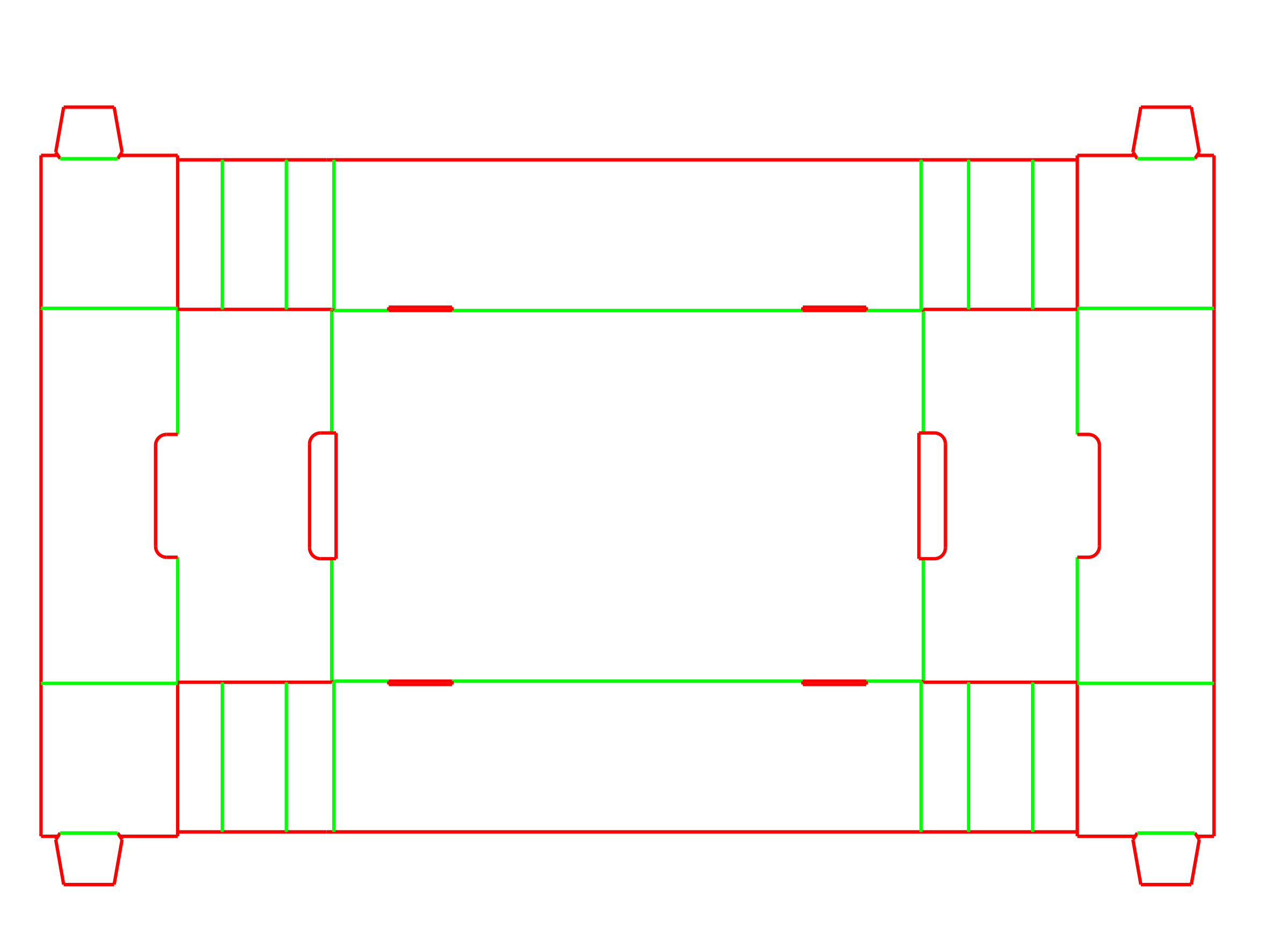

The roll-over folding sequence means the interior walls and the exterior walls are formed from the same side of the flat corrugated blank. This often allows for full inside-and-outside branding using a single-sided print run.

Manual Assembly Labor

The interlocking corner benches and four-sided roll-over sequence take time to fold by hand. Packing facilities should account for this assembly time when planning large retail rollouts.

Adjusting Benches, Cutouts, and Locks

Bench Width Modifications

The width of the horizontal benches on the short ends can be adjusted to create a thicker frame or to accommodate specific stacking needs, provided the inner panels do not overlap in the center of the base.

Side Wall Cutouts

The cutouts on the long side walls can be resized or removed entirely. Removing them creates a solid double-wall on the long sides for maximum rigidity, while enlarging them increases product visibility.

Locking Tab Sizing

The tuck tongues that secure the rolled walls into the base can be widened or lengthened depending on the board grade and the expected outward pressure from the product.

Packing details

Manual Assembly Sequence

Packers fold and lock the long sides first, securing the central tabs. The short ends then fold up, wrap over the minor corner flaps, and lock into the base, creating the final interlocking columns.

Additional notes

Pack-bench space

The large flat footprint of the unassembled blank means packers need adequate bench space to perform the four-sided fold sequence efficiently.

FAQs

Can this tray be erected by automated machinery?

The interlocking corner benches and four-sided roll-over sequence are designed for manual pack-bench assembly. Automated lines usually handle simpler tray styles.

What board thickness makes sense for this tray?

E-flute is usually a good starting point. It provides crisp folds for the double-wall sections and interlocking corners. Thicker boards can cause the corners to bind and prevent the locking tabs from seating properly.

Can I ship this tray through a parcel network?

Not on its own. Because it is an open-top display tray, the loaded package should be placed inside a secure outer shipping box for courier delivery.

How does the roll-over design affect printing?

Because the walls roll inward 180 degrees, the visible interior walls and the exterior of the tray are printed on the same side of the flat corrugated sheet. This makes two-sided branding efficient.

Is this tray suitable for heavy items?

The hollow corner columns and double-wall perimeter provide excellent vertical compression strength, making it a strong choice for dense products like jars, hardware, or beverages.

Can the side cutouts be removed?

The cutouts on the long sides are primarily for product visibility. They can be removed to create a solid double-wall side for even greater structural rigidity.

Do the flat blanks take up a lot of space?

Because all four walls feature full roll-over panels, the flat unassembled blanks are larger than those of standard trays. This requires more storage space before packing.

Does this tray need glue or tape to stay together?

The tray uses mechanical tuck tongues that lock into the base panel. It stays together without glue or tape, though heavy loads may influence how the outer master carton is sealed.
