EVC41060

Corrugated Buffer Wall Tray with Shoulders

The EVC41060 is a premium corrugated presentation tray that frames products inside a recessed central cavity. By folding its extended side panels inward, it creates hollow, double-thick perimeter walls that absorb side impacts and elevate the unboxing experience.

Because it ships flat and folds into shape without glue, it offers a space-saving alternative to rigid setup boxes. However, the complex multi-step folding process requires dedicated manual assembly, and the open top means it needs an outer sleeve, lid, or master shipper for transit.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Hollow perimeter walls frame the product and absorb side impacts
  • Ships flat and locks mechanically without glue
  • Requires manual assembly and an outer sleeve or shipper for transit

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Product Framing and Perimeter Protection

High-Value Electronics and Cosmetics

The hollow shoulders provide a perimeter crush zone, making this tray a strong fit for fragile items that need a physical buffer before reaching the primary product or insert.

Premium Retail Presentation

The thick, framed walls mimic the look of a rigid setup box. When opened, the recessed cavity naturally draws attention to the center, making it a strong choice for high-end retail displays and influencer kits.

Heavy Component Isolation

The double-thick walls help isolate heavy metal or glass components from the outer edges of the package, reducing the risk of side-impact damage during handling.

Multi-Part Kitting

The recessed base provides a clean area for custom foam or corrugated inserts, keeping multiple small components organized within a defined boundary.

Kitting, Retail, and Assembly Contexts

Manual Pack-Bench Operations

Because the four buffer walls must be folded and locked by hand, this tray belongs in operations equipped for manual kitting. It is not a fit for high-speed automated tray-forming lines.

Direct-to-Consumer Unboxing

For brands prioritizing the unboxing experience, the framed cavity elevates the perceived value of the product without the storage footprint of pre-assembled rigid boxes.

Low-Volume Premium Runs

The manual assembly time is easier to absorb in lower-volume, high-margin product lines where presentation justifies the extra packing labor.

When to Compare Simpler Trays or Rigid Boxes

High-Volume Automated Packing

If your packing line relies on automated folder-gluers or tray erectors, compare this to a standard four-corner glued tray or a simpler roll-end tray that requires fewer folding steps.

Strict Material Budgets

The hollow walls consume noticeably more corrugated board than a standard tray. If presentation is secondary to cost, a standard single-wall roll-end tray will reduce material usage and blank sprawl.

Board, Print, and Outer Packaging Choices

Board Thickness and Flute Profile

This design is very sensitive to material thickness. E-flute or F-flute board provides the crisp folds needed for the locking tongues to seat correctly. Thicker profiles like B-flute or double-wall board will cause the inner walls to bow and the locks to fail.

Two-Sided Print Surfaces

Because the extended panels fold inward to create the buffer walls, the inside of the tray is formed by the same side of the board as the outside. If you want the recessed base to match the outer walls, discuss two-sided printing or premium top-liner finishes.

Outer Transit Packaging

This is an open-top tray. For parcel or courier delivery, it needs an outer sleeve, a matching lid, or a master shipping carton.

Insert Compatibility

Decide whether the product will sit loose, in a folded corrugated partition, or in a foam insert. The internal dimensions must be sized to accommodate the chosen fitment exactly.

Adjusting the Cavity and Thumb Cuts

Thumb Cut Sizing and Removal

The semi-circular thumb cuts on the short inner walls help users lift out tight-fitting products or secondary inserts. These can be resized for different finger clearances or removed entirely for an uninterrupted inner wall.

Buffer Wall Width

The width of the hollow shoulders can be adjusted to increase the crush zone or change the visual framing, provided the overall blank still fits the die-cutting equipment.

Locking Tongue Adjustments

Depending on the exact board grade chosen, the friction-fit locking tongues and receiving slots may need slight dimensional tweaks to ensure the tray holds its shape without tearing.

Packing details

Prototyping the Locking Mechanism

Always request a physical sample in your exact chosen board grade. The friction fit of the tuck tongues relies on precise score-to-score allowances, and a prototype ensures the tray will lock securely without tearing.

Additional notes

Blank sprawl and material efficiency

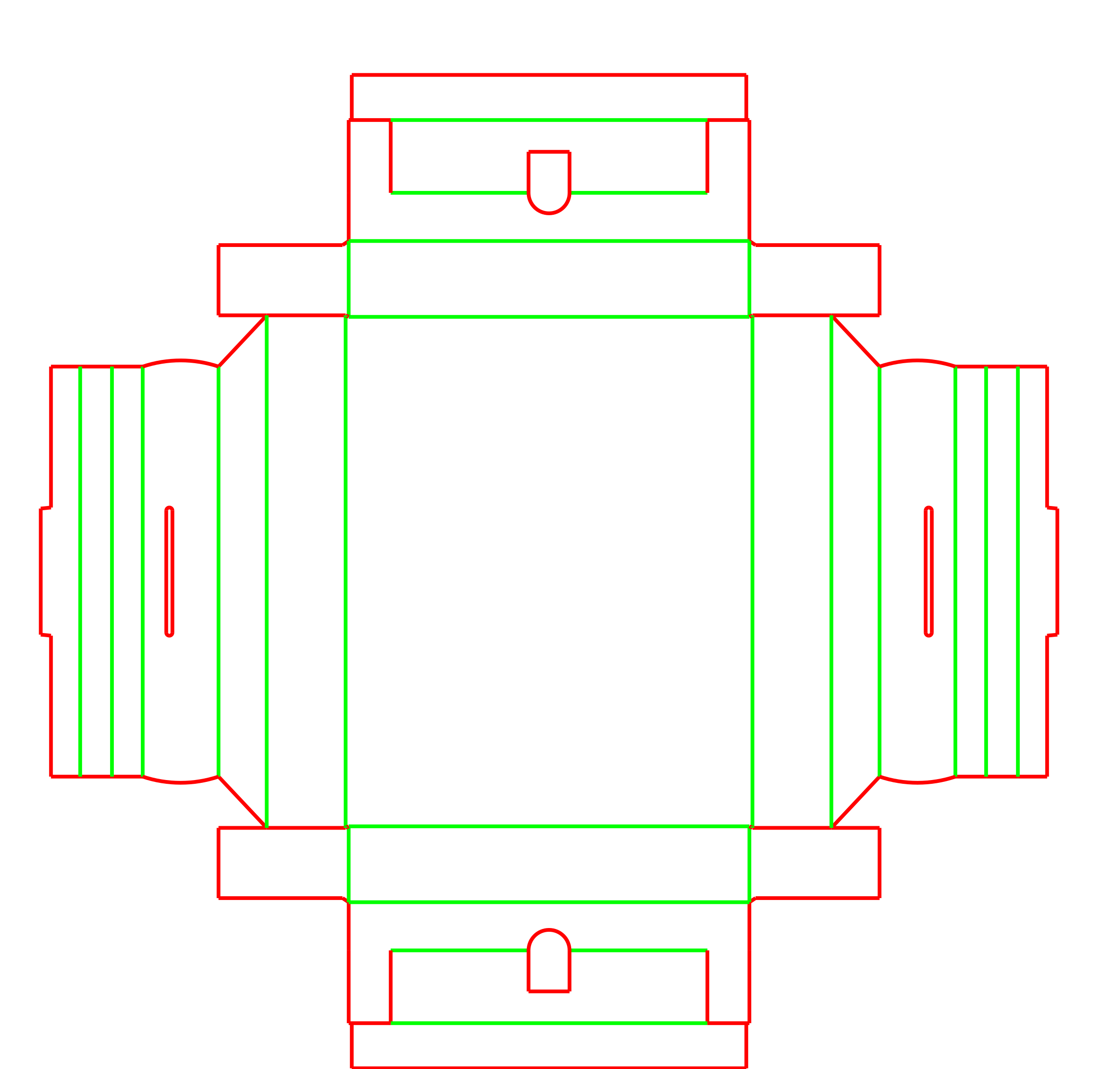

Because the buffer walls unfold flat, the uncreased blank is noticeably larger than the final tray. This higher material usage should be weighed against the premium presentation it provides.

Related Trays and Sleeves

FEFCO 0427: Standard Roll-End Tray

A better fit if you need a simpler, faster-folding tray without the double-thick hollow walls.

FEFCO 0426: Roll-End Tray with Locking Cover

Worth comparing if you need an attached lid for self-contained shipping rather than relying on a separate sleeve.

FAQs

Can this tray be erected on automated packing lines?

Automated erection is difficult. The multi-step process of folding the long walls, wrapping the corner flaps, and seating the locking tongues requires manual assembly at a pack bench.

Is this tray suitable for parcel shipping?

Because it is an open-top tray, it cannot ship on its own. For courier transit, it must be secured inside a custom sleeve, a matching lid, or a master outer carton.

Can I use a thick B-flute or double-wall board for extra protection?

Thick flutes are a poor fit for this design. The 180-degree folds consume board thickness quickly. If the board is too thick, the locking tongues will not reach their slots, causing the walls to bow and fail.

How do the thumb cuts work with internal inserts?

The thumb cuts on the short inner walls provide finger access to the base of the cavity. This makes it much easier to remove a tight-fitting custom insert or a heavy primary product.

Which panels are visible when the tray is opened?

The base panel and the inner faces of all four buffer walls are clearly visible. Because these inner walls fold over from the outside, you may want to discuss two-sided printing to ensure a consistent color or pattern throughout the cavity.

Why is a physical prototype important for this tray?

The mechanical locks depend entirely on the exact thickness of the corrugated board. A prototype verifies that the fold allowances are correct and that the tray holds its shape without tape or glue.

Does this tray ship flat?

Yes, the tray is delivered flat. However, because the buffer walls unfold completely, the flat blank is noticeably larger than the assembled tray, which affects how many fit on a pallet.

Does this tray require glue or tape to hold its shape?

No, the tray relies entirely on mechanical friction locks. The long walls feature tuck tongues that seat into slots on the base panel, holding the entire perimeter under tension.

When comparing this buffer tray, defining your exact product dimensions, insert requirements, and outer packaging strategy will help determine the right board profile and shoulder width.
