EVC41061

Buffer Wall Corrugated Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Hollow perimeter walls provide built-in impact protection

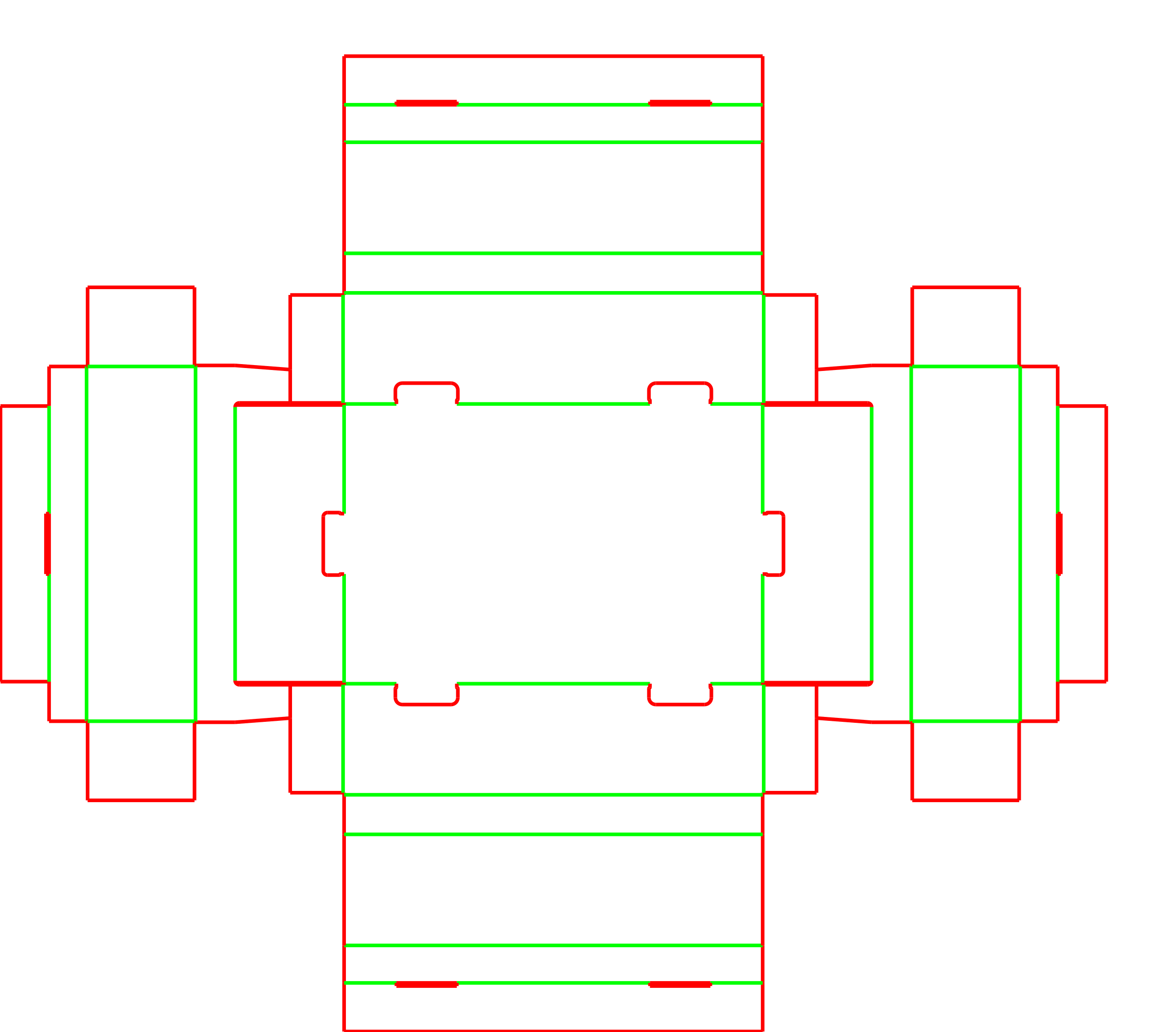

Folds from a single flat blank without glue or tape
Requires an outer sleeve, lid, or shipper for parcel transit

About this product

The Buffer Wall Tray is a single-piece corrugated design that folds to create hollow, double-layered walls on all four sides. The wide top ledge frames the internal cavity, providing a premium unboxing presentation while creating a built-in crush zone that absorbs side impacts.

Because the protective perimeter is integrated into the tray itself, it eliminates the need for separate foam or corrugated inserts. This makes it a strong choice for fragile goods, electronics, and high-end kits, though the complex folding sequence requires manual assembly at the packing bench.

Common uses

Premium electronics unboxing
Fragile cosmetics or glass kits
High-end subscription box inner trays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside cavity length

Inside cavity width

Inside cavity depth

Width of the hollow wall

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this tray be closed for shipping?

What type of items are going inside?

Where would you like printing?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Practical Uses for the Buffer Wall Tray

Premium Unboxing and Kitting

The wide horizontal ledge creates a picture-frame effect around the product. This elevates the presentation for high-end consumer goods, cosmetics, and curated kits, drawing the eye directly to the central cavity.

Integrated Impact Protection

The hollow air gap between the inner and outer walls acts as a crush zone. This protects fragile items like electronics or glass components from side impacts without requiring separate protective inserts.

Fragile Component Framing

The hollow perimeter creates a physical standoff from the outer edges, keeping delicate items like glass bottles or electronics away from impact zones.

Open Retail Presentation

The wide top ledge provides a clean, finished look that works well for open-shelf displays where the product needs to be visible but protected.

Industries and Packing Scenarios

Hand-Packed Fulfillment Operations

This tray is designed for manual assembly. The packer folds the long walls, then the short walls, locking the tuck tongues into the base panel. It fits well in operations set up for bench packing rather than high-speed automated lines.

High-End Subscription Programs

The framed presentation elevates the perceived value of the contents, making it a strong fit for curated subscription boxes where the unboxing experience matters.

Electronics and Device Packaging

The built-in crush zone replaces the need for custom foam, simplifying the packaging bill of materials for delicate devices.

When to Consider a Simpler Tray

High-Volume Automated Packing

If your fulfillment line relies on automated tray erectors or folder-gluers, the complex tab-and-slot locking sequence of the buffer wall tray may slow down production. A standard four-corner glued tray is often a better fit for automation.

Strict Material Budgets

Creating hollow walls on all four sides requires a much larger flat corrugated blank than a standard tray. If presentation is secondary to cost, a basic roll-end tray uses less material.

Key Specification Choices

Board Grade and Flute Profile

Because the buffer walls require multiple tight 90-degree folds, thinner materials like E-flute are often recommended. Thicker boards like C-flute can crack along the creases or create too much tension, causing the inner walls to bow.

Outer Closure Strategy

This is an open tray. For parcel or courier shipping, you will need to specify a matching outer component, such as a custom corrugated sleeve, a separate lid, or a master shipping carton.

Buffer Width vs. Footprint

The width of the hollow wall dictates the overall size of the flat blank. A wider buffer increases protection but reduces the number of flat trays that fit on a pallet.

Assembly Labor Planning

The tray requires manual folding of all four walls and seating of the tuck tongues. This labor time should be factored into fulfillment costs.

Modifying the Buffer and Cavity

Buffer Width and Cavity Size

The width of the hollow wall can be adjusted independently of the internal product cavity. A wider buffer increases protection and visual framing, but also increases the overall footprint and material cost.

Top Ledge Printing

The flat horizontal panels that form the buffer zone provide an uninterrupted surface for branding, instructions, or graphic patterns that frame the product.

Locking Tab Sizing

The size and shape of the tuck tongues that secure the inner walls to the base can be modified to balance assembly speed with locking strength.

Packing details

Blank Sprawl and Shipping Efficiency

The flat, unfolded state of this tray is quite large due to the extended panels needed for the double walls. This blank sprawl means fewer flat trays will fit on an inbound pallet compared to simpler designs, which should be factored into storage planning.

Additional notes

Corner flap positioning

During assembly, the side flaps on the short walls must be folded inward before the inner walls are rolled over them. This traps the flaps inside the hollow space, keeping the short walls rigid and preventing them from bulging.

Inner wall bowing

If the board thickness is changed without updating the crease offsets, the inner walls may bow inward or fail to reach the locking holes. Always verify the material caliper before production.

FAQs

Does this tray require glue or tape to assemble?

No. The tray is designed for manual assembly using mechanical locks. The inner walls fold over and secure themselves by inserting tuck tongues into pre-cut holes in the base panel.

Can I ship this tray through parcel networks?

Not on its own. Because it is an open tray, it requires a secondary closure, such as a custom sleeve, a separate lid, or placement inside a master shipping box to secure the contents during transit.

What corrugated flute is usually chosen for buffer walls?

Thinner profiles like E-flute are generally the better choice. The design requires the board to make several tight 90-degree folds to form the hollow ledge. Thicker flutes can crack or create tension that prevents the tabs from locking cleanly.

Can the buffer walls be different widths on different sides?

Yes. The template allows the long-side buffer width and the short-side buffer width to be adjusted independently to suit specific product dimensions or presentation goals.

Do I still need a foam insert with this tray?

Often, no. The hollow perimeter acts as a built-in crush zone, which can replace separate perimeter inserts. However, if your product has multiple loose components, you may still want a simple die-cut pad inside the cavity to keep items separated.

Why does this tray use more material than a standard tray?

The hollow walls require extended panels on all four sides of the flat blank. This larger footprint uses more corrugated material per tray and reduces the number of flat units that can fit on a shipping pallet.

How are the corners secured during assembly?

The side flaps on the short walls fold inward first. They are then trapped inside the hollow space when the short inner walls are rolled over them, which keeps the corners rigid.

Is this tray suitable for heavy industrial parts?

It is generally better suited for lighter, fragile, or premium goods. Heavy industrial parts can crush the hollow buffer walls or cause the base locking tabs to pop out during handling.
