Practical Uses for the Beveled Carry Box
Retail Takeaway and Carry Packs
The integrated handle and secure mechanical closure make this box useful for customers carrying purchases directly from the store. The double-thick front wall provides the necessary strength to support heavier retail items without handle tear-out.
Presentation and Onboarding Kits
The angled front bevel and clean, glue-free lines offer a distinct unboxing experience. It works well for employee onboarding kits, promotional mailers (when placed in an outer shipper), and sample packs.
Heavy-Duty Promotional Mailers
When placed inside a standard outer shipping carton, this carry box serves as a premium inner presentation layer for high-value promotional items.
Sample Kits and Product Demos
Sales teams can use this box to transport and present product samples. The handle allows for easy carrying between meetings, while the beveled lid provides a continuous branding surface.
Retail and Fulfillment Contexts
Retail and Boutique Brands
Brands looking for a distinctive, self-contained carry solution benefit from the beveled lid, which provides a unique continuous billboard space for graphics across the top and front.
Kitting and Fulfillment Operations
While assembly is manual, the lack of glue or tape simplifies the packing station setup. Packers fold the tray, load the items, and lock the lid by pushing the handle through the front slot.
Corporate Gifting and Events
For events where attendees receive gift boxes, the integrated handle eliminates the need for a separate shopping bag, streamlining distribution.
When to Consider Alternative Carry Boxes
High-Speed Automated Packing
This box relies on manual roll-over folds and a multi-step handle insertion. If your packing line requires automated folder-gluers or case erectors, a standard glued crash-lock or auto-bottom box is necessary.
Direct Courier Shipping
The exposed handle and tuck flaps can catch on sorting equipment in parcel networks. If the primary goal is direct-to-consumer shipping, consider a standard mailer box or plan to place this carry box inside a protective outer shipper.
Key Decisions for Production and Packing
Board Grade and Flute Profile
E-flute is generally a strong choice for this design, offering a smooth print surface and crisp folding for the roll-over wall and beveled lid. Thicker flutes increase strength but require adjustments to the handle slot clearances and double creases to prevent binding during assembly.
Handle Ergonomics and Load
Consider the weight of the product being packed. While the double-wall front provides strength, very heavy items might require a reinforced handle shape or a different cutout design to ensure comfortable carrying and prevent tearing.
Tooling and Production Route
The complex handle cutouts, locking tabs, and angled lid flaps require flatbed die-cutting. This design cannot be produced on simple rotary slotters.
Print Surface and Bevel Alignment
The beveled front lid creates a continuous visual transition from the top panel. Artwork must be carefully aligned across this 70-degree fold to ensure logos and text display correctly.

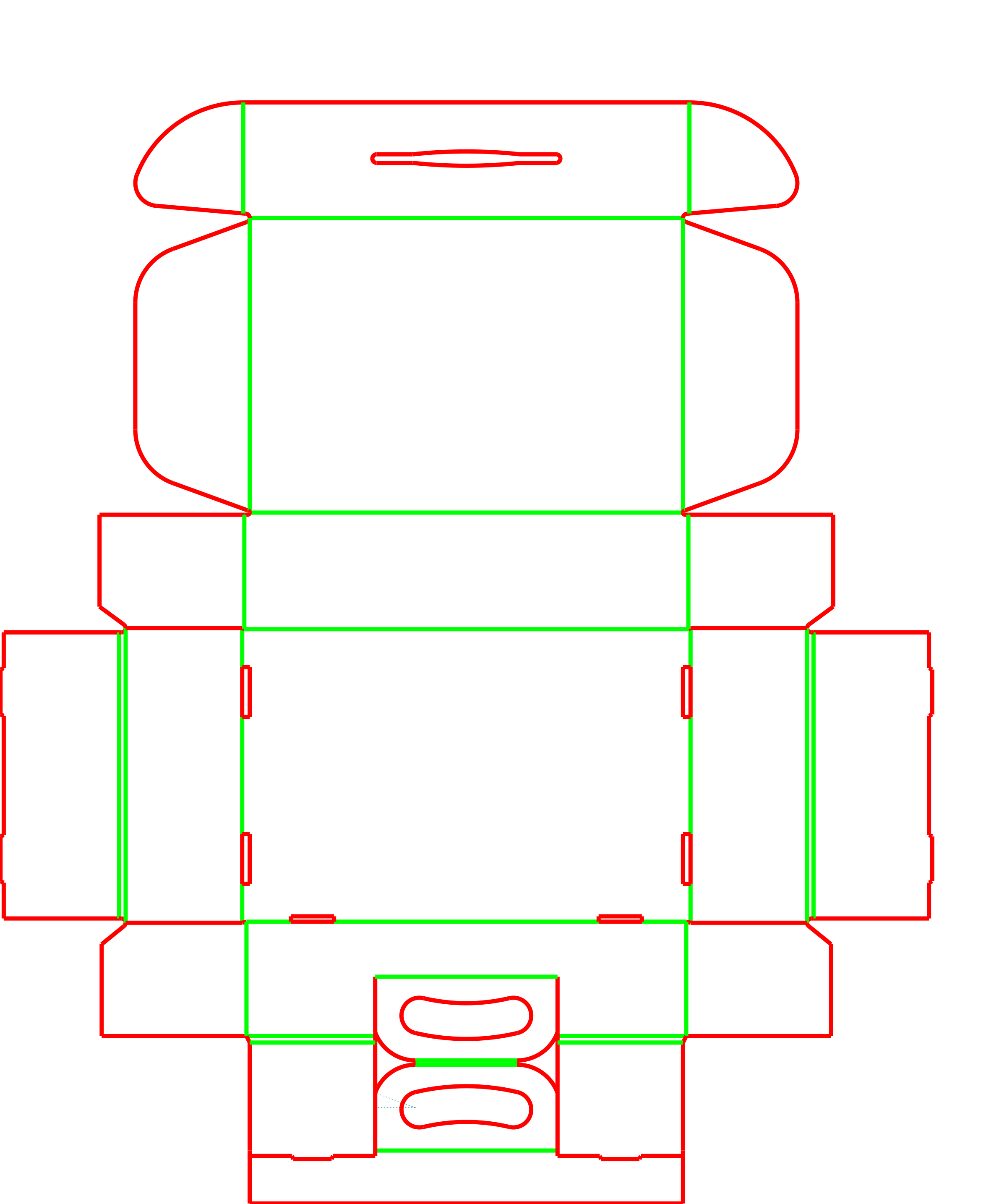

Template Adjustments and Clearances
Bevel Angle Adjustment
The slope of the front lid can be modified for different presentation profiles. Adjusting this angle changes the geometry of the front wall, requiring careful alignment of the handle slots during structural design.
Handle Slot Alignment
If the board thickness or overall box height changes, the handle cutouts in the front wall must be precisely adjusted to ensure the lid locks smoothly without binding.
Locking Tongue Count
The number of locking tabs securing the roll-over front wall to the base can be increased for wider boxes to ensure the wall remains rigid across its entire span.
Packing details
Manual Assembly Sequence
Packers erect the side walls, roll the front wall over the dust flaps to lock the base, and fold the lid over. Pushing the handle through the aligned front slots locks the box and exposes the carry point.
Additional notes
Print panel and label area
The beveled front lid and continuous top panel offer excellent billboard space for branding. Ensure artwork accounts for the angled transition between the top and front panels.
Related Packaging Options
FAQs
Can I ship this box through the mail?
Not on its own. The exposed handle and tuck closures can catch on parcel sorting equipment. For courier networks, this carry box should be placed inside a standard outer shipping carton.
Does this box require glue or tape?
No. The box uses a mechanical roll-over front wall and a locking handle to stay closed. It is delivered flat and assembled entirely by hand.
What board thickness is recommended?
E-flute is typically chosen, as it allows for crisp folds on the beveled lid and easy insertion of the handle. Thicker boards can be used but require structural adjustments to the slot clearances to prevent the folds from binding.
How does the lid stay closed?
The lid features a front tuck panel with a die-cut handle. When closed, this panel slides behind the front wall, and the handle pushes outward through a matching slot, locking the lid securely in place.
Can this be run on standard rotary equipment?
No. The intricate handle cutouts, locking tabs, and angled panels require flatbed die-cutting.
Should I request a sample before a full run?
Yes. A physical prototype is highly recommended to verify that the handle easily passes through the double-wall front slot without tearing, especially if you are testing a new board grade or adjusting the bevel angle.
Can I use custom inserts with this box?
Yes. The flat base easily accommodates corrugated or foam inserts to hold multiple items securely in place, which is common for presentation and kitting applications.
Will the handle support heavy items?
The double-thick front wall provides strong reinforcement for the handle. However, for very heavy products, the handle shape may need to be widened or adjusted to prevent tearing and ensure comfortable carrying.
