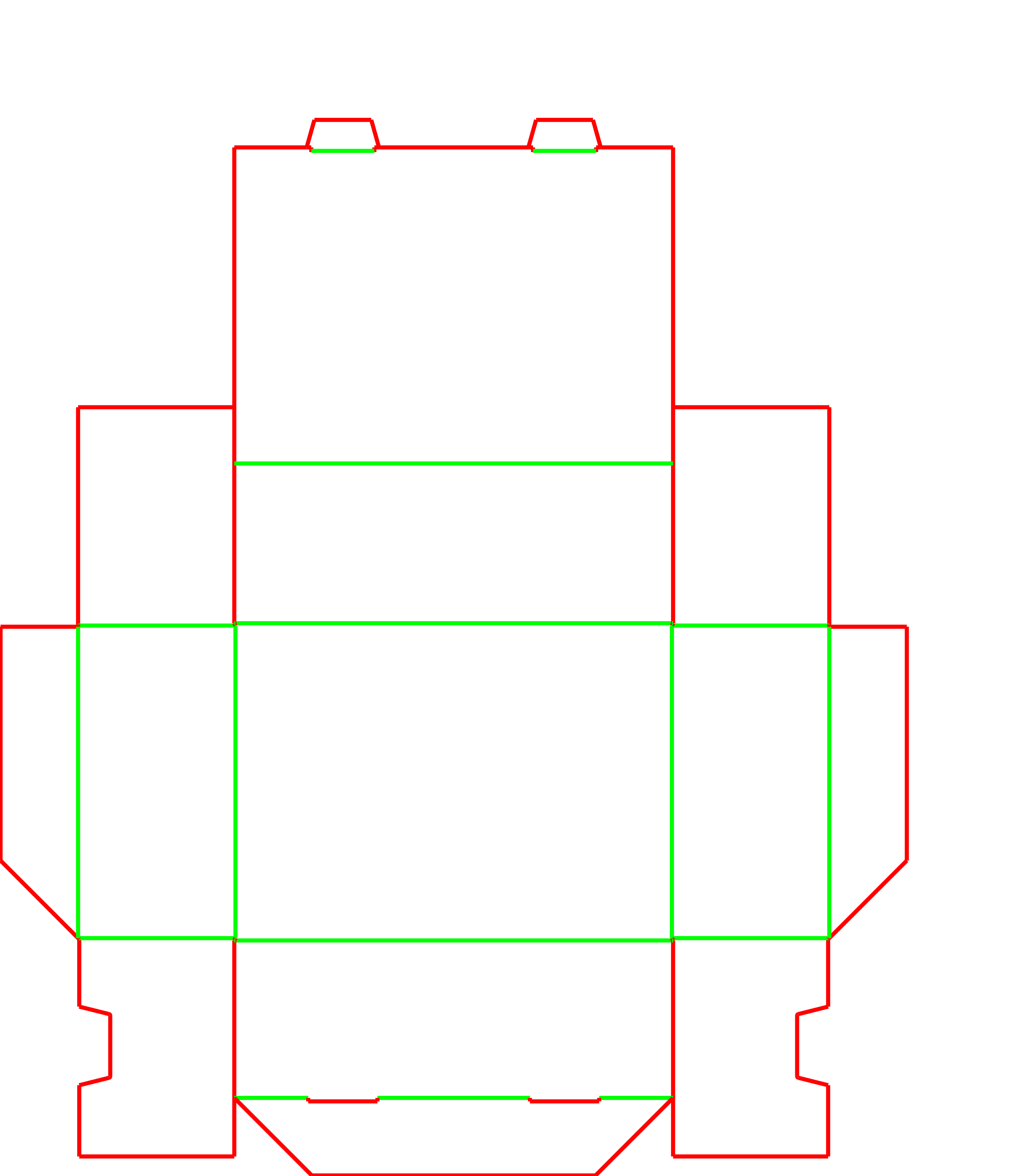

Hinged-Lid Corrugated Tray with Top Rim

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Inward-folding top flanges create a framed border around the product
Dual tuck tongues provide a clean, friction-fit closure
Ships flat and requires manual folding for the walls, rim, and front lock

About this product

This one-piece corrugated tray features a hinged lid and an inward-folding top rim that creates a framed presentation for kitted goods. Delivered flat and assembled without glue, it secures using two tuck tongues that slot into the front wall.

While the top rim provides a clean unboxing experience and stiffness around the opening, the single-thickness front wall means heavy vertical stacking or individual parcel shipping may require an outer shipper or a switch to a double-wall roll-end design.
