Heavy-Part and Premium Kit Protection
Dense hardware and heavy industrial parts
The four-layer floor distributes concentrated weight, preventing heavy metal components or dense assemblies from punching through the bottom during transit and handling.
Premium unboxing for heavy goods
Because the side and front walls roll completely over the base, the interior presents a clean, finished look with no exposed corrugated flutes, making it suitable for high-end retail or presentation kits.
High-value tool and instrument kits
The clean interior and reinforced base make it suitable for heavy tools that need a presentation case without the risk of breaking through the bottom.
Heavy sample and prototype shipping
When sending heavy material samples where presentation matters, the four-layer base provides security while the hinged lid offers a clean opening experience.
Industrial and High-Value Retail Contexts
Low-volume, high-value fulfillment
The complex folding sequence and high material usage make this tray impractical for high-speed, cost-sensitive e-commerce. It fits best in operations where the product value justifies the extra board and the time spent on manual assembly.
Industrial equipment manufacturing
Manufacturers shipping heavy replacement parts or dense components that require both protection and a professional presentation upon arrival.
Premium retail and presentation
Brands selling heavy goods that need a retail-ready unboxing experience without exposing raw corrugated edges on the inside floor.
When to Consider Simpler Trays
Normal weight distribution
If your product does not pose a severe bottom-puncture risk, a normal roll-end tuck-top (RETT) mailer will use much less material and assemble much faster while providing the same hinged-lid presentation.
High-speed packing operations
If packing speed is critical, the manual folding of three full-base roll-over panels will slow down fulfillment. A typical auto-bottom or simpler tray may be necessary.
Board, Print, and Packing Decisions
Board thickness and internal clearance
Because the base is formed by four layers of corrugated board, the choice of flute directly impacts the usable internal height. Using a thicker B-flute or C-flute will consume a large portion of the interior space and may cause the thick roll-over creases to bind. E-flute or thinner is strongly recommended to maintain a flat floor and preserve internal volume.
Print sidedness and the interior floor
The interior floor of this tray is formed by the unprinted side of the roll-over panels. If the inside of the box needs to be printed, the board must be printed on both sides.
Flatbed die-cutting limits
The flat blank for this tray is exceptionally large compared to its finished volume. For larger box dimensions, the blank may exceed the size limits of typical die-cutting equipment, requiring a layout check before production.
Packing labor and assembly time
The multi-step folding sequence requires dedicated pack-bench time. Buyers must weigh the labor cost against the benefit of the reinforced base.
Base, Lid, and Insert Options
Partial roll-over panels
If the full four-layer base is unnecessary but you still want the clean interior walls, the massive roll-over panels can be shortened into normal locking tabs. This greatly reduces the blank size and material cost.
Adding lid locks
Adding side dust flaps or cherry locks to the lid to improve security during transit.
Custom inserts and partitions
The flat, clean interior floor provides an excellent base for custom foam or corrugated inserts to hold heavy parts securely in place.
Packing details
Courier shipping and closure
The front tuck tongue relies on a friction fit. If this tray is shipped individually through a parcel network, it should be secured with an outer seal, tape, or a master shipper to prevent the lid from opening during rough handling.
Additional notes
Manual folding sequence and pack times
Packers must hold down two large side roll-overs, fold in the front dust flaps, and lock them in place with the front roll-over panel before closing the lid. This takes considerably more time than a simpler mailer.
FAQs
Can this tray be erected on an automated packaging line?
No. The sequence of folding three full-base roll-over panels and trapping the asymmetric dust flaps requires manual pack-bench assembly.
Why does the board thickness matter so much for this specific tray?
The floor is built from four overlapping layers of corrugated board. If you use a 3mm B-flute, you lose 12mm of internal height just to the base structure. Thinner flutes like E-flute provide a better balance of foldability and usable space.
Will my exterior graphics show on the inside floor?
No. The interior floor is created by folding the outer walls inward, meaning the unprinted side of the board will face up. Two-sided printing is required if you want graphics on the inside bottom.
Is the tuck tongue secure enough for parcel shipping?
The tuck tongue provides a clean closure for presentation and palletized transport, but it can dislodge during courier drops. Parcel shipments usually require an outer seal or tape.
Why is the flat blank so large?

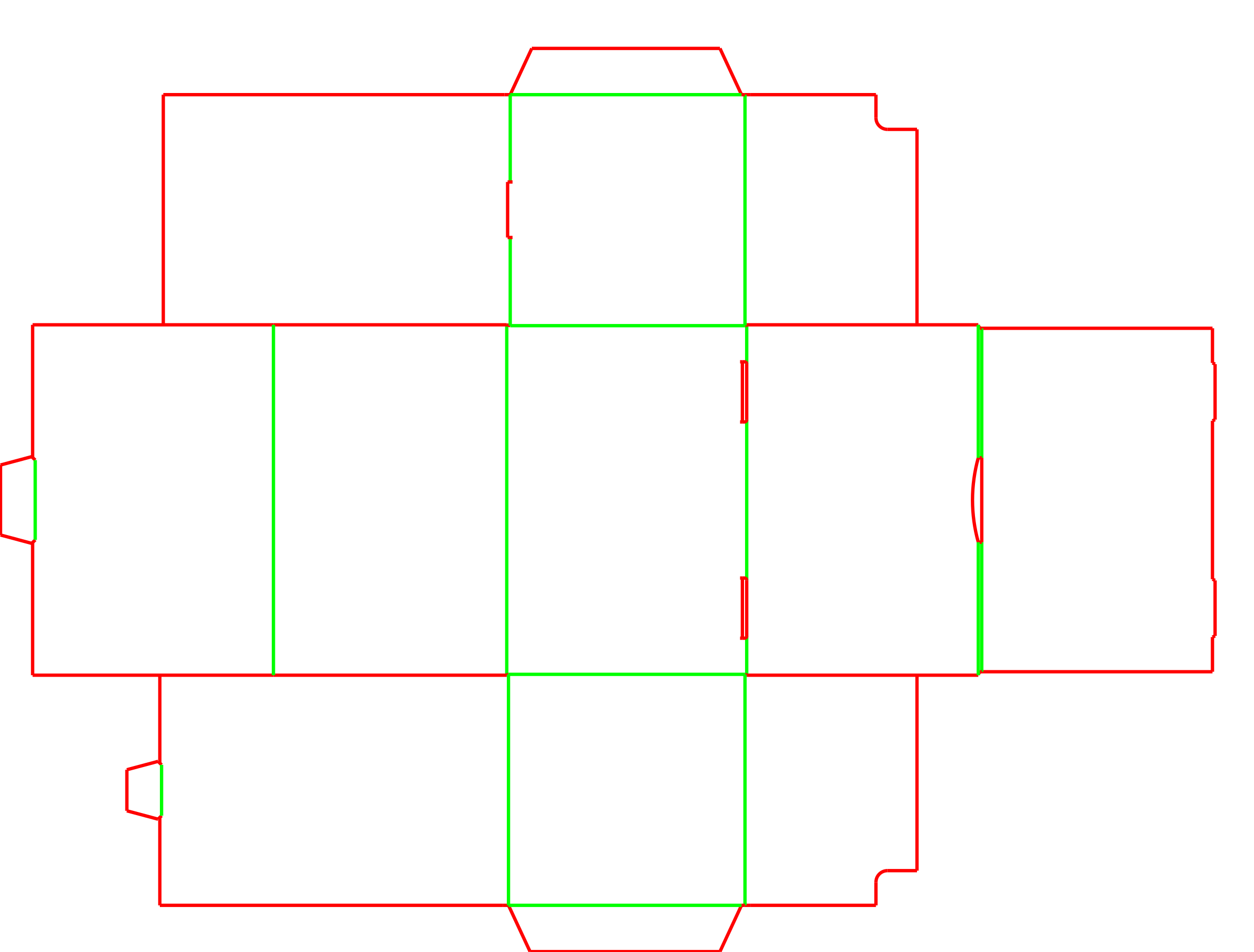

To create the four-layer base, the left, right, and front walls all have attached panels that are as large as the base itself. This creates a massive cross-shaped blank that requires more material than simpler trays.
Does the single-wall back panel affect stacking?
While the front and sides are heavily reinforced, the back wall carrying the hinge remains single-wall. Heavy pallet loads should be tested to ensure the back wall does not buckle under vertical compression.
Can I use a thick C-flute board for this tray?
No. The four-layer base means a 4mm C-flute will consume 16mm of internal height, and the thick roll-over creases may bind or crack during assembly. E-flute or thinner is strongly recommended.
Does the interior floor have exposed corrugated edges?
No. Because the side and front walls roll completely over the base, the raw flutes are hidden, leaving a clean, finished look inside the tray.
