EVC41140

Self-Locking Corrugated Mailer

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Ships flat for efficient pallet storage
Manual tab-and-slot assembly requires no glue
Front locking tab secures the hinged lid

About this product

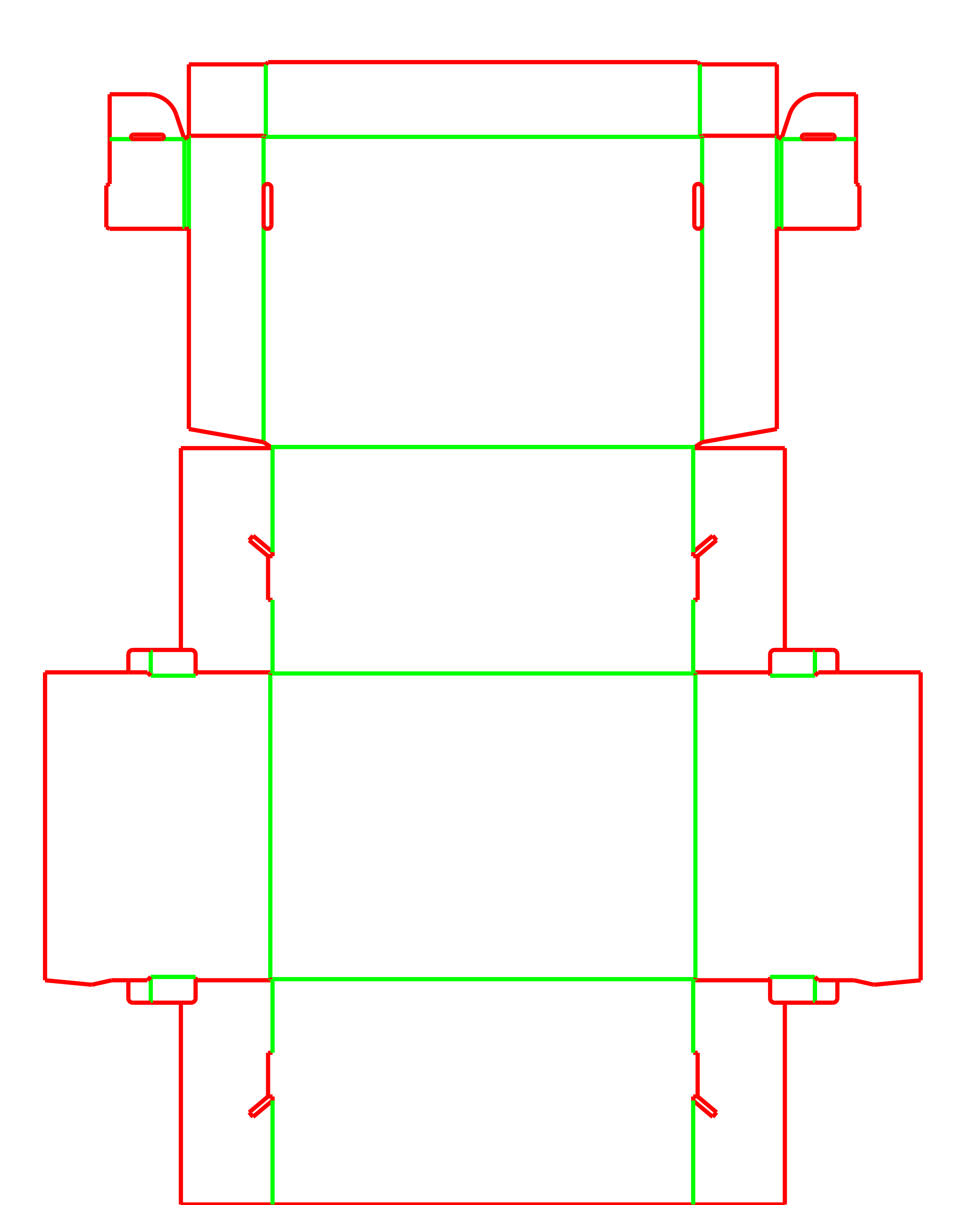

The EVC41140 is a presentation-ready corrugated mailer featuring a hinged lid and a secure front locking tab. Designed to ship flat and assemble at the packing bench, it uses triangular corner tabs that lock into vertical wall slots, creating a rigid tray without the need for glued joints.

Because the side walls fold inward to form double-thickness corners, this mailer offers excellent crush resistance for e-commerce and subscription fulfillment. The front tuck tongue snaps into a horizontal slot, keeping the lid firmly closed during handling.

Common uses

Subscription boxes
E-commerce apparel or cosmetics
Sales kits and presentation packs
Retail kitting and bundling

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Interior length

Interior width

Interior depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of items will be packed inside?

Will you be using custom inserts to hold items in place?

How do you plan to seal the box for shipping?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

E-Commerce and Presentation Fulfillment

Subscription Boxes

The hinged lid and front locking tab create a clean, repeatable unboxing experience. The double-wall sides provide the necessary structural support to protect curated assortments through parcel networks.

E-Commerce Apparel and Cosmetics

For brands prioritizing presentation, the self-locking construction eliminates the need for messy tape on the primary tray assembly, keeping the exterior branding clean and professional.

Sales Kits and Presentation Packs

The glue-free assembly and secure front tab make this mailer a strong fit for sales kits, promotional mailings, and influencer seeding boxes where the unboxing reveal is a priority.

Retail Kitting and Bundling

When combining multiple items into a single retail-ready bundle, the rigid double-wall corners and flat-shipping format allow for efficient in-house kitting before distribution.

Fulfillment Operations and Kitting

Manual Pack-Bench Operations

This mailer is designed for hand assembly. Packers fold the walls, engage the corner locks, load the product, and snap the lid closed. It is well-suited for in-house kitting but is not intended for automated folder-gluer lines.

Third-Party Fulfillment (3PL)

If using a 3PL, the manual folding sequence should be factored into fulfillment labor times. The tab-and-slot locks are intuitive, but they take slightly longer to erect than a pre-glued auto-bottom tray.

Low-Volume Trial Runs

Because it requires no gluing, this mailer is accessible for short runs and prototypes cut on a digital flatbed table, allowing brands to test the unboxing experience before committing to large-scale production.

When to Consider Alternative Mailers

High-Speed Automated Packing

If your fulfillment line relies on automated erecting machinery or folder-gluers, a standard glued auto-bottom or machine-erected tray will be more efficient than this manual tab-and-slot mailer.

Heavy Industrial Payloads

While the double-wall corners add strength, the slot-and-tab locks can tear under extreme outward pressure from heavy, shifting parts. A glued or stitched heavy-duty shipper is a better comparison for dense industrial goods.

Board Selection and Lock Tolerances

Board Caliper and Lock Fit

The width of the vertical lock holes and the front lid slot are strictly tied to the board thickness. E-flute is a common choice, providing clean folds and tight locks. If you specify a thicker B-flute, the die-cut slots must be widened to prevent the tabs from tearing during assembly.

Tamper-Evident Sealing

While the front tab keeps the lid closed, parcel couriers often require an external seal. Plan for a clear wafer seal, branded sticker, or a single strip of tape across the front edge to ensure tamper evidence during transit.

Print Surface and Interior Branding

Because the box is cut from a single flat sheet, the interior can be printed. Keep in mind that the side flaps fold inward, so the inside of the side walls will display the exterior print surface.

Insert Compatibility

If using custom inserts to hold products in place, ensure the insert height accounts for the lid's dust flaps, which fold inward and could catch on tall internal components during closure.

Modifying the Locking Tabs and Flaps

Lid Lock Friction

The width and length of the front tuck tongue can be adjusted. A wider tab increases the friction and security of the closure, while a narrower tab makes the box easier for the end customer to open.

Dust Flap Coverage

The side flaps on the lid (dust flaps) can be extended to provide better coverage against debris, or shortened to prevent them from catching on internal inserts during closure.

Corner Lock Tolerances

The triangular tongues and vertical slots can be adjusted for a tighter or looser fit depending on the board grade and the packer's preference for assembly speed versus rigidity.

Packing details

Flatbed Die-Cutting Requirements

Because of the intricate triangular tongues and internal vertical slots, this mailer requires flatbed die-cutting and stripping.

Additional notes

Lock hole tolerances

If you change your board grade between production runs, the cutting die must be updated. The slots that receive the corner tabs are calculated exactly to the material thickness.

FAQs

Does this mailer require glue to hold its shape?

The tray relies entirely on mechanical locks. The side walls feature triangular tongues that insert into vertical slots on the front and back walls, holding the structure rigid without adhesive.

Can this box be erected by automated machinery?

This specific mailer is intended for manual assembly at a packing bench. The tab-and-slot corner locks are difficult for automated erecting equipment to process.

What board flutes work well for this mailer?

Thinner profiles like E-flute or F-flute are common because they allow the locking tabs to fold sharply and seat securely. Thicker boards can be used, but the die-cut slots must be carefully adjusted to prevent tearing.

Can I use a thick double-wall board for this mailer?

Double-wall board is generally a poor match for this mailer. The thick material makes it difficult to fold the triangular tongues and seat them into the vertical slots without crushing the board or tearing the locks.

Do I need to tape the box for shipping?

The front locking tab keeps the lid closed, but for parcel shipping, a tamper-evident seal or a piece of tape across the front edge is usually necessary to meet courier requirements and prevent accidental opening.

How are these mailers delivered?

They are delivered completely flat. This maximizes pallet density and minimizes storage space in your fulfillment center until they are needed at the packing bench.

Can the inside of the mailer be printed?
