EVC41142

Self-Locking Corrugated Mailer Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Delivered flat for manual assembly
Clean roll-over front presentation
Material-saving single-wall back

About this product

This self-locking corrugated mailer is designed for e-commerce, subscription programs, and presentation kits. It features an integrated tuck lid with locking ears and a clean, double-wall front panel that hides raw edges for a premium unboxing experience.

Unlike standard roll-end mailers, this design uses a single-wall back secured by tongue-and-slot corners. This asymmetric approach reduces the overall corrugated board required, making it a material-efficient choice for high-volume manual packing operations.

Common uses

E-commerce apparel and accessories
Subscription boxes
Sales kits and presentation trays
Lightweight e-commerce goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Internal length

Internal width

Internal depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this box be shipped?

Will you use custom inserts or dividers inside?

Where do you plan to print artwork?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

E-commerce, Subscription, and Presentation Jobs

Subscription Boxes

The integrated lid and locking ears keep the box securely closed during handling, while the clean front roll-over flap provides a neat presentation when the customer opens the package. It is an excellent fit for apparel, cosmetics, and curated product kits.

Sales Kits and Presentation Trays

Because the front wall folds over to hide the corrugated fluting, the interior looks finished and professional. The single-wall back and sides leave more internal clearance for custom inserts or product dividers.

Apparel and Soft Goods

The single-wall back and sides leave more internal clearance for folded garments compared to double-wall mailers, allowing for a slightly smaller overall box footprint for the same volume of clothing.

Lightweight E-commerce Goods

The material-saving back wall reduces overall board usage, making it a practical choice for high-volume programs shipping lighter items that do not require maximum crush resistance.

Fulfillment and Packing Environments

Manual Fulfillment Operations

This mailer is delivered flat and erected by hand at the packing station. The packer folds the back corners into their locking slots, then rolls the front wall over the side flaps. It requires a brief learning curve for the tongue-and-slot back corners but becomes a fast, repeatable motion for experienced teams.

High-Volume E-commerce Programs

The asymmetric design uses less corrugated board than a standard roll-end tuck-top mailer, reducing the material footprint for large-scale shipping operations where every square inch of board impacts the budget.

Kitting and Assembly Hubs

The open-top tray format before the lid is closed allows multiple packers to drop items and inserts into the box easily along an assembly table, streamlining the kitting process.

When to Compare Other Mailer Styles

Heavy Stacking or Dense Products

Because the back and side walls are single-thickness, this mailer is not built for heavy vertical stacking or dense industrial parts. If the product requires maximum crush resistance, a standard Roll-End Tuck-Top (RETT) mailer with double-wall roll-overs on all sides is worth comparing.

Automated Packing Lines

This box relies on manual folding and tongue-and-slot locks. If the fulfillment center uses automated folder-gluers or tray erectors, a machine-erected crash-lock or glued tray should be evaluated instead.

Board, Closure, and Packing Decisions

Board Flute and Locking Clearances

This design relies on precise tongue-and-slot connections at the back corners and locking ears on the lid. It performs reliably with thinner materials like E-flute or micro-flutes. If the product requires a thicker B-flute for protection, the locking slots and clearance holes must be carefully adjusted to prevent the board from binding during assembly.

Parcel Sealing Requirements

While the front tuck flap features locking ears to prevent accidental opening, many parcel courier networks still require an external tamper-evident seal, clear wafer, or strip of tape to secure the lid during transit.

Internal Insert Clearances

The front wall rolls over to lock into the base, creating a double-thick front edge. This slight reduction in internal length must be accounted for when sizing custom inserts or dividers.

Print Surfaces and Branding

The single-piece blank allows for continuous graphics across the lid, back, and base. Because the front wall rolls over into the interior, two-sided printing can be used to carry branding from the outside directly into the unboxing experience.

Lid, Tuck, and Clearance Adjustments

Lid Tuck and Ear Adjustments

The depth of the front tuck flap and the size of the locking ears can be modified to change how tightly the lid grips the front wall. A deeper tuck provides more friction, while adjusted ears can make the box easier for the end user to open.

Clearance Hole Sizing

The side flaps that fold toward the front contain large cutouts. These can be adjusted based on board thickness to ensure the front roll-over tabs pass through without bunching the material.

Back Locking Tongue Angle

The angle and length of the locking tongues on the back side-flaps can be tuned to increase the retention of the back wall before the lid is closed.

Packing details

Prototyping the Back Lock

Because the back wall relies on a specific tongue-and-slot friction fit, testing a physical sample with the exact intended board grade is highly recommended to ensure the packers can assemble it without tearing the tabs.

Additional notes

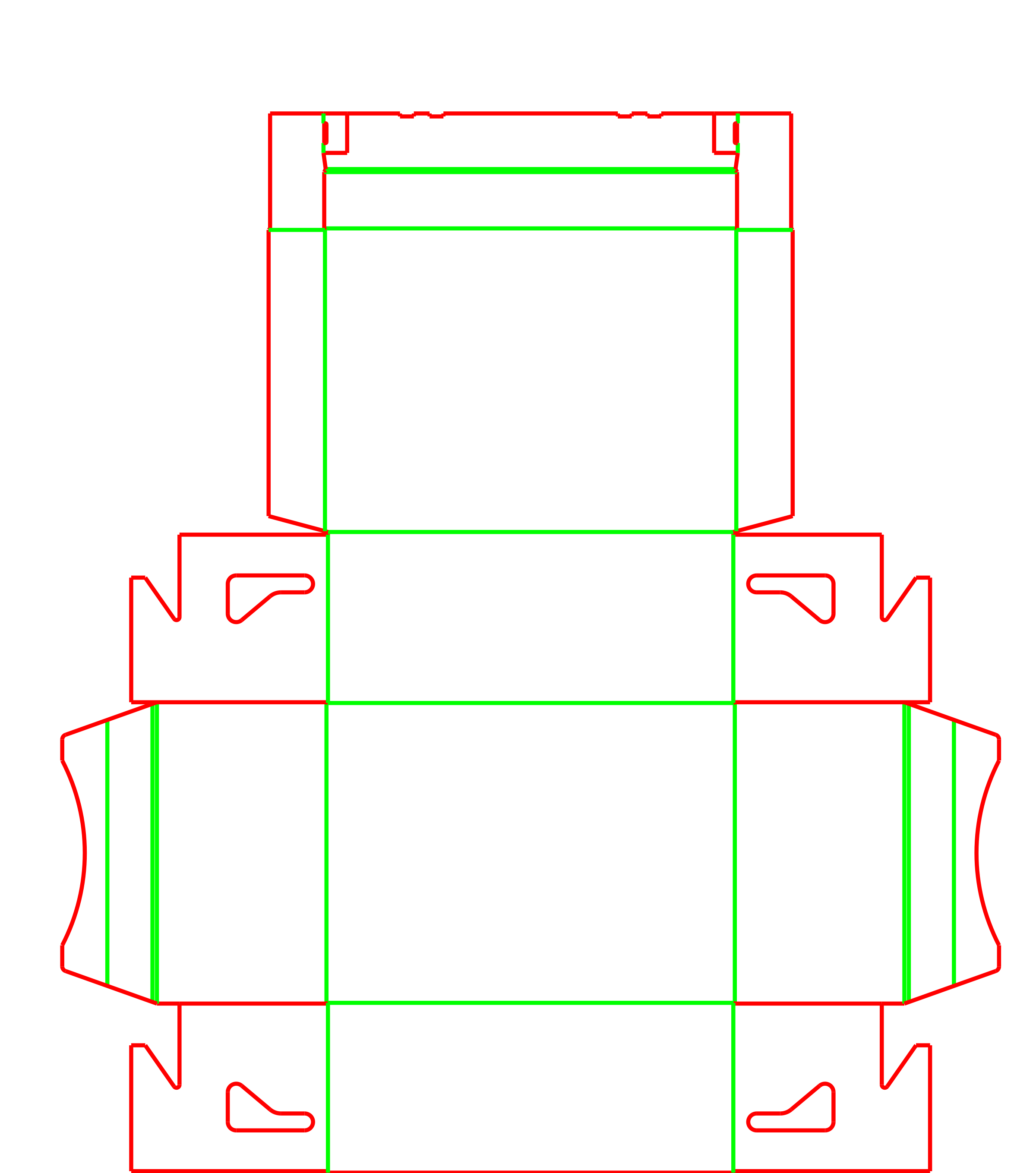

Clearance holes for the front roll-over

The side flaps that fold toward the front contain large cutouts. These allow the front roll-over tabs to pass through and lock into the base without bunching the corrugated material.

FAQs

Does this mailer require gluing equipment?

No. The blank is delivered completely flat and unglued. It is erected entirely by hand at the packing station using folding locks and tabs.

How does the back wall lock in place?

The side flaps feature angled tongues that fold inward and slot directly into the crease between the back wall and the lid. This holds the back corners square before the lid is closed.

Can this box be made from thick corrugated board?

It is generally recommended for thinner profiles like E-flute. Thicker boards can cause the back locking tongues and front clearance holes to bind, making manual assembly difficult unless the template is specifically adjusted for that caliper.

Do I need tape to ship this box?

While the locking ears hold the lid closed, parcel networks often require an outer seal or tamper-evident label to ensure the flap is not caught or opened during rough sorting.

Does the front wall take up internal space?

The front wall rolls over to lock into the base, creating a double-thick front edge. You should account for this slight reduction in internal length when sizing custom inserts or dividers.

Why choose this over a standard roll-end tuck-top box?

This design uses a single-wall back instead of a second roll-over flap. This reduces the total amount of corrugated board needed per box, which can lower material usage for high-volume programs.

What prevents the front wall from unfolding?

The front roll-over flap has tabs that pass through clearance holes in the side flaps and lock directly into slots in the base panel.

Can the inside of the box be printed?

Yes. Because the box is cut from a single flat sheet, two-sided printing can be applied to brand the interior base, the inside of the lid, and the rolled-over front panel.
