EVC41143

Corrugated Tote with Self-Locking Lid

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Glueless manual assembly with roll-over side walls
Reusable tongue-and-hole lid closure
Integrated handle cutouts for easy lifting

About this product

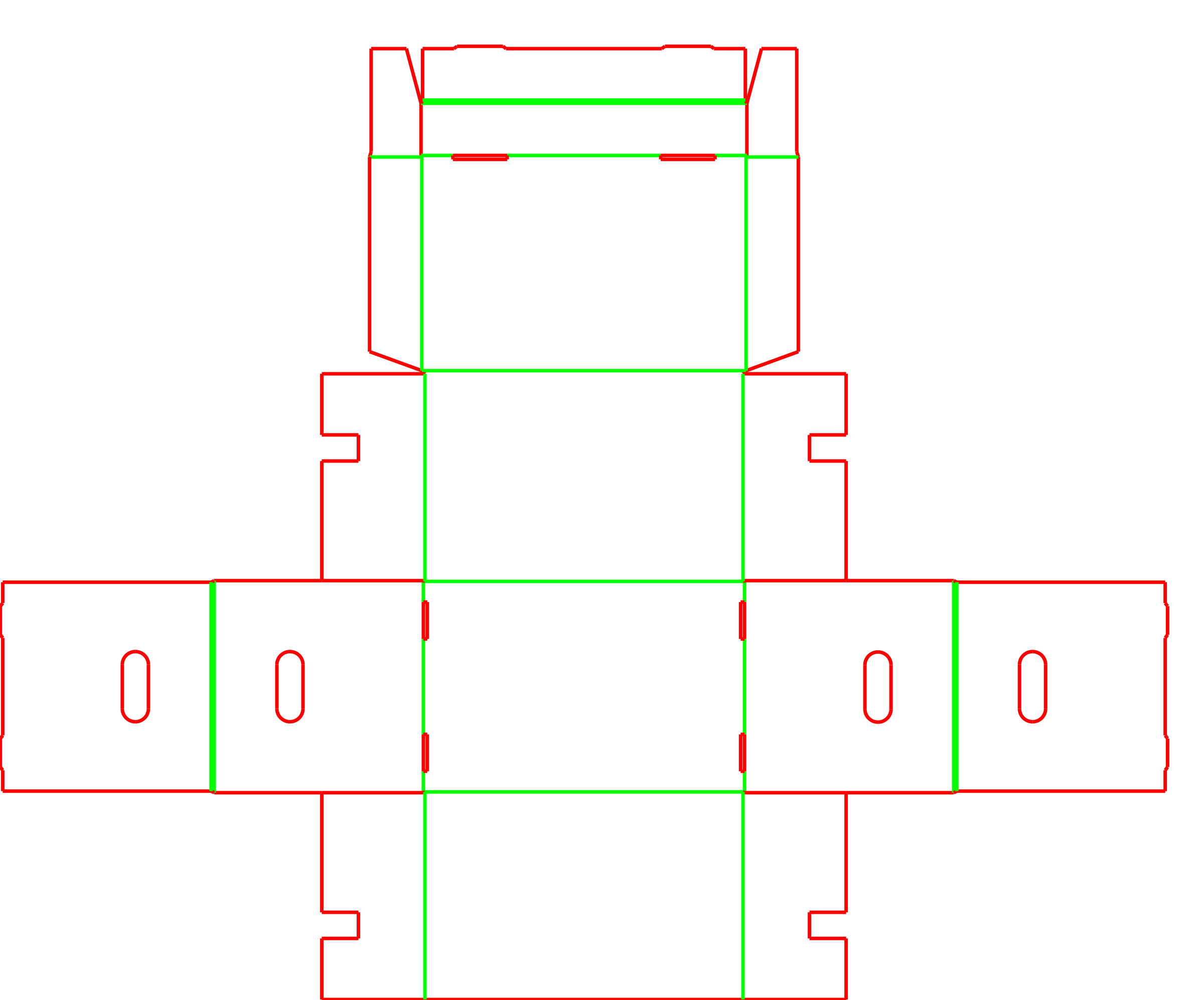

The EVC41143 is a one-piece corrugated tote designed for repeated opening, internal logistics, and organized storage. It features integrated carrying handles and a hinged lid that secures using front-wall locking tongues, allowing the box to be opened and closed without tape.

Because the base is formed by side walls that roll over and trap the corner flaps, the tray achieves excellent stacking strength and a clean interior. However, the complex locking geometry requires manual assembly and flatbed die-cutting, making it a specialized choice compared to standard shipping cartons.

Common uses

Internal warehouse totes
Archive and document storage
Kitting and assembly line bins
Closed-loop retail distribution
Work-in-progress manufacturing

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Internal length

Internal width

Internal depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What is the estimated weight of the contents?

How will these totes mainly be used?

How will the totes be lifted and moved?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Internal Logistics, Kitting, and Storage

Internal logistics and parts kitting

The glueless assembly and reusable lid make this tote useful for moving components between workstations. The handles allow easy lifting, while the tongue-and-hole lock keeps the lid secured during palletized transport or cart movement.

Archive and document storage

The flat base and double-thick side walls provide the stacking strength needed for shelving. The attached lid protects contents from dust and light, and can be opened repeatedly without degrading the box structure.

Closed-loop retail distribution

For operations moving goods from a central warehouse to local stores, this box acts as a returnable transit item. Store employees can unpack the goods, flatten the box, and return it for the next cycle.

Work-in-progress manufacturing

The secure lid keeps dust and debris away from sensitive sub-assemblies as they wait for the next production stage on the factory floor.

Warehouse, Archive, and Assembly Environments

Fulfillment and distribution centers

Operations that need temporary, reusable bins often rely on this style. Because it ships flat and folds together without tape, fulfillment teams can erect totes on demand to organize orders before final packing.

Automotive and electronics assembly

Line workers benefit from the integrated handles and glueless interior, which prevents parts from snagging on tape or adhesive residue during fast-paced kitting.

Corporate offices and record management

Facilities managing long-term paper records choose this tote because the lid remains attached and the double-wall sides support heavy paper loads on shelving units.

When to Consider a Simpler Folder or Shipper

Single-trip parcel shipping

If the box will be sent through a parcel courier network, the unglued tongue locks can open if snagged or dropped. For single-trip delivery, a standard slotted container or a mailer that accepts a full tape seal is often more practical.

High-speed automated packing lines

This package relies entirely on manual folding, including rolling over the side walls and engaging the front tongues. If your facility uses automated case erectors, a machine-glued tray or standard slotted container is a better fit.

Board Thickness, Closure, and Production Route

Board caliper and lock friction

The side-wall roll-overs and front locking tongues rely on precise board thickness. Standard B-flute or C-flute corrugated works well, but switching to a heavy double-wall board can cause the locks to bind or the creases to tear during manual assembly.

Flatbed die-cutting requirements

The handle cutouts, locking holes, and angled roll-over flaps require a custom flatbed cutting die. This package cannot be produced on a simple rotary slotter, which should be factored into tooling expectations for new production runs.

Handle placement and payload weight

The handles are cut directly into the corrugated side walls. Heavy payloads should be physically tested to ensure the board grade and flute direction can support the lifting force without tearing.

Print surface and interior visibility

Because the left and right side walls roll over into the inside of the tray, the interior liner of the corrugated board will be visible on those panels. If the box is printed on the outside only, the rolled-over sections will display the unprinted inside face.

Adjusting the Locks, Lid, and Handles

Number of locking tongues

The template allows adjusting the number of front-wall tongues and corresponding lid holes. Wider boxes may benefit from three or more locks to prevent the center of the lid from bowing, while narrow boxes typically use two.

Lid flap depth

The front drop flap on the lid can be extended for a more secure overlap or shortened to save material, provided there is enough room to cleanly cut the locking holes.

Handle cutout dimensions

The width and height of the handle holes can be modified to accommodate gloved hands or specific lifting hooks used in your facility.

Packing details

Manual assembly labor

Because the side walls roll over and the front tongues must be engaged by hand, this tote takes longer to erect than a standard taped carton. It is best suited for operations where the reusability of the box offsets the initial folding time.

Additional notes

Manual folding sequence

Packers must fold the front and back walls first, fold the corner flaps inward, and then roll the side walls over those flaps to lock the base. This takes more time per box than erecting a standard taped carton.

FAQs

Can this tote be shipped through a parcel courier?

The tongue-and-hole lock is designed for storage, palletized transport, and internal handling. If shipped as a loose parcel, the locks can open during transit. Parcel shipping usually requires an external tape seal or strapping.

Does this box require glue or tape to assemble?

The base is secured by side walls that roll over and trap the corner flaps, and the lid secures using mechanical locking tongues. It is designed for entirely manual, glueless assembly without tape or adhesive.

Can I use heavy double-wall corrugated for extra strength?

Double-wall board is generally risky for this design. The thick material makes the side-wall roll-overs difficult to fold and can cause the front locking tongues to bind or crush. Standard single-wall flutes often work better.

Where will my outside print be visible?

Outside graphics will show on the exterior walls and the top of the lid. However, because the side walls roll over into the tray, the unprinted interior liner will be visible on the inside left and right panels unless the board is printed on both sides.

Why does this require flatbed die-cutting?

The complex shape of the roll-over panels, the precise locking tongues, and the handle cutouts cannot be formed by standard straight-line slotting equipment. A dedicated flatbed cutting die is necessary to cleanly cut and score these features.

How much weight can the handles support?

The safe lifting weight depends entirely on the chosen board grade and flute direction. Heavy payloads should be physically tested to ensure the handles do not tear during lifting.

How many times can the lid be opened and closed?

The mechanical tongues are designed for repeated access during internal use. The exact lifespan depends on the board quality and how carefully the box is handled, but it outlasts taped boxes that must be cut open.

How are these delivered to my facility?

They arrive flat and are manually folded on demand. This saves warehouse space compared to storing rigid plastic totes or pre-assembled bins.
