Primary Packing and Presentation Jobs
Catering and Flat Baked Goods
The webbed corners keep grease and crumbs inside the tray without relying on glued joints. The central locking spine prevents the lid from sagging onto the food, even when stacked for local delivery.
Retail Presentation Kits
The split-lid opening provides a theatrical unboxing experience for apparel, flat goods, or kitted items, separating it from single-lid tuck-top boxes.
Inner E-commerce Packaging
Works well as a presentation layer inside a master shipper, keeping items secure and organized before the final reveal to the customer.
Apparel and Flat Soft Goods
The split lid provides a clean presentation for folded garments, keeping them flat and secure without requiring adhesive or tape.
Retail and Fulfillment Contexts
Food Service
Operations that need reliable stacking for local delivery and leak-resistant corners, but want to avoid the storage footprint of pre-glued trays.
Boutique Retail
Brands that value the unique center-opening presentation and are willing to accommodate manual folding to achieve a specific unboxing aesthetic.
Subscription and Kitting Operations
Fulfillment teams that assemble multi-item boxes by hand and want a memorable unboxing reveal without relying on complex glued structures.
When to Evaluate Alternative Tray Styles
High-Speed Automated Packing
If packing at high speeds on an automated line, the manual folding of the webbed corners and the simultaneous seating of the lid tabs will slow down the process. A machine-erected glued tray is often a better fit.
Standalone Parcel Shipping
If the box will ship through courier networks without an outer carton, the friction-based center lock may open during rough handling. A standard mailer with a secure front lock or tape seal is less risky.
One-Handed Closing
If operators need to close the box quickly with one hand, a standard single-lid tray that tucks into the front wall is much faster to secure than aligning two separate lid tabs.
Board, Assembly, and Print Decisions
Board Thickness and Flute
This lock relies on exact material thickness. E-flute or thinner is highly recommended so the webbed corners fold cleanly and the central spine fits perfectly into the side notches. Thick flutes often cause the corners to bind.
Assembly Labor
The tray requires manual folding. Operators must push the webbed corners inward, erect the walls, and seat both lid tabs into the side notches simultaneously.
Ventilation Needs
If packing hot food, cutouts can be added to the design to vent steam and prevent condensation from weakening the corrugated board.
Print Layout Across the Split Lid
Because the top surface is divided into two panels, artwork must be planned to span the gap or treat each side independently, avoiding critical logos directly on the center seam.

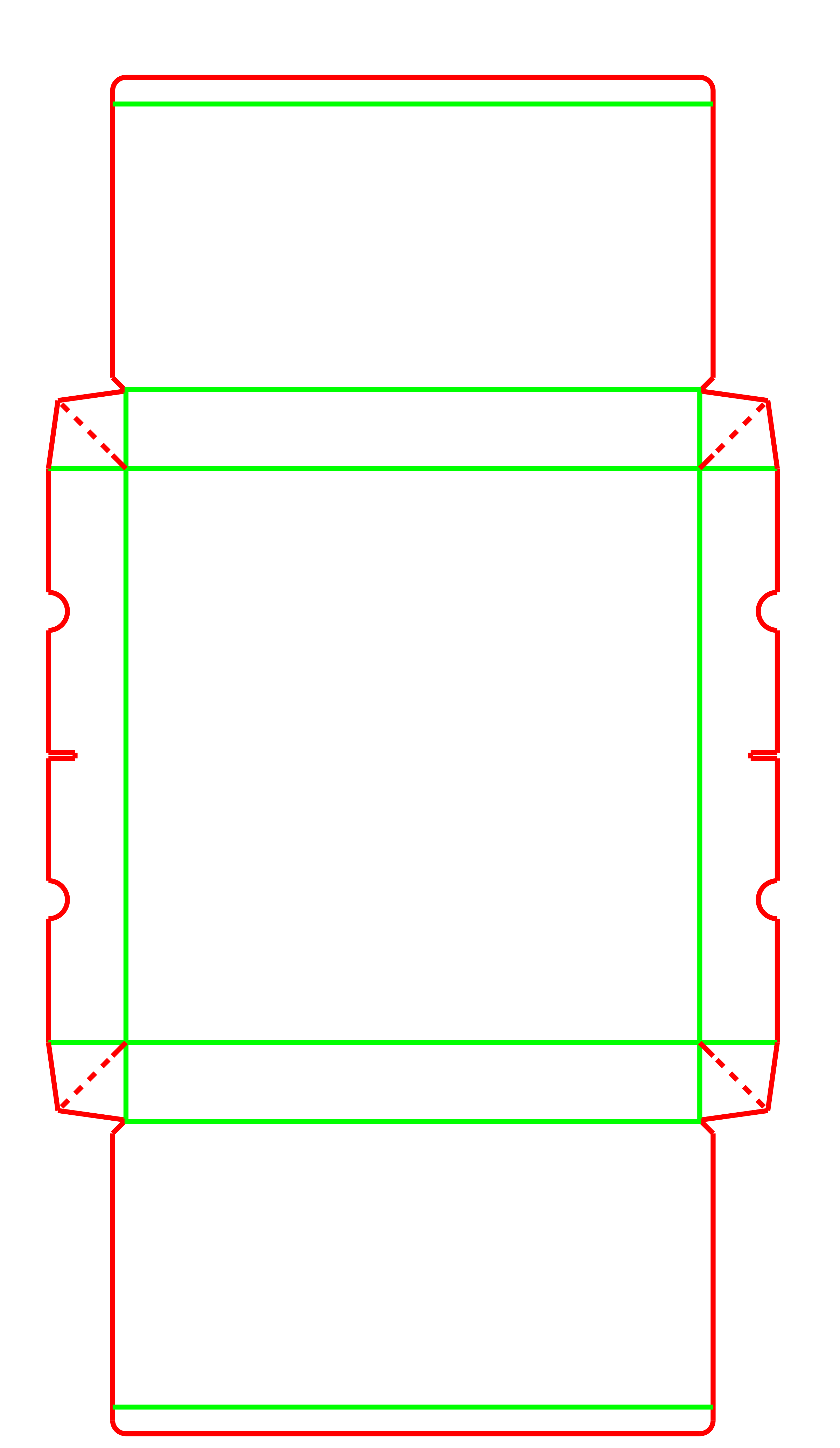

Template Adjustments for Fit and Access
Thumb Cutouts
The semi-circular cutouts where the lids meet can be adjusted in size to make reopening easier for the end user.
Spine Depth
The depth of the central locking tabs can be modified to balance lock security with ease of opening, depending on the product weight and handling route.
Ventilation Cutouts
The template supports adding ventilation holes, which helps release steam when packing warm food items.
Packing details
Flat Delivery and Storage
The completely glue-free design means the trays ship flat, maximizing pallet efficiency and saving warehouse space before use.
Additional notes
Base stability for heavy items
While the central spine provides excellent top-down crush resistance, the base relies on the webbed corners for tension. Very heavy items may require a rigid insert to prevent the base from sagging during transit.
Related Trays and Folders
FAQs
Can this tray be shipped through parcel networks?
The central friction lock is designed for presentation and palletized delivery. For individual courier shipping, it should be placed inside an outer mailer or secured with banding to prevent it from opening.
Does this box require glue or tape to assemble?
No. The tray uses webbed corners and a mechanical center lock to hold its shape, eliminating the need for adhesive.
What board thickness works best for this design?
Thinner profiles like E-flute are highly recommended. Thick flutes create too much bulk in the webbed corners and may prevent the central spine from locking correctly into the side walls.
Are the corners liquid-tight?
The webbed corners fold inward without cuts, providing a continuous barrier against crumbs and minor grease, but they are not fully liquid-tight.
How does the central lock work?
The front tabs of the two lids fold down back-to-back, forming a double-thick spine. The ends of this spine drop into pre-cut notches on the side walls to hold the box closed.
Can this be packed on an automated line?
This is a manual-assembly package. The webbed corners and simultaneous seating of the lid tabs require hand packing.
How does the split lid affect top-panel artwork?
Artwork must be split across the two meeting panels. Critical logos or text should be placed carefully to avoid the center seam so they align correctly when the box is closed.
Why is it important to test a physical sample?
The central locking notches are cut exactly to twice the board thickness. Testing ensures the chosen material folds cleanly and locks securely without binding.
