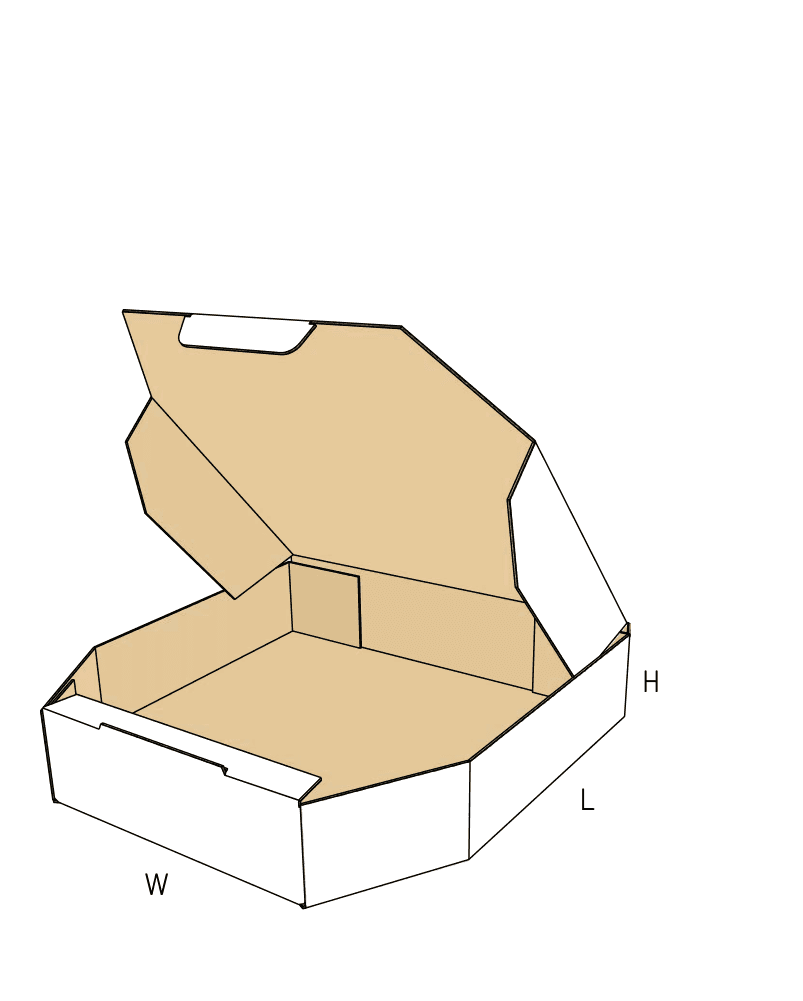

FEFCO 0463

Premium Hexagonal Presentation Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Triple-thick side walls provide high crush resistance
Distinct hexagonal footprint stands out in retail and gifting
Requires manual assembly and fine-flute corrugated board

About this product

This premium hexagonal presentation box locks into a rigid tray with an integrated hinged lid. By rolling the side walls over internal corner flaps, the design creates a triple-thick perimeter that provides exceptional side-crush resistance.

Because of the complex folding sequence and large flat footprint, this style is reserved for high-end retail presentations, corporate gifting, and specialty kits where the unique shape and structural rigidity justify the manual packing labor.

Common uses

Corporate gifting and promotional kits
Fragile specialty retail items
Premium food and confectionery presentations
Technical packaging for delicate prototypes

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Internal length

Internal width

Internal depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this box be distributed?

Will you be using a custom insert to hold items in place?

Who will be assembling and packing these boxes?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Premium presentation and specialty kitting

Corporate gifting and promotional kits

The unique shape stands out immediately. The rigid, triple-thick walls hold custom inserts securely, presenting branded merchandise or printed collateral clearly as soon as the lid opens.

Fragile specialty retail items

The multi-layered corners absorb lateral impacts better than standard single-wall boxes, protecting delicate components or glass items during handling and retail display.

Premium food and confectionery

The clean, tape-free presentation and hinged lid create a high-end unboxing experience for specialty foods. Direct food contact will require an appropriate barrier lining or primary packaging.

Technical packaging for delicate prototypes

Engineering teams shipping high-value, low-volume devices rely on the rigid perimeter to isolate delicate components from side impacts during transit.

Industries relying on rigid hexagonal packaging

Luxury e-commerce and subscription brands

Brands looking to break away from the standard rectangular mailer use this shape to create a memorable reveal. Because the tongue lock can pop open under drop shock, e-commerce applications usually require an outer master carton or a secure wafer seal.

Specialty electronics

Technical teams shipping high-value, low-volume devices rely on the rigid perimeter to protect delicate components from side impacts during transit.

Corporate event marketing

Event organizers use the distinct hexagonal footprint to distribute welcome kits and VIP materials, relying on the mechanical tongue lock for repeated opening and closing throughout an event.

When a simpler box style makes more sense

High-volume local delivery

Evaluate the FEFCO 0462 if you are packing pizzas or hot baked goods for local delivery. It has a similar hexagonal profile but uses simple cut corners and a friction tuck, making it much faster to assemble and less demanding on material.

Standard e-commerce fulfillment

Look at the FEFCO 0427 if your packing line needs speed and your pallets need to be densely packed. A standard rectangular mailer nests perfectly on a pallet and uses far less corrugated board.

Close variants and lookalike dielines

The closest library neighbors include EVC46003, 0466, EVC46002. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, closure, and packing decisions

Board thickness limits

This design requires fine-flute corrugated board (such as E or F flute). The side walls must roll 180 degrees over the corner flaps. If the board is too thick, the hinges will crack, and the locking tabs will fail to reach the base slots.

Assembly labor

This is a strictly manual, two-handed assembly process. Operators must fold the walls, hold the corner flaps inward, and exert thumb force to snap the roll-over layers down into the base slots. It cannot be run through automated folder-gluers.

Parcel shipping closure

The front tongue lock is designed for clean presentation and repeated opening. If the box is traveling through a mixed-carrier courier network, it will need a clear wafer seal, outer tape, or a master shipper to prevent the lid from popping open.

Internal insert compatibility

The triple-thick walls create a highly rigid frame that pairs well with custom foam or die-cut corrugated inserts, keeping heavy or fragile items isolated from the outer impact zones.

Structural adjustments for the tongue lock and hinges

Tongue lock friction

The clearances around the front tab and receiving slot can be adjusted. This ensures the lid stays closed without tearing the tab, which is especially important if you change the board grade or apply a slick, high-gloss varnish.

Base slot clearance

The slots in the base panel can be widened or narrowed to match the exact caliper of the chosen corrugated board, ensuring the roll-over walls snap into place securely without bowing.

Lid hinge scoring

The double creases on the back wall can be modified to reduce the spring-back tension of the lid, helping the tongue lock stay seated when using slightly heavier board grades.

Board and packing details

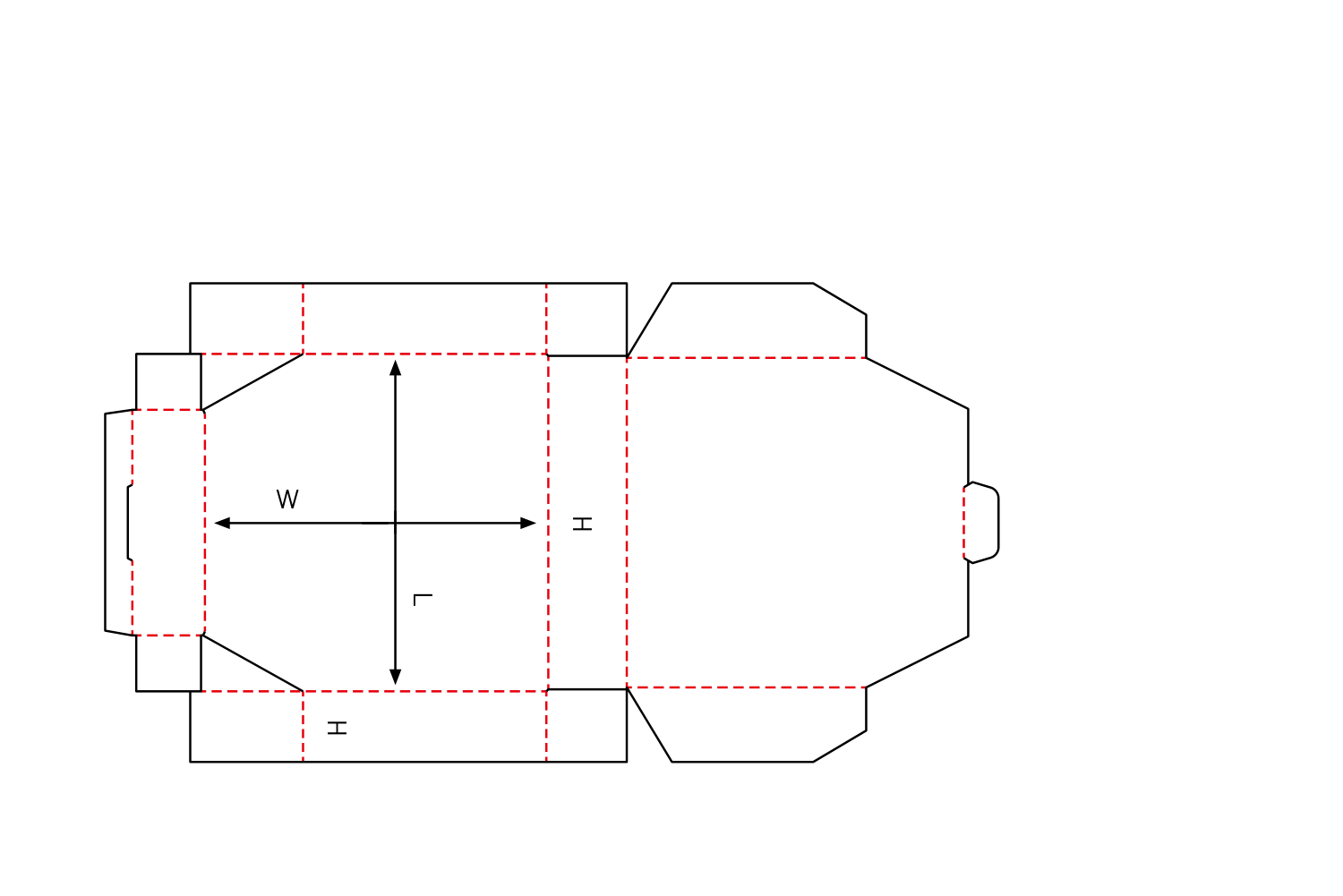

Blank sprawl and material efficiency

The hexagonal base, combined with the extended roll-over walls and the full hinged lid, creates a massive, irregular flat blank. This shape leaves large offcut waste areas on the die-cutting press, requiring more total material than a rectangular box of the same internal volume.

Additional notes

Print surface and unboxing reveal

The large hinged lid provides an uninterrupted canvas for branding. Because the box opens fully, the inside of the lid and the interior walls are immediately visible, making double-sided printing highly effective for this style.

FAQs

Shipping and route

Can this box be shipped through the postal network without tape?

No. The front tongue lock is a friction fit designed for presentation. Under the drop shocks typical of courier networks, the lid can pop open. Parcel shipments will require an external tape strip, a strong wafer seal, or an outer master carton.

Board and material

Can we use heavy double-wall board for extra protection?

It is highly discouraged. The 180-degree roll-over walls force three layers of board to interact at the corners. Thick double-wall board will bind, causing the hinges to crack and preventing the locks from seating. The triple-thick corners already provide excellent side protection when using a fine flute.

Assembly and packing

Does this box require glue to assemble?

No. It uses mechanical friction locks. The side walls roll over the internal corner flaps and snap into slots in the base, holding the entire hexagonal shape together without adhesive.

Can this be assembled on an automated packing line?

No. Trapping the corner flaps inside the roll-over walls requires manual dexterity. This box must be erected by hand at a pack bench.

Material efficiency

Why does this box use more material than a standard mailer?

The hexagonal shape and large roll-over flaps create an irregular flat blank that does not nest well on the manufacturing press. This generates more offcut waste, which increases the total board required per unit.

Modifications

Can we add a carrying handle to the lid?

Adding a die-cut handle weakens the lid and puts upward tension on the front tongue lock, which may cause it to fail under the weight of the product. If portability is the main goal, a dedicated carrier box is usually a safer choice.

Inserts and product fit

Does this box work well with custom foam inserts?

Yes. The rigid, triple-thick walls provide a strong, non-flexing frame that holds foam or die-cut corrugated inserts securely in place, making it excellent for isolating fragile components.

Storage and logistics

How does the hexagonal shape affect pallet stacking?

Unlike rectangular boxes, hexagonal footprints cannot be stacked gaplessly on a standard pallet. This reduces overall pallet density and requires careful stretch-wrapping to secure the load.
