EVC41322

Corrugated Briefcase Box with Handle

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Integrated 2-ply carrying handle
Unglued tab-and-slot manual assembly
Requires an outer carton for parcel shipping

About this product

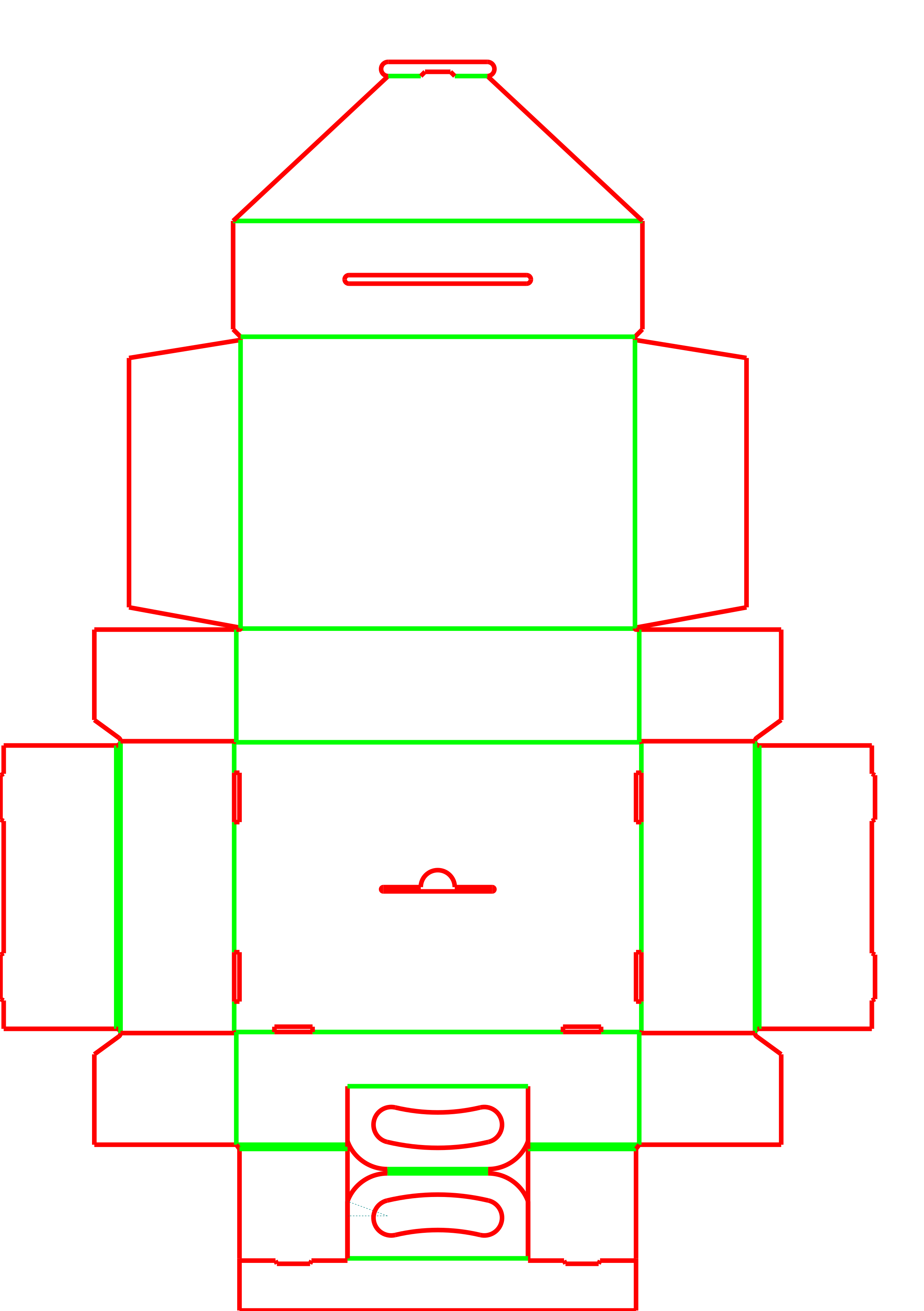

The EVC41322 is a one-piece corrugated carrying case designed for premium presentations, promotional kits, and hand-carried samples. It features a distinctive trapezoidal tuck lid and an integrated two-ply handle, creating a self-contained briefcase that requires no tape or glue to assemble.

Because the handle protrudes from the top panel and the side walls rely on manual tab-and-slot locks, this package is built for visual impact and direct hand-offs rather than high-speed fulfillment or parcel shipping.

Common uses

Sales sample kits
Event VIP handouts
Lightweight retail multi-packs
Employee onboarding kits

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length (side to side)

Inside width (front to back)

Inside depth (top to bottom)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these boxes be distributed?

What is the estimated weight of the contents?

What are your printing expectations?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Presentation and Hand-Carried Kits

Sales Samples and Promotional Kits

The briefcase style provides a clean, professional unboxing experience. The trapezoidal lid tucks neatly into the front panel, keeping the primary display area free of tape and easy to open for a guided presentation.

Lightweight Retail Multi-Packs

For grab-and-go retail items, the integrated handle encourages immediate carrying. The unglued construction allows the box to be shipped flat to the store and assembled by retail staff as needed.

Employee Onboarding Kits

The self-contained carrying case design is well-suited for handing out welcome materials, apparel, and tech accessories to new hires in an office setting.

Trade Show Handouts

When distributing literature or product samples directly to attendees, the carrying handle eliminates the need for a separate shopping bag, while the flat front and back panels offer large, uninterrupted surfaces for event branding.

Event, Retail, and B2B Handouts

Hand-Packing and Assembly

This box relies entirely on a sequence of manual folds, including side-wall locking tabs and a slotted top panel. It fits operations that prioritize presentation quality over packing speed, as the tab-and-slot locks require careful hand assembly.

Premium B2B Presentations

For direct sales hand-offs, the glueless construction and integrated handle create a polished, self-contained package that feels more like a briefcase than a standard shipping carton.

Kitting for Master Shippers

Because the protruding handle prevents vertical stacking, these boxes are often packed into larger master cartons for distribution to regional offices or event spaces before being handed out individually.

When to Consider a Different Box Style

High-Volume or Automated Packing

The multi-step folding sequence and friction locks cannot be erected by automated machinery. If packing speed is the primary goal, a standard glued auto-bottom or a machine-erected tray is a faster alternative.

Direct Parcel Shipping

The tuck lid and mechanical side locks can pop open during rough transit or conveyor sorting. If the box must ship through a courier network on its own, a standard mailer with a locking tab or an external seal is a safer choice.

Vertical Stacking Requirements

The protruding top handle prevents these boxes from being stacked directly on top of one another. If pallet density or retail shelf stacking is required, consider a flat-top box or a design with a recessed handle.

Board, Print, and Packing Route Choices

Board Thickness and Lock Clearance

E-flute is generally the most reliable fit for this design. The side-wall locking tabs, the tuck tongue, and the top handle slot require precise clearances. Thicker boards like B-flute or double-wall can cause the locks to bind or the handle to tear the top slot during assembly.

Inside Liner and Handle Printing

The two-ply handle is formed by folding the inner top panel upward. This means the inside liner of the corrugated board will face outward on the handle grip. If a uniform exterior color is required, the board should be printed on both sides.

Outer Master Shippers

Because this briefcase cannot be stacked or shipped loose in a parcel network, plan for an outer master carton if the kits need to be distributed to individual addresses or shipped in bulk to an event space.

Handle Cutout Proportions

The length and height of the handle cutouts must remain proportional to the overall box width. If the handle is too large relative to the top panel, it can weaken the inner roof structure and cause the box to sag when lifted.

Adjusting the Handle and Lid Profile

Handle Size and Grip Clearance

The length and height of the handle cutouts can be adjusted to accommodate different hand sizes or product weights, provided the changes remain proportional to the overall box width.

Lid Shape Modifications

While the standard template uses a trapezoidal lid, the front flap can be modified to a straight rectangular drop or a custom curve, as long as the central tuck tongue aligns with the receiving slit on the front wall.

Side-Wall Lock Tab Count

For deeper boxes, the number of locking tabs on the side flaps can be increased to prevent the front and back walls from bowing outward under the weight of the contents.

Packing details

Side-Wall Splay and Overfilling

The side walls are held in place by small tabs inserted into the base. Overfilling the box or packing dense, shifting items can put outward pressure on these walls, potentially causing the tabs to slip. Testing with the actual product weight is recommended.

Additional notes

Manual assembly time

The tab-and-slot side walls and multi-layered top closure require a deliberate, multi-step folding sequence. It takes longer to erect than a standard crash-bottom or roll-end tray.

FAQs

Can I ship this box through the mail without an outer carton?

No. The tuck lid and mechanical side locks are designed for hand-carrying and presentation. Rough handling in a parcel network can cause the locks to open. It should be placed inside a master shipper for transit.

Does this box require glue or tape to assemble?

No. The entire package is held together by mechanical friction locks. The side walls use tab-and-slot connections, and the top panel locks over the handle.

Can these boxes be stacked on a pallet or retail shelf?

The protruding top handle prevents direct vertical stacking once assembled. They must be stored flat before use, or packed into master cartons if they need to be palletized after assembly.

Which board thickness fits this design?

A thinner board, such as E-flute, is strongly recommended. The design relies on intricate locking tabs and a slotted top panel that must pass over a two-ply handle. Thicker boards can make these folds difficult and cause the locks to bind.

Will the inside color of the box be visible from the outside?

Yes, specifically on the handle. The handle is formed by folding an inner panel upward, exposing the inside liner. If you want the handle to match the outside graphics, the board should be printed on both sides.

Is this box suitable for heavy items?

It is intended for lightweight kits and samples. All lifting force is concentrated on the corrugated handle cutouts and the top panel slot. Heavy items may cause the handle base to tear.

How are the side walls secured?

The side walls are formed by folding flaps inward from the front and back panels. Small tabs on these flaps insert into corresponding slots on the bottom panel, locking the walls in place without adhesive.

Can the shape of the front lid be changed?

Yes. The standard design features a trapezoidal lid, but the front flap can be adjusted to a straight rectangle or a custom curve, provided the central tuck tongue still aligns with the front wall slit.
