Corrugated Counter Display Tray with Double Bottom

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Double-thick corrugated floor supports heavier retail items without sagging
  • High back wall and sloped sides maximize product visibility and branding space
  • Manual assembly with a roll-over front lock requires no glue or tape

About this product

The EVC61001 is an open-top corrugated display tray built for retail shelving and point-of-purchase counters. It features a high back panel for branding, sloped side walls for product visibility, and a low front lip that locks the assembly together without adhesive.

Its defining feature is a double-thick floor. Two large inner flaps fold in from the side walls, covered by a main outer bottom panel. This creates a rigid base that resists bowing under heavy retail items like beverages, jars, or dense hardware, trading some material efficiency for excellent shelf performance.

Common uses

  • Beverage and jar retail displays
  • Dense hardware or cosmetics counter displays
  • Shelf-ready packaging (SRP) for co-packing workflows

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail and Point-of-Purchase Display Jobs

Heavy-item counter displays

The double-layered floor makes this tray well-equipped for holding dense products like glass bottles, canned goods, or cosmetics. The reinforced base transfers weight to the side walls, keeping the tray flat and stable on retail counters.

Shelf-ready packaging (SRP)

Designed to move straight from a master shipping carton to the retail shelf. The high back provides a backstop for the products, while the sloped sides and low front lip make it easy for customers to reach the items.

Dense hardware and tool kits

For hardware items that might punch through or warp a single-wall base, the double bottom provides the necessary rigidity. The open top allows shoppers to inspect the tools or parts without opening a closed box.

Beverage and jar retail presentations

Glass jars and beverage cans exert concentrated weight on the floor of a display. The overlapping inner and outer bottom panels prevent the base from bowing when the tray is lifted or shifted on the store shelf.

Co-Packing and Shelf-Ready Workflows

Co-packing and manual assembly lines

Because the tray erects manually and locks via a roll-over front wall, co-packers can set it up quickly at the packing bench. It requires no specialized gluing equipment or tape, keeping the assembly area clean and straightforward.

Retailers requiring shelf-ready displays

Store staff prefer displays that do not require cutting or complex unpacking. This tray arrives loaded inside a master shipper, ready to be pulled out and placed directly on the shelf.

Brand owners needing two-sided print visibility

The high back wall and low front lip provide distinct branding zones. Brand owners can use the inside back wall for primary messaging and the outside front lip for pricing or secondary graphics.

Single-Bottom Trays and Master Shippers

Lighter products and material efficiency

If the items being displayed are lightweight, a standard roll-end tray with a single bottom will use less corrugated board and cost less to produce. The double bottom is specifically for preventing sag under heavy loads.

Transit and parcel shipping

This is an open-top display, not a shipping container. Products packed in this tray require an outer master carton to travel safely through distribution networks.

Board Thickness, Print Surfaces, and Fit

Two-sided print requirements

Retail displays often need graphics on both the inside of the high back wall and the outside of the front lip. Discuss whether your artwork requires two-sided printing or specific mottled liners to achieve the right presentation.

Flute profile and locking clearance

A standard B-flute offers a good balance of rigidity and crisp folding. If a thicker board like C-flute is chosen for extra strength, the front locking tabs and slots must be carefully adjusted to ensure they still engage smoothly.

Master shipper sizing

Because the display has an open top and a high back wall, the outer shipping carton must be sized to protect the back panel from crushing or scuffing during transit.

Assembly labor planning

The folding sequence for the inner and outer bottom flaps requires manual packing. Plan for hand assembly at the fulfillment center rather than relying on automated tray-forming machinery.

Front Lip Height, Side Slopes, and Clearances

Front lip height

The low front panel can be raised or lowered to expose more of the product or provide more retention, as long as it remains shorter than the overall tray height.

Side wall profile

The slope and curve of the side walls can be modified to match the shape of the product or to create a specific visual frame for the display.

Locking tab dimensions

The size of the locking tongue on the inner front wall can be adjusted based on the board thickness to ensure a secure hold without tearing the corrugated material.

Packing details

Blank size and flatbed die-cutting

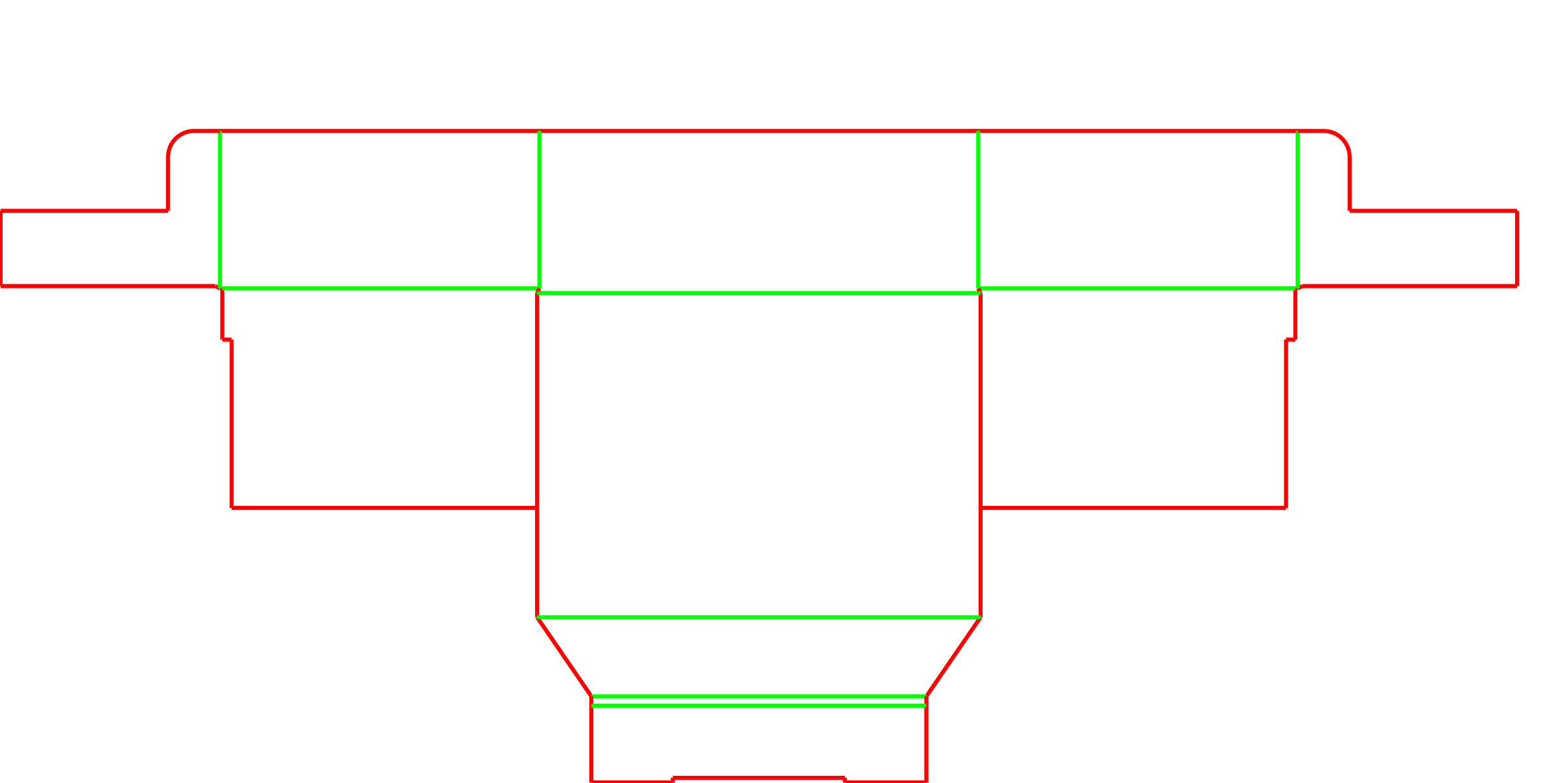

The cross-shaped flat blank required to form the double bottom takes up considerable space on a corrugated sheet. This tray requires flatbed die-cutting to produce the rounded corners, sloped sides, and locking slots.
